Description
- For Sound Reinforcement
- 12 x Mic/Line Inputs
- 8 x Mic/Line Outputs
- USB Audio Interface
- Noise Cancellation
- DARE Feedback Elimination

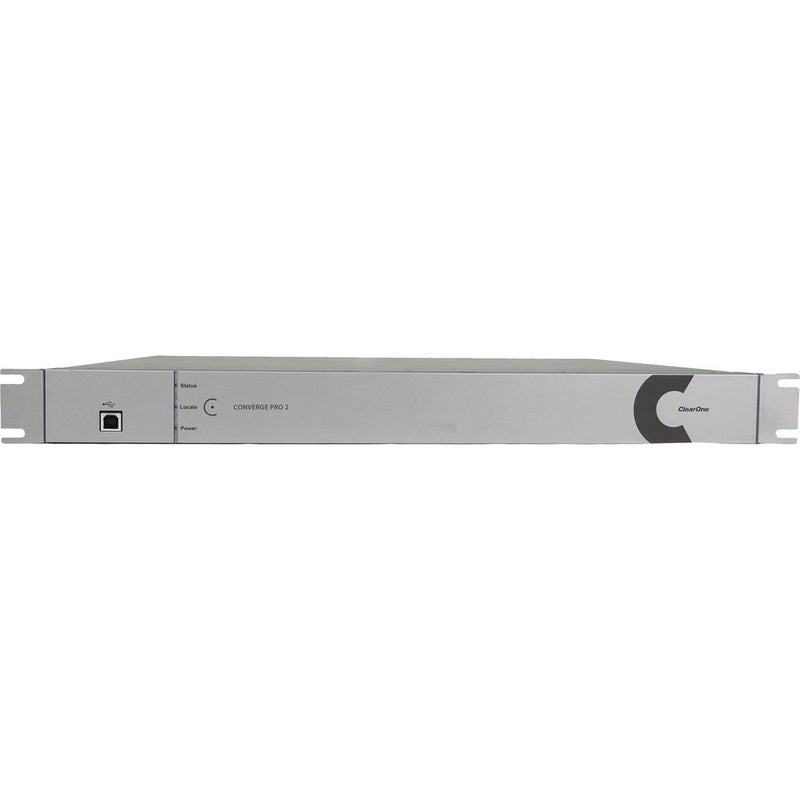

The CONVERGE Pro 2 128SR Professional Audio DSP Platform from Clear One is a professional audio product that delivers rich audio performance, enhanced management, and simplified configuration in sound reinforcement applications for boardrooms, conference rooms, lecture halls, courtrooms, and houses of worship.
It features twelve mic/line inputs with eight mic/line outputs, a USB audio interface, noise cancellation, and DARE feedback elimination. CONVERGE Pro 2 128SR brings simple, single-cable connectivity to peripherals, the ability to stack devices, intuitive software, and optional choices for digital-audio networking.
Furthermore, smaller conference rooms can be served using a single CONVERGE Pro 2 128SR processor. You can connect up to three DIALOG 20 dual-wireless microphones, and all these devices use a single P-Link peripheral connection up to 200' apart.
- Architecture
-
- 12 Mic/Line inputs
- 8 Mic/Line outputs
- Reduced footprint and power consumption
- Scalable Connectivity
-
- Standalone and daisy-chained system
- Stack units for up to 144 Mic/Line inputs
- Expansion bus �C-Link� with 64-channels
- �P-Link� bus to connect peripheral devices
- Audio Signal Processing
-
- Distributed Echo Cancellation on every mic input
- Noise Cancellation with Adaptive-Ambience
- Acoustic Intelligence with faster convergence
- DARE feedback elimination
- Microphone gating
- Configuration & Management
-
- Updated console software
- Auto-discovery of devices
- MatrixView for entire system
- FlowView for visualized audio signal paths
- System monitoring and troubleshooting
In the Box
ClearOne CONVERGE Pro 2 128SR Professional Audio DSP Platform
ClearOne 9103200101 Specs
| Mic/Line Inputs and Outputs | |
|---|---|
| Inputs | Balanced Audio Inputs: 0.15" / 3.81 mm orange color Phoenix/Euroblock male header, push-on mini-terminal block |
| Outputs | Balanced Audio Outputs: 0.15" / 3.81 mm black color Phoenix/Euroblock male header, push-on mini-terminal block |
| Frequency Response | 20 Hz to 22 kHz @ +4 dBu, ±0.5 dBu |
| Equivalent Input Noise | 20 kHz BW, max gain, Rs = 150 Ohms, -126 dBu |
| Total Harmonic Distortion (THD) + N | 20 Hz - 22 kHz @ +4 dBu, line level, 0.006% 20 Hz - 22 kHz @ -56 dBu, mic level, < 0.04% |
| Dynamic Range | 20 Hz - 20 kHz @ 0 dB, > 105 dB |
| Crosstalk | Mic/Line: Channel to channel, stimulus at 20 dBu to receptor at -56 dBu, 1 kHz, < -98 dB |
| Input Impedance | Balanced (line to ground), 2.2 kOhms, 1% |
| Nominal Input Level | Adjustable -56 dB to 0 dB, 7 dB step coarse gain |
| Maximum Input Level | -65 dBu to 20 dBu |
| Phantom Power | 48 V, impedance 6.81 kOhms |
| Output Impedance | Balanced (line to ground), 95 Ohms, 1% |
| Output Level | Nominal: 0 dBu Maximum: 20 dBu Selectable: -40 dBu |
| USB Audio | |
|---|---|
| Port Type | USB-B connector |
| Audio | Digital audio, 2 x 2 bidirectional channels |
| Sample Rate | 48 kHz |
| Bit Depth | Sample: 24-bit |
| Compatible | USB 2.0 USB 3.0 |
| Ethernet | |
|---|---|
| Port Type | RJ45, 10/100 Mb/s Ethernet network, auto negotiation |
| IP Address Assignment | IPv4 (IPv6 upgradeable through future s/w, f/w upgrade) |
| C-Link Expansion Bus | |
|---|---|
| Port Types | RJ45 (Cat 5e or 6) C-Link In & Out: Proprietary expansion bus Audio: 64 expansion channels Cable: Solid core, factory terminated Cat 5e or 6 cable Distance: Up to 150' / 45 m |
| P-Link Peripheral Bus | |
|---|---|
| Port Types | RJ45 (Cat 5e or 6) |
| P-Link Connector | In and Out: Proprietary peripheral bus |
| PoE | In: P-Link in port PoE 802.3 af mode B, midspan Power on "spare pairs" 4, 5, 7, and 8 Input Voltage Range: 48 V to 56 V |
| Audio | Up to 3 DIALOG 20 wireless receiver units + Up to 3 USB expander units + Up to 3 GPIO expander units |
| Cable | Solid core, factory terminated Cat 5e or 6 cable Distance: Up to 200' / 60 m |
| Distance | Up to 150' / 200 m |
| Long Distance P-Link | Increases P-Link distance from 200 x 650' / 61.0 x 198.1 m 650' / 200 m maximum cable distance between any two units Cat 6, 550 MHz, 23 AWG, solid conductor cable Do not use copper clad aluminum (CCA) cable Available only for BFM2 peripheral units 48 V PoE midspan mode B power injector for 1 BFM2 unit 56 V PoE midspan mode B power injector for 3 BFM2 units |
| RS232 Parameters | |
|---|---|
| Port Type | DB9 female |
| Settings | 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control |
| Support | Serial commands |
| GPIO | |
|---|---|
| Port Type | 0.2" / 0.5 cm green color Phoenix/Euroblock type male header |
| Support | Control, status, variable voltage control |
| Power Pin Assignment | 5 VDC @ 350 mA power source |
| Pin Assignments | Pin 1 to 4: Open Collector Outputs: 40 VDC @ 250 mA Active Outputs (Source/Sink): 5 VDC @ 25 mA Logic Inputs: 40.2 kOhms pull up Variable Voltage Control Inputs: 5 VDC max Ground Pin: GND |
| USB Control | |
|---|---|
| Port Type | USB-B connector |
| Compatible | USB 2.0, USB 3.0 |
| Power | |
|---|---|
| Port Type | AC inlet |
| Mains Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 50 W typical |
| Thermal | 170 BTU/hr typical |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Dimensions and Weight | |
|---|---|
| Rack Units | 1 RU |
| Dimensions (W x D x H) | 17.0 x 10.7 x 1.7" / 43.2 x 27.3 x 4.4 cm without rack-ears 19.0 x 10.7 x 1.7" / 48.3 x 27.3 x 4.4 cm with rack-ears |
| Weight | 9.3 lb / 4.2 kg |
