Description
ClearOne BMA 360 Overview
- 1Description
- 2Deep Sidelobe Beamforming Technology
- 3Adaptive Steering Technology
- 4Superior Beam Topology
- 56th Generation Acoustic Echo Cancellation
- 6Onboard DSP Handles Audio Processing

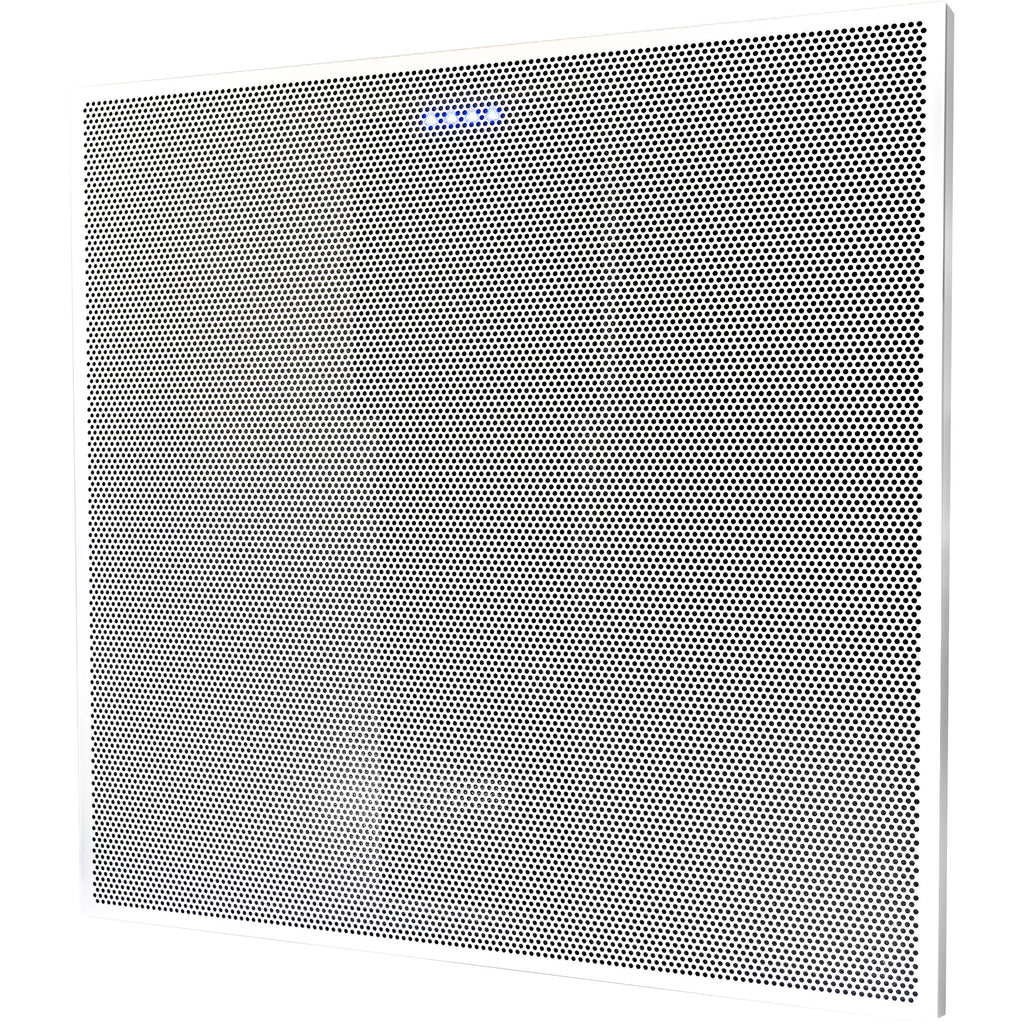

The ClearOne BMA 360 is a technologically advanced, professional A/V conferencing microphone with a 24" ceiling-tile form factor that blends in with most of today's drop ceilings. Heralded as the first truly wideband, frequency-invariant beamforming mic array, it combines uniform gain response across all frequency bands with ClearOne Audio Intelligence technology to give you the ultimate in crystal-clear, full-fidelity audio�no matter how challenging the acoustics of your room and whether the participants are seated, standing, or moving across the room.
The BMA 360 connects to a CONVERGE Pro 2 DSP mixer (available separately) via a single Cat 6 cable for audio data and PoE++ power. It provides full 360° coverage with full-duplex transmission for productive long-distance meetings and distance learning in small-to-large conference rooms, flex rooms, courtrooms, classrooms, and medical theaters�regardless of their shape or seating arrangement.
All the DSP processing resides onboard the BMA 360 including noise cancellation, echo cancellation, audio filters, and beam selection. A simple, single-workflow configuration is provided by ClearOne's CONSOLE AI software. These integrated features significantly reduce system-design complexity, simplify installation with less cables, use less rack space, offer fewer distance limitations, and lower installation and configuration costs.
As the size of your meetings grows, the BMA 360 supports daisy-chaining of up to three ceiling tiles via P-Link for simpler wiring and longer distances compared to networked "home run" connections via Ethernet. Up to 200' can be placed between each tile, allowing you to cover larger spaces with the mics working in tandem with each other�ideal for flex rooms and extended conference setups.
The unit also features powerful, built-in amplifiers configurable as four channels at 15W or two channels at 30W provide flexibility when amplification is needed for driving local loudspeakers in the same room.
The BMA 360 fits 24" ceiling grids and incorporates a centralized VESA-standard hole pattern that supports pole mounting. Adapter mounting kits for hard ceilings and recessed ceilings are also available separately.
Deep Sidelobe Beamforming Technology
Adaptive Steering Technology
Adaptive Steering also supports camera tracking, with the microphone following the conversation, leading the camera where in the room the participants are speaking.
Superior Beam Topology
Number of Beams: 6, 8, 10, 11, or 12
Room Patterns: Full circle/square, rectangular, semi-circle/classroom
Coverage Sizes: 24 sizes from small 10 x 10' up to extra-large 36 x 20'
6th Generation Acoustic Echo Cancellation
Onboard DSP Handles Audio Processing
In the Box
- ClearOne BMA 360 Conferencing Beamforming Microphone Array for CONVERGE Pro 2 DSP Mixers (24" Ceiling Tile)
- Limited 3-Year Warranty
- Description
- Deep Sidelobe Beamforming Technology
- Adaptive Steering Technology
- Superior Beam Topology
- 6th Generation Acoustic Echo Cancellation
- Onboard DSP Handles Audio Processing
ClearOne BMA 360 Specs
| Beamwidth | 35, 45, and 55° with Frequency Invariance |
| Beamforming Range | 100 Hz to 20 kHz |
| Number of Beams | 6, 8, 10, 11, or 12 |
| Room Patterns | Full Circle/Square, Rectangular, Semi-Circle/Classroom |
| Coverage | 24 Sizes from Small 10 x 10' up to Extra-Large 36 x 20'
Ceiling Height Configurable with CONSOLE AI from 7 to 20' |
| Specifications | Deep Sidelobes: Down to 45 dB of Depth
Beam Pointing Accuracy: 0.2 dB Dynamic Range: > 70 dB (20 Hz to 20 kHz) |
| Audio | Acoustic Echo Cancellation (AEC) On/Off
Noise Cancellation (NC) On/Off Automatic Level Control (ALC) On/Off Automatic Gain Control (AGC) Gain Adjust Mute On/Off |
| Output Connector | 5.08 mm Black Header, Phoenix-Type Euroblock |
| Audio | 4 Channels |
| Output Power | 4 x 15 W Max, 8-Ohm Load
2 x 30 W, 4-Ohm Load, Bridged 2 x 30 W, 4-Ohm Load, Parallel Bridge-Tied Load |
| Frequency Response | 20 Hz to 22 kHz, ±0.5 dB |
| Ports | RJ45 |
| P-Link I/O | Proprietary Peripheral Bus |
| P-Link Power | 56 V 36 W IEEE 802.3at Compliant Devices or Equivalent, Mode B |
| Cable | Solid Core 24 AWG, Factory-Terminated Cat 6 |
| Distance | Up to 200' / 60 m |
| PoE++ Port | Port Type: RJ45 PoE Power
Power On All Pairs 56 V 90 W IEEE 802.3bt Compliant Devices or Equivalent, Mode A and B, Midspan Cable: Solid Core, 24 AWG, Factory-Terminated Cat 6 Power Selection: Automatically Senses and Switches to Whichever Input Port Has PoE Power |
| PoE Requirements | No Speakers: 36 W PoE, Connected via P-Link or PoE++
Speakers: Requires 56 V 90 W IEEE 802.3bt PoE, Via Direct PoE++ Port on the BMA 360 |
| Power Consumption | 100 to 240 VAC, 50/60 Hz
23 Watt Typical without Speaker Amp 55 W at 1/3 Power x 4 at 1 kHz |
| Power and Thermal | Power Source: PoE Injector or Equivalent
Thermal: 270 BTU/Hr at Max Power Operating Temperature: 14 to 104°F / -10 to 40°C Ambient Temperature |
| Software | CONSOLE AI |
| Mounting | Ceiling Mount
VESA-Mount-Ready, 100 mm Hole Pattern, M4x10 mm |
| Dimensions (W x D x H) | 23.72 x 23.72 x 2.13" / 602.5 x 602.5 x 54.1 mm |
| Weight | 9 lb / 4.1 kg |
| Package Weight | 12.315 lb |
| Box Dimensions (LxWxH) | 27.9 x 27.3 x 5.7" |
