Description

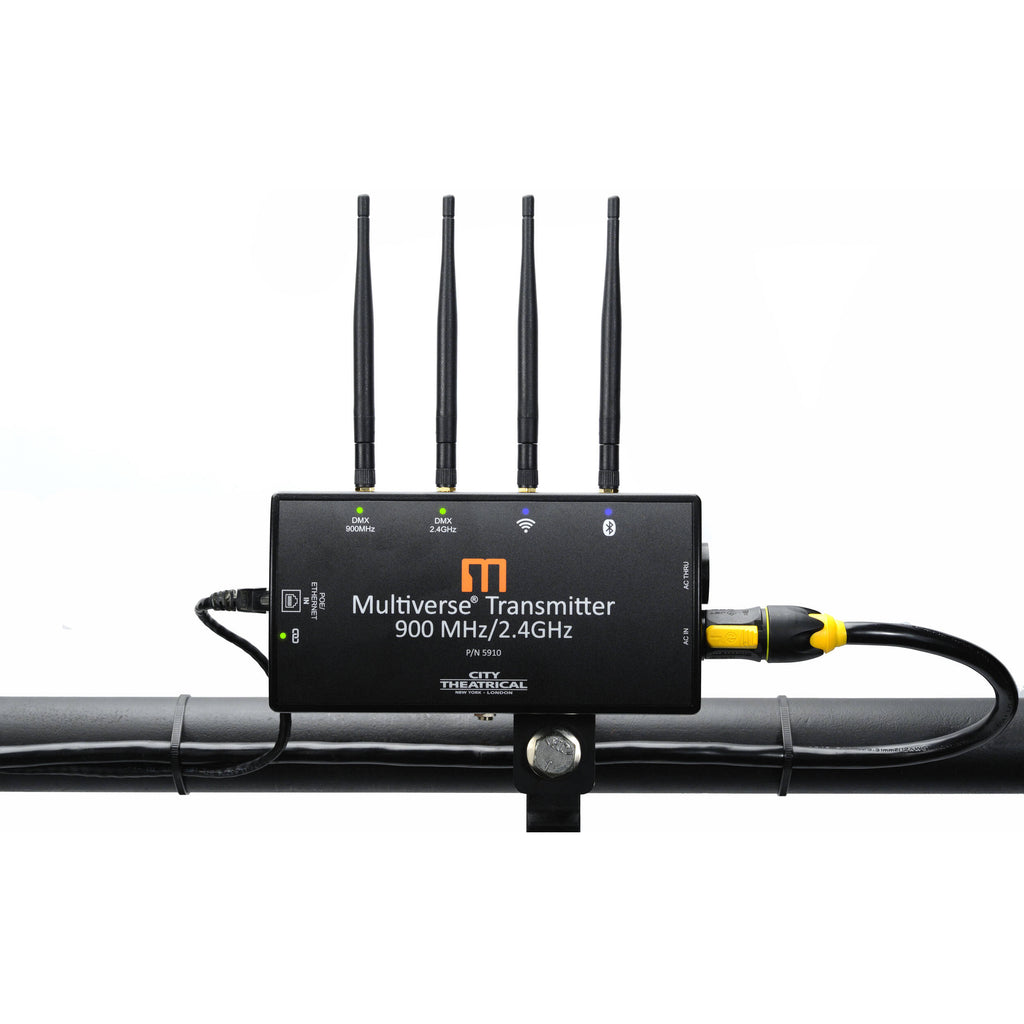

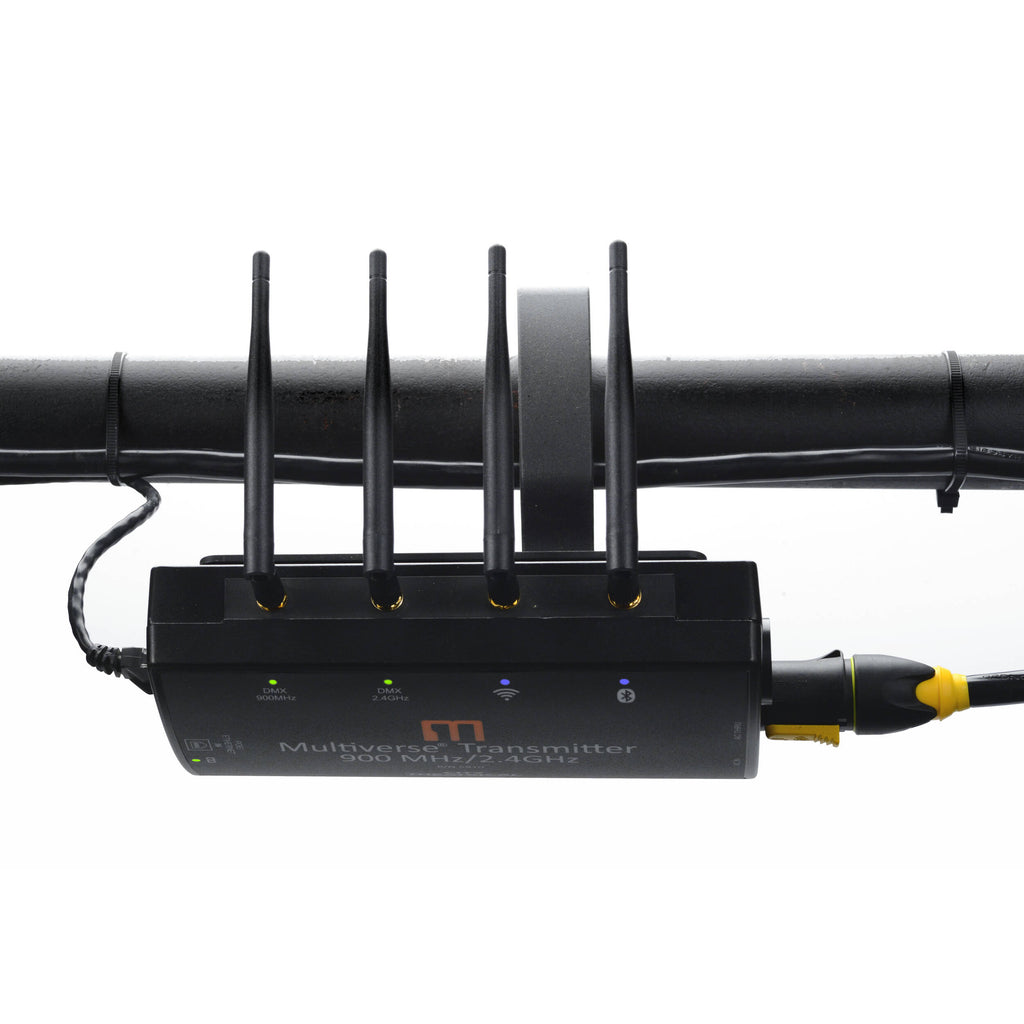

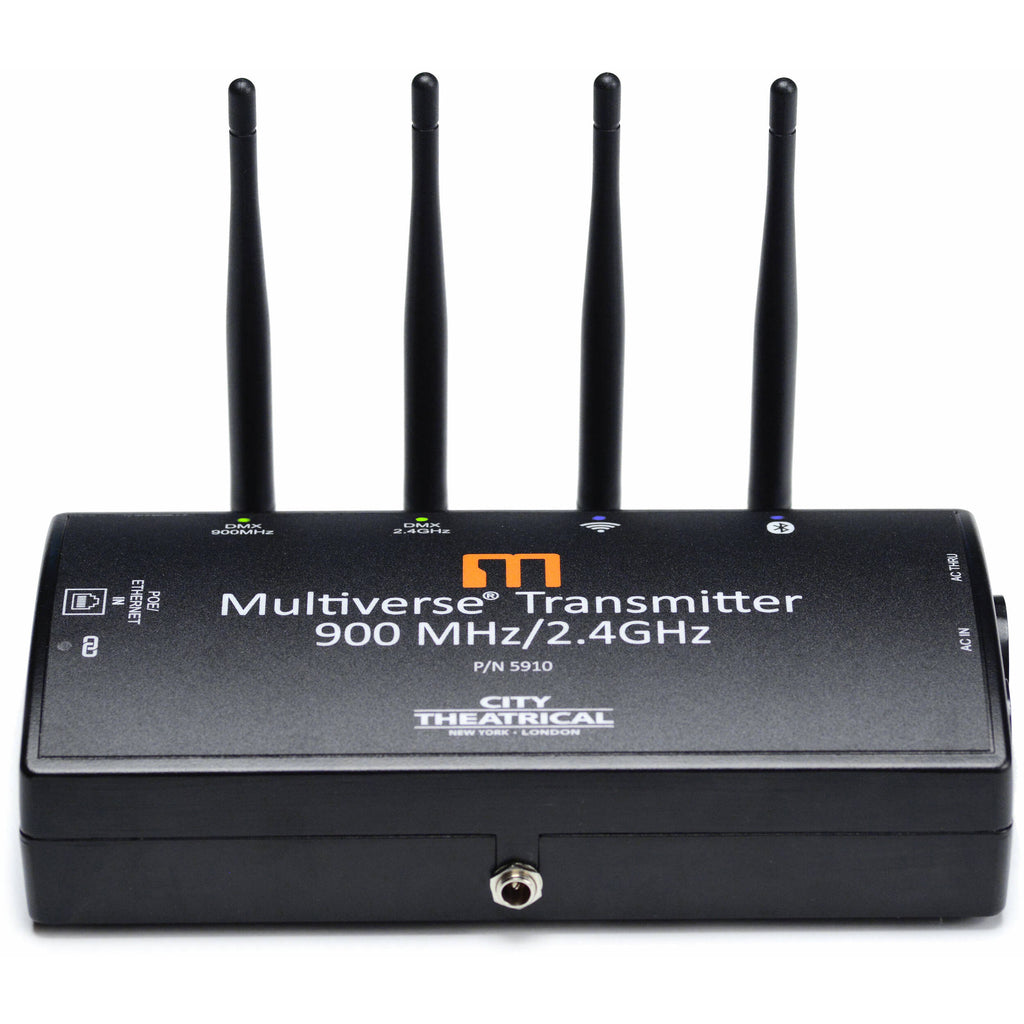

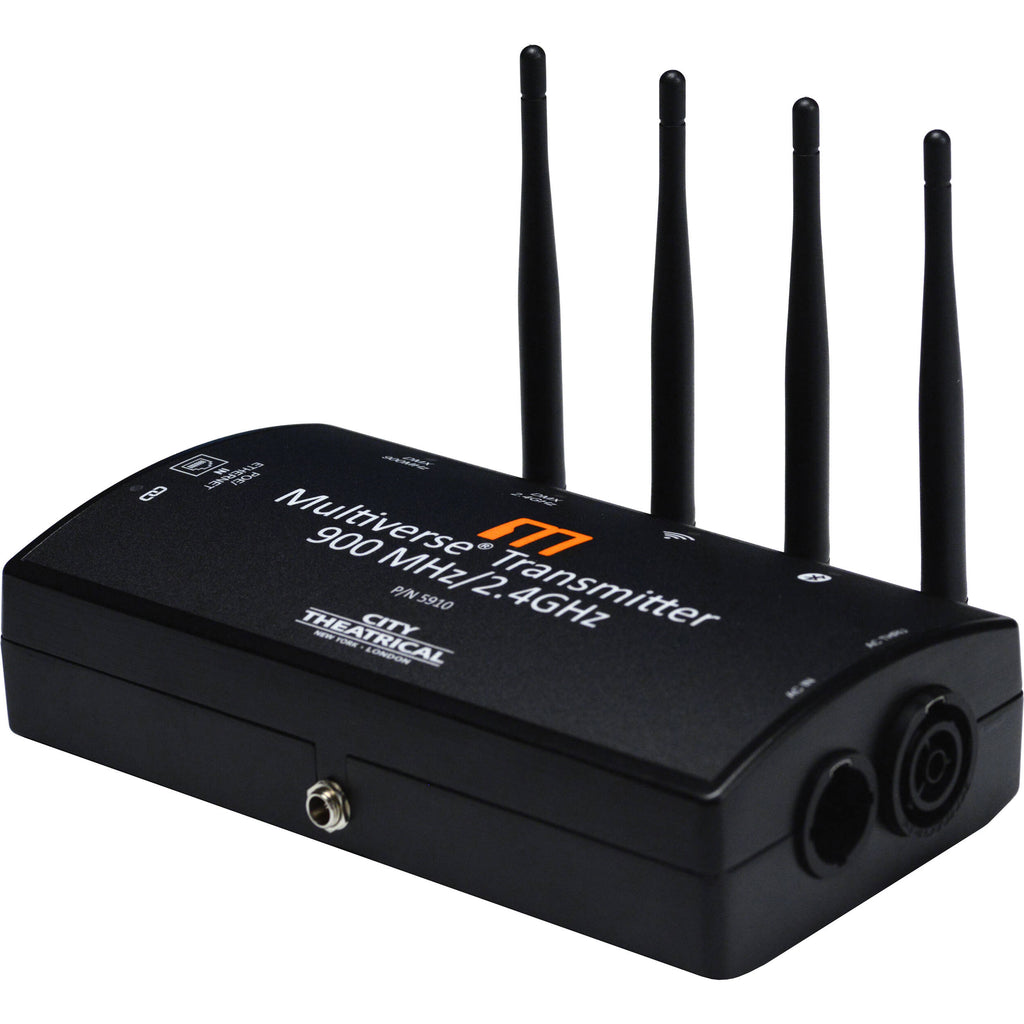

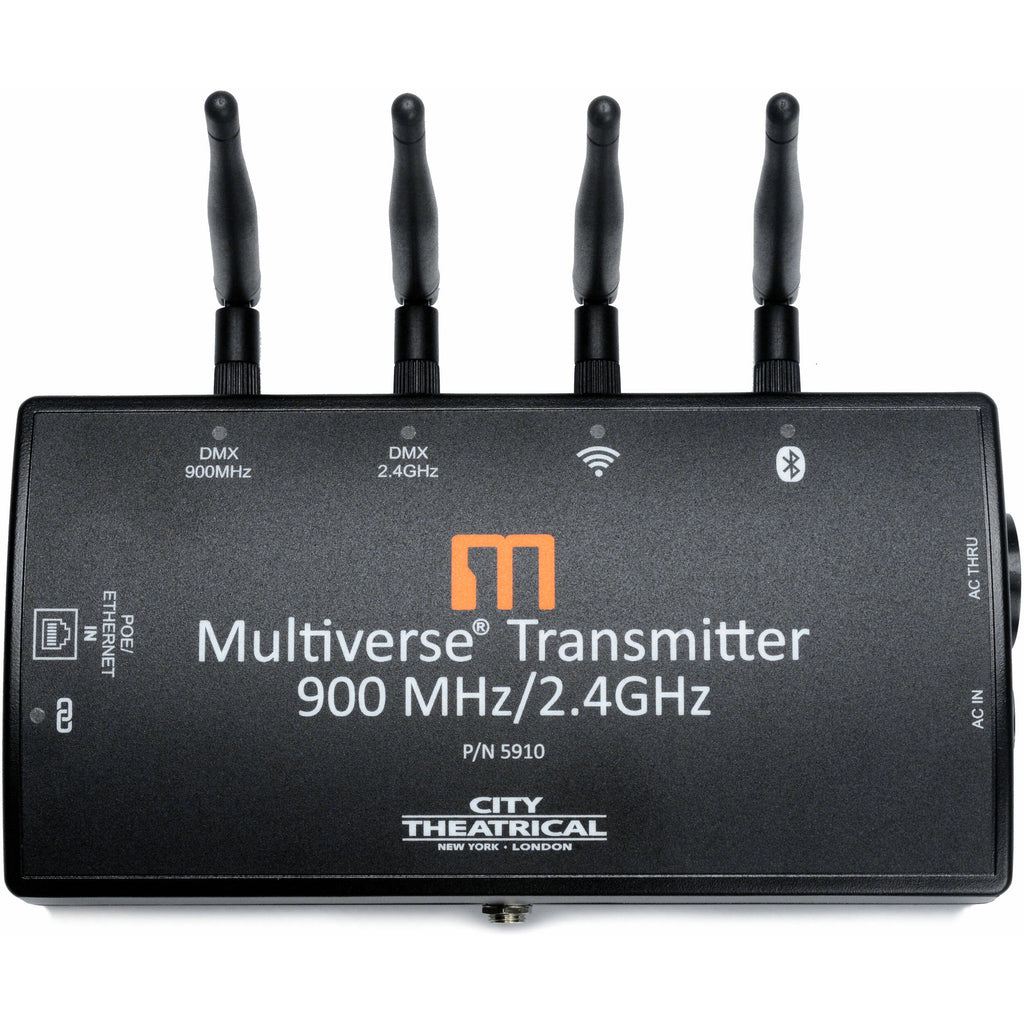

City Theatrical Multiverse Transmitter Overview
City Theatrical expands its Multiverse system with the 900 MHz/2.4 GHz Multiverse Transmitter, a reliable wireless DMX/RDM device with Ethernet and Wi-Fi capabilities. Delivering nine DMX/RDM universes and expanding functionality with app control via Bluetooth, the Multiverse Transmitter's Ethernet input is compatible with sACN or Art-Net protocols. This version is specifically designed for use in North America.
Wi-Fi & Bluetooth for Easy Control
The onboard Wi-Fi allows control from your tablet with the Luminair app, while built-in Bluetooth enables configuration right from your smartphone using the City Theatrical DMXcat app. App control facilitates the management of any lighting fixture of the Multiverse setup, whether using a Multiverse Module, receiving data from a Multiverse SHoW Baby and Multiverse Node, or with a wired unit.
Details
- 900 MHz/2.4 GHz radio frequency
- 2400-2480 MHz; 902-928 MHz range
- Low 4 ms latency
- RDM proxy and responder functionality
- 100-240 VAC power
- powerCON TRUE1 in/thru AC connector
- Power over Ethernet (PoE) support
- IP50-rated for indoor use
- Rugged aluminum construction
- Compact and lightweight design
UPC: 856652003292

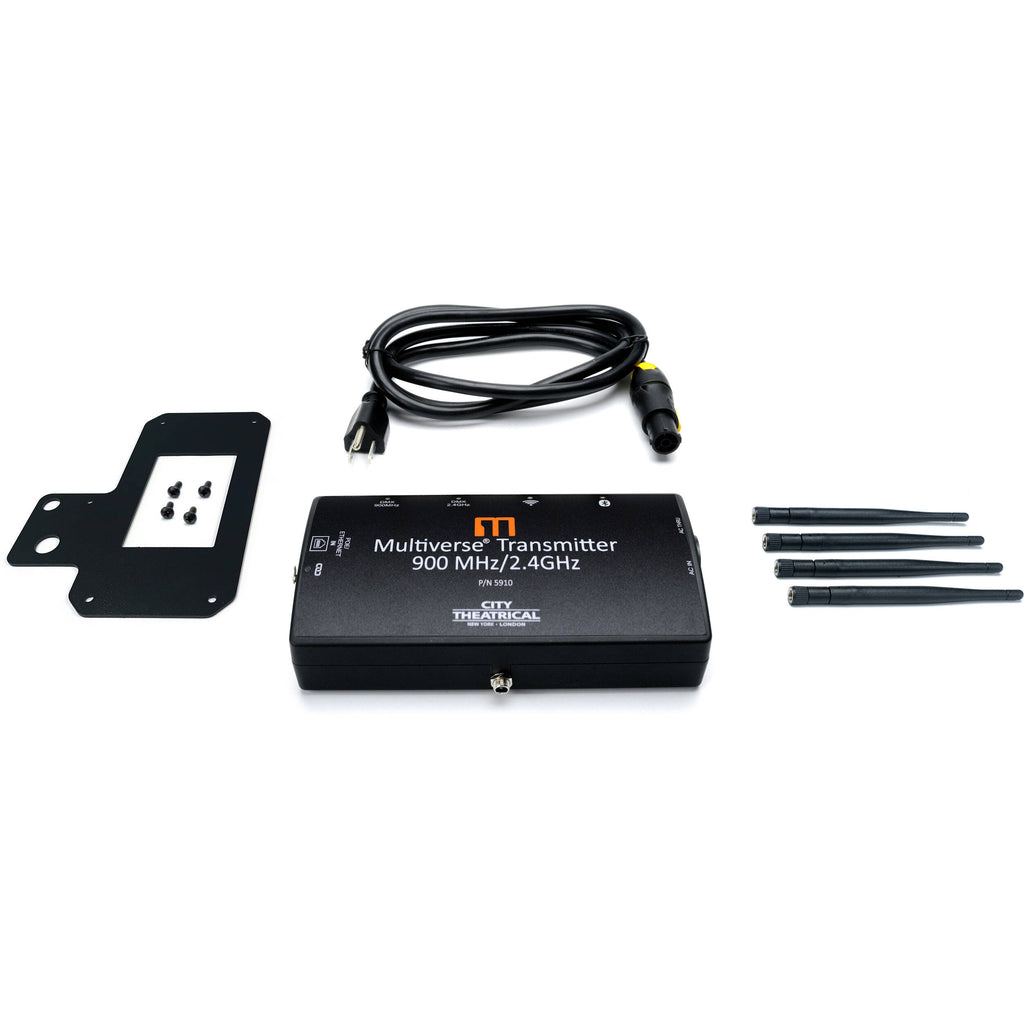

Items Included
- City Theatrical 900 MHz/2.4 GHz Multiverse Transmitter (North America Use Only)
- Hanging Bracket
- 4 x Antenna
- Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
City Theatrical Multiverse Transmitter Specs
Key Specs
| Inputs/Outputs |
1x RJ45 (10/100 Ethernet)
1x DC Barrel (Power) 4x (Antenna) |
| Wireless |
Bluetooth / Wi-Fi / 900 MHz Radio/RF / 2.4 GHz Radio/RF
*Built-In |
| Power Source |
AC Power
|
| Protocol |
ArtNet, sACN
|
General
| Inputs/Outputs |
1x RJ45 (10/100 Ethernet)
1x DC Barrel (Power) 4x (Antenna) |
| Latency |
4 ms
|
| Sensitivity |
95 dBm
|
| Wireless |
Bluetooth / Wi-Fi / 900 MHz Radio/RF / 2.4 GHz Radio/RF
*Built-In |
| Frequency |
2400 to 2480 GHz
|
Power
| Power Source |
AC Power
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Port Power |
Yes
|
Compatibility
| Protocol |
ArtNet, sACN
|
Physical
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Certifications |
FCC, IC, ETL
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.8 x 4.0 x 1.9" / 196.9 x 101.5 x 47.0 mm
|
| Weight |
1.25 lb / 567 g
|
Packaging Info
| Package Weight |
3.07 lb
|
| Box Dimensions (LxWxH) |
10.7 x 7 x 4.4"
|
