Description

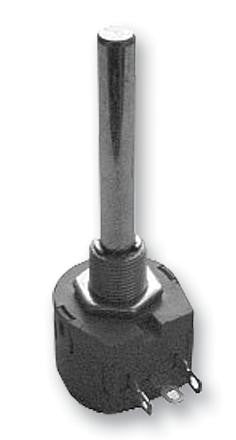

The TW1103KA is a single turn Wire wound Spindle Operated Potentiometer with excellent linearity, low terminal resistance and robust condition.
- 1W Power rating
- 1000MR Insulation resistance
- 10000 Cycles duration life
- Eyelet termination
Applications
Industrial
Product details
| Shaft Length | 25mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | � 10% |
| Product Range | TW110 Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 1W |
| Track Resistance | 10kohm |
Other details
| Brand | CITEC - TE CONNECTIVITY |
| Part Number | TW1103KA |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
