Description

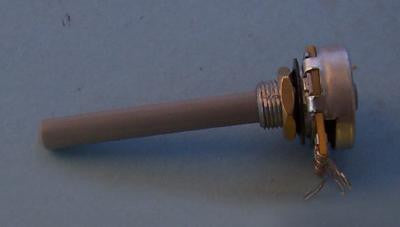

The 23ESA series from TE connectivity are single turn spindle operated potentiometers. These potentiometers are standard linear types which can be tailored to suit more specific requirements. The potentiometers are available with printed carbon resistance, various bush lengths in metal or plastic and insulated shafts up to 50mm in length.
- Resistance range of 1Kohm to 1Mohm
- �20% tolerance
- Rated power dissipation at 40�C is 0.4W
- Mounting bracket
- Dual gang and dual concentric Styles
- Diecast metal bush available
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial
Product details
| Shaft Length | 50mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | � 20% |
| Product Range | 23ESA Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 400mW |
| Track Resistance | 470kohm |
Other details
| Brand | CITEC - TE CONNECTIVITY |
| Part Number | 23ESA474MMF50NF |
| Quantity | Each |
| Technical Data Sheet EN |  |
