Description
CineTreak CINELIVE C1 Overview
- 1Description
- 2Applications
- 34-Channel Video Switcher
- 4One-Key Recording and Streaming
- 5Live Streaming
- 6PTZ Camera Control
- 7Audio Mixing and Control
CineTreak Cinelive C1 HDMI switcher: test, tutorial & review
ClearChoice clearchoice.com/dental-implants Schedule Sponsored 1 of 2 · 0:54 clearchoice.com/dental-implants 1 0:03 / 0:58 HDMI Switcher For Live Streaming - CineTreak CineLive C1 Review
Cinetreak Cinelive C1 Live Streaming Video Switcher With PTZ Camera Control ( Live Test 1 )
By Photo's
Mary Latvis

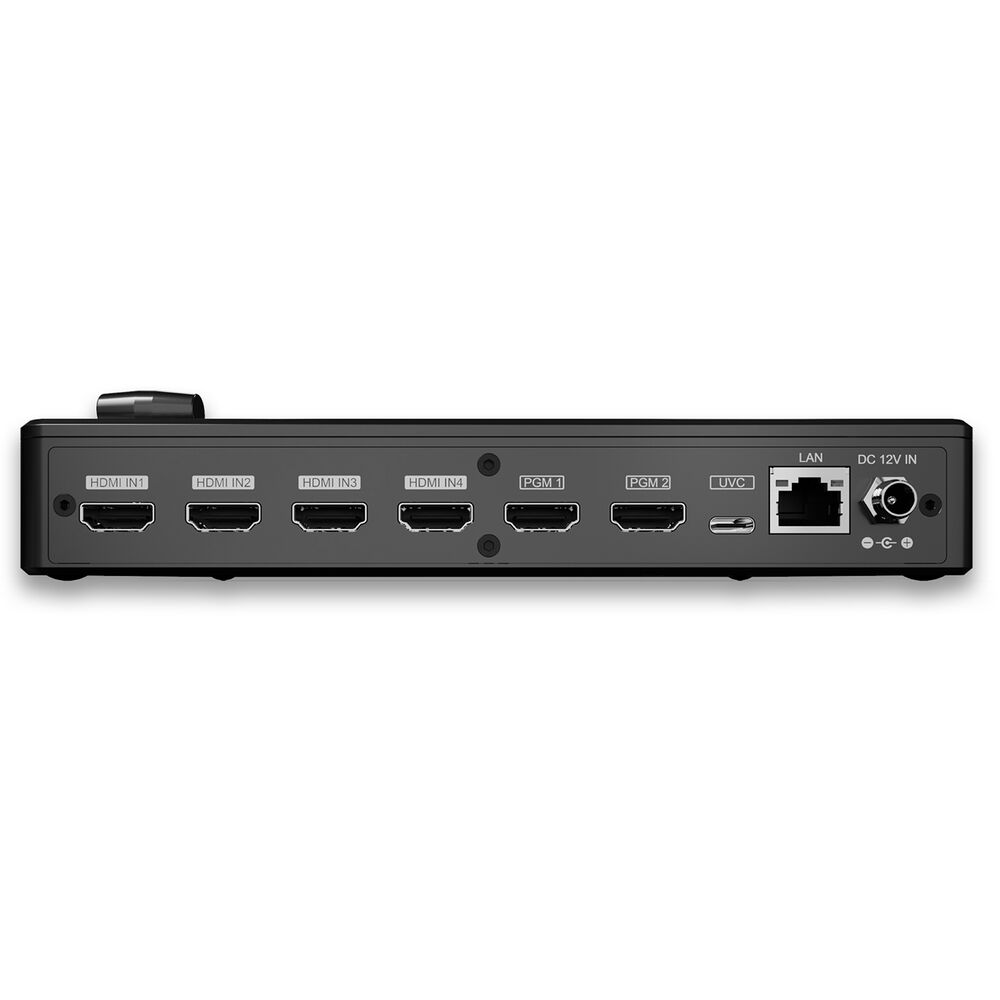

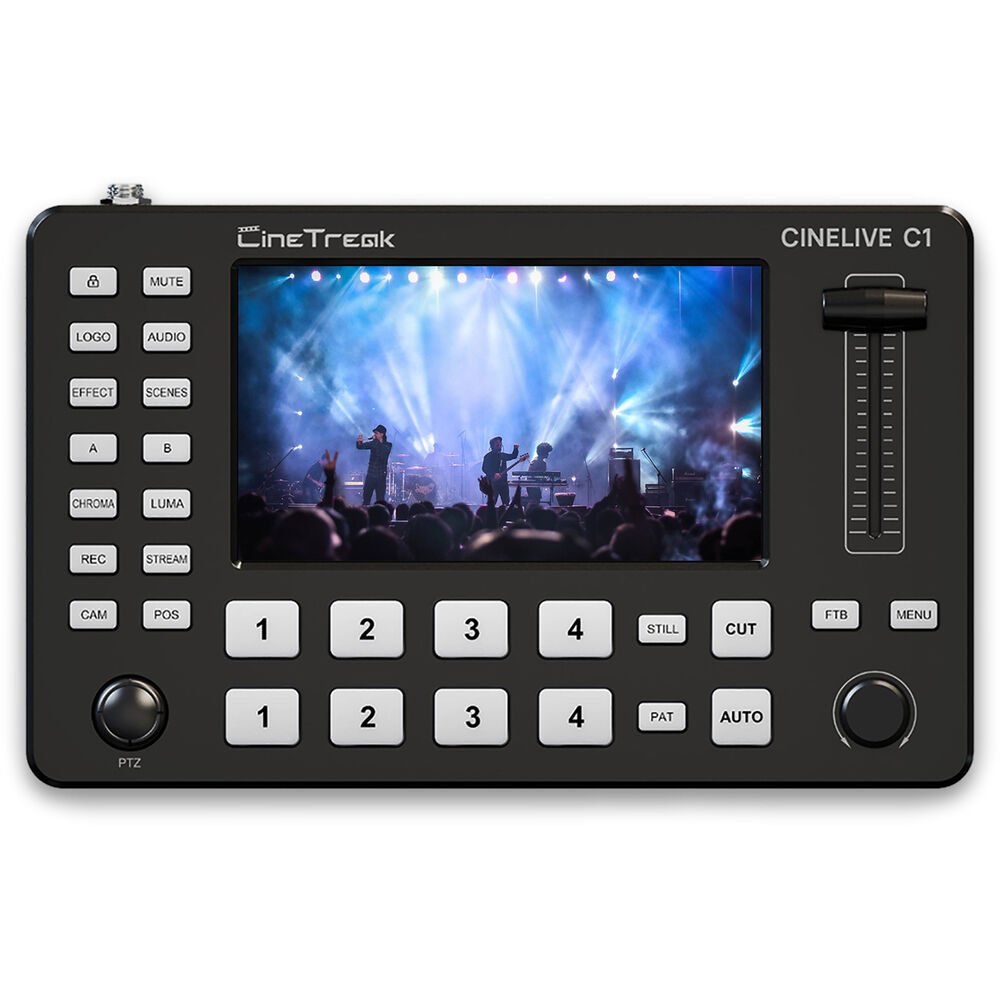

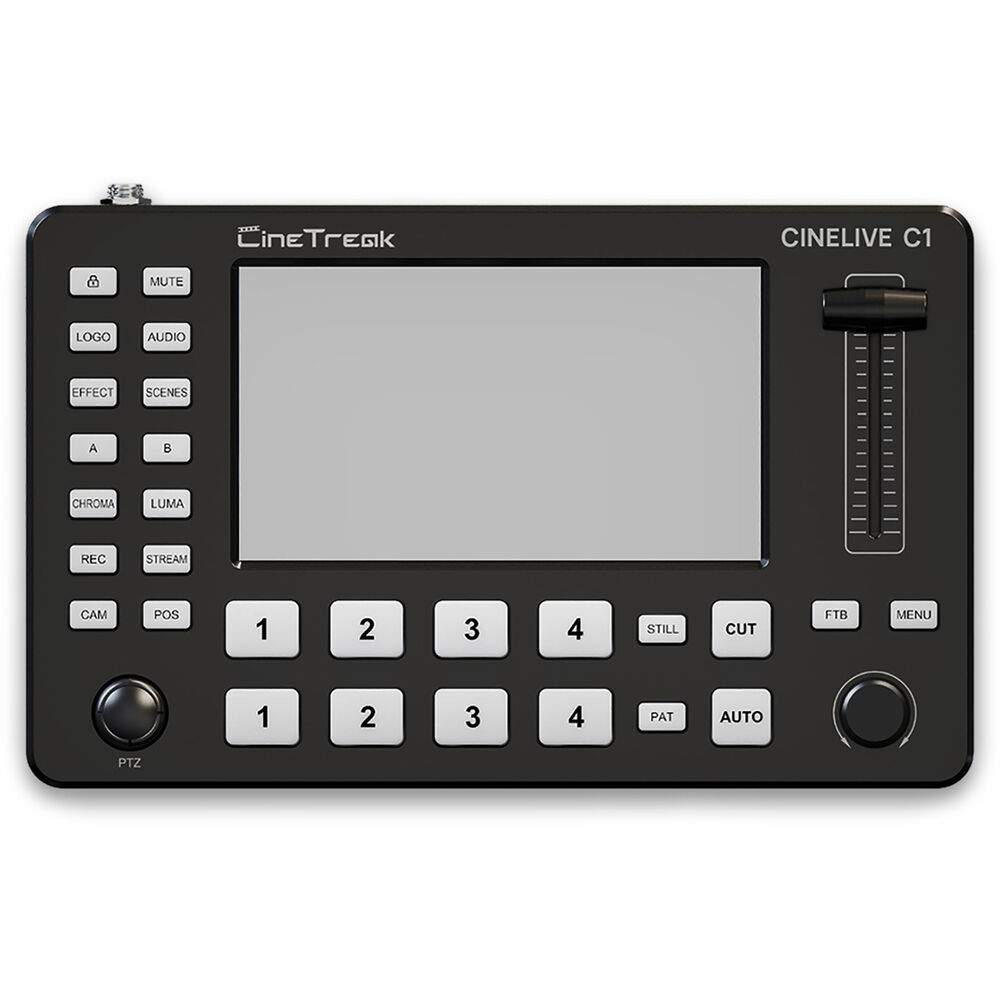

Use the CineLive CL-C1 Compact 4-Channel HDMI Switcher from CineTreak to mix and live stream up to 1080p60 video and embedded audio. This compact switcher provides four HDMI inputs, one LAN port, one USB-C UVC output, two 3.5mm audio inputs, two HDMI program outputs, and USB-A external recording. The CL-C1 switcher supports up to two simultaneous RTMP streams of 1080p60 video to popular platforms using its USB-C and LAN ports. It features H.264 encoding, luma and chromakeying, 32 transition effects, and VISCA control for up to four PTZ cameras.
Applications
This 4-channel HDMI switcher is ideal for sports, HoW (house of worship), virtual studio, gaming, meetings, and telemedicine usage.
4-Channel Video Switcher
- Input video via four HDMI ports and output via two HDMI program outputs, one UVC output, and one RJ45 LAN port.
- Luma and chromakeys, PiP (picture in picture), PoP (pop out picture), LOGO, and transition effects.
- Pushbutton, T-bar, web browser, and mobile control.
One-Key Recording and Streaming
- Use the REC key to record PGM to an external USB or SSD disk.
- The record time is displayed on the status page.
Live Streaming
- Use the Stream button to live stream to two broadcast addresses simultaneously.
- Supports both UVC and network streaming.
- Supports most popular streaming platforms.
PTZ Camera Control
- Control up to four PTZ cameras using the built-in VISCA protocol.
- Adjust camera position, focus, color, and more.
Audio Mixing and Control
- Supports up to four HDMI audio channels.

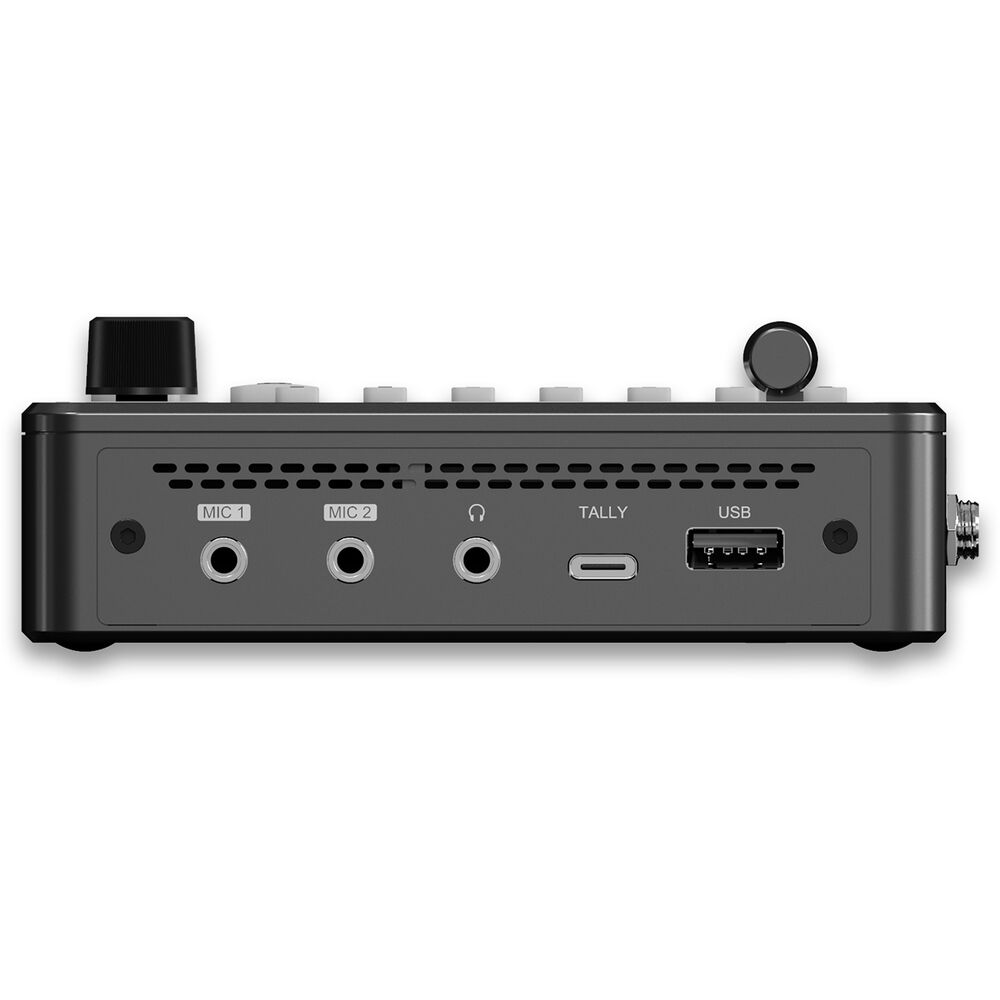

- Offers two 3.5mm mic/line audio inputs.
- Separate level, mix delay, and HDMI AFV (audio follow video) controls.
In the Box
- CineTreak CineLive CL-C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display
- 12 VDC, 2A Power Adapter
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Applications
- 4-Channel Video Switcher
- One-Key Recording and Streaming
- Live Streaming
- PTZ Camera Control
- Audio Mixing and Control
CineTreak CINELIVE C1 Specs
| Available M/E Layers |
2 M/E
|
| Effect Types |
Graphic, Transition, Chroma Key, Luma Key
|
| Graphics Memory |
100 Images (Total)
|
| Downstream Keys |
No
|
| Audio Mixing |
4-Channel Mixing
|
Processing
| Switching Type |
Pushbutton, Software, T-Bar
|
| Processing Resolution |
1080p at 23.98/24/25/29.97/30/50/59.94/60
|
| Color Processing |
RGB
YUV |
Input
| Number of Video Input Sources |
4
|
| Video Inputs |
4 x HDMI
|
| Input Video Format |
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 576i / 625 lines 480p 480i / 525 lines |
| Audio Inputs |
2 x 1/8" / 3.5 mm TRS Stereo Female
|
| Embedded Audio Input |
HDMI
|
Output
| Video Output Channels |
3
|
| Video Outputs |
2 x LC Fiber
1 x USB-A 1 x USB-C |
| Output Video Format |
HDMI
1080p up to 60 fps |
| Embedded Audio Output |
HDMI: 4-Channel
|
| Multiview Output |
Yes
|
Connectivity
| Other I/O |
1 x RJ45 LAN
|
| HDCP Support |
No
|
| IP Video |
H.264:
1920 x 1080 at 60p Encoding |
| Transport Protocols |
RTMP
|
| Simultaneous Streams |
2 Streams
|
| Compatible Services |
Facebook Live, Instagram, Skype, TikToK, Twitch, YouTube Live
|
Display
| Display Size |
5.5"
|
Hardware
| Mobile App Compatible |
Yes
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1 x Barrel (7 to 12 VDC) Input
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Storage Temperature |
-22 to 158°F / -30 to 70°C
|
General
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
| Dimensions |
7.9 x 4.8 x 1.8" / 200.5 x 123 x 45 mm
|
| Weight |
1.5 lb / 670 g
|
Packaging Info
| Package Weight |
2.24 lb
|
| Box Dimensions (LxWxH) |
10.1 x 9 x 3.5"
|
