Description
Cineo Lighting 301.1500 Overview
By Photo's
Dany Serota

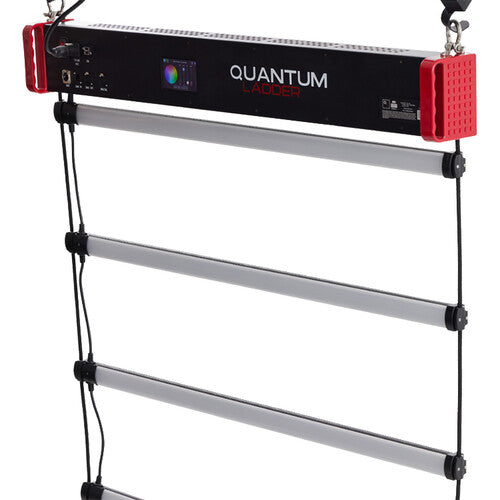

Thoughtfully developed for cinematographers, the Quantum Ladder RGB LED Light from Cineo Lighting has a unique design, broken down to a 4 x 14' ladder-like fixture. The Quantum Ladder was specially created to suit the needs of lighting professionals working in film, television, virtual production sets, broadcast studios, commercials, and other creative scenarios. At 1500W, the RGB fixture continues the legacy of the powerful Quantum series by producing up to 100,000 lumens. With a host of advanced control methods, the Quantum Ladder can be adjusted using DMX/RDM, LumenRadio, or sACN protocols, through Wi-Fi, via the app, or locally with a high-definition touchscreen interface. The "QL", as it is called by the brand, works with AC power to streamline your studio setup.
Unique Design, Thousands of Effects
The key to bringing the ladder design with an array of 4' long LEDs is to create a unique pattern, turning the Quantum Ladder into one attractive, RGB continuous light source with a wide CCT range from 2000 to 10,000K. Cineo Lighting did not hesitate to add 300 preset colors and digital gels while making the "QL" capable of delivering 64,000 presets and effects that will go as far as your imagination.
Bright, Flicker-Free Performance
Ideal for film and television productions, the Quantum Ladder is the creative solution for cinematographers pursuing space and backdrop lighting that exceeds the potentiality of other fixtures. It produces up to 35,441 lux at 3.3' and enables flicker-free operation up to 10,000 fps.
Full RGB Capability, Color Accuracy
Experience extensive color control with red, blue, and green LEDs, saturated color control, user effects recorder and player, and many other features. The light will give you accurate colors, as shown by its high TM-30 scores of Rf 96 and Rg 99 at 5600K and Rf 97 and Rg 100 at 3200K. Like CRI, TM-30 is a reliable measure of average color fidelity.
Adaptive Color Space, Green Control
The Quantum Ladder supports eUCS color space, which closely correlates to REC.709. The color space can be selected similarly to a preset for matching other lighting sources and/or camera LUTs. The Quantum Ladder also grants +/- green control for color correction.
Extended Control Methods

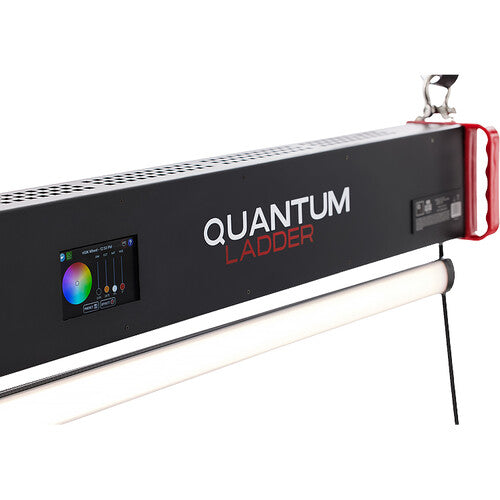

With its intuitive touchscreen interface, a complete suite of lighting options is easily accessible. Thanks to a proprietary Cineo StageLynx software, the Quantum Ladder is quickly customizable, which saves you hours of complicated programming. The fixture also offers full connectivity for a wired network, Wi-Fi, DMX/RDM, and others.
Robust Construction, Fanless Operation
The unit's performance is backed by its aluminum chassis, which ensures durability. Another one of the fixture's valuable features is its fanless design, an asset in sound-sensitive environments.
Easy Rigging
The "QL" is easy to rig from eyelets or 3/8"-16 mounting points.
Additional Information
Receive software updates via USB, wired network, or Wi-Fi.
Items Included
- Cineo Lighting Quantum Ladder RGB LED Light
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Cineo Lighting 301.1500 Specs
Key Specs
| Item Type |
1x LED Special Design Light
|
| Included Storage Case |
No
|
| Photometrics |
3200K:
2744 fc / 29,538 Lux at 3.3' / 1 m* 304 fc / 3282 Lux at 9.8' / 3 m 76 fc / 821 Lux at 19.7' / 6 m 5600K: 3292 fc / 35,441 Lux at 3.3' / 1 m* 366 fc / 3949 Lux at 9.8' / 3 m 91 fc / 987 Lux at 19.7' / 6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
TM-30 Rf 97 at 3200K
TM-30 Rf 96 at 5600K TM-30 Rg 100 at 3200K TM-30 Rg 99 at 5600K |
| Dimming |
Built-In Dimmer / DMX / RDM
� 0 to 100% |
| Front Accessory Mount |
No
|
| Wireless Remote Control Type |
Wi-Fi
|
| Power Source |
AC Power (Cable Included)
|
| Input Power |
120 to 240 VAC, 50 / 60 Hz at 6.5 to 12.5 A
|
| Power Consumption |
1500 W
|
| Fixture Mounting |
Not Specified by Manufacturer
|
Light Fixture
| Item Type |
1x LED Special Design Light
|
| Included Storage Case |
No
|
| Lumens |
100,000
|
| Photometrics |
3200K:
2744 fc / 29,538 Lux at 3.3' / 1 m* 304 fc / 3282 Lux at 9.8' / 3 m 76 fc / 821 Lux at 19.7' / 6 m 5600K: 3292 fc / 35,441 Lux at 3.3' / 1 m* 366 fc / 3949 Lux at 9.8' / 3 m 91 fc / 987 Lux at 19.7' / 6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
TM-30 Rf 97 at 3200K
TM-30 Rf 96 at 5600K TM-30 Rg 100 at 3200K TM-30 Rg 99 at 5600K |
| Dimming |
Built-In Dimmer / DMX / RDM
� 0 to 100% |
| Cooling System |
Passive
|
| Expected Lamp Life |
50,000 Hours (L70)
|
| Beam Angle |
150°
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
No
|
Connectivity
| Wireless Remote Control Type |
Wi-Fi
|
| Mobile App Compatible |
No
|
| Wireless Frequency |
2.4 GHz, 5 GHz
|
Power & I/O
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
1x powerCON TRUE1 AC Power Input
1x USB-A Service Input 1x RJ45 Network Input 1x XLR 5-Pin DMX Input |
| Input Power |
120 to 240 VAC, 50 / 60 Hz at 6.5 to 12.5 A
|
| Included Adapter / Cable |
1x Unspecified to powerCON TRUE1 Cable
|
| Power Consumption |
1500 W
|
Mounting
| Fixture Mounting |
Not Specified by Manufacturer
|
General
| Display |
Touchscreen OLED
|
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Materials |
Aluminum
|
| Dimensions |
167.3 x 48.28 x 5.38" / 424.9 x 122.63 x 13.67 cm
|
| Weight |
40 lb / 18.1 kg
|
