Description

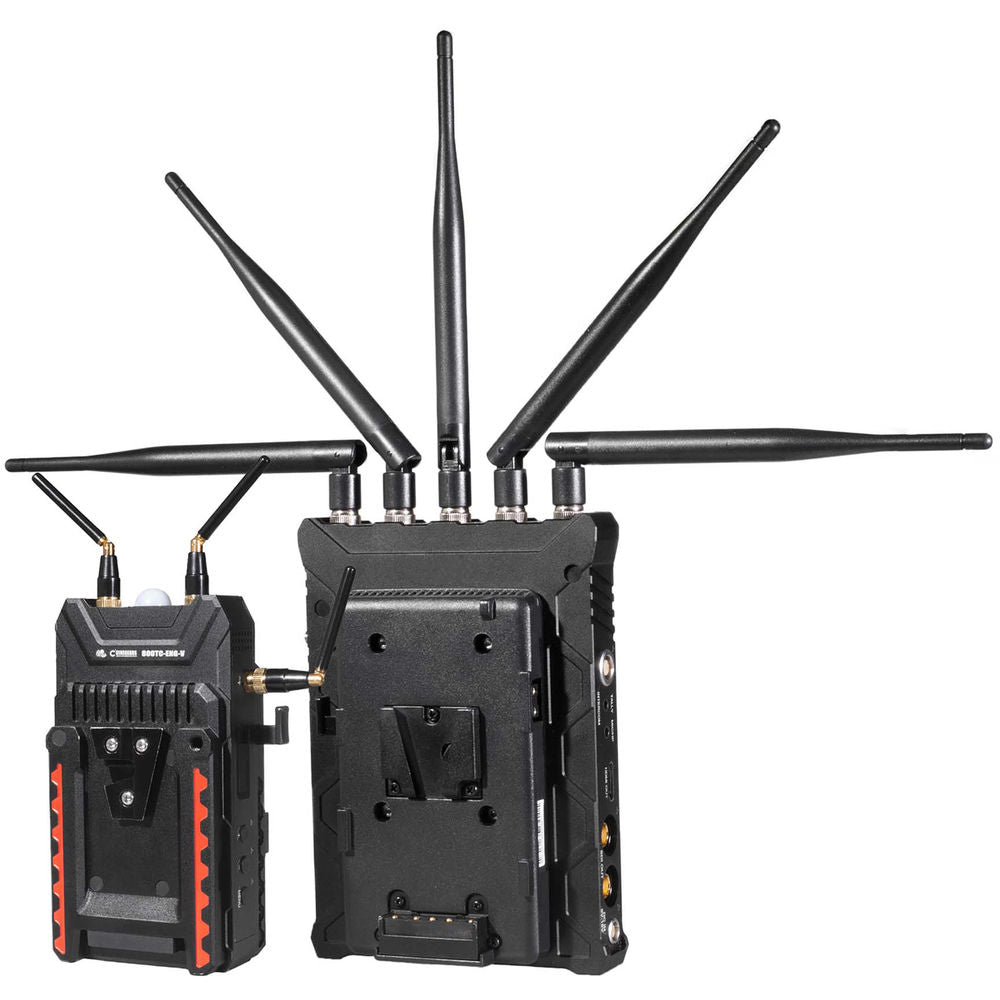

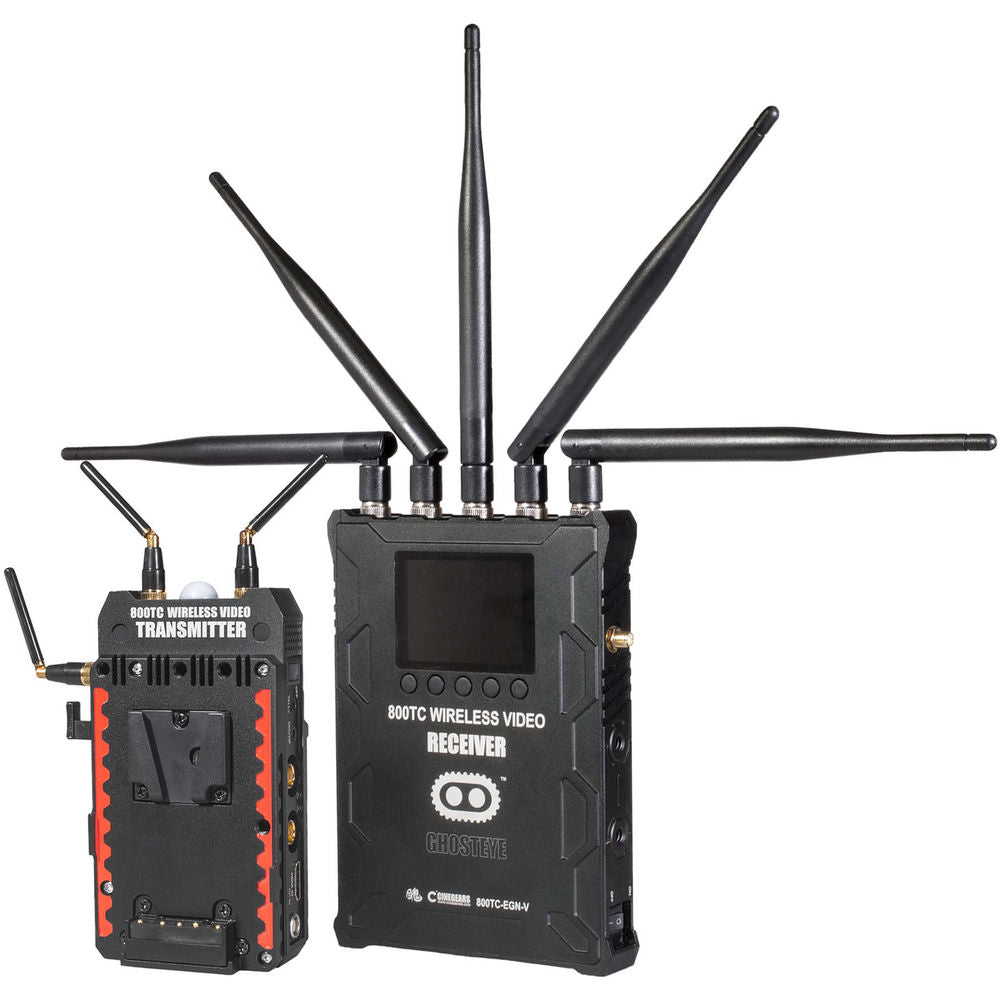

The 800TC ENG Ghost Eye Wireless HD SDI Video Transmission Kit (V-Mount) from CINEGEARS includes a 800TC ENG (V-Mount) transmitter, a 800TC ENG (V-Mount) receiver, and a waterproof foam case.

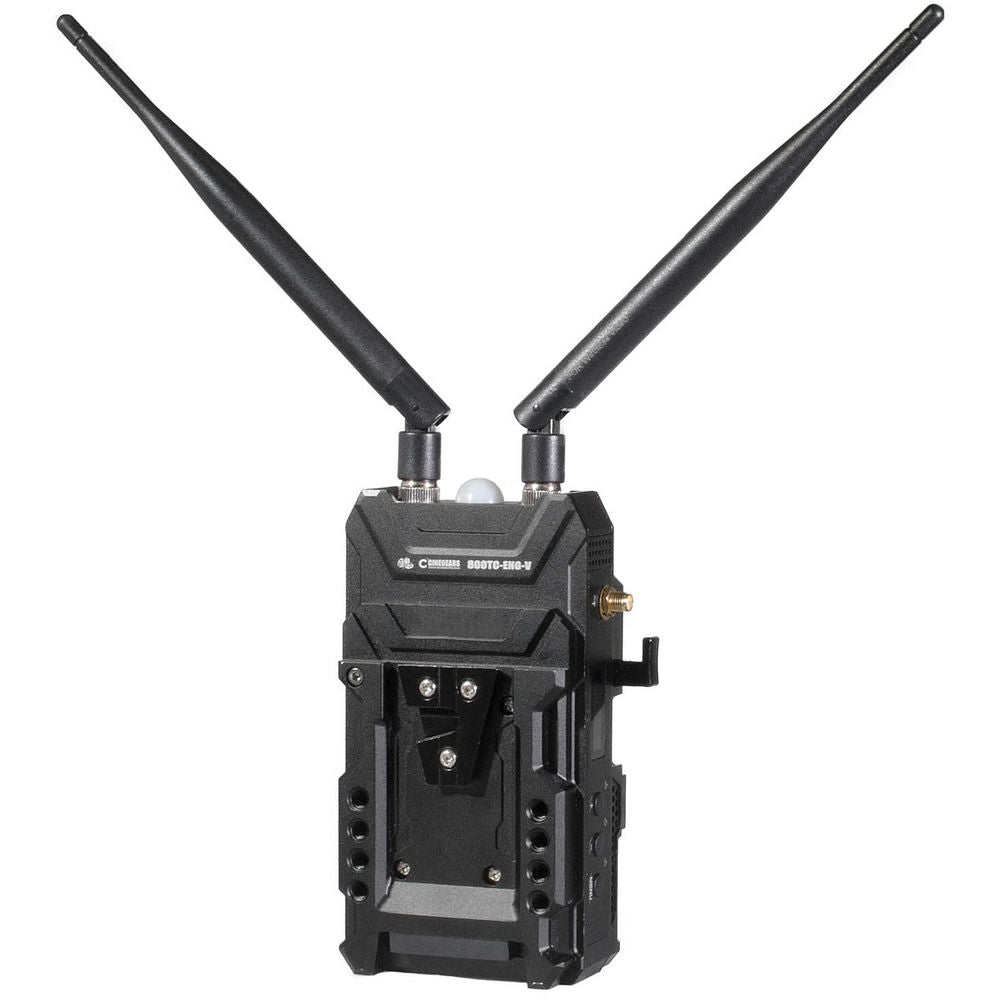

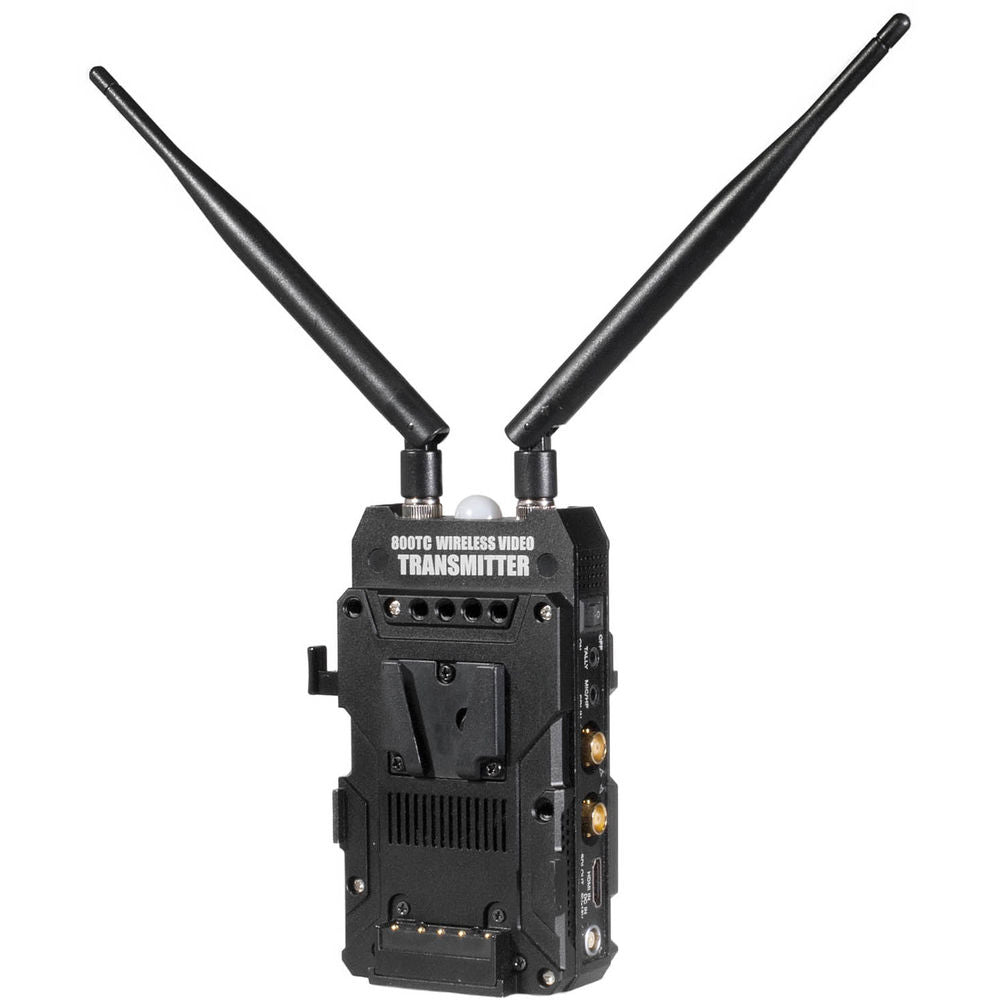

- 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount)
Equipped with tally and talk-back functionalities, the 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter ( V-Mount) from CINEGEARS is suitable for use in broadcasting. The tally light on the 800TC transmitter indicates when the camera is on the air, while the talkback feature on the receiver end allows the director to give heads up to the camera operator. Combined with a video splitter, the 800TC ENG transmitter can be used to trigger the record function on an external recorder on the receiver's end.
-
- Wireless HD video and audio transmission over 2500'
- Supports resolution up to 1920 x 1080 at 60 fps with 10-bit 4:2:2 color
- HDMI/SDI cross-conversion with SDI loop-out
- Supports timecode
- Supports Start/Stop functionality
- Low latency at <1 ms
- Four transmission channels to an unlimited number of Ghost-Eye receivers
- Full cross-compatibility with other Ghost-Eye models
- Customizable encryption
- Auto-relink once transmitter is back within range
UPC: 612520356712 -

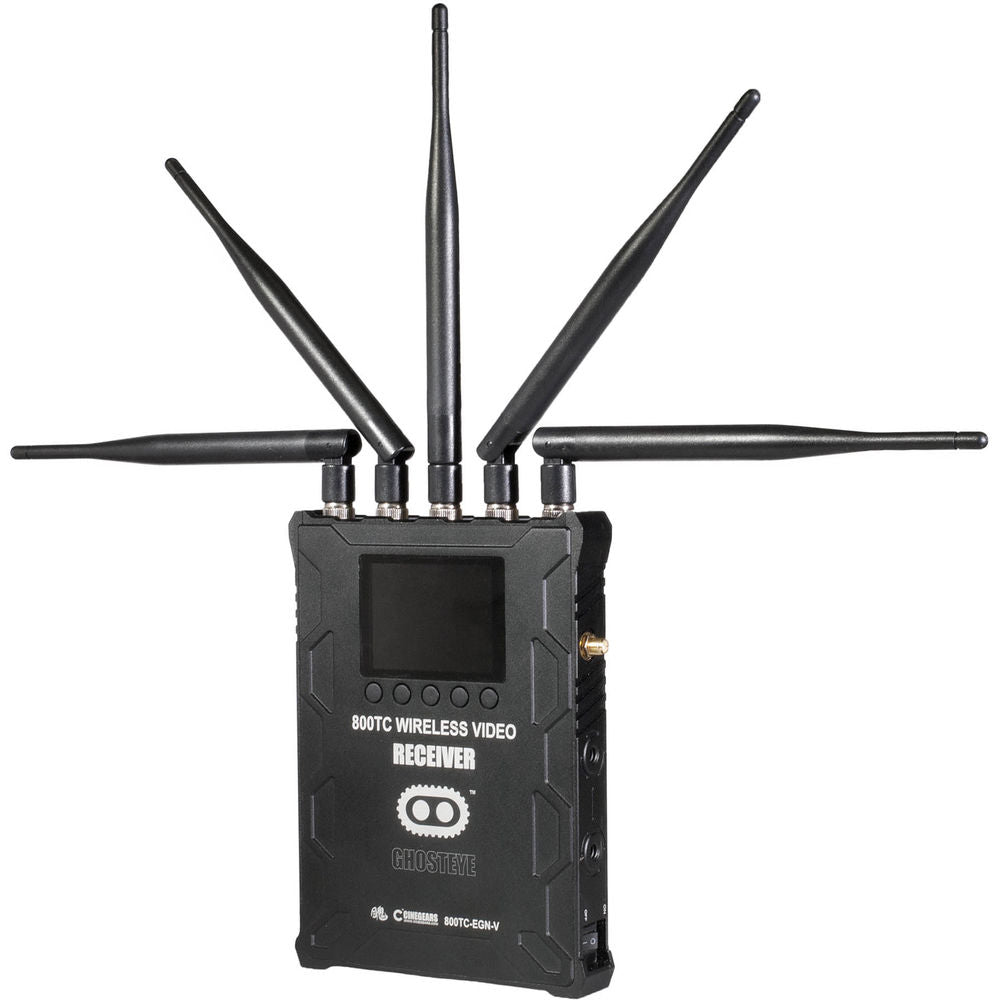

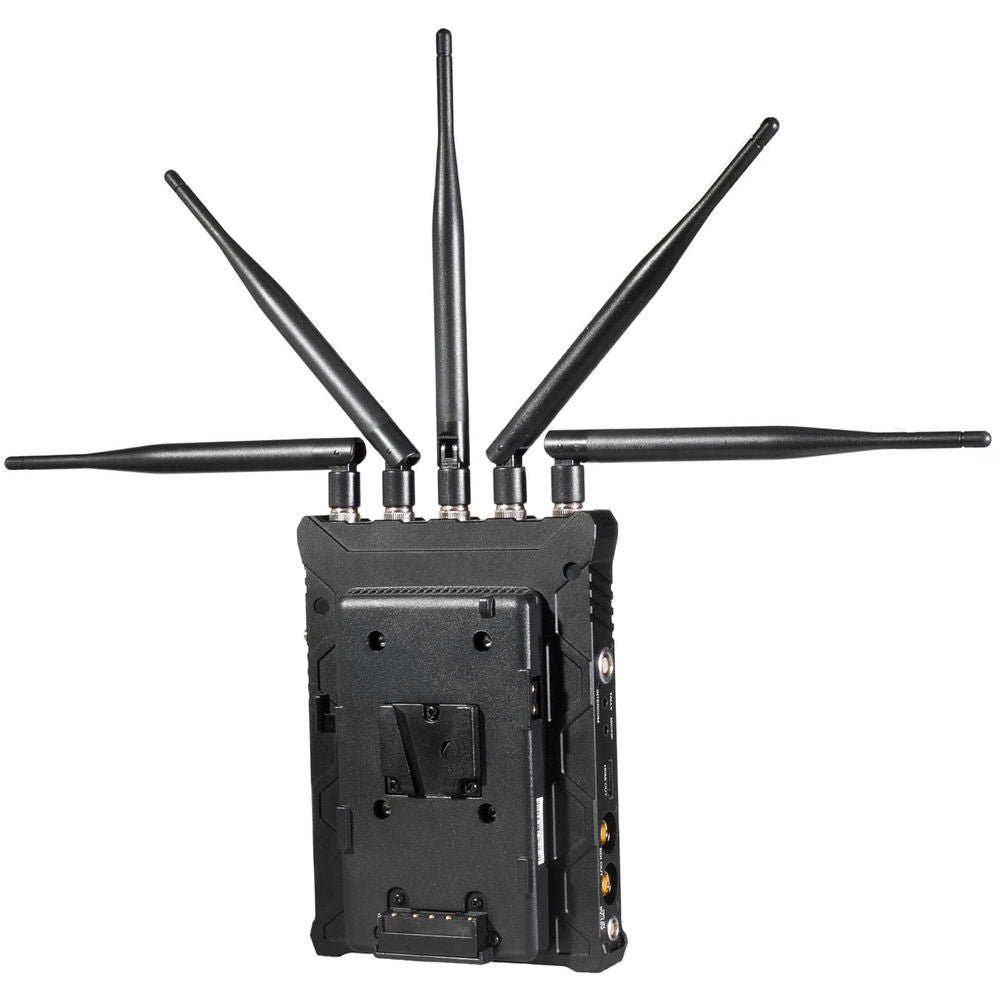

- 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount)
Equipped with tally and talk-back functionalities, the 800TC ENG Ghost Eye Wireless HD SDI Video Receiver ( V-Mount) from CINEGEARS is suitable for use in broadcasting. The tally light on the 800TC transmitter indicates when the camera is on the air, while the talkback feature on the receiver end allows the director to give heads up to the camera operator. Combined with a video splitter, the 800TC ENG transmitter can be used to trigger the record function on an external recorder on the receiver's end.
-
- Wireless HD video and audio transmission over 2500'
- Supports resolution up to 1920 x 1080 at 60 fps with 10-bit 4:2:2 color
- HDMI/SDI cross-conversion with SDI loop-out
- Supports timecode
- Supports Start/Stop functionality
- Low latency at <1 ms
- Four transmission channels to an unlimited number of Ghost-Eye receivers
- Full cross-compatibility with other Ghost-Eye models
- Customizable encryption
- Auto-relink once transmitter is back within range
UPC: 612520356705 -
- 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount)
Frequency Range 5.1-5.9 GHz
2.4-2.483 GHz with ISM bandModulation / Bandwidth OFDM / 40 MHz for video
GFSK / 1 MHz for intercom systemVideo Format Support 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60Audio Formats Supported PCM, DTS-HD, Dolby TrueHD Time Code SMPTE-12M Transmission Range Line of Sight: 2500' (762 m) Transmitter/Receiver Antenna 2 x External antennas 5G

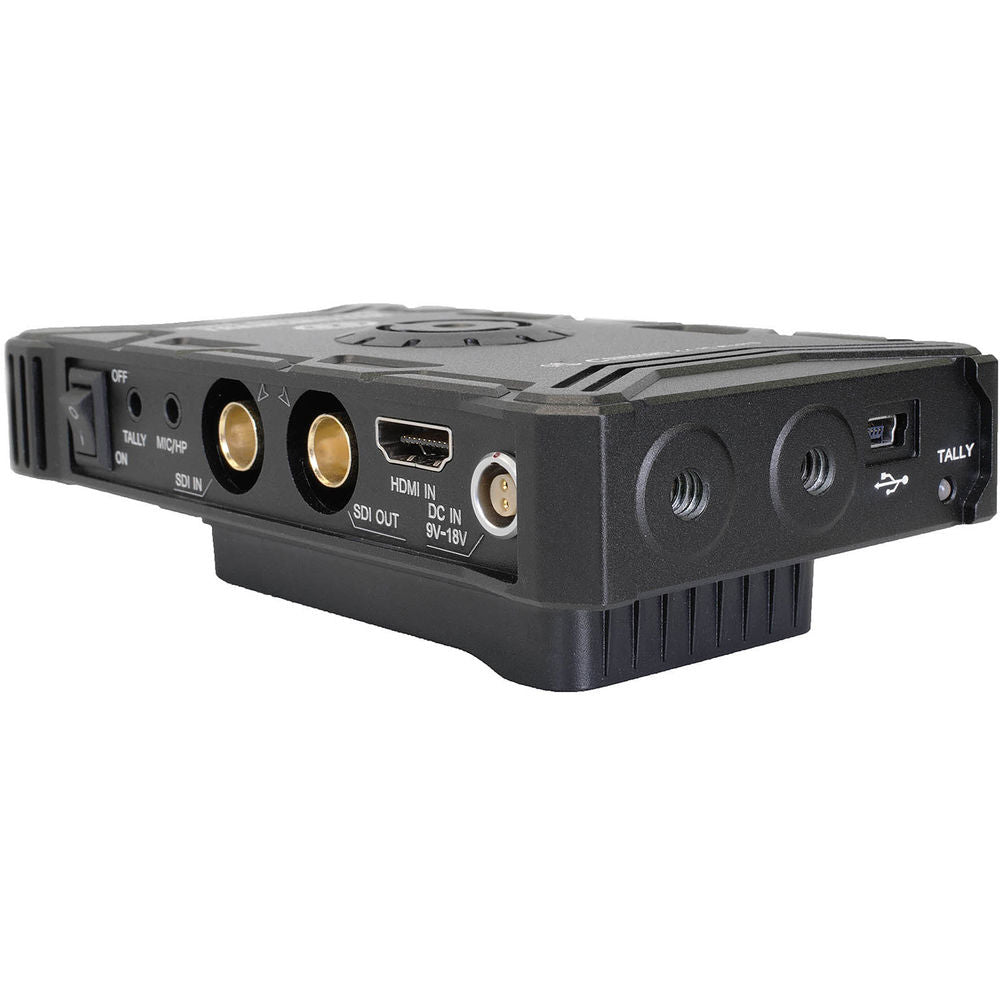

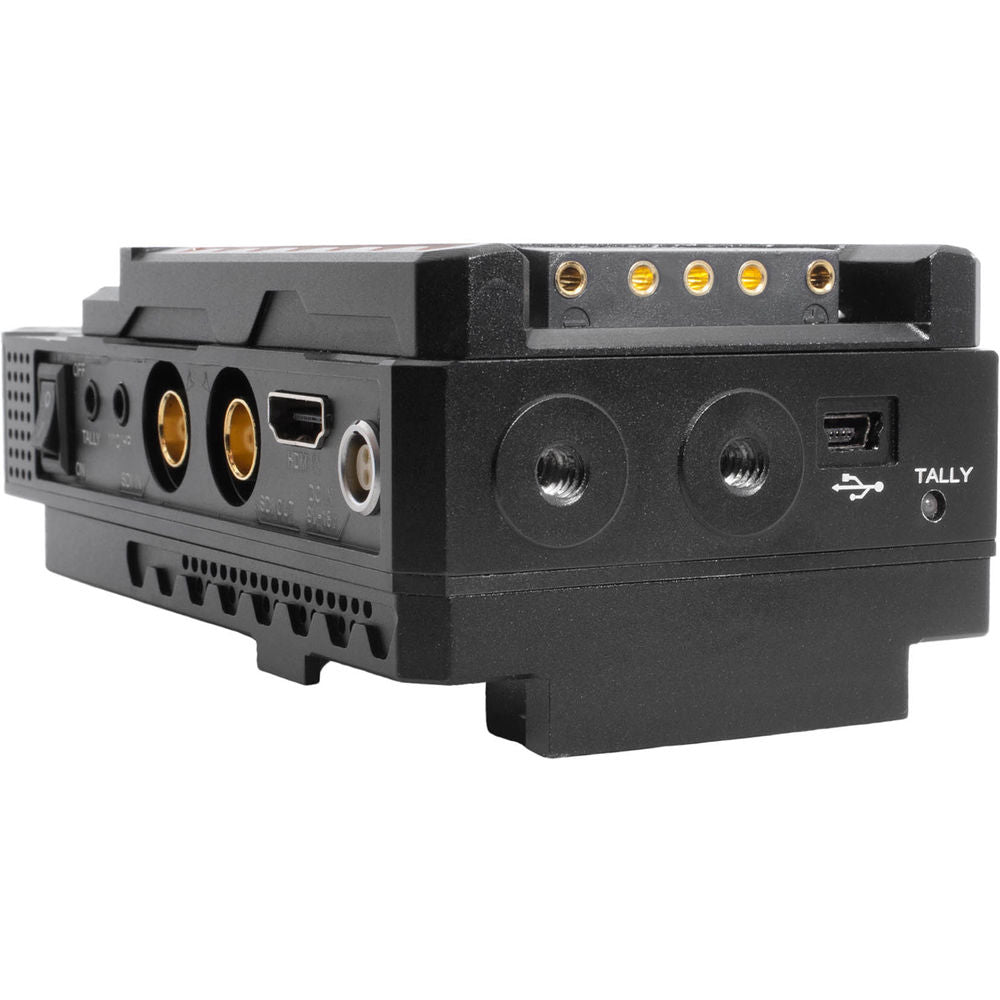

External antenna 2.4GReceiving Sensitivity 18 dBm Interface HDMI input
SDI input
SDI loop output
Mini USB
LEMO power input
Antenna RPSMA socket
Power On/Off, 3.5 mm HP/MIC socket TALLY output for wristMounting 1/4" hot-shoe OLED Channel info, video status, battery capacity, status menu, audio volume Power Source 9 to 18 VDC
V-Mount batteryPower Consumption 7.5 to 8.5 W Temperature Operating: 14 to 112°F (-10 to 50°C)
Storage: -40 to 176°F (-40 to 80°C)Dimensions 5.6 x 3 x 1" (142.5 x 76 x 24.3 mm) Weight With Antenna: 14.1 oz (400 g) - 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount)
Frequency Range 5.1-5.9 GHz
2.4-2.483 GHz with ISM bandModulation / Bandwidth OFDM / 40 MHz for video
GFSK / 1 MHz for intercom systemVideo Format Support 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60Audio Formats Supported PCM, DTS-HD, Dolby TrueHD Time Code SMPTE-12M Transmission Range Line of Sight: 2500' (762 m) Transmitter/Receiver Antenna 5 x External antennas 5G
External antenna 2GReceiving Sensitivity -70 dBm Interface SDI dual output
HDMI output
Mini USB
LEMO power input
Antenna RPSMA socket
Power On/Off, 3.5 mm HP/MIC socket
3.5 mm TALLY socket
LEMO 6 needleMounting 1/4" hot-shoe OLED Channel info
Signal strength
Power info
TALLY indicatorPower Source 9 to 18 VDC
V-Mount batteryPower Consumption 7.5 to 8.5 W Temperature Operating: 14 to 112°F (-10 to 50°C)
Storage: -40 to 176°F (-40 to 80°C)Dimensions 6.7 x 4.8 x 1" (169.5 x 122 x 25.2 mm) Weight With Antenna: 28.2 oz (800 g)

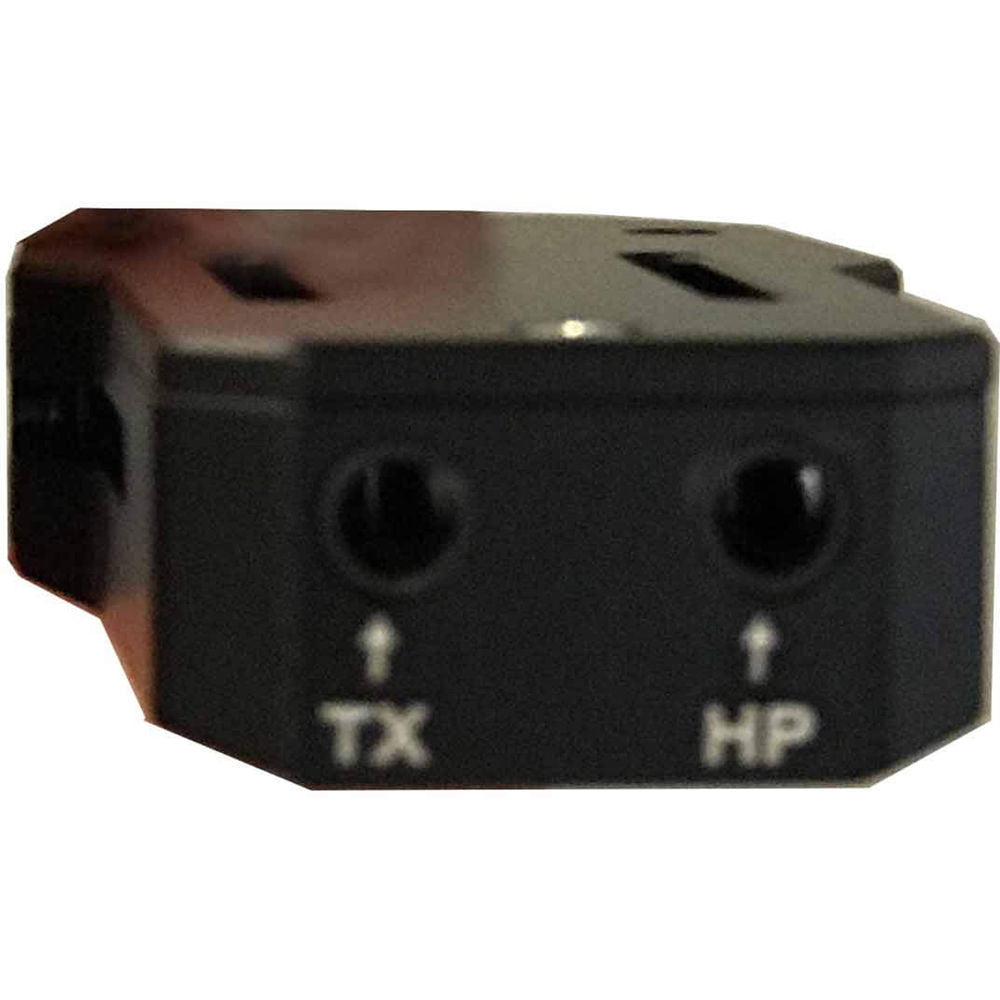

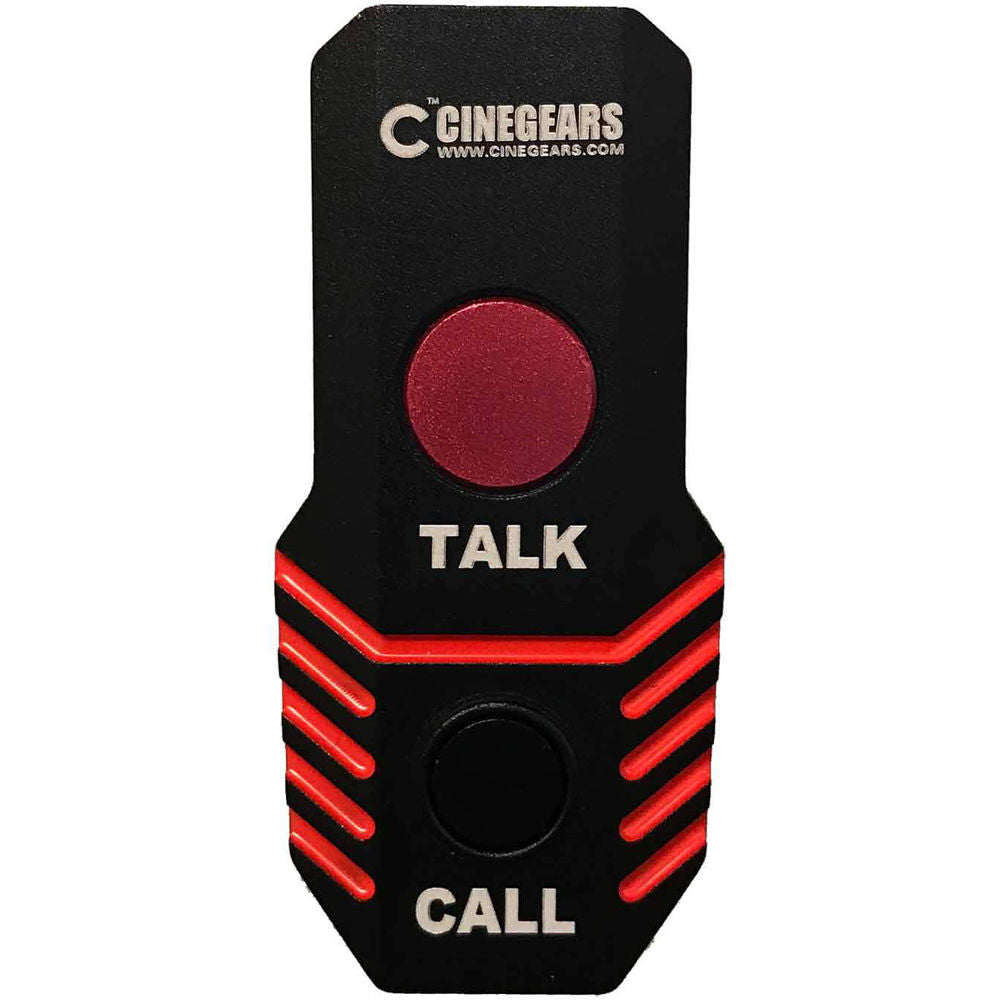

- Talk Back Control
- 2 x Extended High-Range Antenna
- Standard Antenna
- Limited 3-Year Warranty
- 5-Pin to XLR Connector
- 5 x Extended High-Range Antenna
- Standard Antenna
- Limited 3-Year Warranty
Also Includes

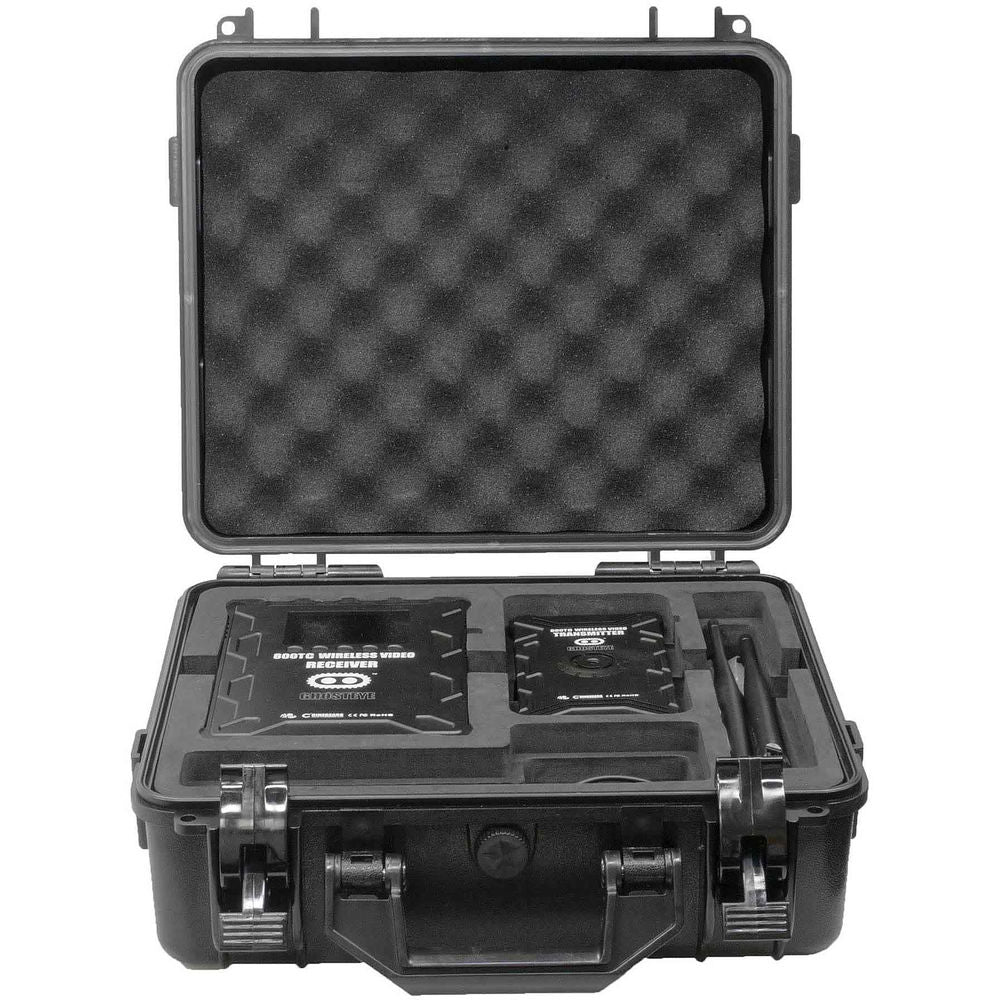

- Waterproof Foam Case
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
