Description

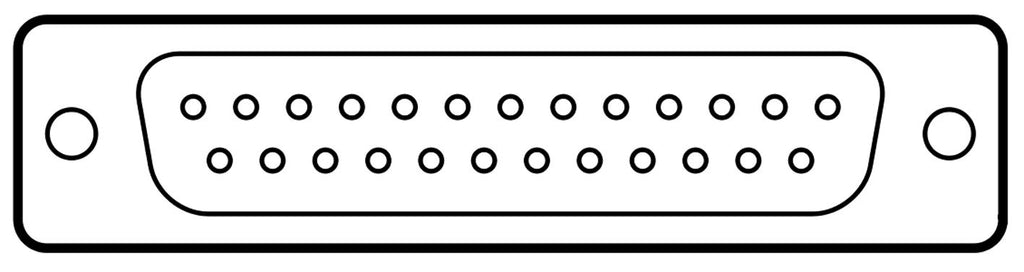

The FDBB-25S1AENT2/1-LF is a 25-position Filtered D-sub Connector Socket with 4-40 rivnut for rear panel mounting. It has copper alloy contact with high impact epoxy and GF polyester insulator, bright tin shell finish. It has 4-40 rivnut for rear panel mounting and earthing straps on plastic brackets with keeper moulding.
- 1000pF Capacitance
- Din class 2 Performance level
- 5A Current rating
- 5mR Contact resistance (maximum)
- >=5x10�MR Insulation resistance (minimum)
- -25 to 85°C Operating temperature
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Product details
| D Sub Connector Type: Filtered |
| Gender: Receptacle (View Associated Connectors) |
| Product Range: Cinch - FD |
| No. of Contacts: 25Contacts |
| D Sub Shell Size: DB |
| Contact Termination Type: Solder |
| Connector Mounting: Through Hole Mount Right Angle |
| Contact Material: Copper Alloy |
| Contact Plating: Gold over Nickel Plated Contacts |
| Connector Body Material: Steel Body |
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | FDBB-25S1AENT2/1-LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
