Description
Chrosziel MagNum Overview
- 1 Description
- 2 Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- 3 Chrosziel MN-150 MagNum Extendable Transmitter
- 4 Chrosziel MN-BAT MagNum Remote Control Battery
- 5 Chrosziel MN-CH MagNum Battery Charger
- 6 Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
The Chrosziel MagNum Mini Superior is a compact focus control system highly suited for gimbal, handheld, drone, and Steadicam applications. Included are the MagNum Mini wireless receiver and MN-150T MagNum Transmitter Hand Unit. The system is compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor, and it features a wireless range of up to 328' line of sight. The receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. It has a compact housing yet still packs the punch to provide fast and accurate control.

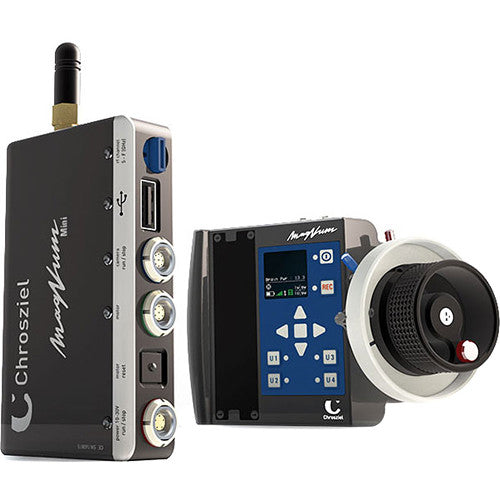

Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
The Chrosziel MagNum Mini Receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. The MagNum Mini Receiver has a compact design suited for gimbal, handheld, drone, and Steadicam applications, yet it still has the punch to provide fast and accurate adjustments. It can be controlled by the optional MN-100T, MN-150T, or MN-200T MagNum Transmitter Hand Unit from up to 328' away. Together the receiver and hand unit are compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor.
Key Features
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
Chrosziel MN-150 MagNum Extendable Transmitter
Chrosziel 's MagNum Extendable Transmitter offers single-axis wireless lens control with the option to upgrade to a second axis. This controller itself can be an upgrade to a MagNum 100 system, with this transmitter offering dual-band wireless transmission and an upgrade path for two or even 3-axis control using separately available hardware modifications. Like the other MagNum transmitters, the ergonomic MN-150 can control camera start/stop and has an easily readable OLED display.
Ergonomic Construction
Dual-Frequency Operation
Hardware Upgradeable
Chrosziel MN-BAT MagNum Remote Control Battery
The MN-BAT MagNum Remote Control Battery is a rechargeable Li-Ion battery for the MagNum wireless lens control unit and is recharged by the MN-CH battery charger (not included).
Chrosziel MN-CH MagNum Battery Charger
The Chrosziel MN-CH MagNum Battery Charger is a charger for the MF-50 batteries used with the MagNum wireless lens control. The charger can be used worldwide on any power source, as well as the 12 VDC car cigarette lighter outlet. The MN-CH includes cables for US, UK, Europe, and car outlets.
Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
The Chrosziel Padded Neck Strap is an elastic strap with the Chrosziel logo designed for your LCS transmitter. It offers maximum comfort at minimum weight while carrying your transmitter.

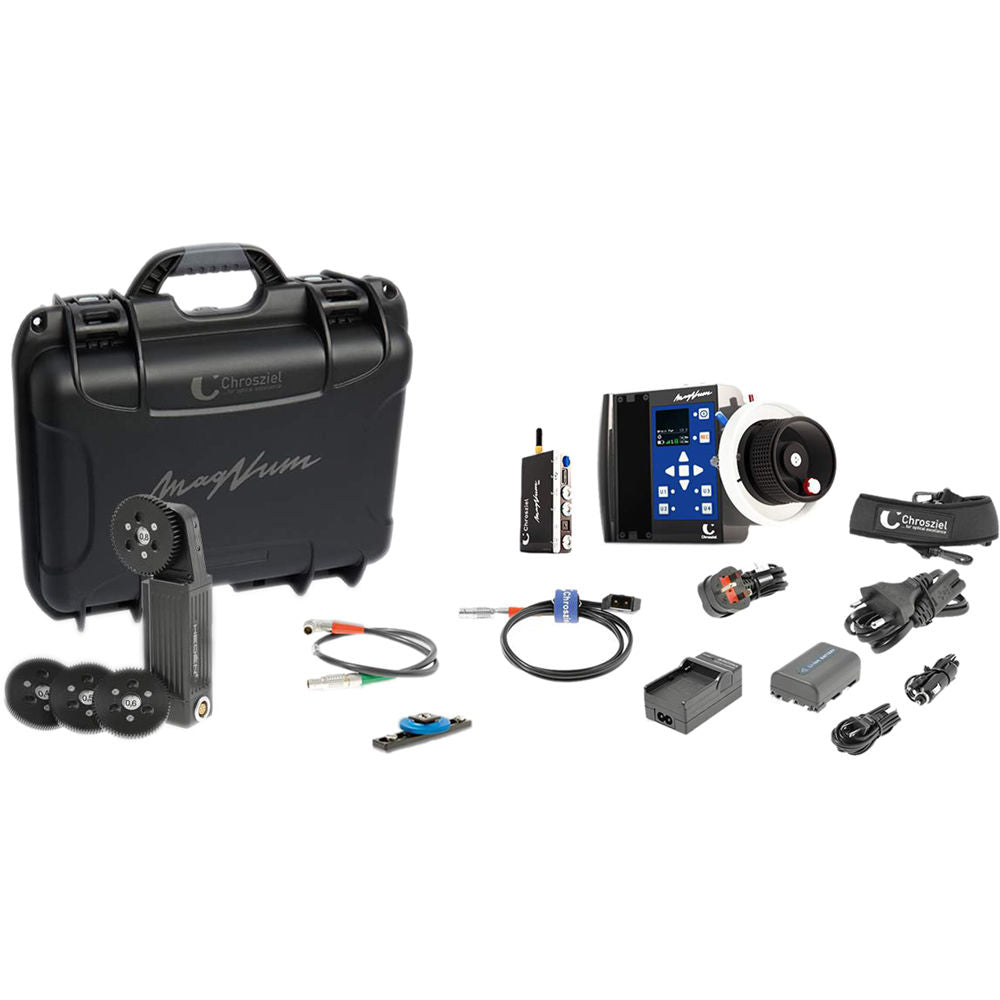

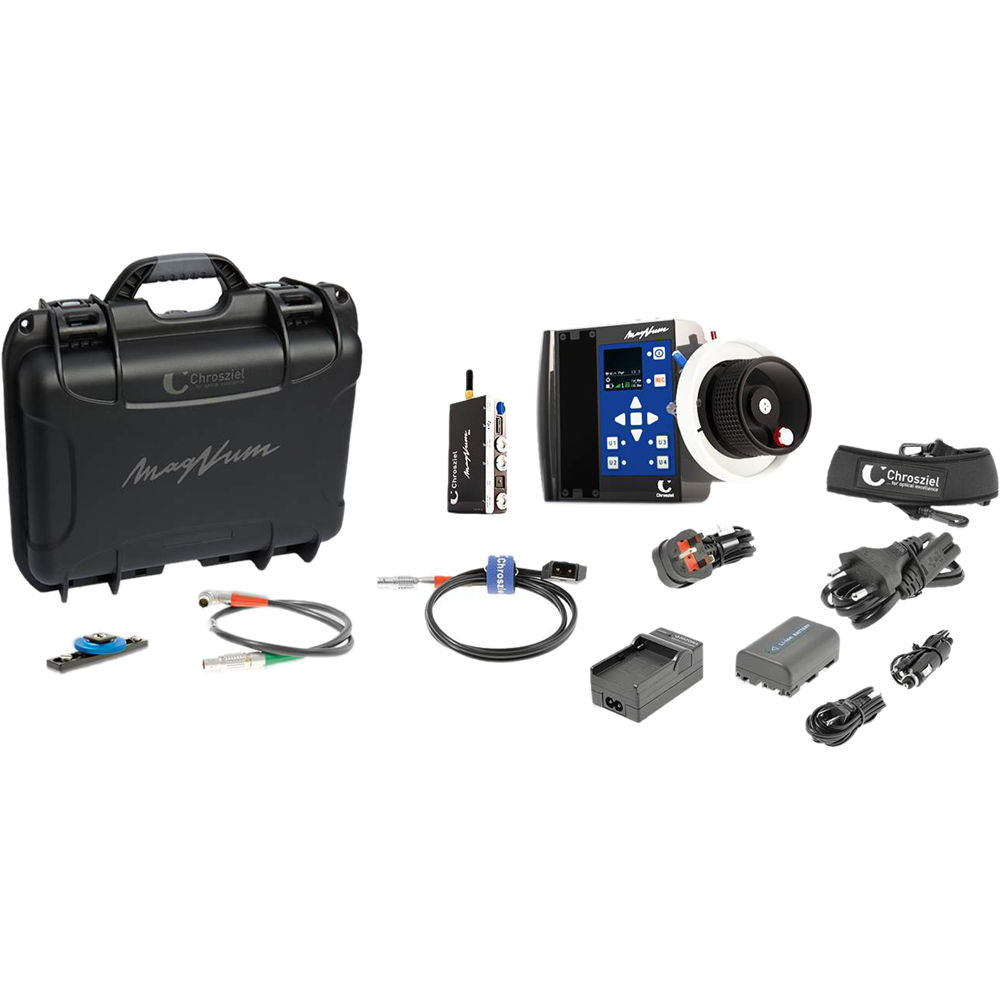

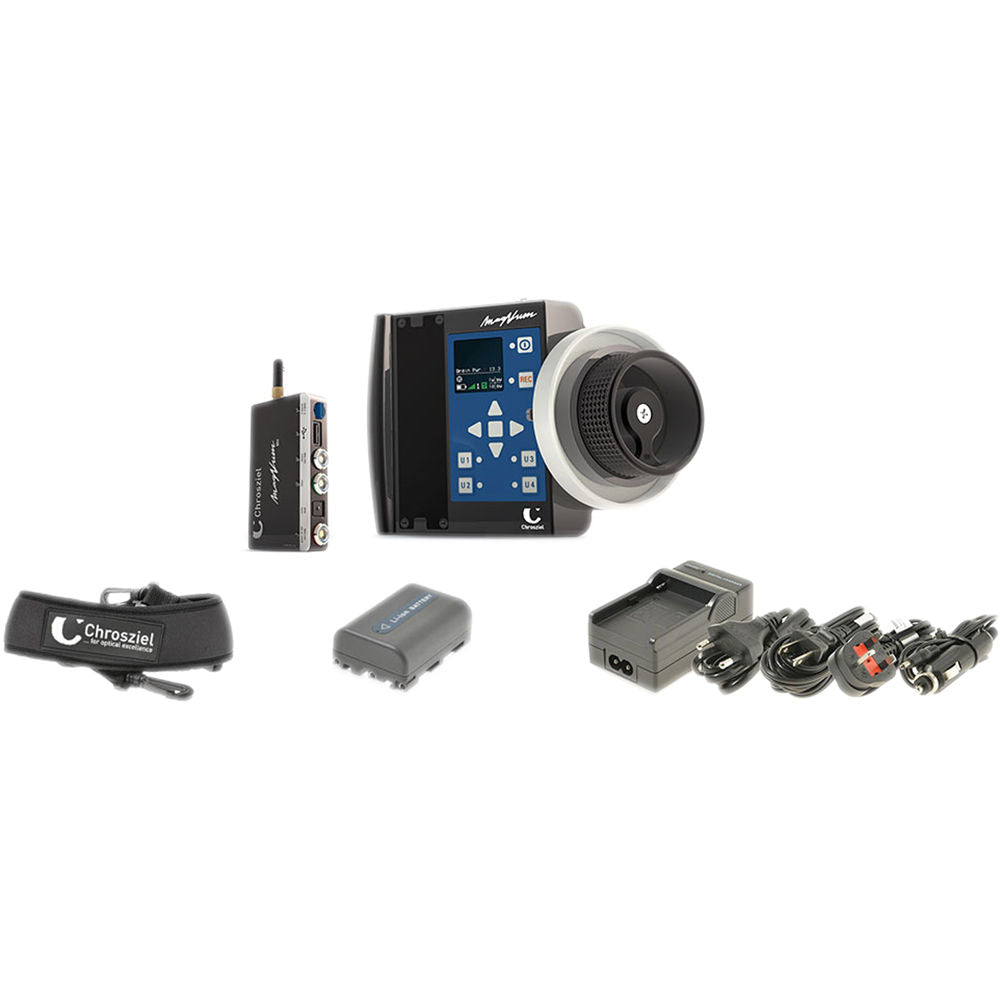

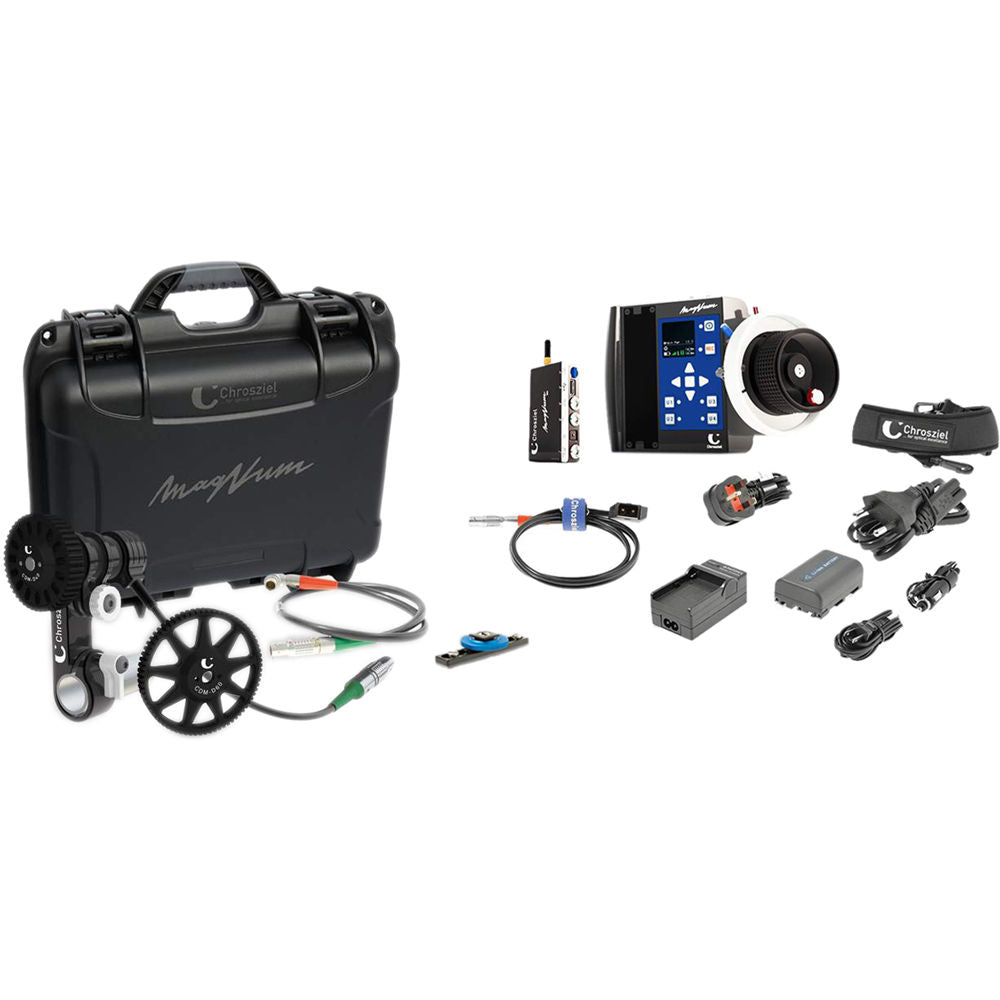

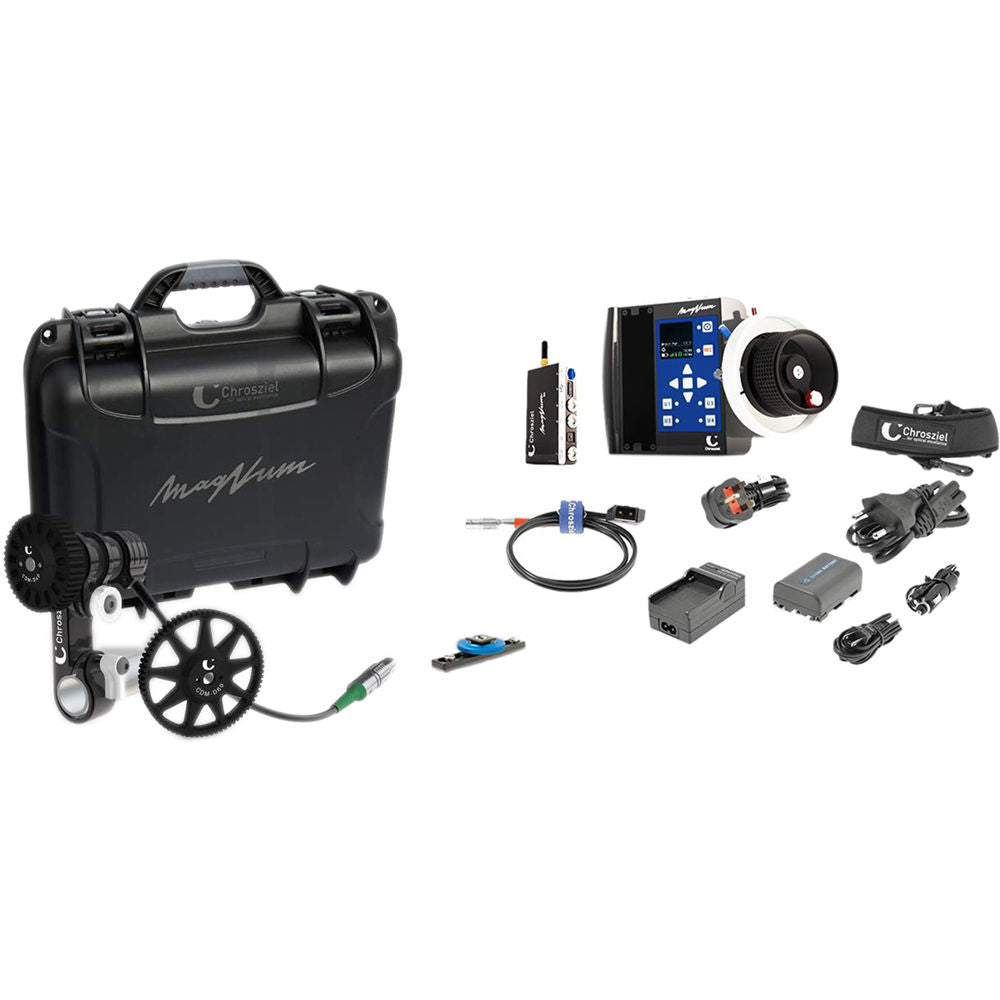

In the Box
- Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- Chrosziel Angled Antenna for ALADIN and DigiFox Receivers
- Limited 1-Year Warranty
- Chrosziel MN-150 MagNum Extendable Transmitter
- Limited 1-Year Warranty
- Chrosziel MN-BAT MagNum Remote Control Battery
- Limited 1-Year Warranty
- Chrosziel MN-CH MagNum Battery Charger
- US Power Cable
- UK Power Cable
- Euro Power Cable
- Car Power Cable
- Limited 1-Year Warranty
- Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
- Limited 1-Year Warranty
- Limited 1-Year Warranty
- Description
- Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- Chrosziel MN-150 MagNum Extendable Transmitter
- Chrosziel MN-BAT MagNum Remote Control Battery
- Chrosziel MN-CH MagNum Battery Charger
- Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver Specs
| Connectors | 1 x LEMO 0B 7-Pin (Motor) 1 x LEMO 0B 5-Pin (Power with Run/Stop) 1 x LEMO 0B 9-Pin (Run/Stop) 1 x USB |
| Mount Types | 4 x 1/4"-20 Threaded Female |
| Status LEDs | Motor, Power, Run/Stop, USB, RF Signal |
| RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F |
| Transmission Distance | Up to 328' / 100 m |
| Power | 10-30 V, 2 A Max |
| Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm |
| Weight | 4.2 oz / 120 g |
Chrosziel MN-150 MagNum Extendable Transmitter Specs
| Channels | 1 (supports 2 channels with upgrade) |
| Battery | Sony NP-FM50 type lithium-ion |
| Frequencies Supported | 2.4 GHz, 434 MHz (requires separately available antenna) |
| Weight | Transmitter: 1.27 lb / 577 g |
Chrosziel MN-BAT MagNum Remote Control Battery Specs
| Chemistry | Lithium-ion |
| Compatibility | Sony NP-FM50/55 |
| Voltage | 7.2 VDC |
| Weight | 2.5 oz (70 g) |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 2.3 x 1.8 x 0.4" |
Chrosziel MN-CH MagNum Battery Charger Specs
| Compatibility | Type FM50/55 rechargeable batteries |
| Power Input | 100 - 240 VAC, 50/60 Hz |
| Power Output | 12 VDC |
| Weight | 17.6 oz (0.5 kg) |
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.7 x 3.2" |
Chrosziel Padded Neck Strap for Lens Control Transmitters (Black) Specs
