Description
Chrosziel MagNum Overview
- 1 Description
- 2 Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- 3 Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit
- 4 Chrosziel MN-BAT MagNum Remote Control Battery
- 5 Chrosziel MN-CH MagNum Battery Charger
- 6 Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
- 7 Chrosziel D-Tap Power Cable for MagNum
- 8 Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver
- 9 Chrosziel Case with Insert for MagNum Lens Control Unit

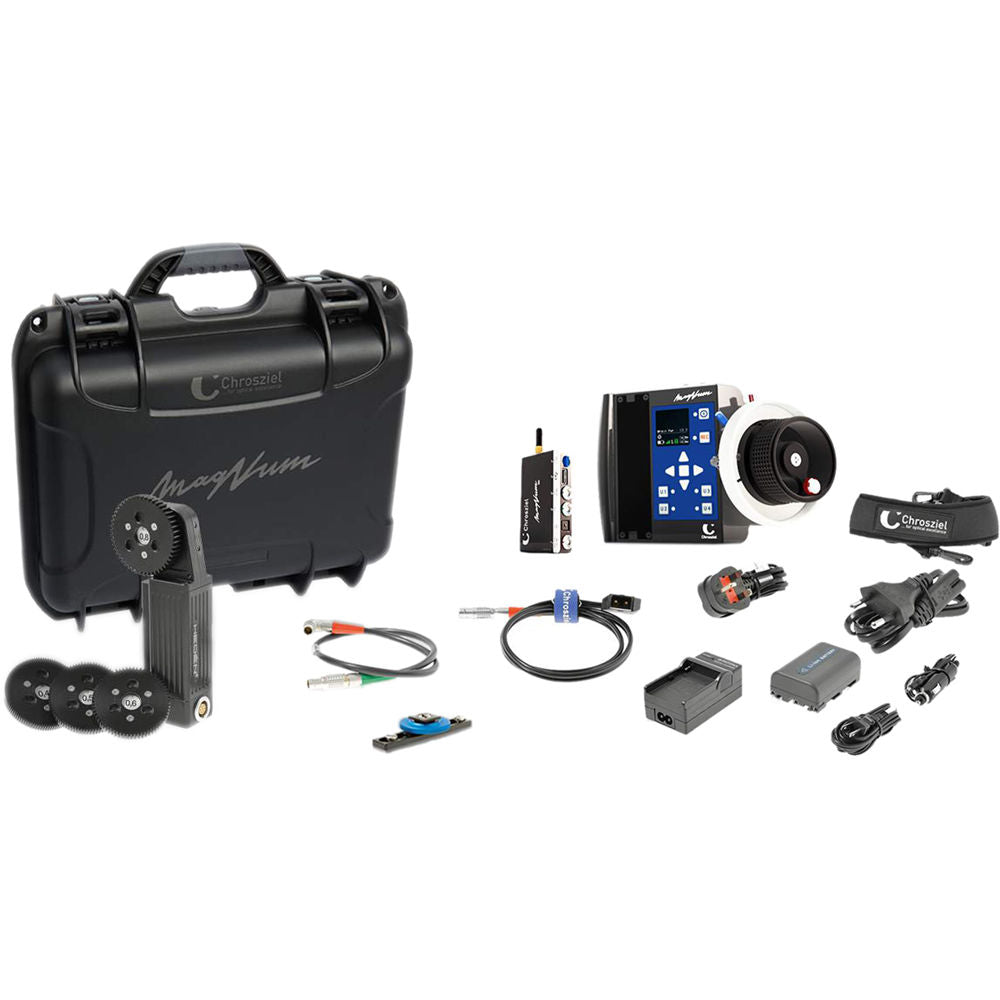

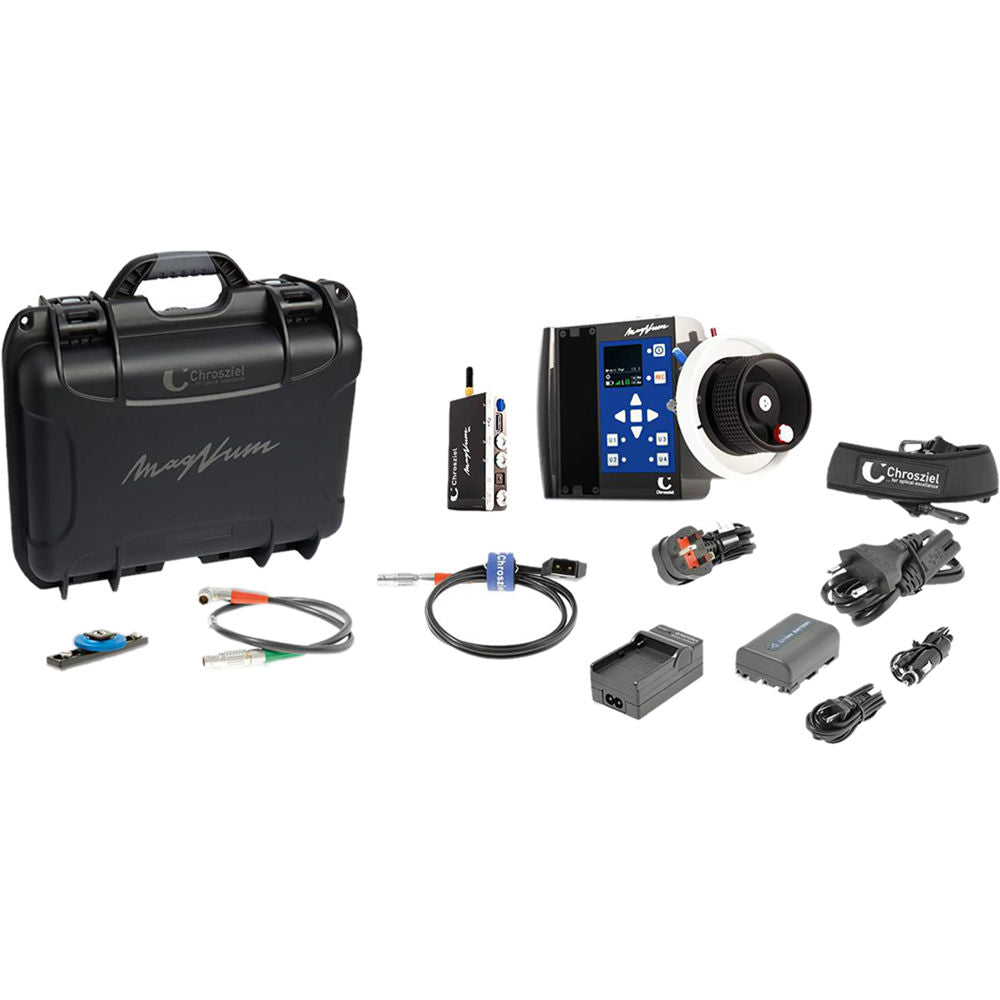

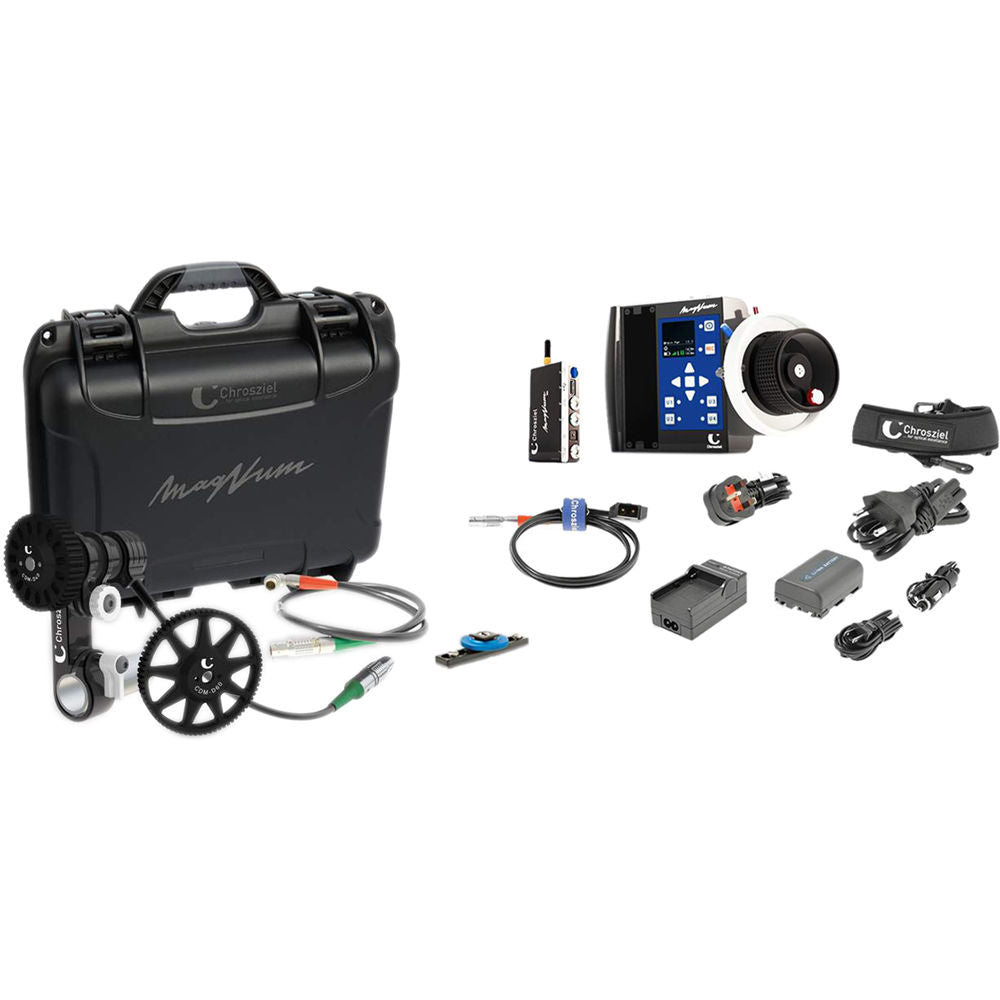

The Chrosziel MagNum Mini Kit combines the MagNum Mini focus control system with additional accessories, including a motor cable and hard carry case. The hard case fits the MagNum, cables, optional motor, and other accessories. Add a compatible Chrosziel or third-party motor and achieve fast and accurate wireless control from up to 328' away. The MagNum Mini is a compact system consisting of the MagNum Mini single-channel receiver and MagNum MN-100T transmitter hand unit. Thanks to the small form factor of the receiver, it integrates well into gimbal, handheld, drone, and Steadicam applications. Although the receiver is compact, it has a power booster that enhances motor drive.

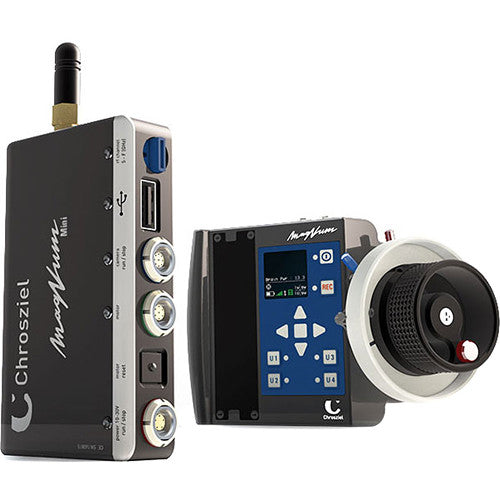

Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
The Chrosziel MagNum Mini Receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. The MagNum Mini Receiver has a compact design suited for gimbal, handheld, drone, and Steadicam applications, yet it still has the punch to provide fast and accurate adjustments. It can be controlled by the optional MN-100T, MN-150T, or MN-200T MagNum Transmitter Hand Unit from up to 328' away. Together the receiver and hand unit are compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor.
Key Features
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit
The Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit is a 2.4 GHz wireless transmitter for the MagNum system. It features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands or even attach an external monitor.
Chrosziel MN-BAT MagNum Remote Control Battery
The MN-BAT MagNum Remote Control Battery is a rechargeable Li-Ion battery for the MagNum wireless lens control unit and is recharged by the MN-CH battery charger (not included).
Chrosziel MN-CH MagNum Battery Charger
The Chrosziel MN-CH MagNum Battery Charger is a charger for the MF-50 batteries used with the MagNum wireless lens control. The charger can be used worldwide on any power source, as well as the 12 VDC car cigarette lighter outlet. The MN-CH includes cables for US, UK, Europe, and car outlets.
Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
The Chrosziel Padded Neck Strap is an elastic strap with the Chrosziel logo designed for your LCS transmitter. It offers maximum comfort at minimum weight while carrying your transmitter.
Chrosziel D-Tap Power Cable for MagNum
The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver
The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
Chrosziel Case with Insert for MagNum Lens Control Unit
This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.

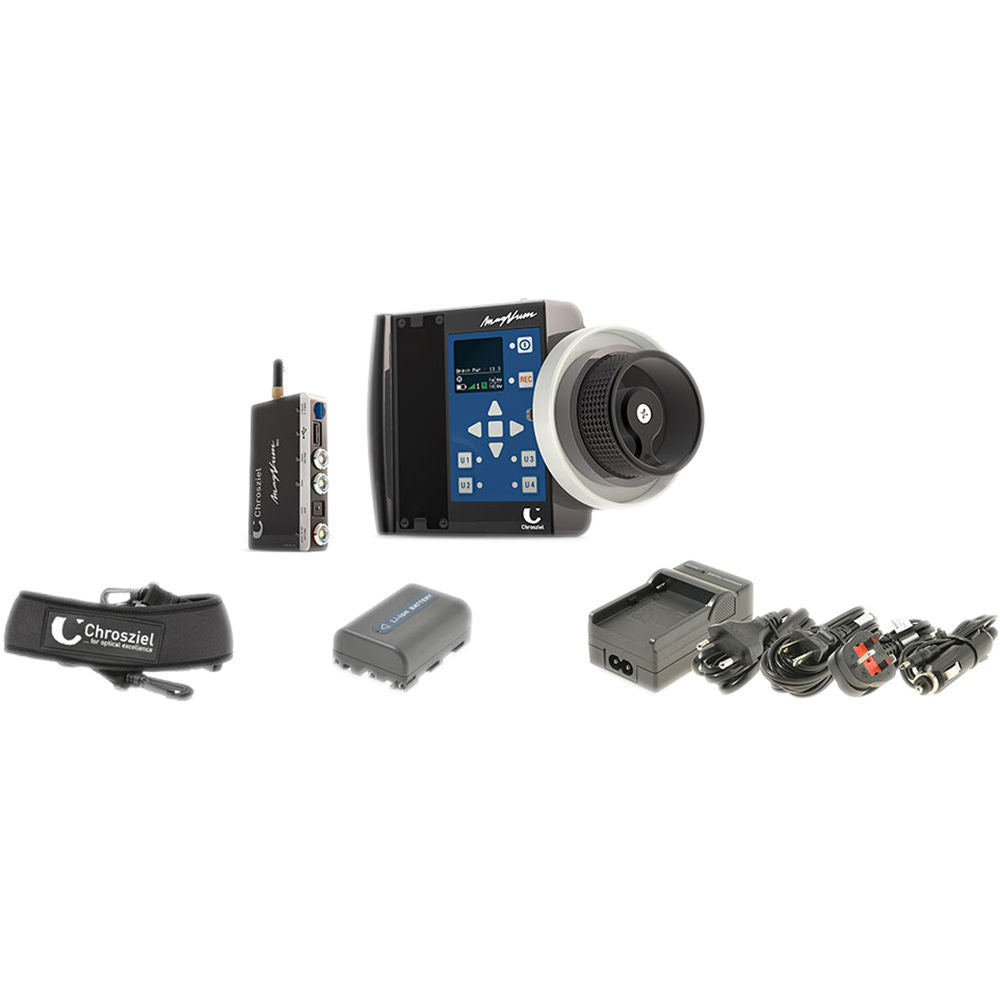

In the Box
- Chrosziel MagNum Mini Single-Channel Wireless Focus Control
- Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit
- Chrosziel MN-BAT MagNum Remote Control Battery
- Chrosziel MN-CH MagNum Battery Charger
- Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
- Limited 1-Year Warranty
- Chrosziel D-Tap Power Cable for MagNum
- Limited 1-Year Warranty
- Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver
- Limited 1-Year Warranty
- Chrosziel Case with Insert for MagNum Lens Control Unit
- Limited 1-Year Warranty
- MOTD60-S MagNum Mini Motor Cable (24")
- Description
- Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
- Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit
- Chrosziel MN-BAT MagNum Remote Control Battery
- Chrosziel MN-CH MagNum Battery Charger
- Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
- Chrosziel D-Tap Power Cable for MagNum
- Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver
- Chrosziel Case with Insert for MagNum Lens Control Unit
Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver Specs
| Connectors | 1 x LEMO 0B 7-Pin (Motor) 1 x LEMO 0B 5-Pin (Power with Run/Stop) 1 x LEMO 0B 9-Pin (Run/Stop) 1 x USB |
| Mount Types | 4 x 1/4"-20 Threaded Female |
| Status LEDs | Motor, Power, Run/Stop, USB, RF Signal |
| RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F |
| Transmission Distance | Up to 328' / 100 m |
| Power | 10-30 V, 2 A Max |
| Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm |
| Weight | 4.2 oz / 120 g |
Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit Specs
| Channels | 1 |
| Frequency | 2.4 GHz |
| Antenna | Internal |
Chrosziel MN-BAT MagNum Remote Control Battery Specs
| Chemistry | Lithium-ion |
| Compatibility | Sony NP-FM50/55 |
| Voltage | 7.2 VDC |
| Weight | 2.5 oz (70 g) |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 2.3 x 1.8 x 0.4" |
Chrosziel MN-CH MagNum Battery Charger Specs
| Compatibility | Type FM50/55 rechargeable batteries |
| Power Input | 100 - 240 VAC, 50/60 Hz |
| Power Output | 12 VDC |
| Weight | 17.6 oz (0.5 kg) |
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.7 x 3.2" |
Chrosziel Padded Neck Strap for Lens Control Transmitters (Black) Specs
Chrosziel D-Tap Power Cable for MagNum Specs
| Compatibility | MagNum, Aladin MRKII/AL2-INTF |
| Connector 1 | D-Tap |
| Connector 2 | LEMO 0B 5-pin |
| Length | 23.6" / 60 cm |
| Weight | 2.8 oz / 80 g |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" |
Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver Specs
| Compatibility | MagNum MN-100R and MN-200R receivers |
| Weight | 1.4 oz (40 g) |
Chrosziel Case with Insert for MagNum Lens Control Unit Specs
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm |
| Weight | 5.2 lb / 2.35 kg |
