Description

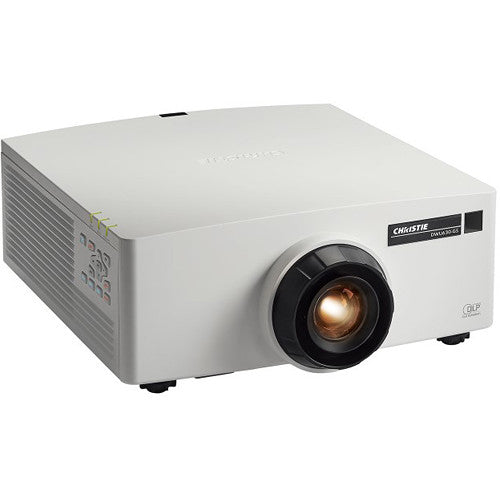

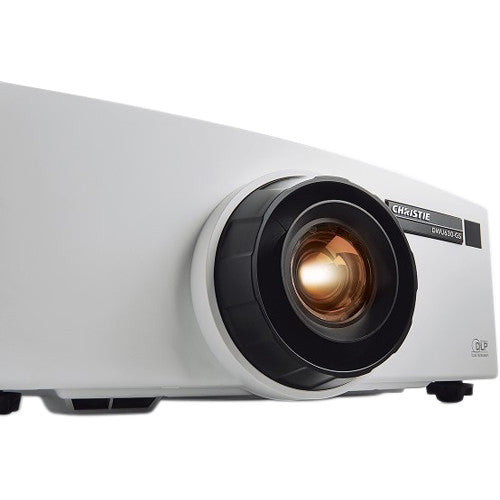

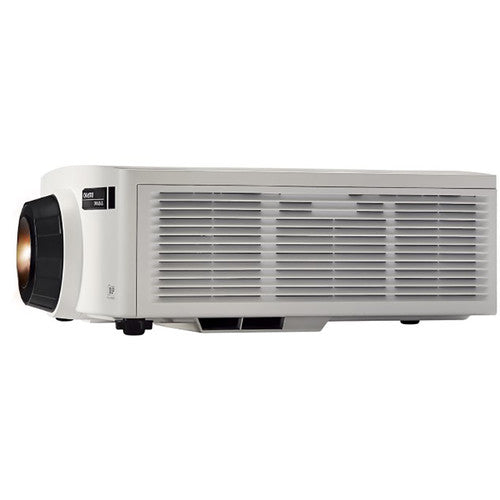

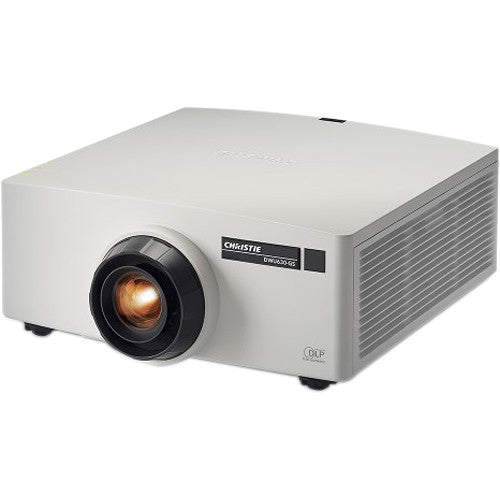

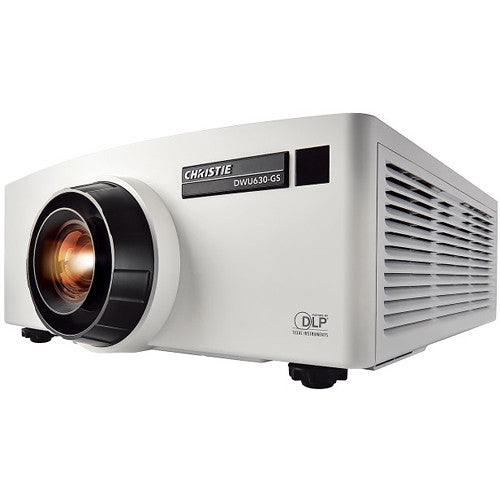

The white DWU630-GS 1DLP Laser Phosphor Projector from Christie features laser phosphor diodes that produce 6750 ISO lumens of light output and provide up to 20,000 hours of illumination life. The projector offers a native resolution of 1920 x 1200 and a 1200:1 contrast ratio. With the Christie RealBlack technology, the projector can produce a 4,000,000:1 full on/off contrast ratio.
- Performance
-
- 1DLP technology for improved image quality
- Phosphor laser diodes for 6750 ISO lumens of light output
- Christie�s RealBlack technology produces 4,000,000:1 full on/off contrast ratio
- 162 MHz pixel clock
- Supports HDTV input formats�VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio across all inputs
- 3.5mm stereo female remote connector for serial communications and power
- RJ45 connector to control over wired network connection
- Compatible with all GS Series lenses (lens available separately)
- Noise rating of 36 dBA allows for quiet operation
- Compact and light
- 24/7 operation
- 3D Inputs
-
- HDMI 1.4, HDBaseT�frame packed, top/bottom, and side by side, up to 120 Hz output
- Does not support frame sequential 3D inputs
- 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
- Control & Networking
-
- Control via HDBaseT, RS232 in, and IR remote
- Ethernet (10/100) RJ45 connection
- Built-in backlit keypad
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining
- Lens Mount
-
- Boresight adjustable mount
- Motorized horizontal (±15%) and vertical (±50%) lens offset
- Motorized zoom and focus adjustment
- Regulatory
-
- UL/CSA/IEC 60950-1
- FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
- RoHS, REACH, and WEEE
In the Box
Christie DWU630-GS 6750-Lumen WUXGA 1DLP Laser Phosphor Projector (No Lens)
- IR Remote with Wired Remote Jack (Wire Available Separately)
- AC Line Cords for Projector
- Limited 3-Year Warranty
- Limited 3-Year or 15,000-Hour Warranty on Illumination System, Whichever Comes First
Christie DWU630 specs
| Image Display | |
|---|---|
| Display System | 1-Chip 0.65" DMD DLP DMD S600HB |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 640 Maximum: WUXGA - 1920 x 1200 |
| Max Brightness | White: 6000 Lumens Color: 6000 Lumens ISO: 6750 lumens and ANSI: 6000 lumens |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 1200:1 4,000,000:1 with Christie RealBlack enabled |
| Dynamic Contrast Ratio | 6000:1 |
| Color Wheel | 4-Segment (R, G, B, Y) 2x or 3x speed |
| Scan | Horizontal: 15 - 9 kHz Vertical: 24 - 120 Hz |
| Lens | None |
| Features | |
|---|---|
| Keystone Correction | Not Specified by Manufacturer |
| Ceiling Mountable | Not Specified by Manufacturer |
| Input/Output Connectors | |
|---|---|
| Inputs/Outputs | 2 x HDMI Audio/Video (Input) 1 x DVI-D Video (Input) 1 x HDBaseT Video (Input) 1 x 1/8" (3.5 mm) Mini Remote (Input) 1 x Ethernet Control (Input) 1 x RS-232C Control (Input) 1 x HD15 input |
| General | |
|---|---|
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 36 dB With Typical 2x Wheel Speed |
| AC Input Power | 100 - 240 VAC, 50 / 60 Hz at 9.5 A With 15 A fuse |
| Power Consumption | Medium Brightness: 650 W |
| Max Operating Altitude | 10000' (3048 m) |
| Operating Temperature | 32 to 104°F (0 to 40°C) 32-104°F (0-40°C) at 0-2500' (0-762 m) altitude |
| Operating Humidity | 0 - 85% |
| Dimensions (W x H x D) | 19.9 x 17.9 x 7.6" / 50.5 x 45.5 x 19.3 cm |
| Weight | 39.9 lb / 18.10 kg |
