Description
Christie 4K22A-HS Overview
- 1Description
- 2Laser Light Illumination
- 3Flexible Connections
- 4Christie BoldColor Technology
- 5Built-In Christie Twist and Compatible with Christie Mystique
- 6Interchangeable Lenses
- 7Additional Features
By Photo's
Frank Abbate

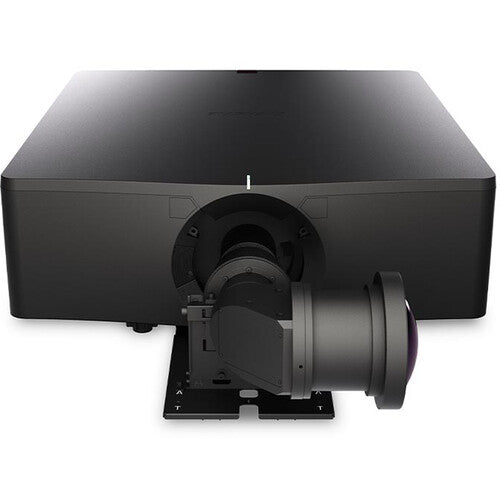

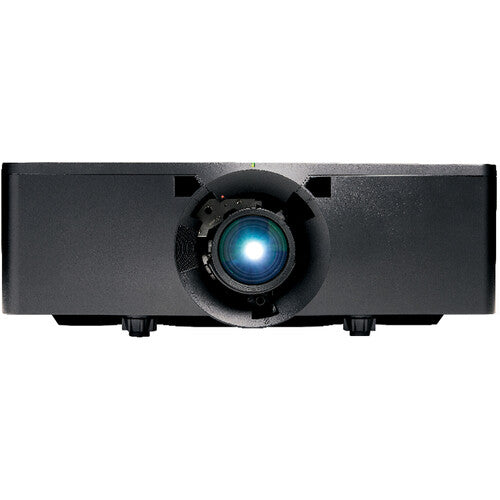

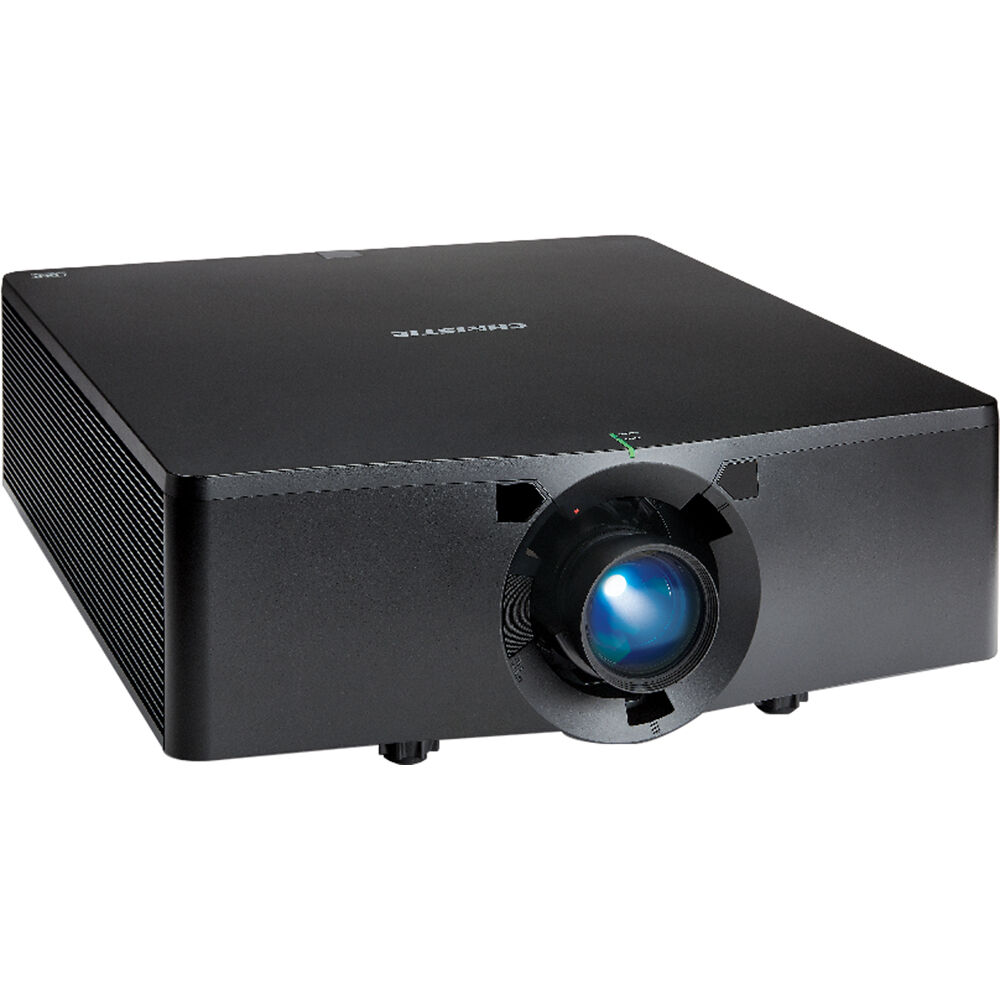

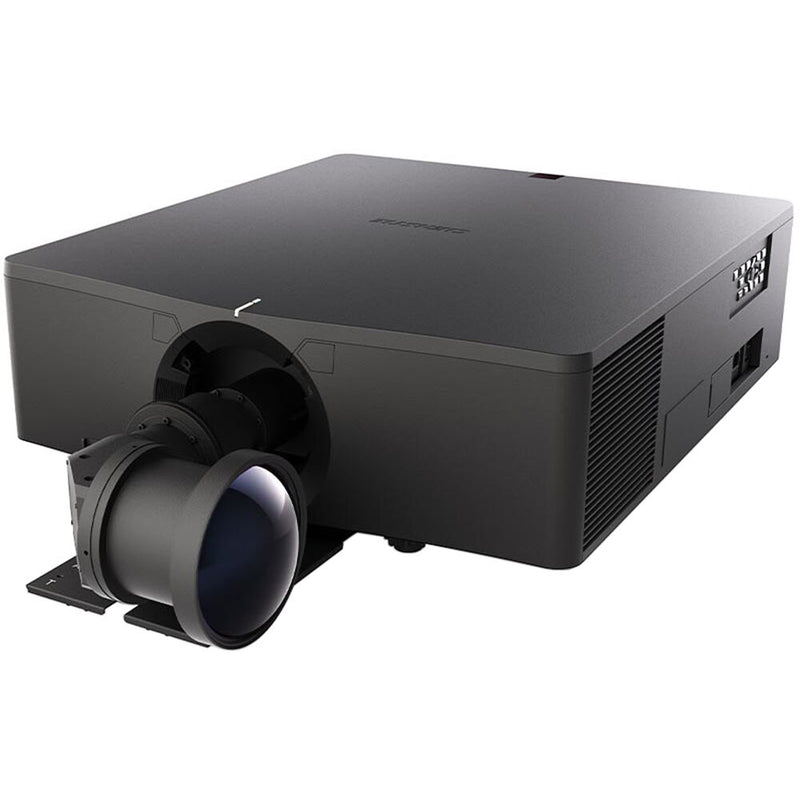

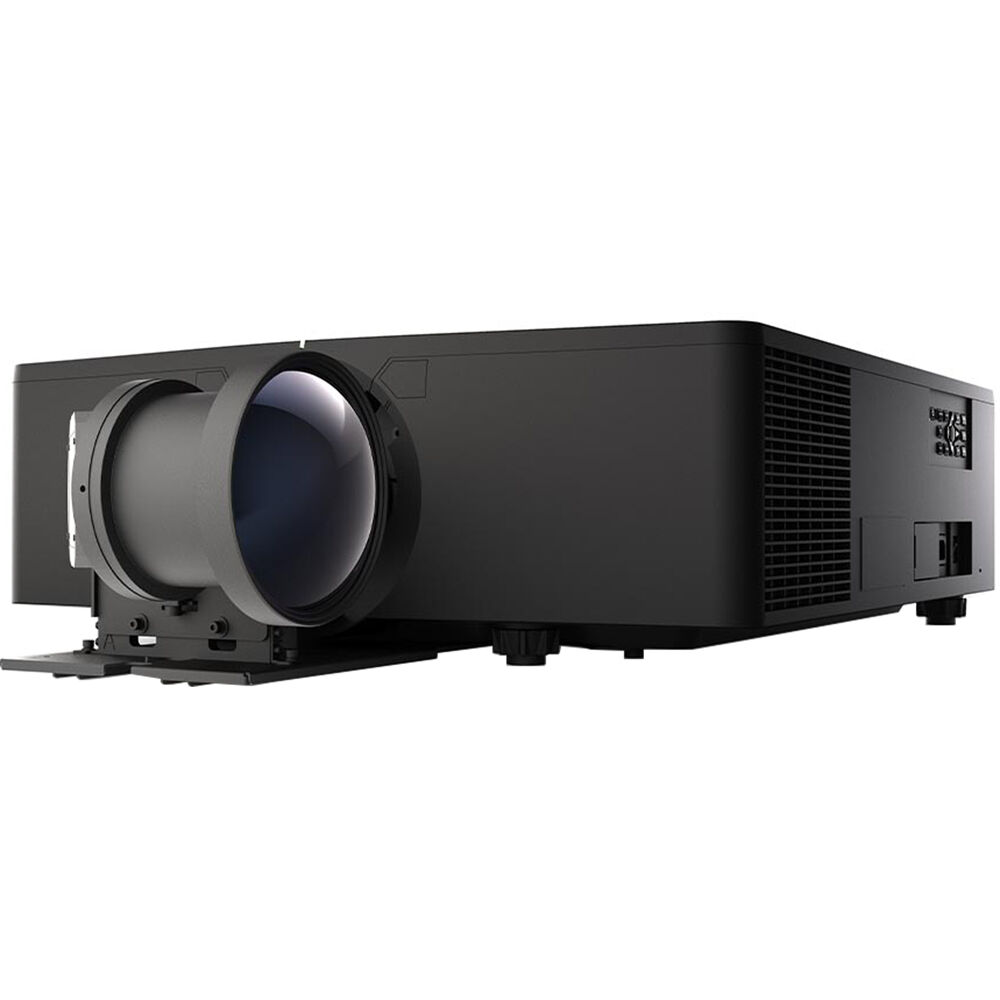

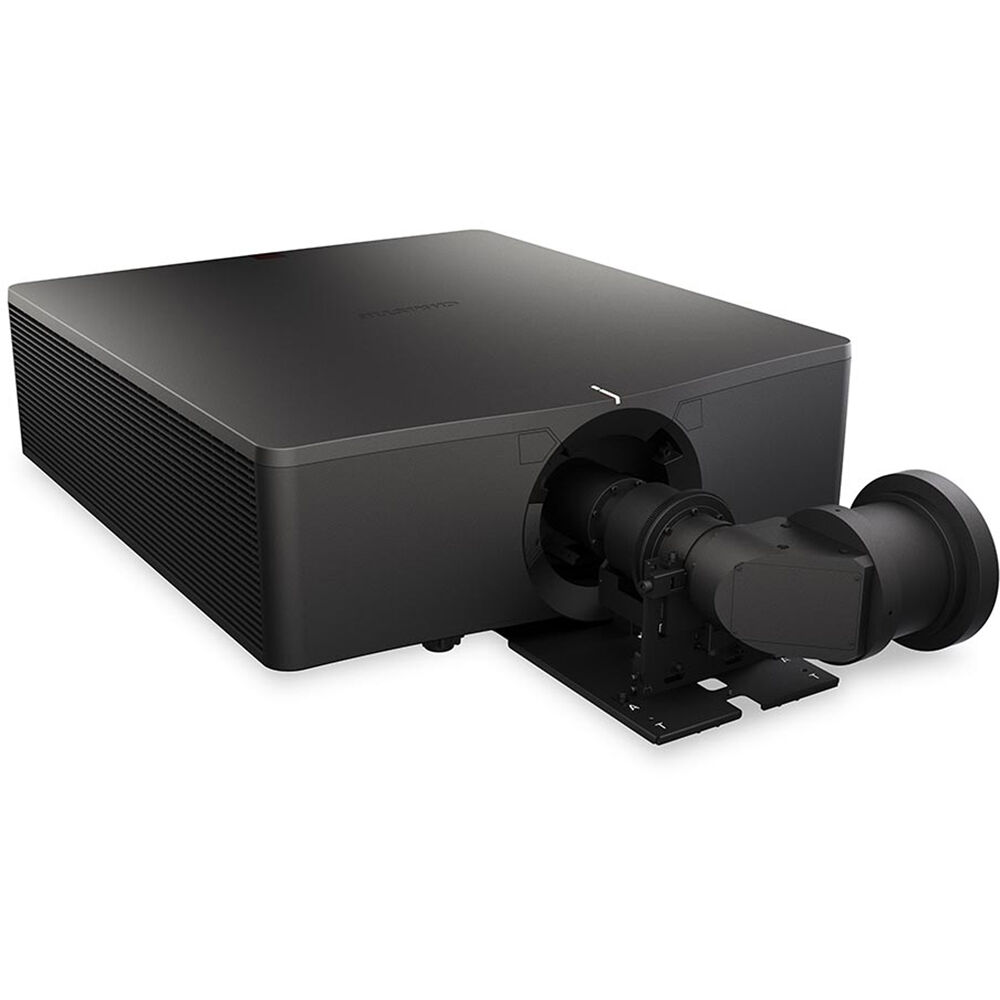

Create large, impressive visuals with the incredible brightness and resolution of the 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector from Christie. With its high-brightness, long-lasting laser illumination and Christie BoldColor+ technology for rich color, the 4K22A-HS is ideal for high-demand, high-use situations and large venues, such as live events, museums, houses of worship, theme parks, and more. With Christie Twist built-in and Christie Mystique compatibility, the 4K22A-HS offers users the tools needed to quickly and easily set up and align irregular screens and multi-projector displays.
Laser Light Illumination
Rated at 20,000 hours to 50% brightness, Christie laser projectors are engineered for long life and low maintenance, even in high-use situations. To provide extra peace of mind, Christie provides a warranty to cover the illumination system for five years or 20,000 hours, whichever comes first.
Flexible Connections
Connect practically any video device to the 4K22A-HS with 12G-SDI, DisplayPort, HDBaseT, and two HDMI 2.0b inputs. HDMI and 12G-SDI outputs are provided for daisy-chaining in multi-projector applications.
Christie BoldColor Technology
Christie BoldColor+ Technology creates the color balance needed to accurately reproduce colorful images without sacrificing brightness. Christie BoldColor+ Technology employs blue and red laser diodes as well as an optical chamber, video processing, and specialized software to produce enhanced color and saturation and more lifelike visuals when compared to typical laser phosphor projectors.
Built-In Christie Twist and Compatible with Christie Mystique
Built-in Christie Twist allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point, mesh interface. Working in conjunction with Twist, Christie Mystique automates multi-projector warping and blending. With the click of a mouse, the camera-based software automatically aligns, stacks, and blends multi-projector systems in minutes. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.
Interchangeable Lenses
| Throw Ratio | Lens Type | Part Number |
| 0.38:1 | Ultra short-throw lens | 140-142108-XX |
| 0.65-0.75:1 | Short-throw zoom lens | 140-144100-XX |
| 1.02-1.36:1 | Standard-throw zoom lens | 140-115108-XX |
| 1.2-1.5:1 | Standard-throw zoom lens | 140-109101-XX |
| 1.5-2.0:1 | Standard-throw zoom lens | 140-110103-XX |
| 2.0-4.0:1 | Long-throw zoom lens | 140-111104-XX |
| 4.0-7.0:1 | Long-throw zoom lens | 140-116109-XX |
| 7.2-10.8:1 | Ultra long-throw zoom lens | 140-145101-XX |
Additional Features
- AMX and Crestron connectivity
- Boresight adjustable lens
- Motorized horizontal and vertical offset
- Motorized zoom and focus (for full ILS lenses)
- Full HD 3D support
- Eco mode
- Full-range voltage support - system dims to 80% brightness whenit detects 100-120 VAC power
- Picture-in-picture
- Picture-by-picture
- TAA compliant
In the Box
- Christie 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector (No Lens)
- AC Power Cord
- IR Remote Control
- Limited 5-Year Manufacturer Warranty (Parts and Labor on the Projector)
- Limited 5-Year Manufacturer Warranty (Or 20,000 Hours Parts and Labor on the Illumination System)
Not in the Box
- Essential Lenses & Lens Adapters (Not Included)
Table of Contents
- Description
- Laser Light Illumination
- Flexible Connections
- Christie BoldColor Technology
- Built-In Christie Twist and Compatible with Christie Mystique
- Interchangeable Lenses
- Additional Features
Christie 4K22A-HS Specs
Key Specs
| Display System |
1-Chip 0.95" DMD DLP
|
| Native Chip Resolution |
1920 x 1080 (Full HD)
|
| Maximum Brightness |
19,000 Lumens (ANSI)
22,500 Lumens (ISO) |
| Supported HDR Input Formats |
Yes
|
| Inputs/Outputs |
2x HDMI 2.0b Audio, Video Input
1x BNC (12G-SDI) Video Input 1x DisplayPort Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x USB-A Power Output 1x BNC (12G-SDI) Video Output 1x HDMI Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) Control, Data, LAN Input 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1-Chip 0.95" DMD DLP
|
| Native Chip Resolution |
1920 x 1080 (Full HD)
|
| On-Screen Resolution |
Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology
|
| Supported Resolutions |
Maximum: 4K UHD - 3840 x 2160 @ 60 Hz
|
| Maximum Brightness |
19,000 Lumens (ANSI)
22,500 Lumens (ISO) |
| Aspect Ratio |
Native: 16:9
|
| Contrast Ratio |
1200:1
|
| Dynamic Contrast Ratio |
6000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Packing (up to 1080i/p)
Top Bottom (up to 1080i/p) Side by Side (up to 1080i/p) Frame Sequential (up to 1080i/p) |
| Color Wheel |
3-Segment (RGB)
|
| Scan |
Horizontal: 15 to 91 kHz
Vertical: 24 to 240 Hz |
| Includes Lens |
No
|
Features
| Supported HDR Input Formats |
Yes
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
No
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI 2.0b Audio, Video Input
1x BNC (12G-SDI) Video Input 1x DisplayPort Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x USB-A Power Output 1x BNC (12G-SDI) Video Output 1x HDMI Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) Control, Data, LAN Input 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output |
| HDCP Support |
Yes, Version 2.2
|
Hardware
| Mobile App Compatible |
Yes: Android & iOS
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
|
| Fan Noise |
Full Brightness: 45 dB
Low Brightness: 42 dB |
| Security |
Cable Lock Slot
|
| AC Input Power |
220 to 240 VAC, 50 / 60 Hz
|
| Heat Dissipation |
Full Brightness: 5295 BTU
Medium Brightness: 4368 BTU Low Brightness: 2748 BTU |
| Power Consumption |
Full Brightness: 1553 W
Medium Brightness: 1281 W Low Brightness: 806 W |
| Certifications |
RoHS, REACH, WEEE, UL, CSA, IEC 60950-1, FCC Class A, cTUVus, CE, CCC, PSE, EAC, BIS, VCCI, RCM, BSMI
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 85% ()
|
| Dimensions (W x H x D) |
23.5 x 8.0 x 26.7" / 596.0 x 203.0 x 677.0 mm without feet
|
| Weight |
95.9 lb / 43.5 kg
|
