CHIOPT XTREME 75-250mm T3.2 Overview
-
1Description
-
2Compact Telephoto Zoom
-
346mm Image Circle
-
4Interchangeable Mounts
-
5Matches 28-85mm Zoom
-
6Weather-Resistant Metal Design
-
7288° Focus Ring
-
8Minimal Breathing Effect
-
911-Blade Iris
-
10Focusing Distance

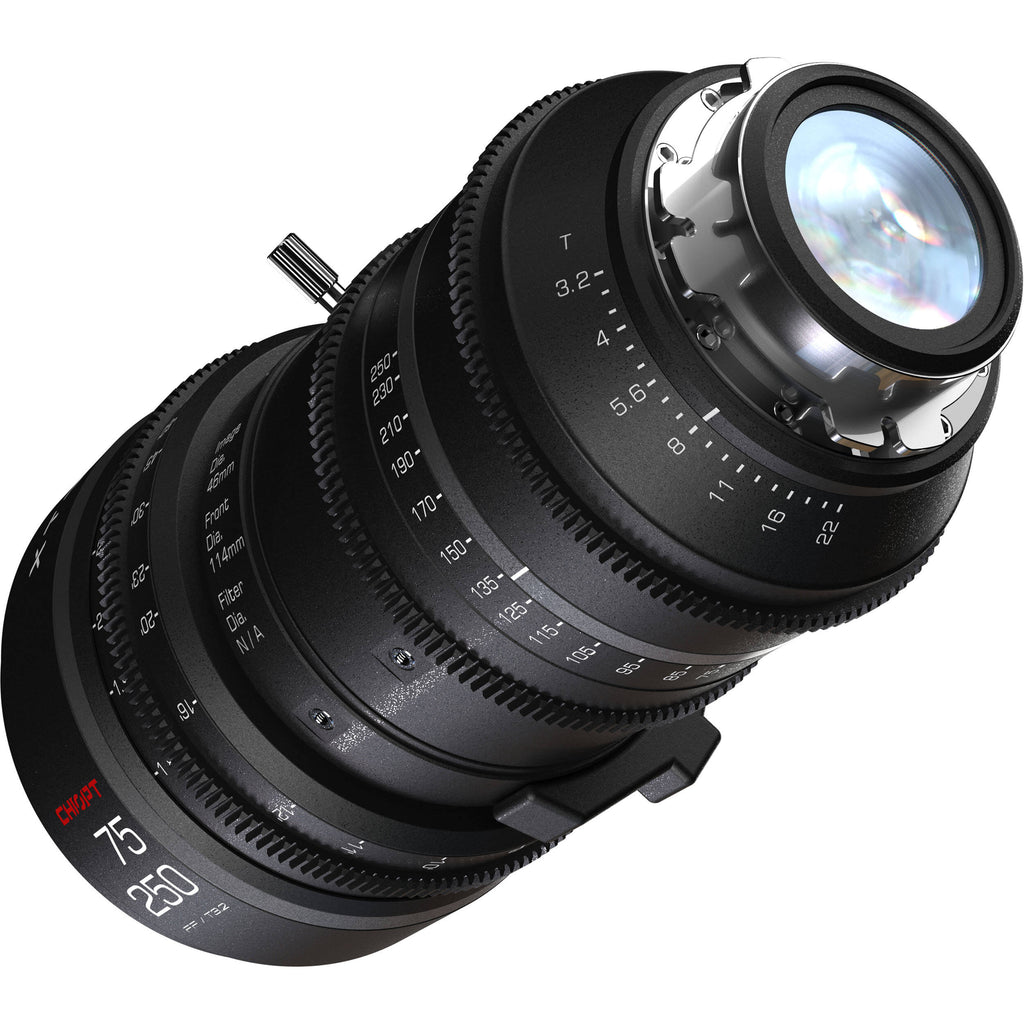

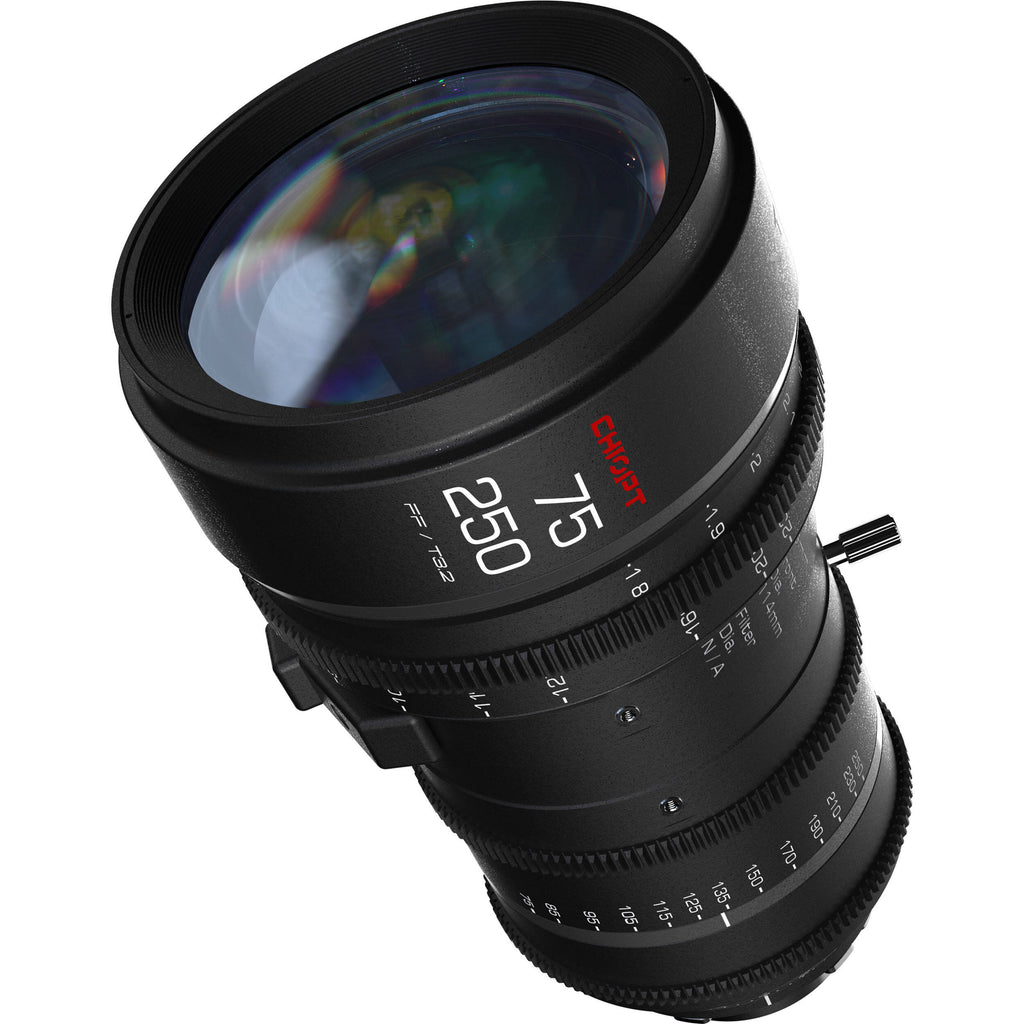

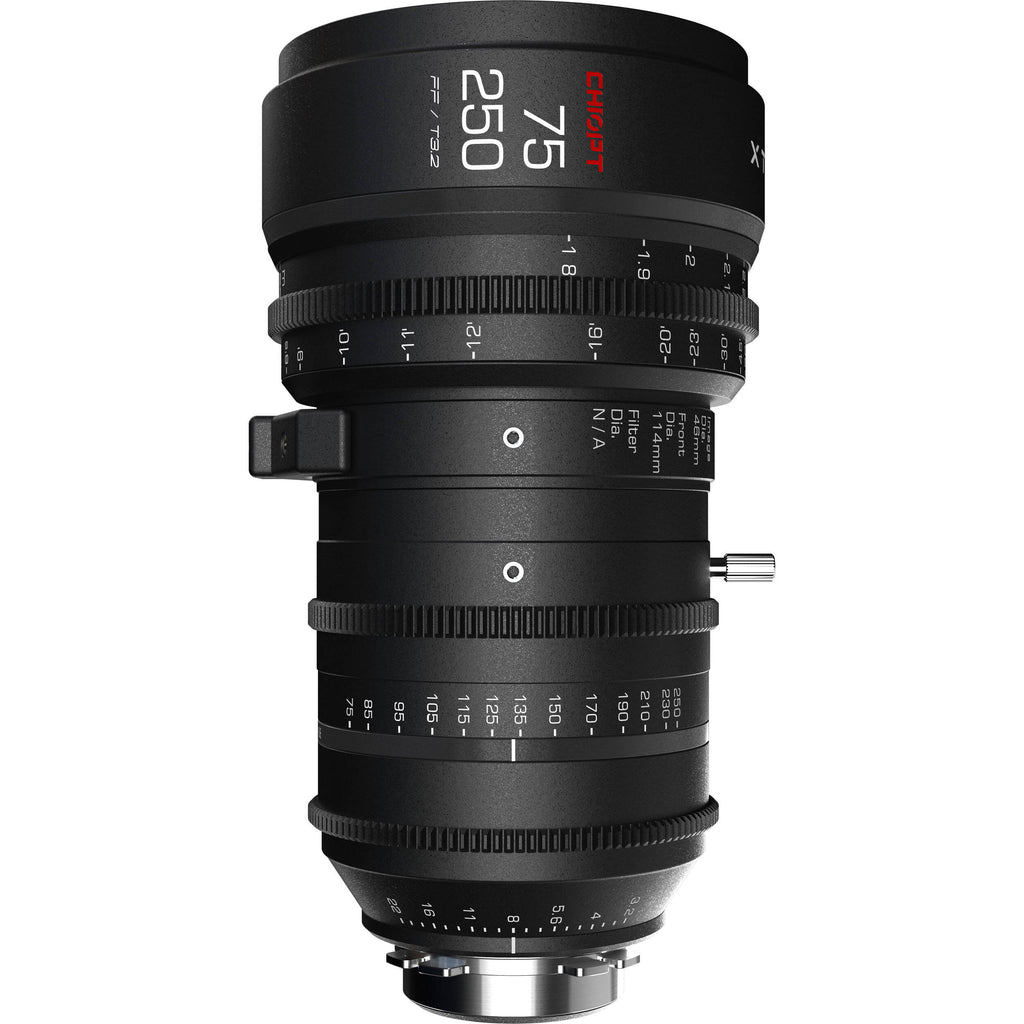

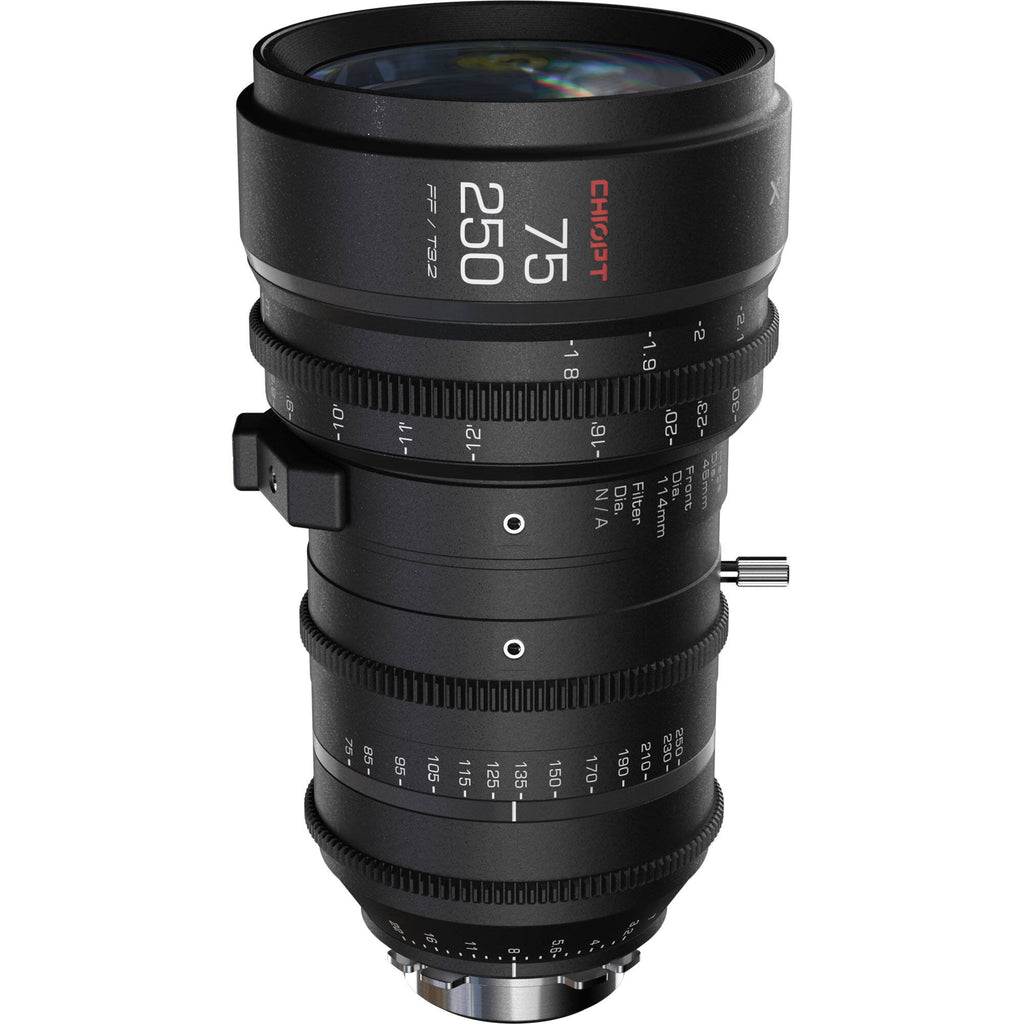

Capture sharp, distortion-free telephoto shots with the PL-mount XTREME ZOOM 75-250mm T3.2 Compact Zoom Cine Lens from CHIOPT. Designed for full-frame cameras, this lens is color-matched with the 28-85mm XTREME zoom and features a rugged design, minimal breathing, and natural, rounded bokeh. Focus scales are displayed in both feet and meters, and the wide 288° focus barrel range enables smooth, precise focus pulls.
- The long 250mm focal length enables you to position your camera further away while still capturing the action
- Can be used with an optional 1.7x extender for a 425mm equivalent focal length
This 75-250mm lens has a 46mm image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.
This PL-mount zoom can be used with optional Canon EF and Sony E mounts for compatibility with a wide range of cameras.
Color, weight, and support position are matched with the 28-85mm zoom, enabling footage matching and quick switches between the lenses.
Weather-Resistant Metal Design
- Material between the layers of the metal housing helps minimize the infiltration of dust or water
- The metal lens housing with a stainless steel mount and hardened surface provides durability
The 288° span of the focusing ring provides ample room for precise focus marking and smooth pulls.
Minimal lens breathing when zooming.
The 11-blade iris creates rounded bokeh in the out-of-focus highlights.
Minimum focusing distance of 4.9' from the lens front.
Table of Contents
- Description
- Compact Telephoto Zoom
- 46mm Image Circle
- Interchangeable Mounts
- Matches 28-85mm Zoom
- Weather-Resistant Metal Design
- 288° Focus Ring
- Minimal Breathing Effect
- 11-Blade Iris
- Focusing Distance
CHIOPT XTREME 75-250mm T3.2 Specs
Focal Length |
75 to 250mm |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.0 mm |
Maximum Aperture |
T3.2 |
Minimum Aperture |
T22 |
Diagonal Angle of View |
Full Frame: 32 to 9.7° |
Horizontal Angle of View |
Full Frame: 26.8 to 8.2° |
Minimum Focus Distance |
From Front of Lens: 4.9' / 1.5 m |
Diaphragm Blades |
11 |
Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch |
Front Diameter |
114 mm |
Filter Thread |
None |
Focus Scales |
Metric, Imperial |
Focus Rotation |
288° |
Iris Rotation |
84° |
Zoom Rotation |
104° |
Zoom Ratio |
3.5x |
Electronic Communication |
No |
Image Stabilization |
No |
Lens Support |
Lens Support Foot |
Dimensions (W x H) |
4.8 x 9.0" / 122 x 228 mm |
Length |
9" / 228 mm |
Weight |
6.4 lb / 2.9 kg |
Packaging Info
Package Weight |
14.43 lb |
Box Dimensions (LxWxH) |
15.4 x 12.1 x 7.5" |
