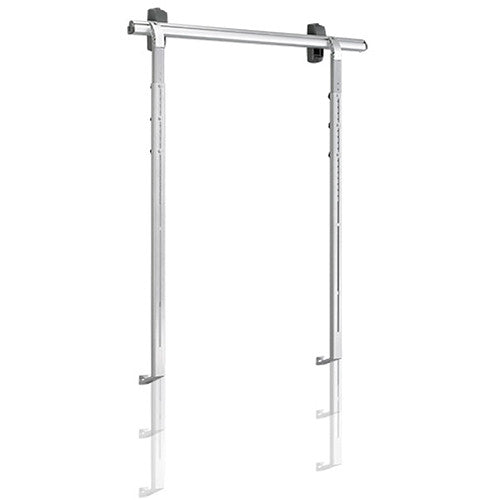

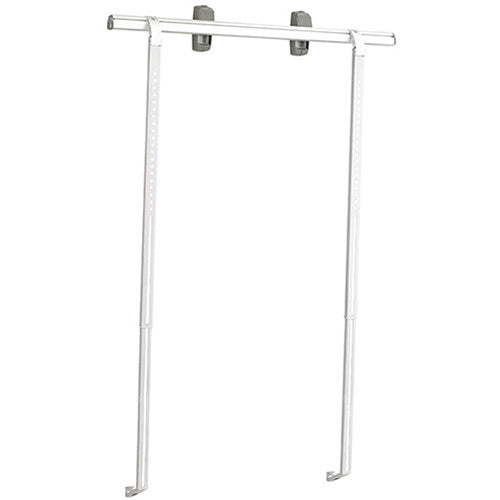

The Chief WBM3E Micro-Adjustable Telescoping Leg Whiteboard Mount allows an interactive whiteboard to be installed directly on a wall over pre-existing dry erase boards or chalkboards without causing any damage. It hosts telescoping legs that can be anchored between 5 and 7�.
This mount provides maximum flexibility and can be used in most classrooms. It can be mounted onto either a 2 x 4" wood stud wall, 8" concrete wall, or an 8 x 8 x 16" concrete block wall.
Dual Lateral Shift Options
- Mount shifts left / right at the wall installation
- Additional adjustment can be achieved by sliding the uprights and interactive board left / right along the mount crossbar
Macro & Micro Height Adjustments
- Macro height adjustable in upright position in 1" increments
- Micro height and leveling adjustment in wall assemblies up to 1.5"
- Telescoping legs can be locked down indefinitely using knobs
Flexible and Stable installation
- Telescopic legs that can be anchored between top and bottom anchor points (5 to 7')
- Can be anchored at 4 points above and below dry erase / chalkboard
- Suitable for all audiences including younger children
UPC: 841872157597
In the Box
Chief WBM3E Micro-Adjustable Telescoping Leg Whiteboard Mount
Wall Assembly 2 x Upright Assembly 2 x Adjustable Leg 2 x Wall Bracket Cover 2 x Sliding Cover 2 x Alternate Foot 6 x M6 x 40mm Knob Installation Hardware Limited 10-Year Warranty on Parts & Labor
Chief WBM3E specs
Extension | 57.84 to 82.78" (146.91 to 210.26 cm) |
Overall Dimensions (H x W x D) | 82.78 x 46.93 x 4.92" (210.26 x 119.20 x 12.49 cm) |
Weight Capacity | 125.0 lb (56.6 kg) |
Packaging Info |
Package Weight | 27.55 lb |
Box Dimensions (LxWxH) | 48.75 x 9.0 x 8.5" |
