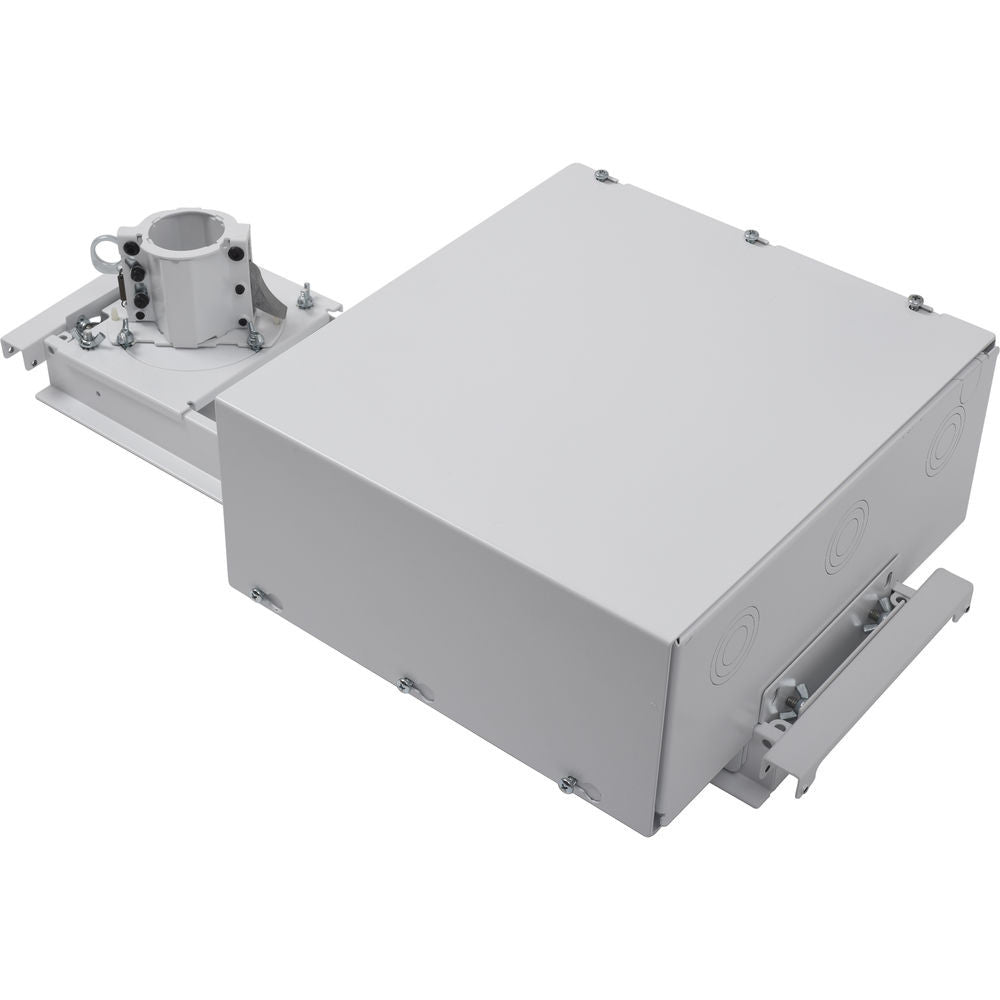

Provided by third party: Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended ceiling projector system cuts installation time by one-third and includes everything needed to complete the majority of installations.
- Key Features
-
- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection

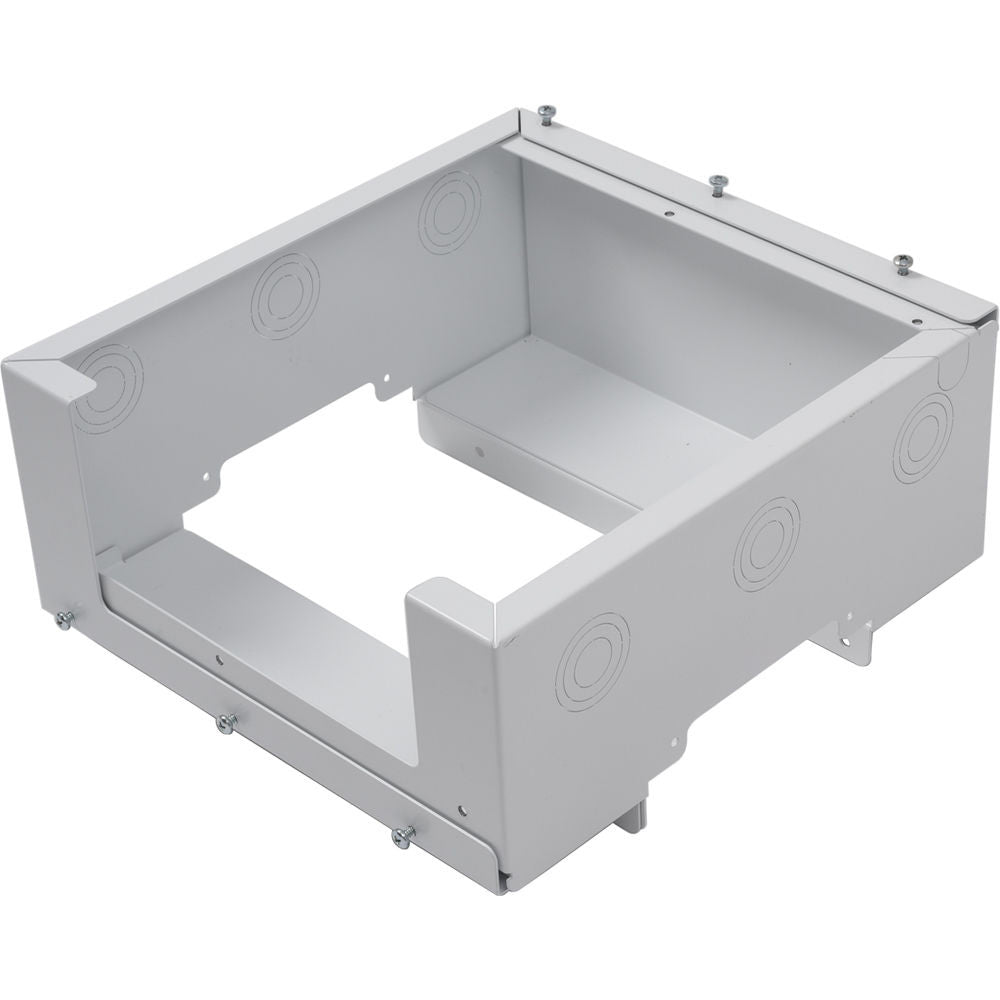

- Plenum-rated enclosure is scalable to fit AV equipment
- Shift enclosure along tile bridge to avoid plenum interferences
- Removable covers enable side access in shallow plenum spaces and full access from above
UPC: 841872167541
| General |
| Width | 7.3 in |
| Depth | 24.9 in |
| Height | 19.8 in |
| Adjustable Depth | 0 in - 12 in |
| Color | White |
| AV Furniture |
| Type | Mounting kit |
| Mounting Components | Interface plate, suspended ceiling plate, mounting plate, column, ceiling plenum enclosure, interface leg |
| Recommended Use | Projector |
| Tilt | 10� |
| Pan | 360� |
| Rotation | 3� |
| Adjustments | Roll, pitch, yaw |
| Max Load Weight | 35 lbs |
