Description
Chief Velocity Outdoor Pedestal Overview

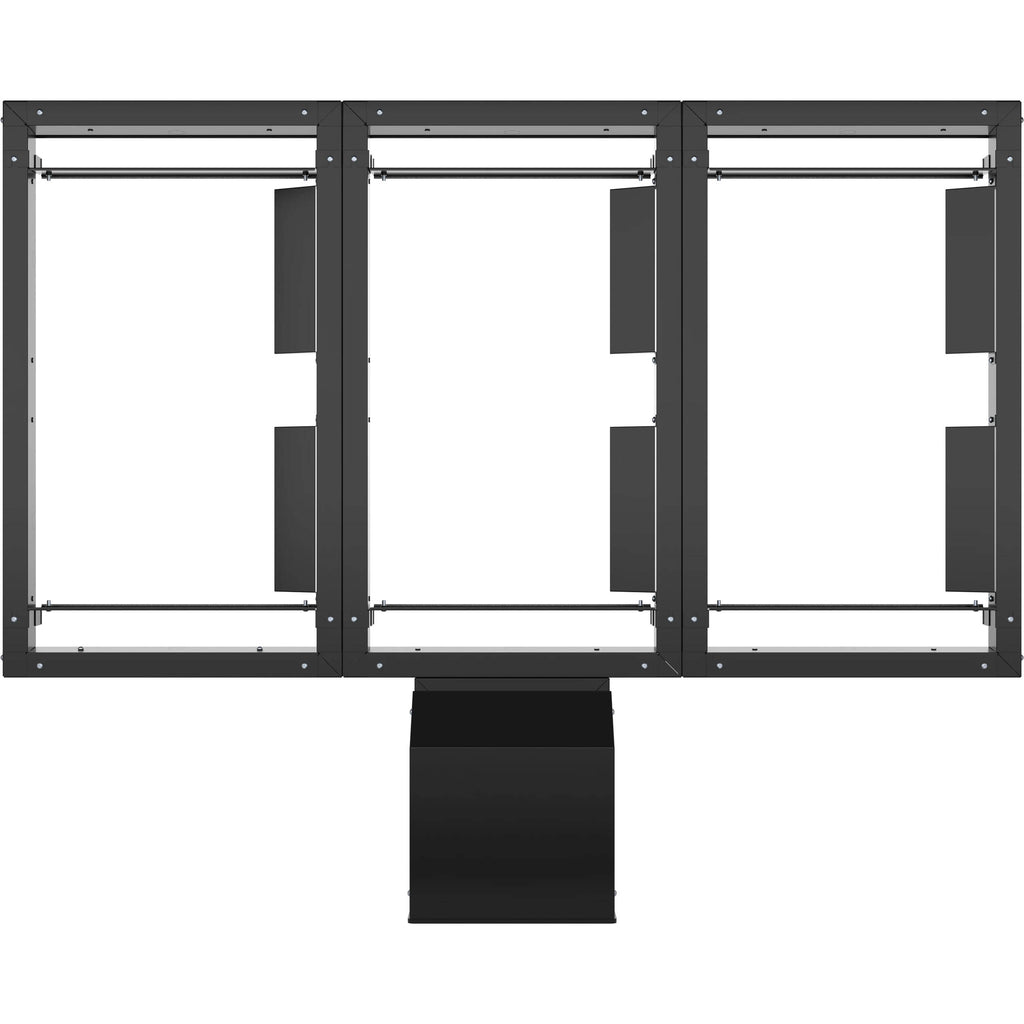

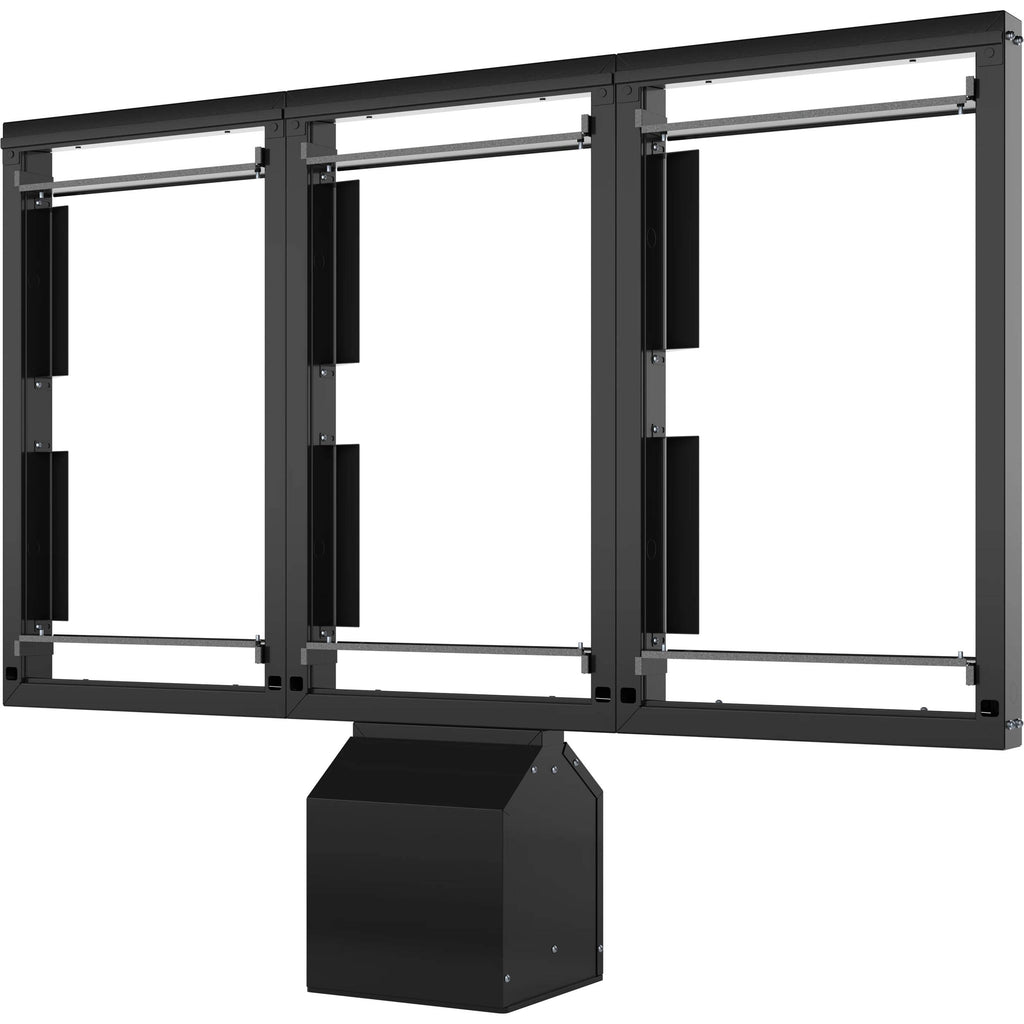

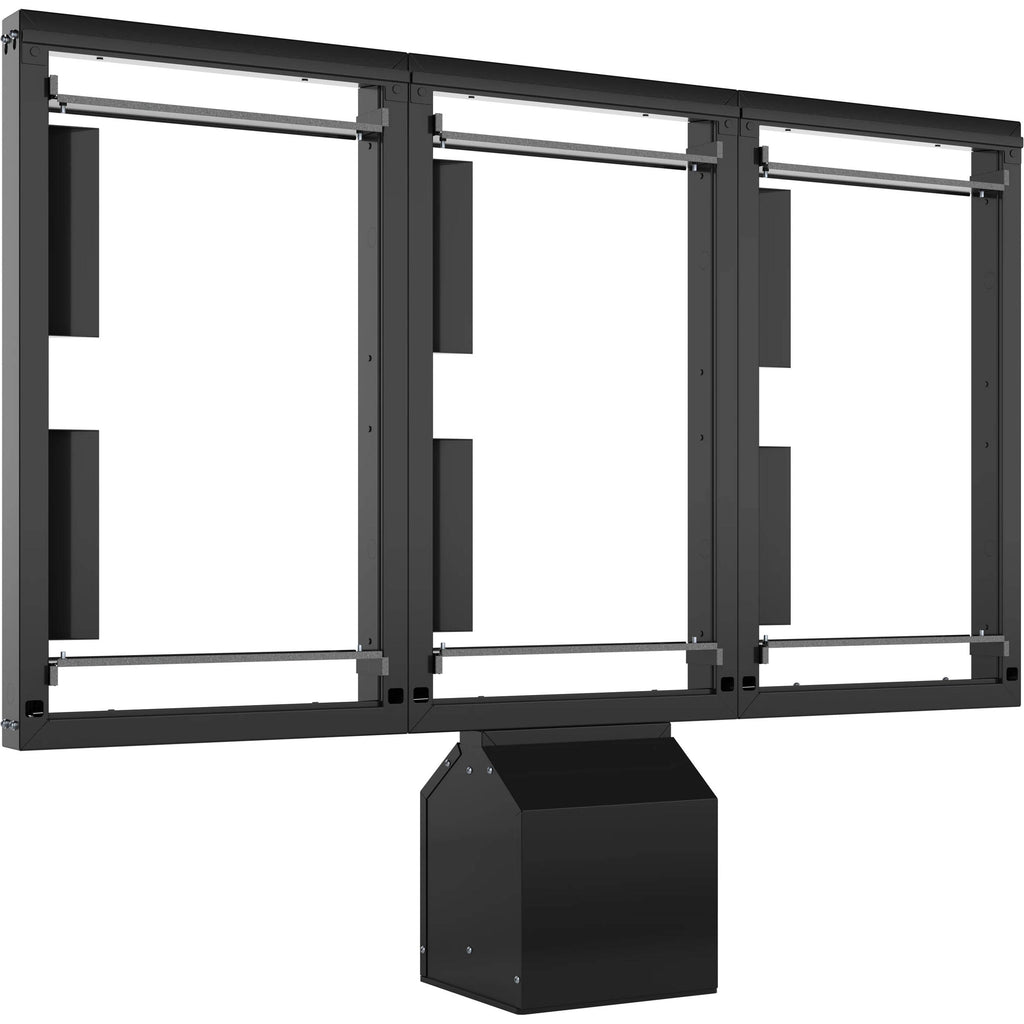

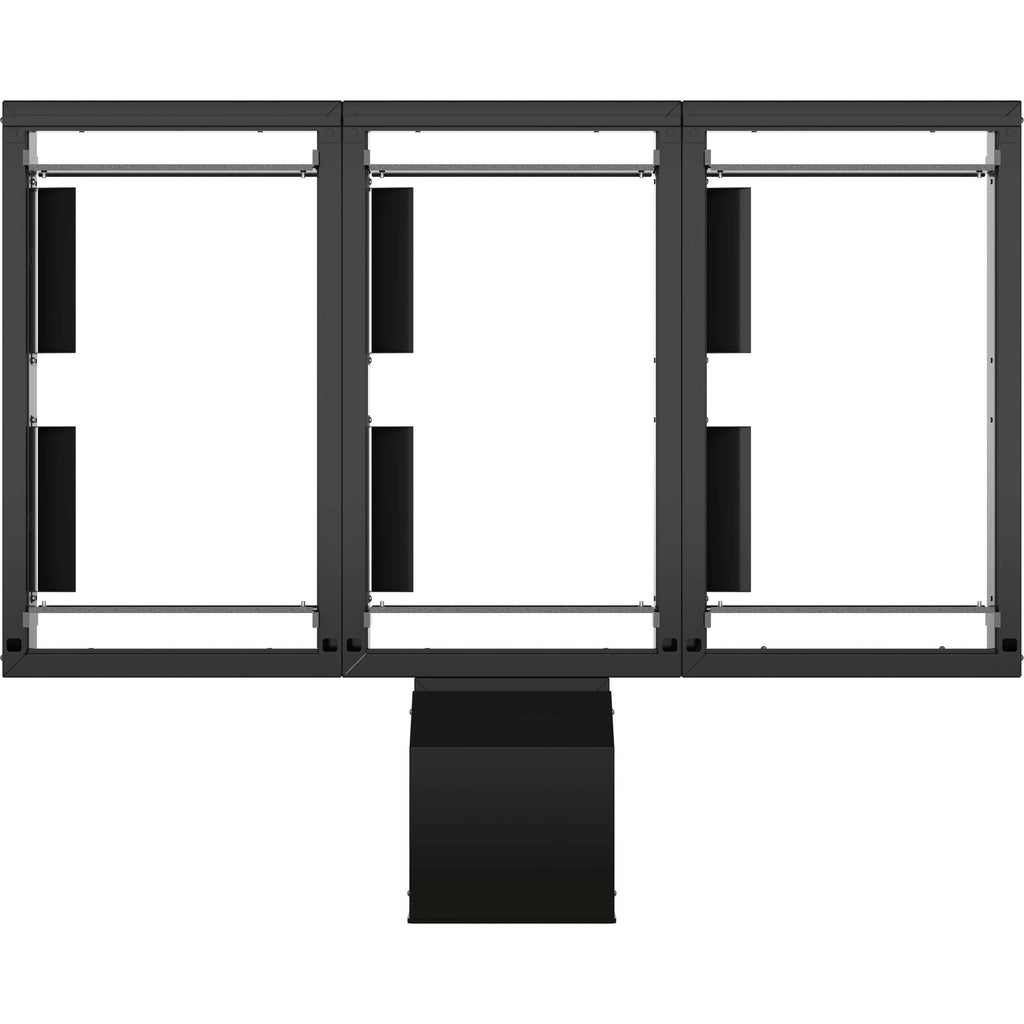

The Chief ODMB3X1 Velocity Outdoor Triple Pedestal Portrait Mount is a UL rated modular mounting system to create menu boards, wayfinding kiosks, and other outdoor digital signage installations. It is engineered to support three, side-by-side Samsung or LG 55" outdoor displays, and features a modular design to add more displays and accessories.
Designed to Evolve
Because of Chief Velocity's modular design, it's easy to update menu boards or digital signage displays from a single to a double, or double to triple. This reduces long-term cost of ownership and makes the most of an investment in digital signage.
Fast, Easy Two-Person Installation
Chief Velocity is designed for quick setup and requires only two people for installation. No heavy lift equipment is necessary, saving money on equipment rental costs. Simplified French cleat display mounting provides fast, safe installation, with lateral shift for zero bezel-to-bezel gaps. For the owner of a quick service restaurant, speedy installation means reduced downtime for their drive through service.
Additional Details
- Bezel-to-bezel distance between screens optimizes multi-display content, allowing content to be spread across all three displays
- Slotted base plate provides 15? of rotational positioning flexibility to adjust customer viewing angles
- Create a fully integrated solution with optional Speaker Mount and Back Cover accessories (sold separately)
- Optional Speaker Mount accessory can be mounted to the left or right of the display
- Open back design provides easy access for maintenance
- Includes tamper-resistant security screws to prevent vandalism
- Outdoor rated finish meets UL 2442 Part 2 requirements
- Stands up to extreme weather conditions, wind-tested to 140 mph
- Mounting method: concrete mount via threaded rod or wedge anchors (not included)
UPC: 841872178783
Items Included
- Chief ODMB3X1 Velocity Outdoor Triple Pedestal Portrait Mount for 55" Displays
- Assembly Hardware
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Chief Velocity Outdoor Pedestal Specs
Key Specs
| Mounting-Hole Pattern |
560 x 1186 mm
|
| Max Weight Capacity |
150 lb / 68 kg (Per Arm)
|
| Height Adjustment |
No
|
| Casters |
No
|
General
| Mounting-Hole Pattern |
560 x 1186 mm
|
| Max Weight Capacity |
150 lb / 68 kg (Per Arm)
|
| Supported Screen Sizes |
55 to 55" / 139.7 to 139.7 cm
|
| Number of Displays Supported |
3 Side by Side
|
| Number of Shelves |
No
|
Adjustments
| Height Adjustment |
No
|
| Tilt Adjustment |
No
|
| Pan Adjustment |
No
|
| Rotation Adjustment |
15?
|
| Orientation |
Portrait
|
Physical
| Casters |
No
|
| Dimensions |
84.8 x 67.4 x 15.4" / 215.3 x 171.1 x 39.2 cm
|
| Weight |
255 lb / 115.7 kg
|
