Description
Product Overview

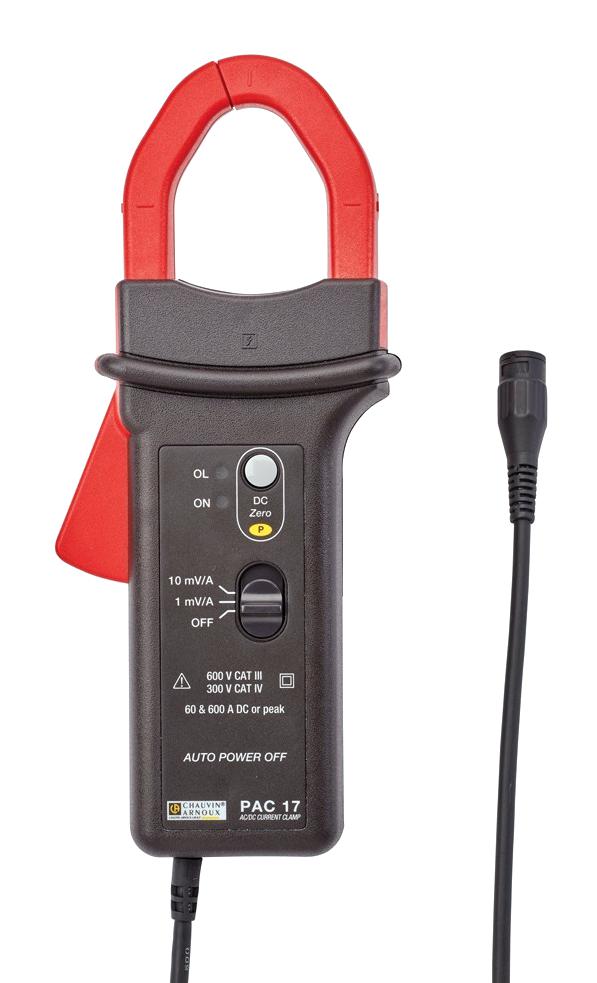

PAC17 is an oscilloscope clamp for measuring direct and alternating currents. When you view a current, it reveals the parameters needed to interpret it: waveform, level of distortion, Peak values, etc. It is particularly safe to use. The simple fact of clamping the cable with the clamp isolates the user from the circuit tested. This clamp is also called isolated current probes.
- Rated current: 40A AC/60A DC - 400A AC/600A DC
- DC to 30KHz (-3dB) bandwidth
- Output signal: DC and AC voltage
- Output / input ratio: 10mV/A, 1mV/A
- Output via coaxial cable and isolated BNC male plug
- 2m cable length
- 9V battery / 5V DC µUSB type B power supply
- Automatic DC zero and deactivatable automatic power off function
- IEC 61010-1 & IEC 61010-2-032 600V CAT III / 300V CAT IV safety rated
- Dimension is 224 x 97 x 44mm
Contents
1 x PAC clamp, 1 x 9V battery, 1 x user's manual in 5 languages (F, GB, D, I, E), 1 x safety datasheet (20 languages), 1 x verification certificate.
Product details
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | PAC17 |
| Quantity | Each |
| Technical Data Sheet EN |  |
