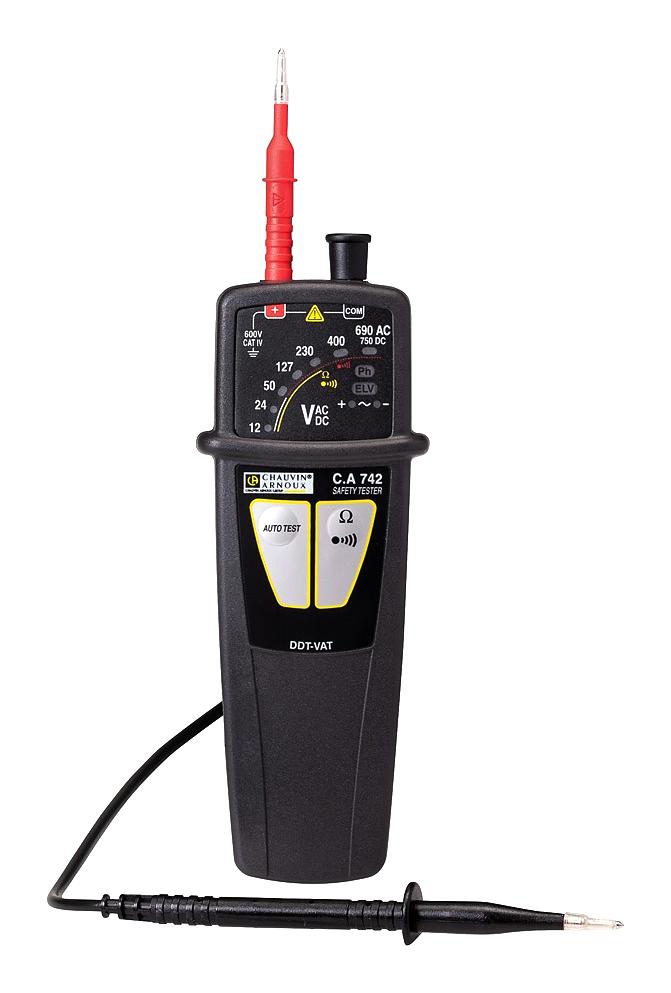

CHAUVIN ARNOUX CA742 Voltage Tester, 12 to 690V, LED Indicator, -15 °C, 45 °C

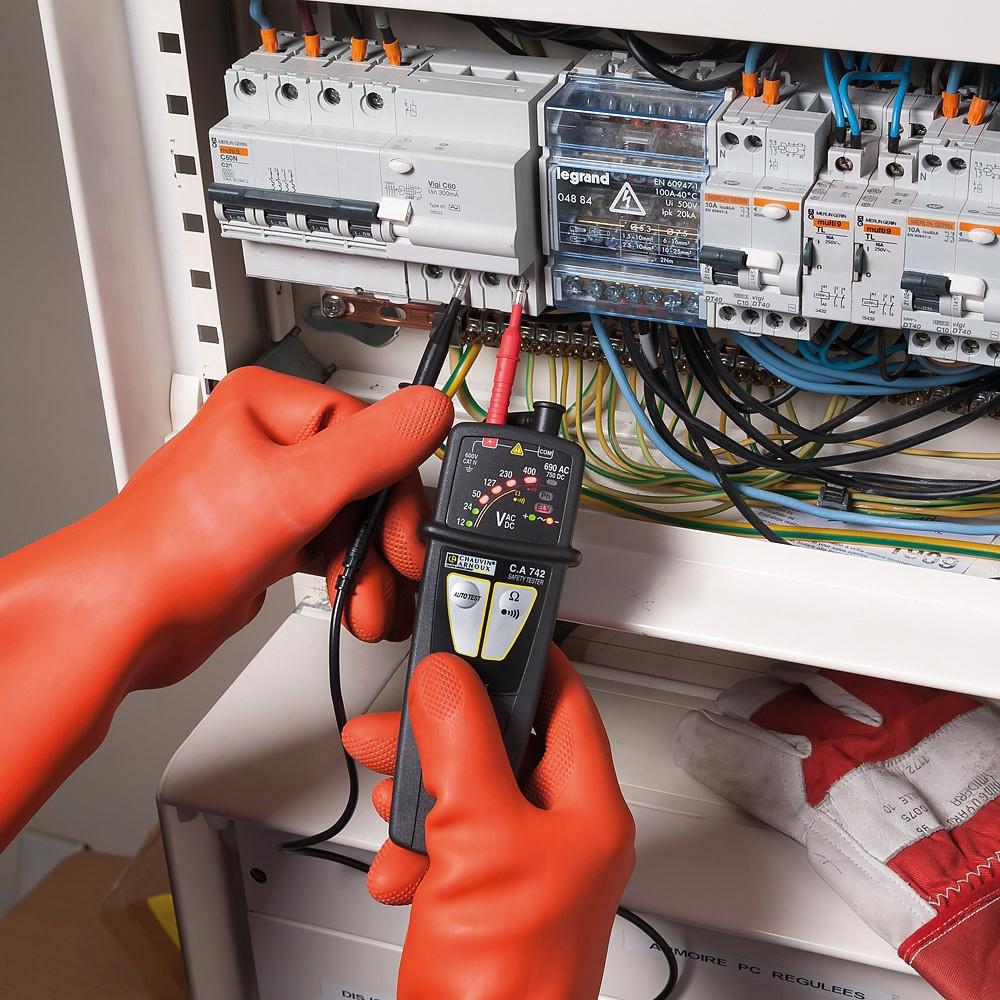

CA742 is a voltage absence tester. It is an essential tool for any electrician to check that no voltage is present before working on an electrical installation connected to the network. It complies with IEC 61243-3 Edition 3 and can be used to work on any indoor or outdoor 600V CAT IV installation. To fulfil the requirements of the standards and legislation in certain countries, there are 2 references, with or without IP2X accessories. The C.A 742 is equipped with a redundant safety system in the event of power supply faults, the "ELV LED" which flashes whenever the voltage exceeds 50VAC / 120VDC. The full Autotest of the C.A 742 checks the electrical circuits, the power supply, the display and the condition of the measurement leads. The test probe and lead are removable.

• Full integrated autotest
• Voltage testing up to 690VAC (16 2/3Hz - 800Hz) / 750VDC
• Single-pole phase test (a single contact)
• Phase sequence testing up to 400Hz
• Continuity test with audible and visual indication (R<lt/>100 ohm)
• Removable test probe and cable
• Automatic indication of the type of voltage (AC or DC) and indication of the polarity
• Complies with EN 61243-3 and DIN VDE 0682-401
• Powered by 2 x 1.5V (AAA and LR3) battery
• Dimension is 163 x 64 x 40mm

Contents

Voltage absence tester, Blister pack with 1 lead 0.85m long with a black Ø 2mm test probe fitted with a crystal safety cap, 1 x wrist strap, 2 x 1.5V LR03/AAA batteries, 1 x user manual in 5 languages.
