Description
CHAUVET Professional WELL PANEL X Overview

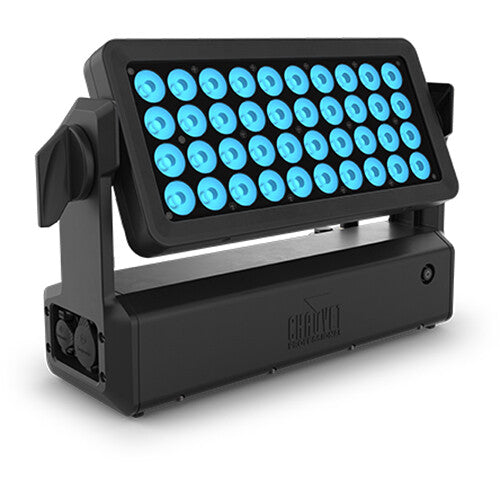

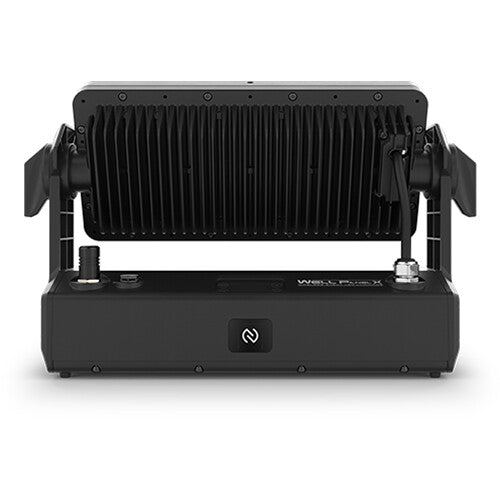

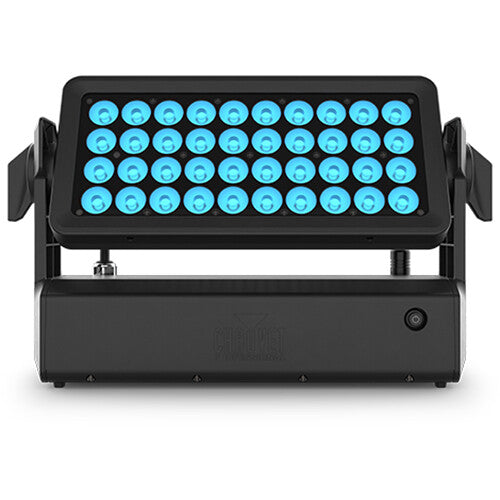

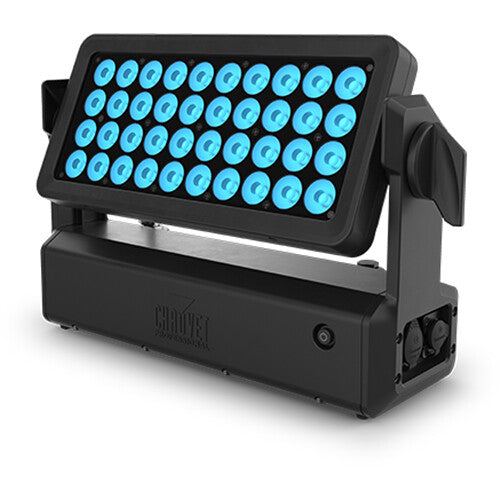

Powerful and compact in an IP65-rated weather-resistant housing, the 4-pack WELL PANEL X RGB LED Luminaire from CHAUVET Professional produces bright color washing effects for exceptional lighting variety. Each panel, built with 40 13.6W RGBWW LEDS, offers a variety of color spectrum options and 2800-6500K CCT tuning capabilities with a 21.4° beam angle and 31.7° field angle for exceptional lighting versatility. The light produces an output of up to 6865 lumens for illuminating a variety of indoor and outdoor productions. A pack of versatile fixtures, users can adjust the 4-curve electronic dimming and built-in automated programs with simple control options, including DMX, CRMX, RDM, and RF remote control. Powered with a lithium-ion battery for up to 18 hours of runtime, the fixtures feature built-in self-charging capabilities to operate the light while it's still charging. Each fixture includes a built-in IP65-rated PowerKon input and output cord and easily connects to WELL CONNECT boxes and the CHAUVET CONNECT app for simple operation. Each feature includes a removable split yoke for versatile wall or floor mounting, Omega brackets, a 4-slot charging case, and an RF remote for additional mounting and access options.
Items Included
- CHAUVET Professional WELL PANEL X RGB LED Luminaire (4-Pack)

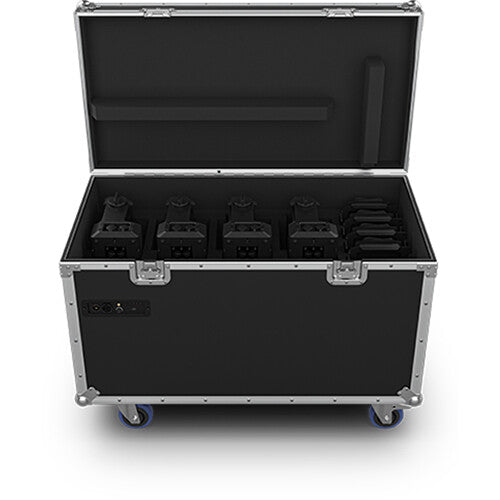

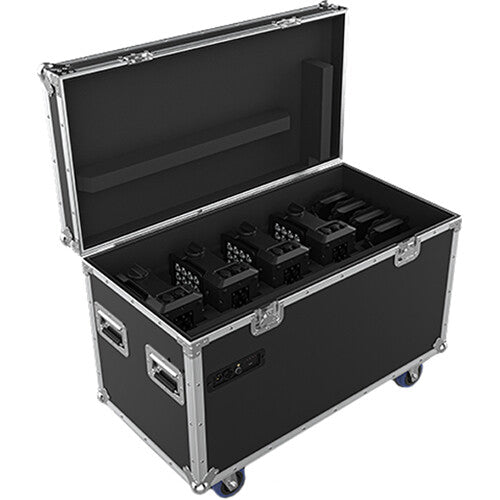

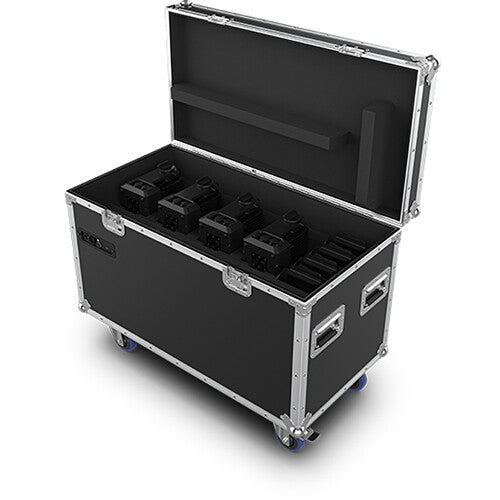

- 4-Slot Charging Case
- Basic RF Controller
- 4 x Seetronic PowerKon Power Cord (IP65)
- 4 x Omega Bracket
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
CHAUVET Professional WELL PANEL X Specs
| Fixture Type |
LED Panel
|
| Light Source |
40x Color LED - 13.6 W
|
| Colors |
Blue, Green, Red, Warm White
|
| Beam Angle |
21°
|
| Control Protocols |
DMX512, CRMX, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
100 VAC, 60 Hz: 165 W / 1.65 A
240 VAC, 50 Hz: 161 W / 0.6 A |
| Mounting |
Floor Base, Omega Bracket
|
| Fixture Type |
LED Panel
|
| Light Source |
40x Color LED - 13.6 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, Warm White
|
| Photometrics |
12°:
425 fc / 4575 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 6500K
|
| Lumen Output |
6865 Lumens
|
| Beam Angle |
21°
|
| Field Angle |
32°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 30 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, CRMX, RDM
|
| DMX Channel Modes |
5 Mode(s):
5 / 8 / 9 / 12 / 16-Channel |
| Display / Controls |
OLED
|
| Remote Control |
RF Remote
|
| Mobile App Compatible |
Yes: iOS Only
App Name: Chauvet Connect |
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
2.4 GHz Radio/RF / NFC / Proprietary Wireless / Wireless DMX
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 6.3 A 250 V
|
| Power / Current Consumption |
100 VAC, 60 Hz: 165 W / 1.65 A
240 VAC, 50 Hz: 161 W / 0.6 A |
| Power Linking |
9 Units at 100 VAC
11 Units at 120 VAC 19 Units at 208 VAC 21 Units at 230 VAC 22 Units at 240 VAC Total Current: 12 A |
| Battery Type |
44.4 V Lithium-Ion
|
| Battery Capacity |
6600 mAh
|
| Approximate Battery Life |
Up to 18 Hours
|
| Battery Charging Time |
4 Hours
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
4x Power Cable
1x Charging Case |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, FCC, UKCA
|
| Dimensions |
17.17 x 10.24 x 5.31" / 43.61 x 26.01 x 13.49 cm (Each Light)
36.4 x 21.5 x 20.7" / 92.5 x 54.6 x 52.6 cm (Charging Case) |
| Weight |
20.8 lb / 9.4 kg (Each Light)
184 lb / 83.5 kg (Case) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
