| ₹ 287835.0 includes GST and import duties. | |
| B2B customers can avail ₹ 43894.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
CHAUVET Professional F-415VW Overview
The Ovation F-415VW-2 Variable White Fresnel-Style LED with Motorized Zoom from CHAUVET PROFESSIONAL is a variable-white Fresnel-style LED with a motorized zoom, well suited for theater, film, and television production. The compact and virtually silent fixture utilizes a 6-color LED system and produces a soft, even field of light with color temperature presets from 2800 to 8000K and high CRI/CQS. Additionally, each color temperature can be further adjusted with ±green, while the motorized zoom offers a range of 14 to 68° that allows you to add light where needed.
The VW light source has a multi-color chip that includes four red, four green, six blue, six royal blue, 10 orange, and 16 lime for a total of 46 LEDs, which can be independently controlled for a quick splash of color when needed. The fixture features smooth 16-bit dimming and RDM and PWM for easy setup. Other features include four dimming modes, DMX and RDM control, DMX channels 2, 5, 7, 10, 14, 17 or 19, eight personalities, and 5-pin XLR DMX connectors. The Ovation F-415VW-2 can be powered from an external battery pack via the 28 VDC power input (3-pin XLR) and ships with a TRUE1-style power cable and a gel frame holder.
Items Included
- CHAUVET Professional Ovation F-415VW-2 Variable White Fresnel-Style LED with Motorized Zoom
- Gel Frame Holder (6.25")

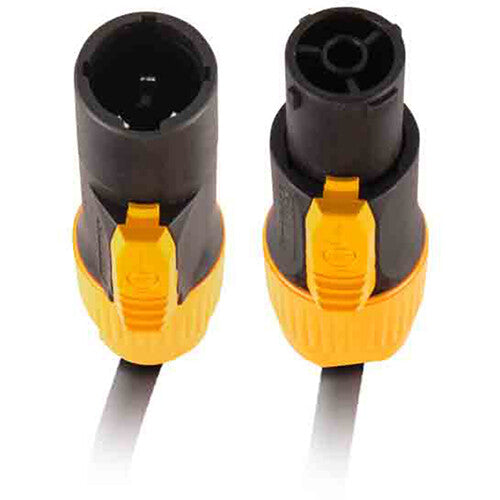

- Seetronic Powerkon IP65 Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
CHAUVET Professional F-415VW Specs
| Fixture Type |
Fresnel
|
| Light Source |
46x Color LED - 4 W / 1 A
|
| Colors |
Blue, Green, Lime, Orange, Red
|
| Beam Angle |
14 to 43°
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 125 W / 1.05 A
208 VAC, 60 Hz: 122 W / 0.61 A 230 VAC, 50 Hz: 121 W / 0.56 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Fresnel
|
| Light Source |
46x Color LED - 4 W / 1 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Lime, Orange, Red
|
| Photometrics |
14°:
74 fc / 800 Lux at 16.4' / 5 m 43°: 14 fc / 152 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 8000K
|
| Beam Angle |
14 to 43°
|
| Field Angle |
27 to 68°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Motorized
|
| Dimming |
Electronic, 0 to 100%
|
| Operating Modes |
DMX, Primary/Secondary
|
| Macros / Programs |
No
|
| Effects |
Strobe
|
| Strobe Rate |
0 to 27 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
8 Mode(s):
2 / 5 / 7 / 10 / 14 / 17 / 19-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| DC Input Power |
28 VDC
|
| Fuse |
T 3.15 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 125 W / 1.05 A
208 VAC, 60 Hz: 122 W / 0.61 A 230 VAC, 50 Hz: 121 W / 0.56 A |
| Power Linking |
11 Units at 120 VAC
19 Units at 208 VAC 21 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
1x Gel Frame |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, MET, FCC
|
| Dimensions |
15.8 x 11.22 x 9.51" / 40.13 x 28.5 x 24.16 cm
|
| Weight |
12.8 lb / 5.8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 282078.3 |
| 3-5 | ₹ 279199.95 |
| 5-10 | ₹ 273443.25 |
| 10+ | ₹ 267686.55 |
Bulk discount will be automatically applied during checkout based on quantity.
