| ₹ 171345.0 includes GST and import duties. | |
| B2B customers can avail ₹ 26130.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

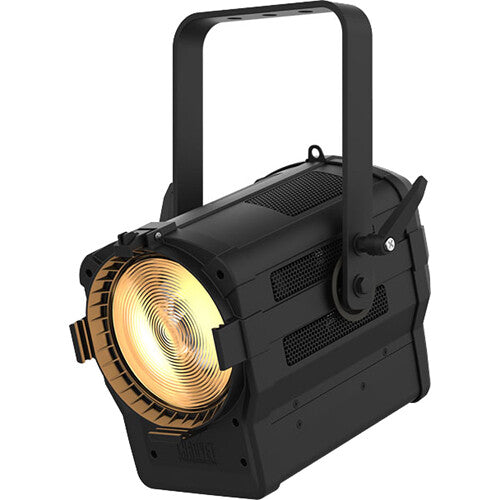

CHAUVET Professional F-145WW Overview
The Ovation F-145WW-2 Warm White Fresnel-Style LED with Motorized Zoom from CHAUVET PROFESSIONAL utilizes an efficient warm white LED system to project a bright, soft, high-CRI field of light ideal for theaters and television studios. The motorized zoom with a 16-65? range, as well as the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM. This Fresnel-style fixture offers an output comparable to a 6" 650W Fresnel with up to 4266 lumens at 65?.
The fixture has 3096K CCT, four dimming modes, DMX and RDM control, DMX channels 1, 2, or 5, four personalities, and both 3- and 5-pin XLR connectors. The Ovation F-145WW-2 ships with a TRUE1-style power cable and a 6.25" gel frame holder.
Items Included
- CHAUVET Professional Ovation F-145WW-2 Warm White Fresnel-Style LED with Motorized Zoom
- Gel Frame (6.25")

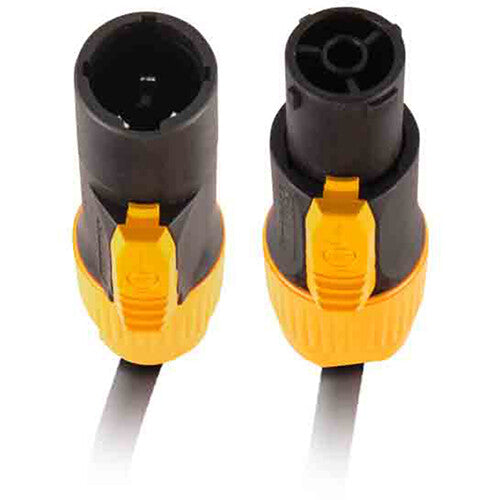

- Seetronic Powerkon IP65 Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
CHAUVET Professional F-145WW Specs
| Fixture Type |
Fresnel
|
| Light Source |
1x White LED - 70 W / 3.6 A
|
| Colors |
Warm White
|
| Beam Angle |
16 to 48?
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 75 W / 0.64 A
208 VAC, 60 Hz: 75 W / 0.37 A 230 VAC, 50 Hz: 73 W / 0.34 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Fresnel
|
| Light Source |
1x White LED - 70 W / 3.6 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Warm White
|
| Photometrics |
25?:
119 fc / 1290 Lux at 16.4' / 5 m 65?: 23 fc / 252 Lux at 16.4' / 5 m |
| Color Temperature |
3096K
|
| Lumen Output |
4266 Lumens
|
| Beam Angle |
16 to 48?
|
| Field Angle |
25 to 65?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Motorized
|
| Dimming |
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
|
| Operating Modes |
DMX, Primary/Secondary, Standalone
|
| Strobe Rate |
0 to 30 Hz
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 97
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
4 Mode(s):
1 / 2 / 5-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Power / Current Consumption |
120 VAC, 60 Hz: 75 W / 0.64 A
208 VAC, 60 Hz: 75 W / 0.37 A 230 VAC, 50 Hz: 73 W / 0.34 A |
| Power Linking |
18 Units at 120 VAC
32 Units at 208 VAC 35 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
-4 to 113?F / -20 to 45?C
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Gel Frame
1x Power Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, FCC, MET, UKCA
|
| Dimensions |
15.03 x 11.69 x 11.22" / 38.18 x 29.69 x 28.5 cm
|
| Weight |
11 lb / 5 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 167918.1 |
| 3-5 | ₹ 166204.65 |
| 5-10 | ₹ 162777.75 |
| 10+ | ₹ 159350.85 |
Bulk discount will be automatically applied during checkout based on quantity.
