Description
CHAUVET PROFESSIONAL CYC 1 FC Overview

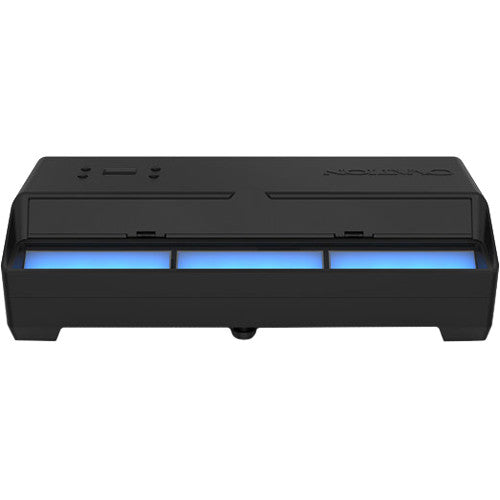

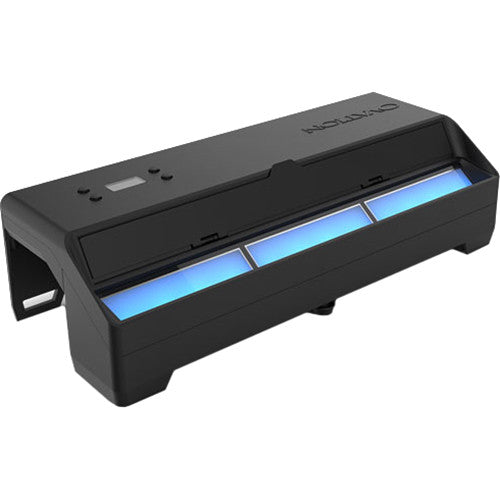

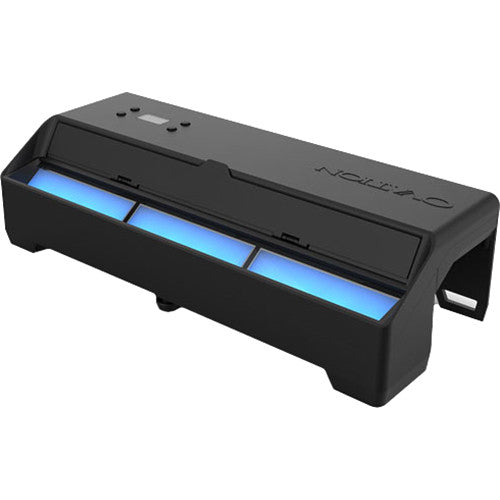

Designed for use in theatre productions and TV sets, the Ovation CYC 1 FC LED Cyclorama Light with Power Cord from CHAUVET PROFESSIONAL provides a smooth field of light with significant reach to light your desired area. The light is constructed of 60 LEDs that produce a CRI of 90.6 for reliable color reproduction. An 81.1 x 87.1° beam angle can cover a wide area and be adjusted using the built-in kickstand and adjustable glare shield. Advanced RGBAL color-mixing renders almost any color accurately and with high saturation. Control for the unit can be achieved using 5-pin XLR DMX connectivity or RDM protocols. Adjust the Pulse Width Modulation (PWM) to avoid flickering while on camera. The unit is convection cooled for silent operation.
Features at a Glance
- Low-profile and lightweight cyclorama wash or footlight fixture
- Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production
- Theatre-ready with 16-bit dimming of master dimmer and individual colors
- Beam modification with a built-in kickstand and an adjustable glare shield
- Flat, even field of light with superior color mixing
- Virtual color wheel with color matched to popular gel colors and color temperature presets
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Silent operation for use in studio and theatre applications
- Includes powerCON power cord and Omega bracket
UPC: 781462223335
Items Included
- CHAUVET PROFESSIONAL Ovation CYC 1 FC LED Cyclorama Light with Power Cord
- Seetronic powerCON IP65 Power Cord
- Omega Bracket with Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET PROFESSIONAL CYC 1 FC Specs
Key Specs
| Fixture Type |
Cyc Light
|
| Light Source |
60x Color LED - 4.57 W / 1.4 A
|
| Colors |
Amber, Blue, Green, Lime, Red
|
| Beam Angle |
81.1 x 87.1°
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 138 W / 1.13 A
208 VAC, 60 Hz: 135 W / 0.65 A 230 VAC, 50 Hz: 137 W / 0.58 A |
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
Cyc Light
|
| Light Source |
60x Color LED - 4.57 W / 1.4 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Lime, Red
|
| Photometrics |
19 fc / 210 Lux at 16.4' / 5 m
|
| Color Temperature |
2800 to 6500K
|
| Lumen Output |
8966 Lumens
|
| Beam Angle |
81.1 x 87.1°
|
| Field Angle |
124.6 x 148.1°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
|
Performance
| Operating Modes |
DMX, Primary/Secondary, Standalone
|
| Macros / Programs |
Auto-Program
|
| Effects |
Strobe
|
| Strobe Rate |
0 to 27 Hz
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 90.6
|
Control
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
9 Mode(s):
3 / 5 / 7 / 10 / 12 / 13 / 16-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 2 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 138 W / 1.13 A
208 VAC, 60 Hz: 135 W / 0.65 A 230 VAC, 50 Hz: 137 W / 0.58 A |
| Power Linking |
12 Units at 120 VAC
21 Units at 208 VAC 23 Units at 230 VAC Total Current: 13.6 A |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, MET, FCC
|
| Dimensions |
16.14 x 6.29 x 4.33" / 41 x 15.98 x 11 cm
|
| Weight |
9 lb / 4.1 kg
|
Packaging Info
| Package Weight |
12.44 lb
|
| Box Dimensions (LxWxH) |
18.3 x 9.1 x 7.1"
|
