Description

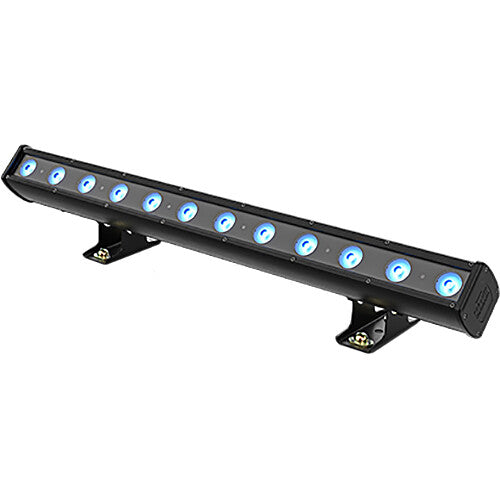

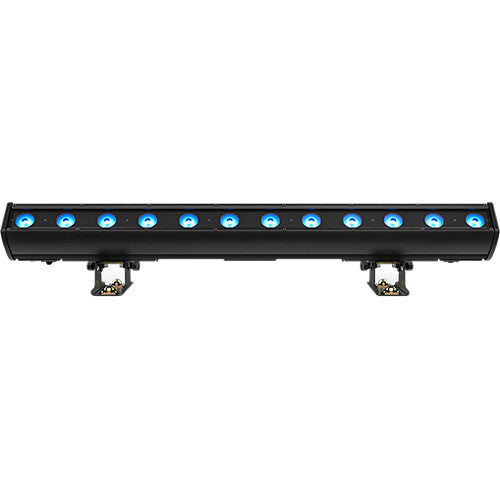

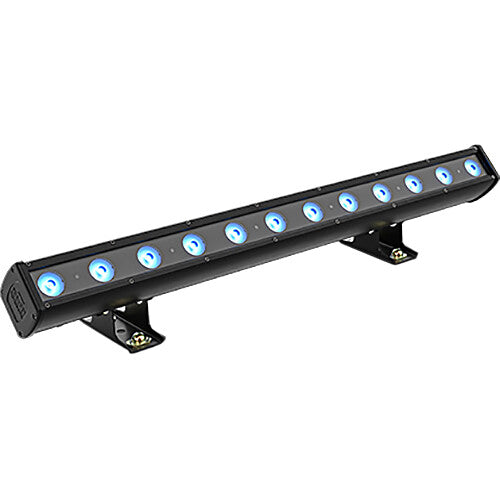

CHAUVET PROFESSIONAL Batten H12X IP Overview
The COLORdash Batten H12X IP RGBWA-UV Linear Wash from CHAUVET PROFESSIONAL is equipped with 12 individually controlled hex-colored LEDs. Weighing just under 18 lb and capable of delivering 4700 lumens of output with a rich palette of colors ranging from the very subtle to the highly saturated. The unit performs smooth 16-bit fades and has four selectable dimming curves and a flicker-free output with multiple PWM frequencies.
An even pixel pitch is maintained for superior pixel-mapped looks when used in multiples. The included omega brackets may be hung or used as floor stands for easy and worry-free installation. A touchscreen OLED display allows users to easily read from the onboard menu and RDM (Remote Device Management) facilitates the remote selection of DMX functions. The rugged IP65-rated, all-weather die-cast unit ensures workhorse performance on a rig or on the floor, indoor or outdoor, and live or captured on camera.
- Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed
- At home in any weather conditions with IP-rated power and DMX control protocol
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional color mixing and high efficiency
- Floor trunnions with omega bracket for easy hanging
Items Included
- CHAUVET PROFESSIONAL COLORdash Batten H12X IP RGBWA-UV LED Linear Wash
- Neutrik powerCON TRUE1 Power Cord
- 2 x Omega Bracket
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET PROFESSIONAL Batten H12X IP Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
Color/UV LED
|
| Colors |
Unspecified Colors
|
| Beam Angle |
24.9°
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
100 VAC, 60 Hz: 160 W / 1.57 A
120 VAC, 60 Hz: 154 W / 1.28 A 208 VAC, 60 Hz: 151 W / 0.74 A 230 VAC, 50 Hz: 151 W / 0.66 A 240 VAC, 50 Hz: 151 W / 0.64 A |
| Mounting |
Omega Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
Color/UV LED
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Unspecified Colors
|
| Photometrics |
24.9°:
881 fc / 9479 Lux at 16.4' / 5 m |
| Color Temperature |
9360K
|
| Lumen Output |
4796 Lumens
|
| Beam Angle |
24.9°
|
| Field Angle |
40.7°
|
| Shutter / Strobe |
Electronic
|
| Dimming |
Electronic with 4 Dimmer Modes
|
| Operating Modes |
Automatic, DMX, Program
|
| Macros / Programs |
Color Wash
|
| Effects |
Color Strobe
|
| Strobe Rate |
0 to 23 Hz
|
| Gobos |
No
|
| Refresh Rate |
600 Hz to 25,000 Hz (Adjustable)
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
8 Mode(s):
6 / 8 / 9 / 13 / 14 / 42 / 47 / 59-Channel |
| Display / Controls |
OLED Touchscreen
|
| Remote Control |
Yes
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input/Output
1 x XLR 5-Pin DMX Input/Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x Edison |
| Power / Current Consumption |
100 VAC, 60 Hz: 160 W / 1.57 A
120 VAC, 60 Hz: 154 W / 1.28 A 208 VAC, 60 Hz: 151 W / 0.74 A 230 VAC, 50 Hz: 151 W / 0.66 A 240 VAC, 50 Hz: 151 W / 0.64 A |
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP65)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Omega Bracket
|
| Included Accessories |
1x Power Supply
|
| Exterior Color |
Black
|
| Max Housing Temperature |
113°F / 45°C
|
| Cooling |
Convection
|
| Certifications |
CE, MET, UKCA, FCC
|
| Dimensions |
39.4 x 8.2 x 3.8" / 1000 x 208 x 96 mm
|
| Weight |
17.6 lb / 8 kg
|
| Package Weight |
21.05 lb
|
| Box Dimensions (LxWxH) |
42.5 x 13.25 x 6.8"
|
