Description

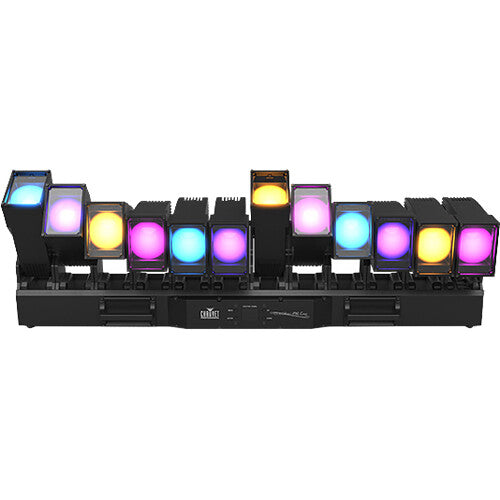

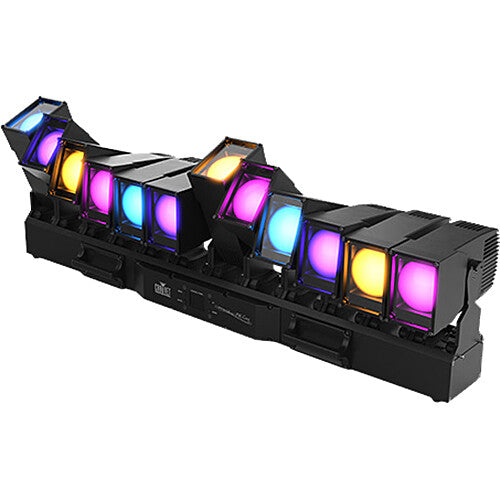

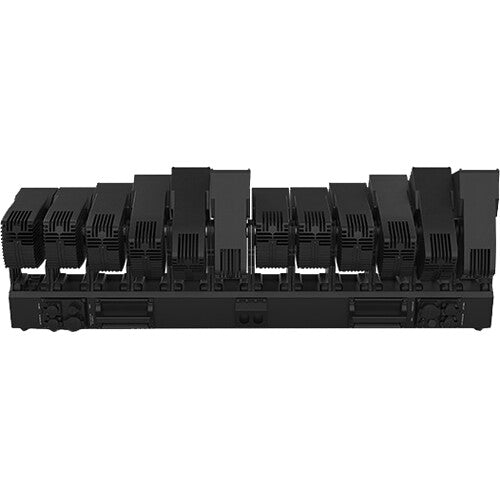

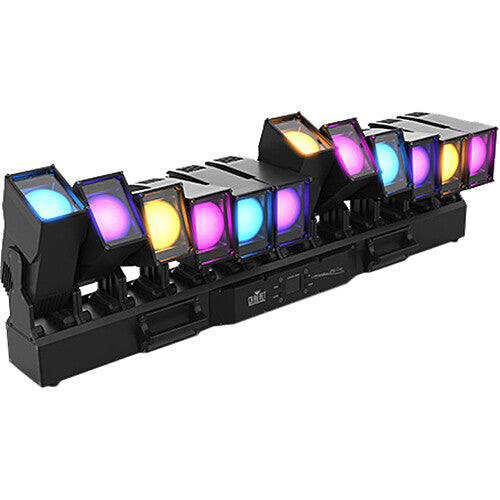

CHAUVET PROFESSIONAL Colorado PXL Curve 12 Overview
The CHAUVET PROFESSIONAL COLORado PXL Curve 12 LED Light is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt, and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures, helping to make runway effects consistent. The COLORado PXL Curve 12 is compatible with DMX, sACN, Art-Net, Kling-Net, and RDM.
UPC: 781462224479
In the Box
- CHAUVET PROFESSIONAL COLORado PXL Curve 12 LED Light
CHAUVET PROFESSIONAL Colorado PXL Curve 12 Specs
Key Specs
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
12x Color LED - 45 W / 2.96 A
|
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
12x Zone
|
| Beam Angle |
5.7 to 26.8°
|
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| AC Input Power |
120 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 790 W
208 VAC, 60 Hz: 772 W 230 VAC, 50 Hz: 768 W |
| Mounting |
Omega Bracket
|
Light
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
12x Color LED - 45 W / 2.96 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
12x Zone
|
| Photometrics |
5.7°:
3597 fc / 38,727 Lux at 16.4' / 5 m 26.8°: 104 fc / 1120 Lux at 0' / 5 mm |
| Color Temperature |
2700 to 8000K
|
| Lumen Output |
5807 Lumens
|
| Beam Angle |
5.7 to 26.8°
|
| Field Angle |
9 to 33.9°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
Motorized, 5.7 to 36.3°
|
| Dimming |
Electronic
|
Performance
| Operating Modes |
DMX
|
| Macros / Programs |
Auto-Program
|
| Effects |
Strobe
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
Movement
| Tilt Ranges |
200° / 180°
|
Control
| Control Protocols |
DMX512, RDM, Art-Net, Kling-Net, sACN
|
| DMX Channel Modes |
5 Mode(s):
20 / 53 / 101 / 155 / 179-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x etherCON/RJ45 Network Input 1 x etherCON/RJ45 Network Output |
| Wireless |
No
|
Power
| AC Input Power |
120 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Fuse |
F 12 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 790 W
208 VAC, 60 Hz: 772 W 230 VAC, 50 Hz: 768 W |
| Power Linking |
1 Units at 120 VAC
3 Units at 208 VAC 3 Units at 230 VAC |
Environmental
| Environmental Protection |
Dust/Water-Resistant (IP65)
|
| Operating Temperature |
14 to 113°F / -10 to 45°C
|
Physical
| Mounting |
Omega Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, MET, UKCA, FCC
|
| Dimensions |
39.49 x 12.76 x 6.65" / 100.3 x 32.41 x 16.89 cm
|
| Weight |
76 lb / 34.5 kg
|
