Description

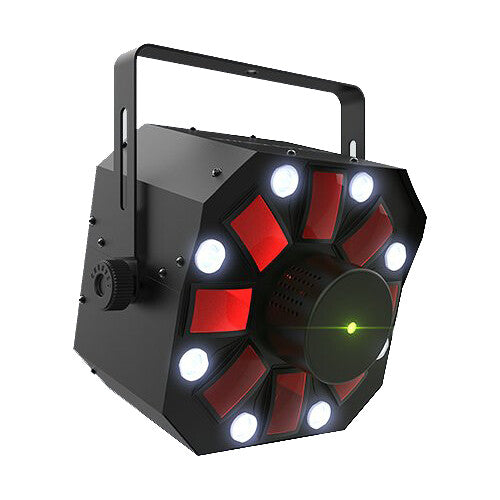

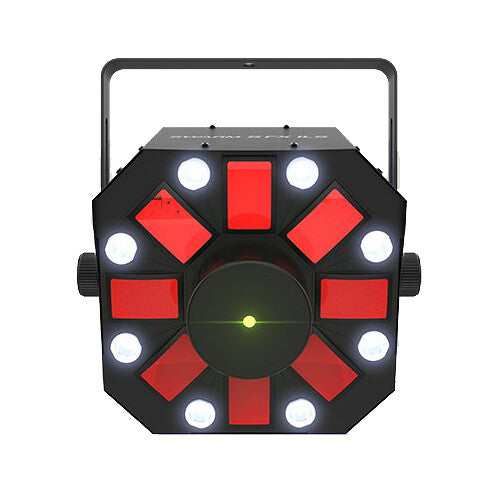

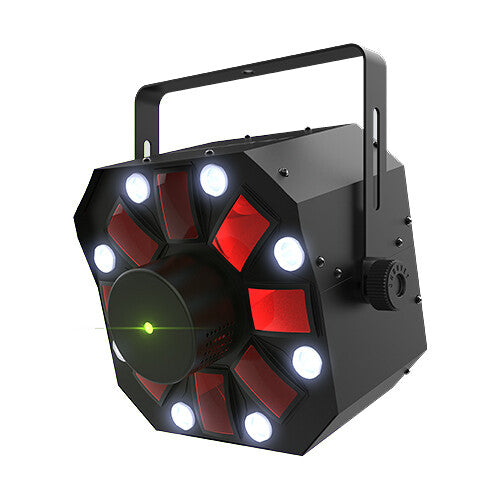

CHAUVET DJ Swarm 5 FX ILS Overview
Lighting designers and mobile entertainers in search of a multi-effect lighting fixture will be impressed with the Chauvet Swarm 5 FX ILS, a 3-in-1 fixture well suited for lighting installations and live performance applications such as DJing at parties and in clubs. The fixture includes an RGBAW rotating derby, a red and green laser, and a white strobe effect to create a complex dynamic lighting display.
The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly. The Swarm 5 FX ILS provides separate control over both color and programs?use built-in automated programs, sound-activated programs via built-in microphone, master/slave mode, or DMX512 control mode over XLR connectors. Multiple units can be power-linked together to save on cabling.
- 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- D-Fi USB compatibility for wireless master/slave or DMX control
- Laser projects thousands of red and green laser beams
- Operation allows for separate color and program control
- Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
- Save time running cables and extension cords by power linking multiple units
- Fits best inside the CHS-40 VIP gear bag
Items Included
- 2 x CHAUVET DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ Swarm 5 FX ILS Specs
| Fixture Type |
Special Design
|
| Light Source |
5x Color LED - 3 W / 300 mA
8x White LED - 1 W / 300 mA 1x Laser Diode - 100 mW 1x Laser Diode - 30 mW |
| Colors |
Amber, Blue, Green, Red, White
|
| Laser |
Green: 520 nm / 30 mW
Red: 650 nm / 100 mW |
| Beam Angle |
17? (Strobe)
|
| Control Protocols |
DMX512, ILS
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 62 W / 0.5 A
230 VAC, 50 Hz: 66 W / 0.3 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Special Design
|
| Light Source |
5x Color LED - 3 W / 300 mA
8x White LED - 1 W / 300 mA 1x Laser Diode - 100 mW 1x Laser Diode - 30 mW |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Red, White
|
| Laser |
Green: 520 nm / 30 mW
Red: 650 nm / 100 mW |
| Photometrics |
77 fc / 823 Lux at 6.5' / 2 m
|
| Coverage Angle |
100? (Laser)
65? (Swarm) |
| Beam Angle |
17? (Strobe)
|
| Field Angle |
35? (Strobe)
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Operating Modes |
DMX, Primary/Secondary, Sound-Active, Standalone
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, ILS
|
| DMX Channel Modes |
1 Mode(s):
9-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|

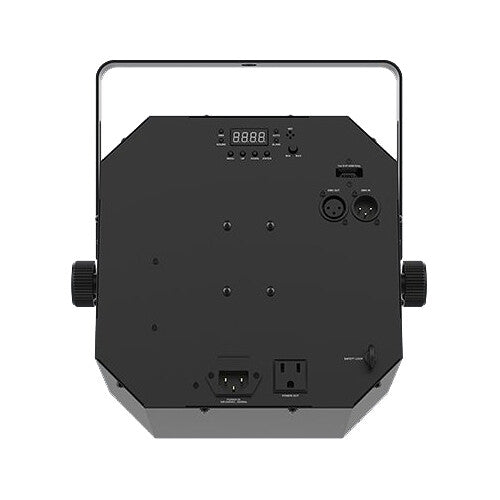

| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
Proprietary Wireless
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x Edison |
| Power / Current Consumption |
120 VAC, 60 Hz: 62 W / 0.5 A
230 VAC, 50 Hz: 66 W / 0.3 A |
| Power Linking |
15 Units at 120 VAC
26 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, RoHS, UKCA
|
| Dimensions |
12.2 x 11.7 x 9.75" / 309.9 x 297.2 x 247.65 mm
|
| Weight |
9.8 lb / 4.5 kg
|
| Package Weight |
10.86 lb
|
| Box Dimensions (LxWxH) |
14.4 x 13.8 x 12.4"
|
