Description

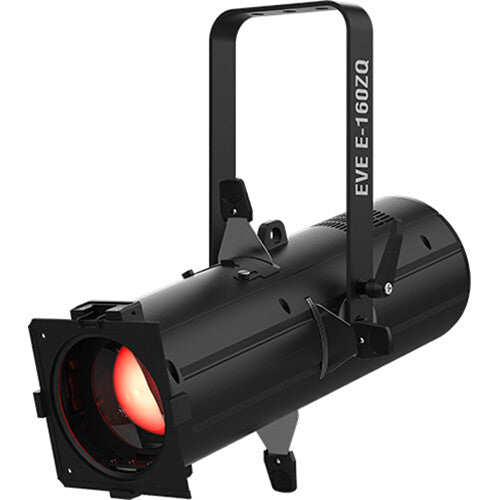

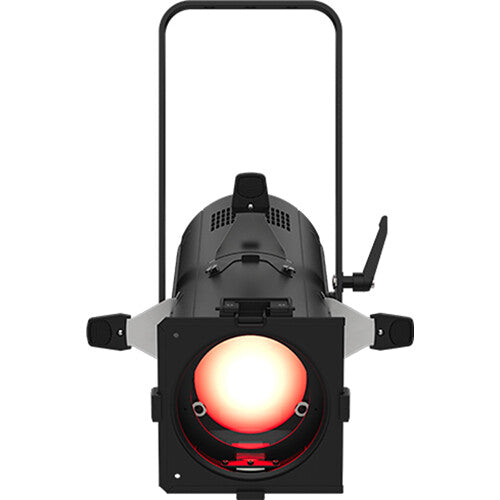

CHAUVET DJ EVE E-160ZQ Overview
Add some color to your small stage lighting system with the EVE E-160ZQ from CHAUVET DJ. Designed for use in mobile and permanent installation applications, this versatile 160W ellipsoidal RGBW LED light fixture boasts flicker-free operation with integrated zoom optics. Your lighting design process will be simplified and more efficient employing the unit's pre-set color temperature ranges. The D-Fi USB compatibility enables wireless master/slave or DMX control, and a gel frame and two gobo holders (metal and glass) facilitate quick and easy gobo-swapping convenience.
At a Glance
- Integrated zoom optics ensure the subject remains in the spotlight from a wide range of distances
- Pre-set color temperature ranges eliminate the need for manual color blending
- Flicker-free operation suitable for on-camera use
- D-Fi USB compatibility for wireless master/slave or DMX control
- powerCON-compatible power input/output connections for power linking
UPC: 781462226817
Items Included
- CHAUVET DJ EVE E-160ZQ Full Color Ellipsoidal RGBW LED Light
- Gel Frame
- Metal Gobo Holder
- Glass Gobo Holder
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ EVE E-160ZQ Specs
Key Specs
| Fixture Type |
Ellipsoidal
|
| Light Source |
1x Color LED - 160 W / 7.3 A
|
| Colors |
Blue, Green, Red, White
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 150 W / 1.3 A
230 VAC, 50 Hz: 150 W / 0.7 A |
| Mounting |
Single Yoke Only
|
Light
| Fixture Type |
Ellipsoidal
|
| Light Source |
1x Color LED - 160 W / 7.3 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
24°:
656 fc / 7072 Lux at 6.6' / 2 m 105 fc / 1132 Lux at 16.4' / 5 m 37°: 275 fc / 2964 Lux at 6.6' / 2 m 44 fc / 474 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 8000K
|
| Lumen Output |
5231 Lumens
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Manual, 24 to 37°
|
| Dimming |
Electronic
|
Performance
| Operating Modes |
DMX, Standalone
|
| Macros / Programs |
Color Macro
Auto-Program |
| Effects |
Strobe
|
| Strobe Rate |
1 to 30 Hz
|
| Gobos |
1x Removable Gobo
|
| Gobo Size |
Outer Diameter: 2.6" / 66 mm
Max Image Size: 1.9" / 48 mm Max Thickness: 0.1" / 2 mm |
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
3 Mode(s):
3 / 4 / 11-Channel |
| Remote Control |
D-Fi USB (with Optional Equipment)
|
| Mobile App Compatible |
No
|
Connectivity

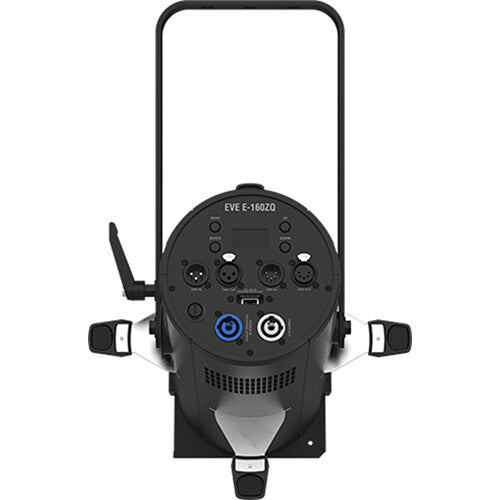

| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON |
| Fuse |
T 3.15 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 150 W / 1.3 A
230 VAC, 50 Hz: 150 W / 0.7 A |
| Power Linking |
9 Units at 120 VAC
16 Units at 230 VAC |
Physical
| Environmental Resistance |
No
|
| Operating Conditions |
Up to 104°F / 40°C
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Gel Frame
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, RoHS, MET
|
| Dimensions |
18.4 x 16.9 x 9.8" / 46.7 x 42.9 x 24.9 cm
|
| Weight |
12.2 lb / 5.5 kg
|
Packaging Info
| Package Weight |
17.07 lb
|
| Box Dimensions (LxWxH) |
25.9 x 12.6 x 11.7"
|
