Description

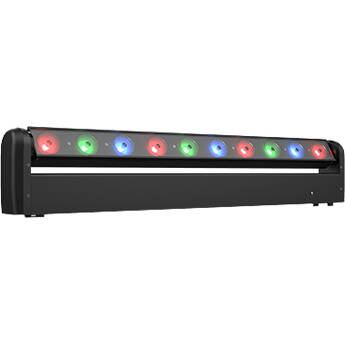

CHAUVET DJ Colorband Pix-M ILS Overview
Lighting designers, club owners, and mobile entertainers in search of a professional moving head LED wash strip should look no further than the Chauvet DJ COLORband PiX M ILS, an RGB LED strip light that functions as a pixel mapping effect, blinder, or wall-wash light, making it well suited for clubs, bars, special events, broadcast studios, and photography setups.
It's moving head offers up to 245° of tilt, allowing you to dynamically sweep the light beams where they are most effective. It is D-Fi USB compatible for wireless primary/secondary or DMX control. Its tricolor LED technology generates a broad spectrum of colors. Ten zones of control facilitate chase effects with multiple prebuilt programs accessible with or without DMX control. Sound-activated and automated programs can also be accessed with the RFC or RFC-XL remotes (sold separately).
- Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless master/slave or DMX control
- Flexible control options with onboard 3- and 5-pin DMX connectors
- Angle the light where it�s needed using the built-in motors
- Create eye-catching animations and video effects with individual LED control
- powerCON-compatible power input/output connections for power linking
- Fits best in the CHS-60 VIP Gear Bag
In the Box
- CHAUVET DJ COLORband PiX M ILS Moving LED Wash Light (RGB)
- Hanging Bracket with Mounting Hardware
- Power Cord
- Limited 2-Year Manufacturer Warranty
CHAUVET DJ Colorband Pix-M ILS Specs
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
10x Color LED - 6 W / 2 A
|
| Colors |
Red, Green, Blue
|
| Pixel Configuration |
10x Zone
|
| Beam Angle |
15°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 86 W / 1.2 A
230 VAC, 50 Hz: 84 W / 0.7 A |
| Mounting |
Mounting Bracket
|
| Fixture Type |
Linear/Bar Light / Moving Head
|
| Light Source |
10x Color LED - 6 W / 2 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Red, Green, Blue
|
| Pixel Configuration |
10x Zone
|
| Photometrics |
691 fc / 7441 Lux at 6.56' / 2 m
|
| Beam Angle |
15°
|
| Field Angle |
27°
|
| Shutter / Strobe |
Electronic
|
| Dimming |
0 to 100%
|
| Operating Modes |
Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active
|
| Macros / Programs |
Color Macro
Auto-Program |
| Effects |
Animated Patterns
Color Strobe |
| Strobe Rate |
0 to 29 Hz
|
| Gobos |
No
|
| Tilt Ranges |
250°
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
7 Mode(s):
5 / 6 / 8 / 10 / 17 / 32 / 36-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
D-Fi USB (with Optional Equipment)
IR Remote (with Optional Equipment) |
| Mobile App Compatible |
Yes, Adapter Required (Not Included)
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 5-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Output |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Power / Current Consumption |
120 VAC, 60 Hz: 86 W / 1.2 A
230 VAC, 50 Hz: 84 W / 0.7 A |
| Power Linking |
12 Units at 120 VAC
20 Units at 230 VAC |
| Environmental Protection |
No
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, UKCA, RoHS
|
| Dimensions |
31 x 4.8 x 2.6" / 787.4 x 121.9 x 66 mm
|
| Weight |
8.2 lb / 3.7 kg
|
| Package Weight |
12.5 lb
|
| Box Dimensions (LxWxH) |
34 x 10 x 5.5"
|
