Description

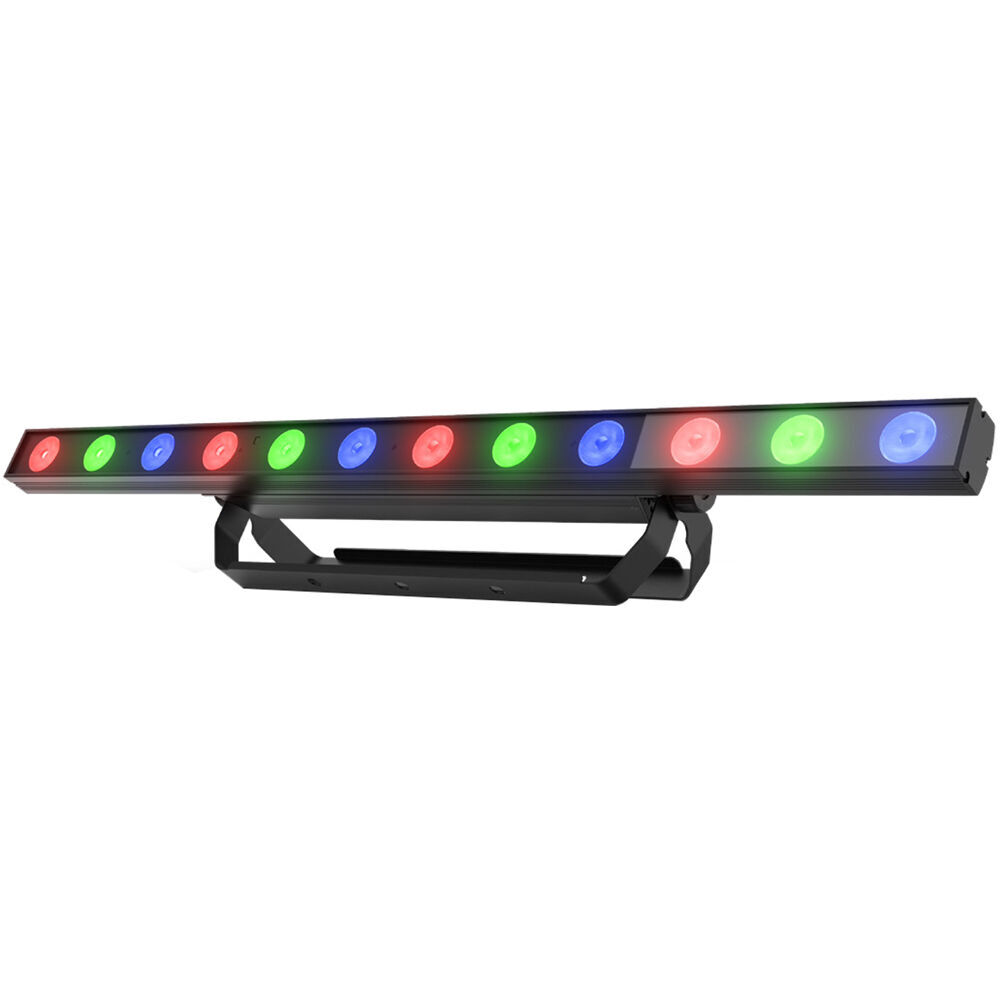

CHAUVET DJ Pix ILS Overview
Create immersive colors for your next event with this Kit which combines four Chauvet DJ COLORband Pix ILS linear wash lights. Each RGB LED fixture can work as a pixel mapping effect, blinder, or wall-wash light, making it well suited for clubs, bars, special events, broadcast studios, and photography setups.
They are D-Fi USB compatible for wireless primary/secondary or DMX control. The tricolor LED technology generates a broad spectrum of colors. Each light offers twelve zones of control to facilitate chase effects with multiple prebuilt programs accessible with or without DMX control. Sound-activated and automated programs can also be accessed with the RFC or RFC-XL remotes (sold separately). The COLORband Pix ILS 4-pack is suitable for quiet applications due to its silent operation and no moving parts.
- Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- D-Fi USB compatibility for wireless Primary/Secondary or DMX control
- Create amazing animations and video effects with individual LED control
- Convenient access to multiple prebuilt programs with or without DMX
- Easily generate complex shows with ShowXpress Pixels
- Achieve flicker-free video operation with high-frequency LED dimming
- Ideal for quiet applications due to silent operation and no moving parts
- Easily transports in the optional CHS-60 VIP gear bag
Items Included
- 4 x CHAUVET DJ COLORband Pix ILS LED Wash Light (RGB)
- Hanging Bracket with Mounting Hardware
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ Pix ILS Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color LED - 3 W / 1 A
|
| Colors |
Blue, Green, Red
|
| Pixel Configuration |
12x Zone
|
| Beam Angle |
14?
|
| Control Protocols |
DMX512, ILS
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 49 W / 0.7 A
230 VAC, 50 Hz: 48 W / 0.4 A |
| Mounting |
Mounting Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color LED - 3 W / 1 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red
|
| Pixel Configuration |
12x Zone
|
| Photometrics |
385 fc / 4142 Lux at 6.56' / 2 m
62 fc / 663 Lux at 16.4' / 5 m |
| Lumen Output |
1402 Lumens
|
| Beam Angle |
14?
|
| Field Angle |
27?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
No
|
| Operating Modes |
Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, ILS
|
| DMX Channel Modes |
10 Mode(s):
3 / 4 / 6 / 7 / 8 / 9 / 12 / 18 / 36 / 41-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
D-Fi USB (with Optional Equipment)
IR Remote (with Optional Equipment) |
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 5-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Output |
| Wireless |
IR
*Built-In Proprietary Wireless *Via Optional Adapter |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Power / Current Consumption |
120 VAC, 60 Hz: 49 W / 0.7 A
230 VAC, 50 Hz: 48 W / 0.4 A |
| Power Linking |
19 Units at 120 VAC
35 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, MET, RoHS, UKCA
|
| Dimensions |
38.9 x 6.2 x 2" / 98.8 x 15.7 x 5.1 cm
|
| Weight |
7 lb / 3.2 kg
|
| Package Weight |
8.75 lb
|
| Box Dimensions (LxWxH) |
41 x 8.75 x 3.25"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
