Description

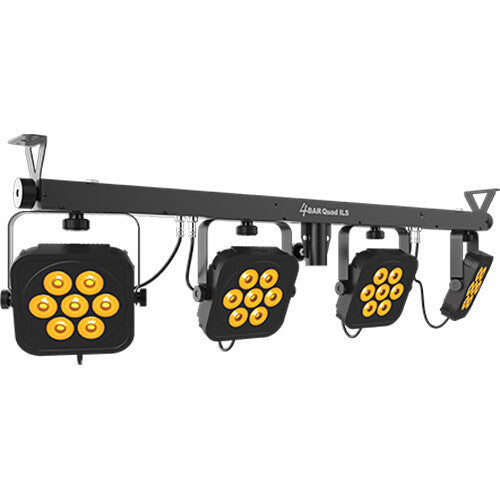

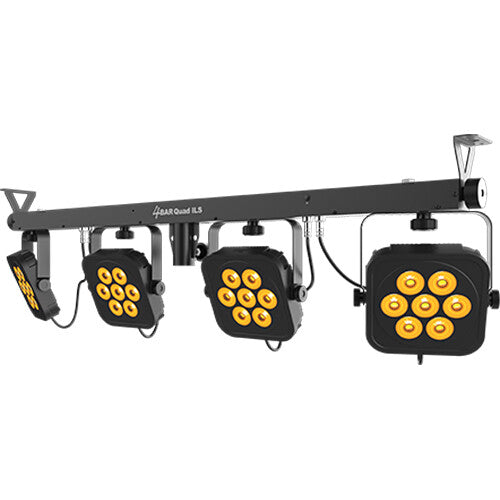

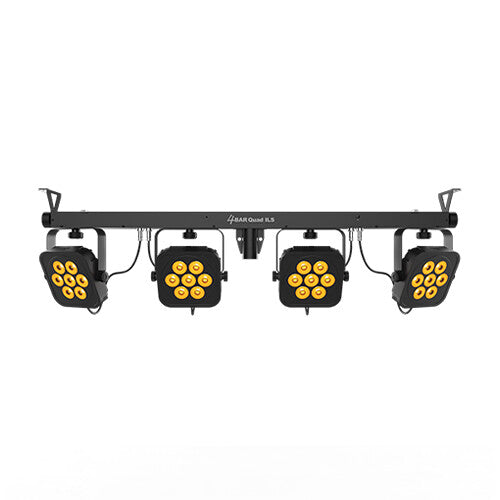

CHAUVET DJ 4Bar Quad ILS Overview
Lighting designers, club owners, and mobile entertainers in search of an all-in-one wash lighting fixture that includes four par lights mounted to a bar will be impressed with the Chauvet DJ 4Bar Quad ILS. Each par fixture utilizes high-intensity quad-color (RGBA) LEDs to generate a broad spectrum of colors.

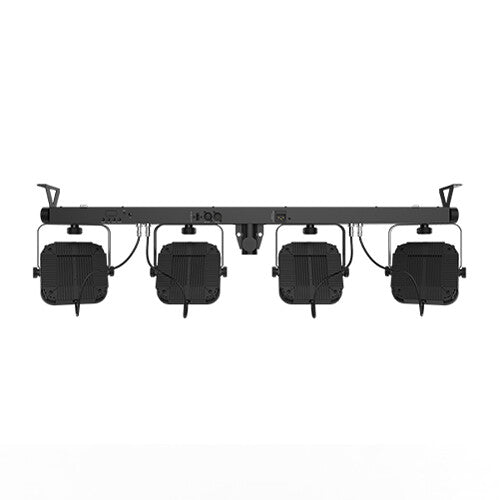

The lighting system offers automatic programs and a sound reactive mode that dances to the beat of the music. You can also control the fixture with DMX (4, 16, or 19 channels) or with the optional IRC-6 remote control. The 4BAR Quad ILS supports the optional D-Fi USB for wireless DMX control. The rear panel of the bar includes a single IEC power input, 3-pin DMX I/O, and an LED display and four-button menu for programming modes and setting channels. The 4BAR Quad ILS includes a power cord, carrying bag, tripod stand, tripod carrying bag, and a wireless footswitch controller.
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Out of the box wireless control with included footswitch or optional IRC-6 controller

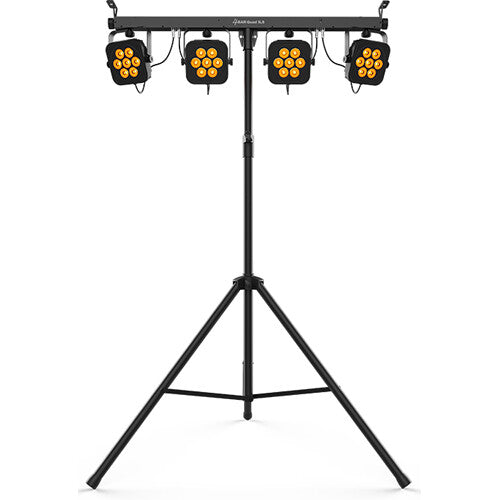

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- D-Fi USB compatibility for wireless Primary/Secondary or DMX control
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts

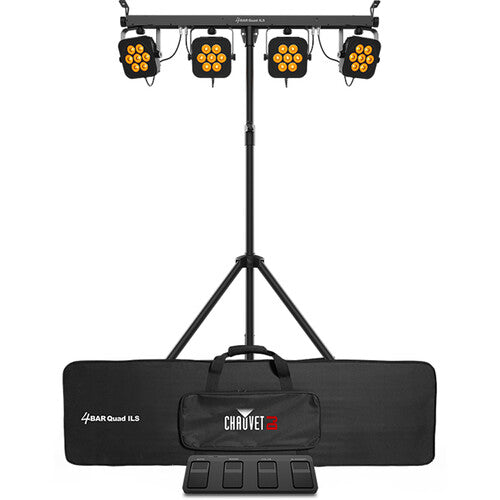

In the Box
- CHAUVET DJ 4Bar Quad ILS All-in-One RGBA 4-Par Wash Light System
- Wireless Footswitch Controller
- Power Cord
- Carrying Bag
- Tripod Stand
- Tripod Stand Bag
- Limited 2-Year Manufacturer Warranty
CHAUVET DJ 4Bar Quad ILS Specs
| Fixture Type |
PAR
|
| Light Source |
28 x Color LED - 3.5 W / 1.3 mA
|
| Colors |
Red, Green, Blue, Amber
|
| Beam Angle |
14°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 80 W / 1.2 A
230 VAC, 50 Hz: 78 W / 0.6 A |
| Environmental Protection |
No
|
| Mounting |
Light Stand, M10 Threaded, Tripod Stand & Top Bar
|
| Fixture Type |
PAR
|
| Light Source |
28 x Color LED - 3.5 W / 1.3 mA
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Red, Green, Blue, Amber
|
| Photometrics |
219 fc / 2353 Lux at 6.6' / 2 m (per Fixture)
|
| Beam Angle |
14°
|
| Field Angle |
23°
|
| Shutter / Strobe |
Electronic
|
| Zoom Adjustment |
No
|
| Dimming |
0 to 100%
|
| Operating Modes |
Automatic, DMX, Program, Sound-Active, Static Color
|
| Macros / Programs |
12 x Auto-Program
|
| Effects |
Color Scroll
Strobe |
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
4 / 6 / 19-Channel
|
| Display / Controls |
LED / 4-Button
|
| Remote Control |
D-Fi, IR Remote (with Optional Equipment)
|
| Mobile App Compatible |
No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Inputs/Outputs |
2 x XLR 3-Pin DMX Input/Output
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1 x IEC
Output: None |
| Power / Current Consumption |
120 VAC, 60 Hz: 80 W / 1.2 A
230 VAC, 50 Hz: 78 W / 0.6 A |
| Power Linking |
No
|
| Environmental Protection |
No
|
| Mounting |
Light Stand, M10 Threaded, Tripod Stand & Top Bar
|
| Included Accessories |
1 x Tripod Stand
1 x Power Cable 1 x Case (Light/s) 1 x Case (Stand/s) 1 x Controller |
| Included Stand Height |
7.4' / 2.3 m
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Max Housing Temperature |
104°F / 40°C
|
| Cooling |
Convection
|
| Certifications |
CE, UKCA
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
33 lb
|
| Box Dimensions (LxWxH) |
55.5 x 19.5 x 5.38"
|
