Description
ChamSys MQ500M Stadium Wing Overview
- 1Description
- 2Motorization
- 3Programmer and Master Modes
- 4Dual Crossfade Faders
- 5Playback Encoders
- 6Illumination and Customization

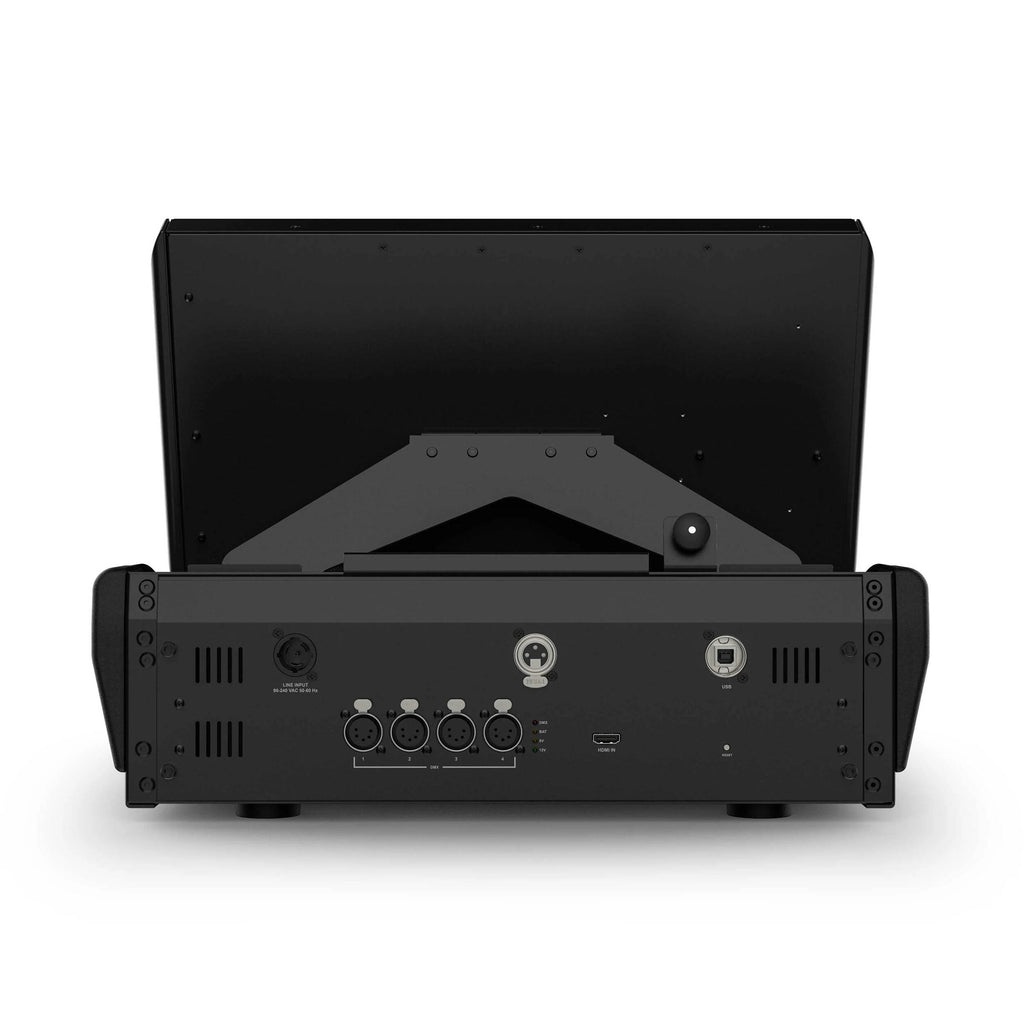

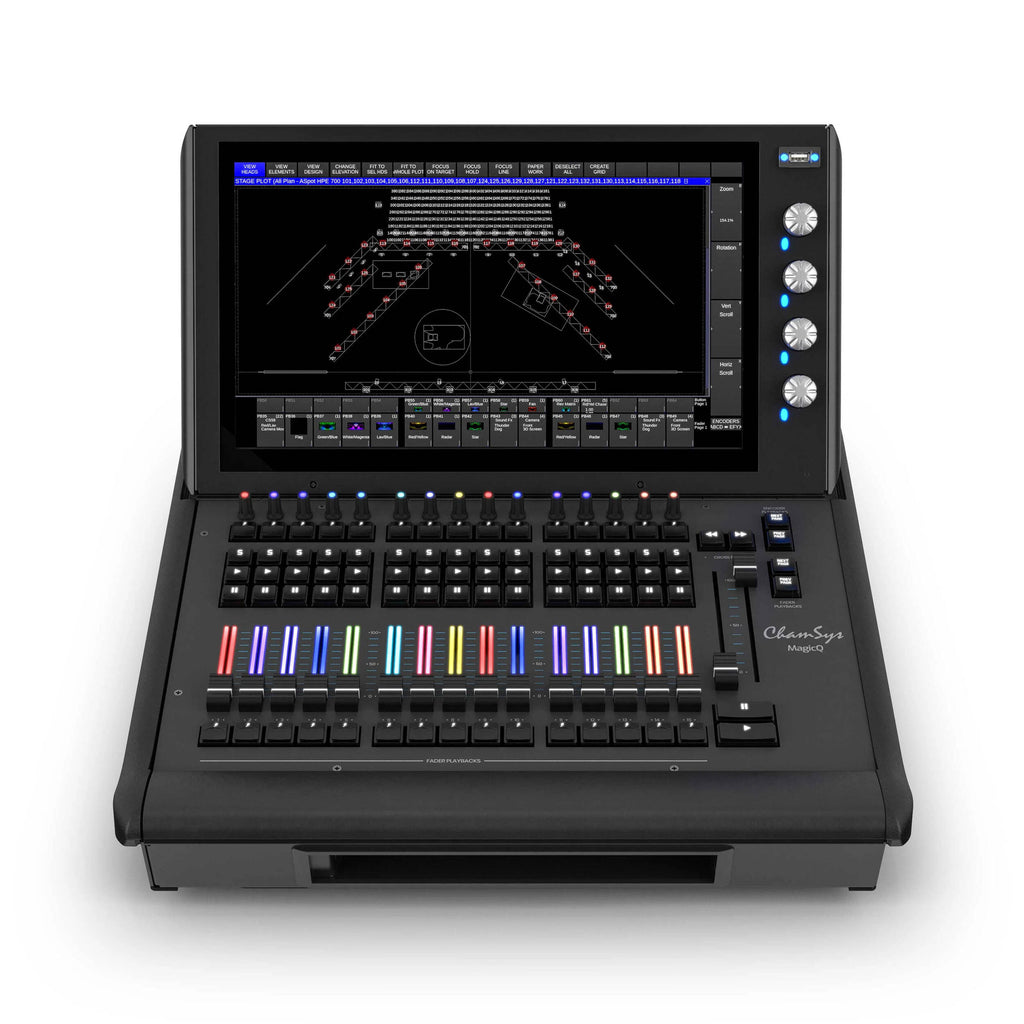

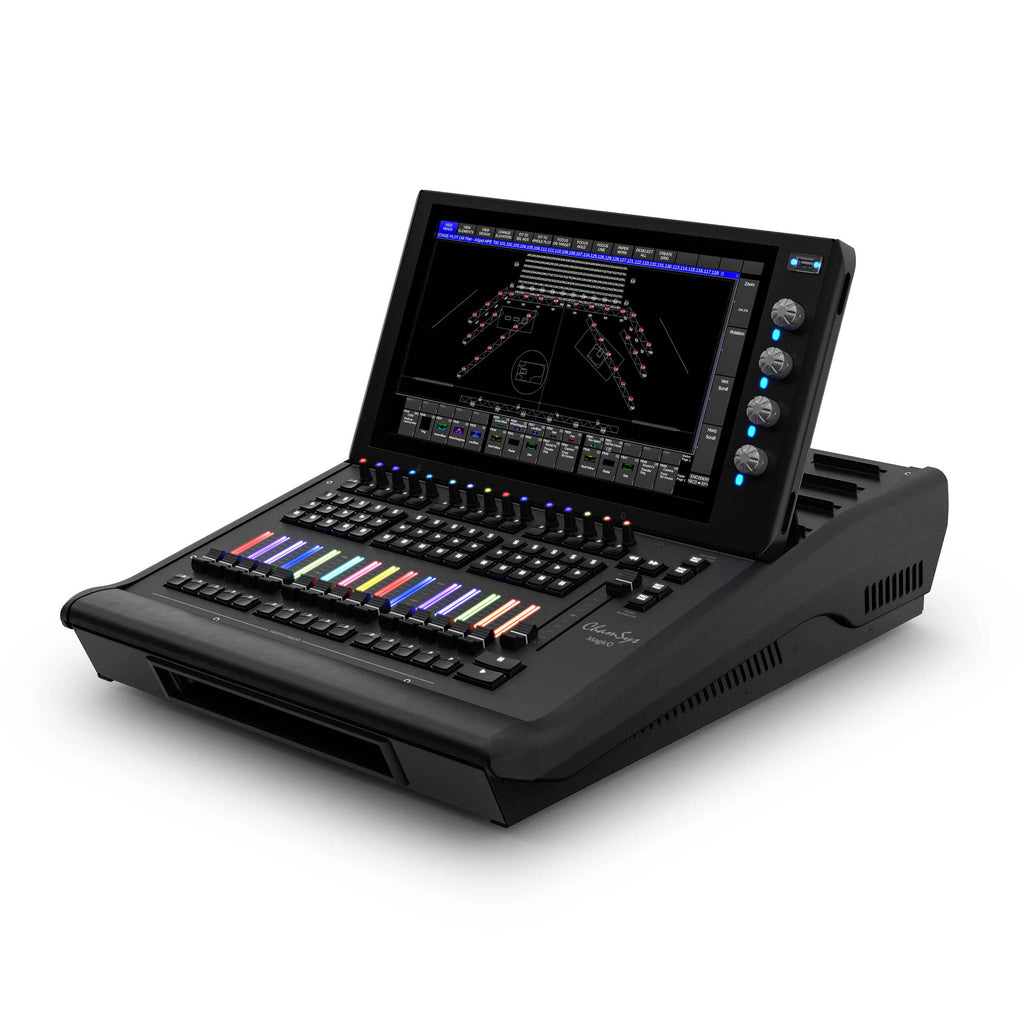

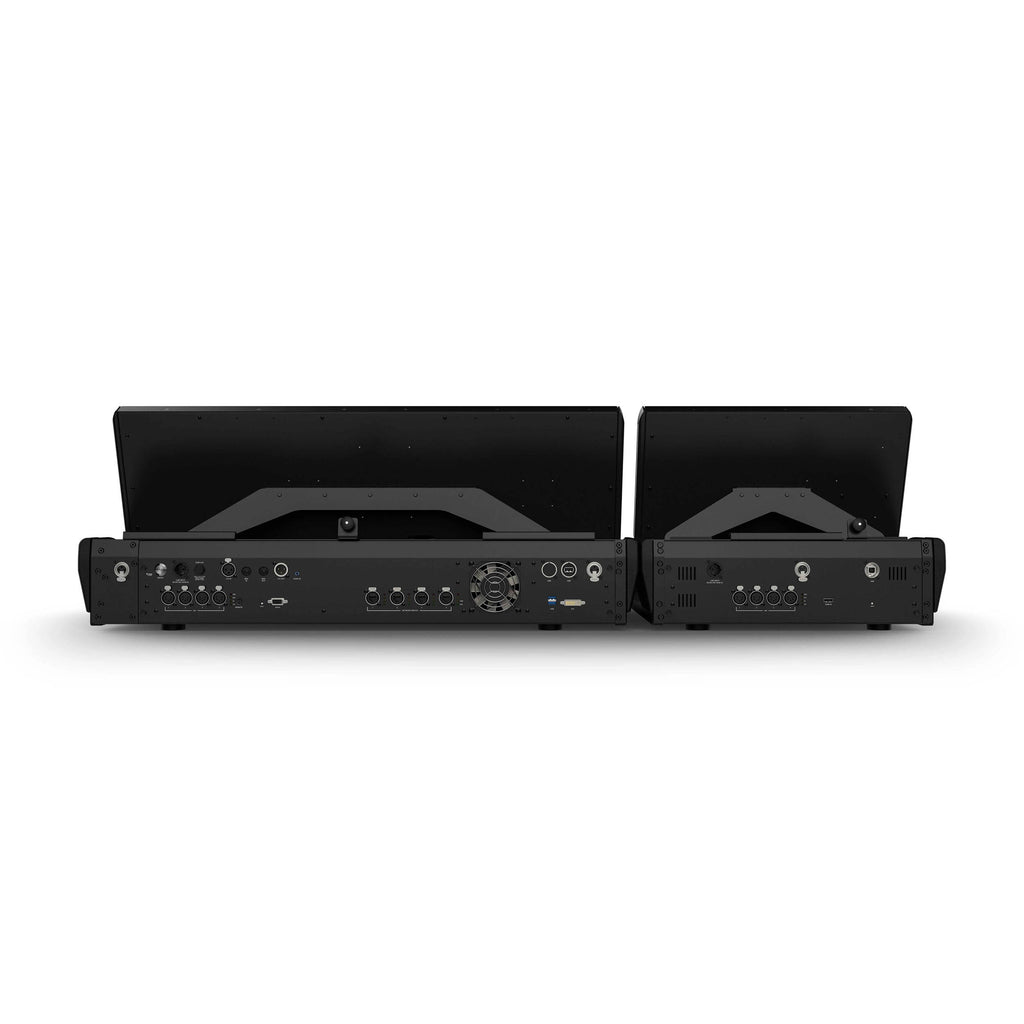

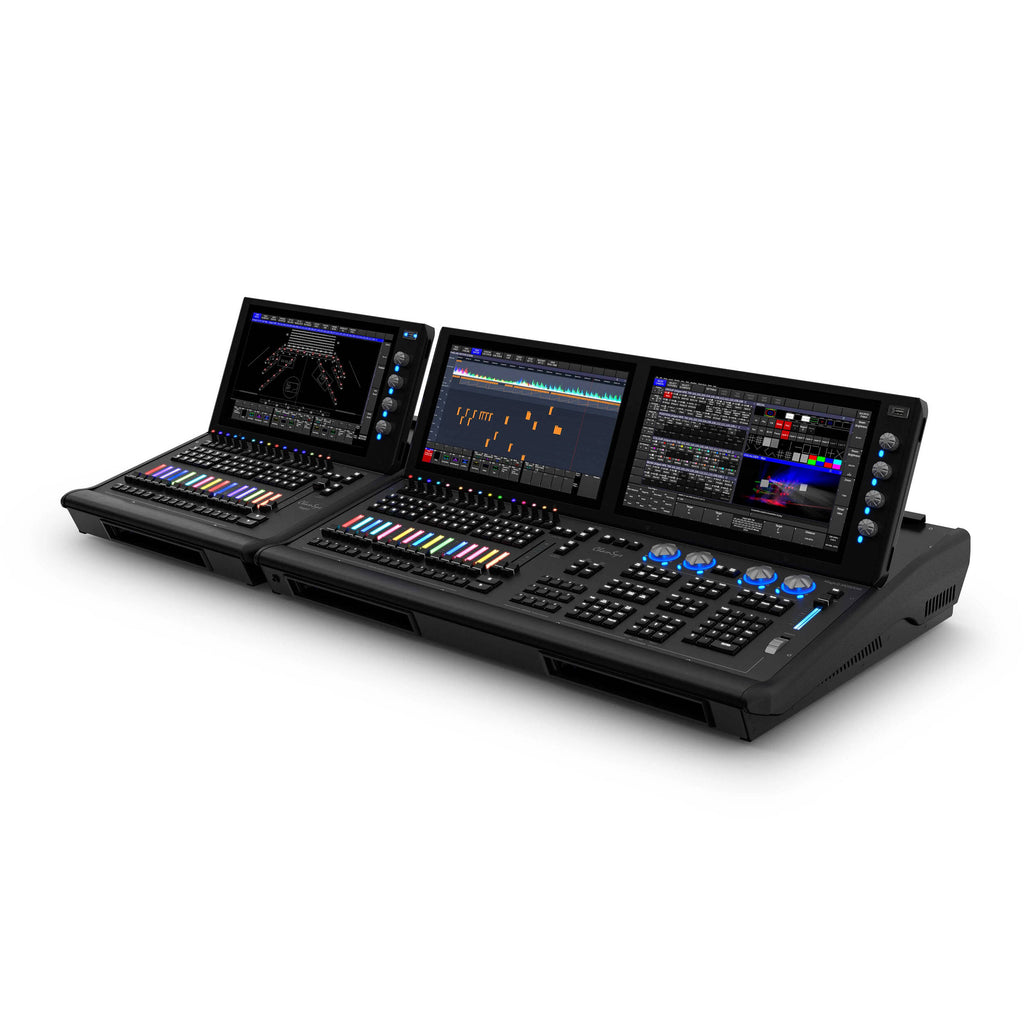

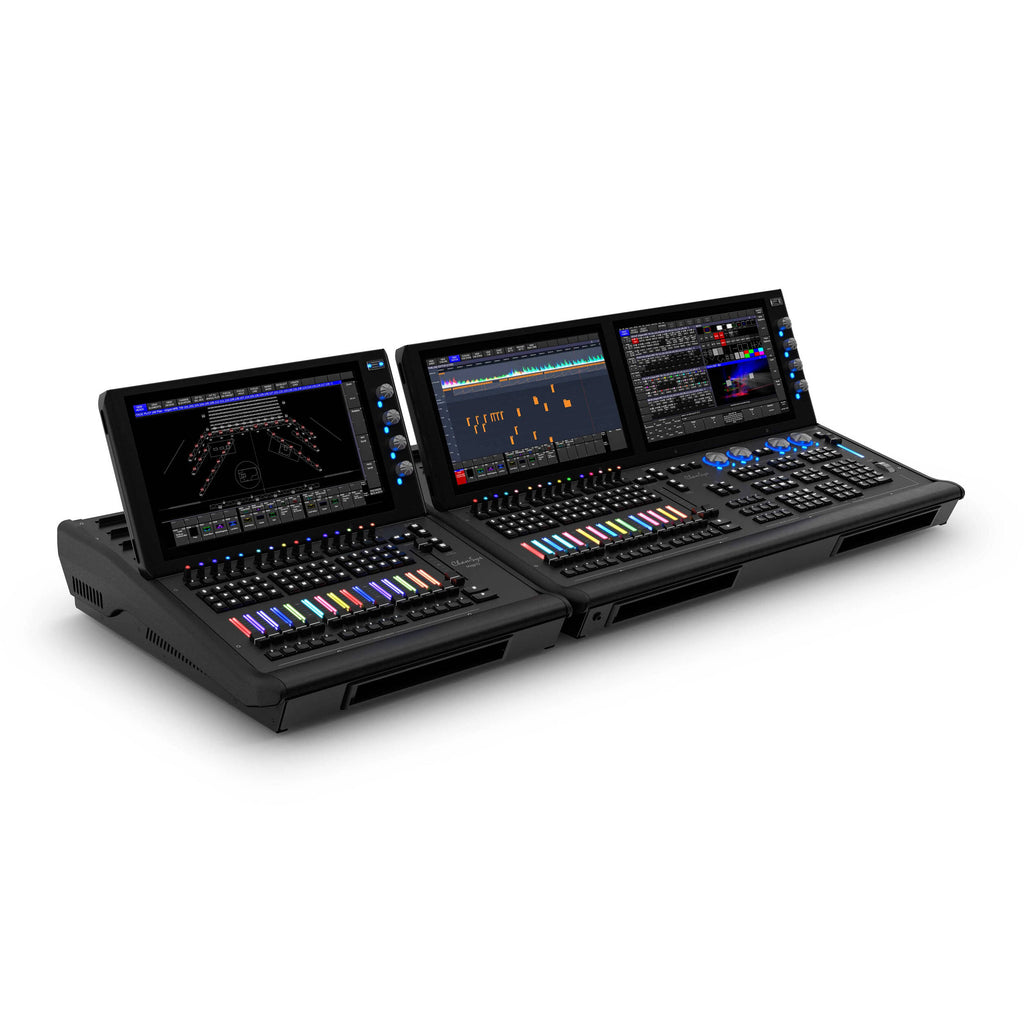

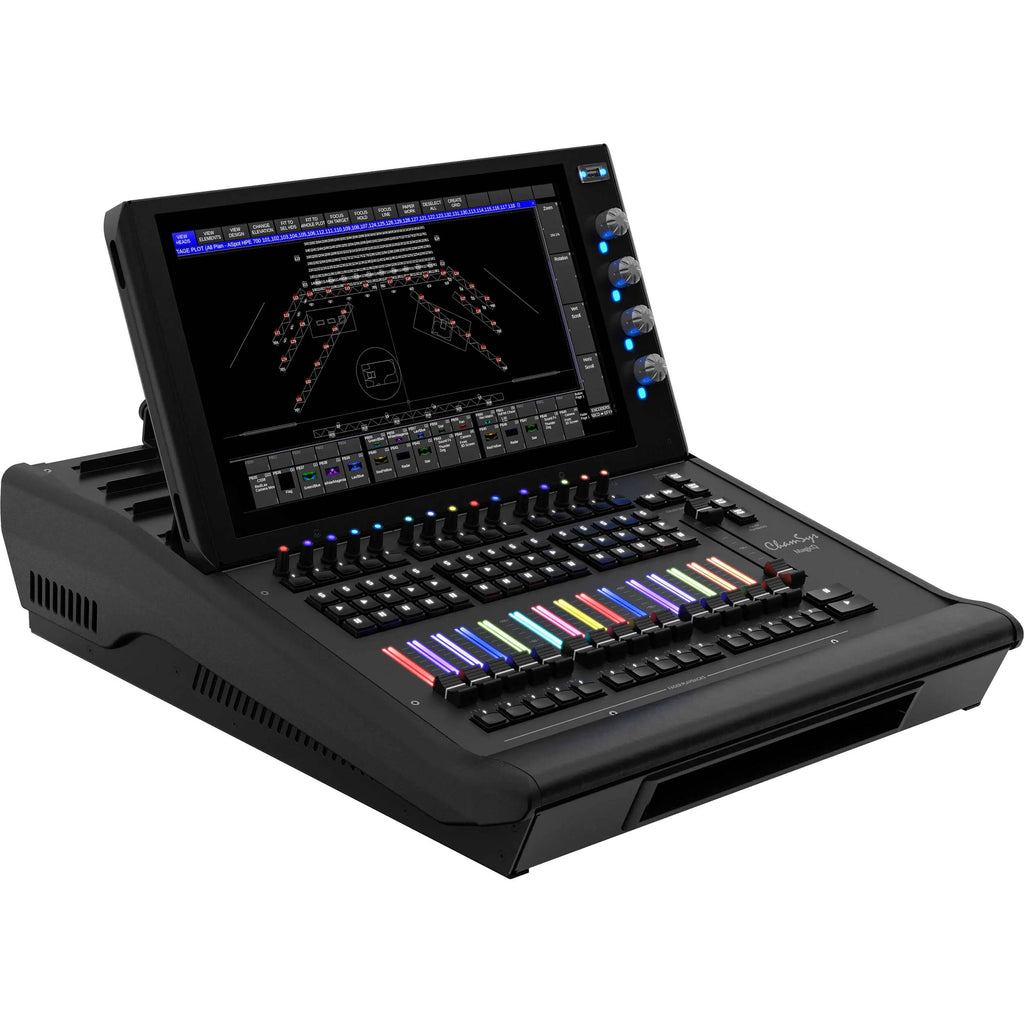

Achieve the highest level of show control with the MagicQ MQ500M Stadium Wing with Flight Case from ChamSys. Designed as a companion piece for the MagicQ MQ500 M Stadium console, the Stadium Wing boasts 15 fully motorized fader playbacks, 15 encoder playbacks with RGB indicators, and a 15" multi-touch HD display. The unit, which includes its own flight case, has four assignable DMX ports, and features built-in UPS. The MagicQ MQ500M Stadium Wing connects to the MagicQ MQ500M Stadium console via included USB and HDMI cables.
Note:
The MQ500M Stadium Wing is designed to work with the MQ500M Stadium console only. It will not connect to any other MagicQ products or to the MagicQ PC Stadium software.
Motorization
Thanks to its motorized function, the playback section can be used for multiple purposes with shortcut buttons to change the function. With 15 motorized faders and 15 playback encoders per bank, and up to six banks, a total of 180 playbacks can be accessed at the touch of a button.
Programmer and Master Modes
Programmer modes give access to intensities for each patched fixture, to intensities of groups of fixtures, or to individual channels of a fixture. The selected modes enable instant access to the intensities or channels of the currently selected fixtures. Master modes provide instant master control of individual fixtures or groups of fixtures without having to pre-program masters, which is ideal for those live moments when lights are flaring in cameras or key lights need modifying.
Dual Crossfade Faders
The dual 100mm crossfade faders are fully motorized and together with the prominently placed large Go and Back buttons provide a comprehensive and reliable theatre control experience.
Playback Encoders
A multi-array of different functions can be assigned to the playback encoders with full legends directly above the display, presenting the current function to the user. The playback encoders can be set to control intensity, LTP channels, FX size, FX speed, rate, and time.
Illumination and Customization
The MQ500M Stadium Wing lights the way with backlit keys, illuminated fader tracks and encoders, and glowing pockets. Together with the newly updated graphics, this takes MagicQ to a whole new level of customization and gives lighting designers the freedom to visibly configure the console for their needs.
UPC: 781462221300
In the Box
- ChamSys MagicQ MQ500M Stadium Wing with Flight Case
- Dual-Color Desk Light
- Dust Cover
- Neutrik powerCON TRUE1 Power Cable
- Neutrik USB-A to USB-B Cable
- Standard USB-A to USB-B Cable
- HDMI Cable
- HDMI to DVI Cable
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Motorization
- Programmer and Master Modes
- Dual Crossfade Faders
- Playback Encoders
- Illumination and Customization
ChamSys MQ500M Stadium Wing Specs
General
| Compatibility |
ChamSys MagicQ Stadium
|
Display
| Panel Type |
Not Specified by Manufacturer
|
| Display Size |
15"
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
Power
| Power Source |
AC Input (Included)
|
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz
|
Physical
| Dimensions |
23 x 18.5 x 3.3" / 58.4 x 47 x 8.4 cm
|
| Weight |
41.9 lb / 19 kg
|
