Description

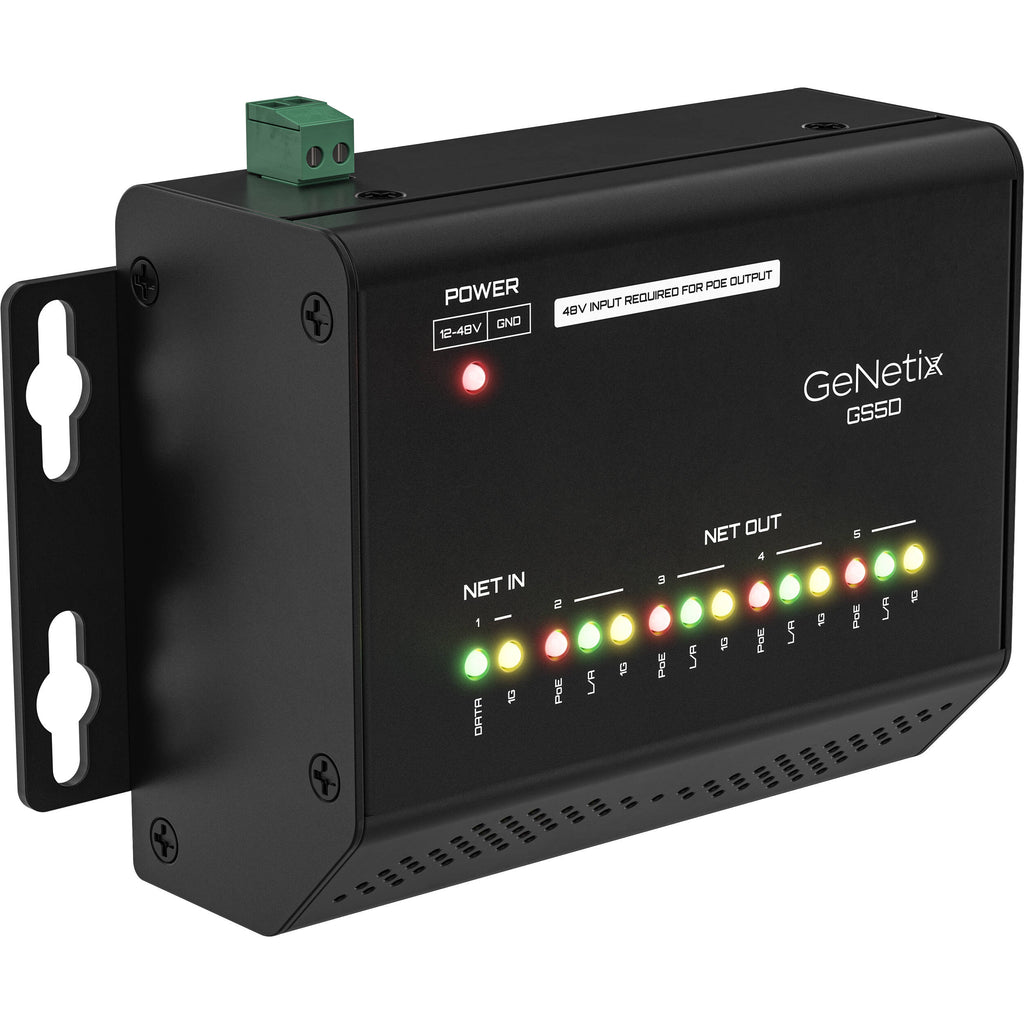

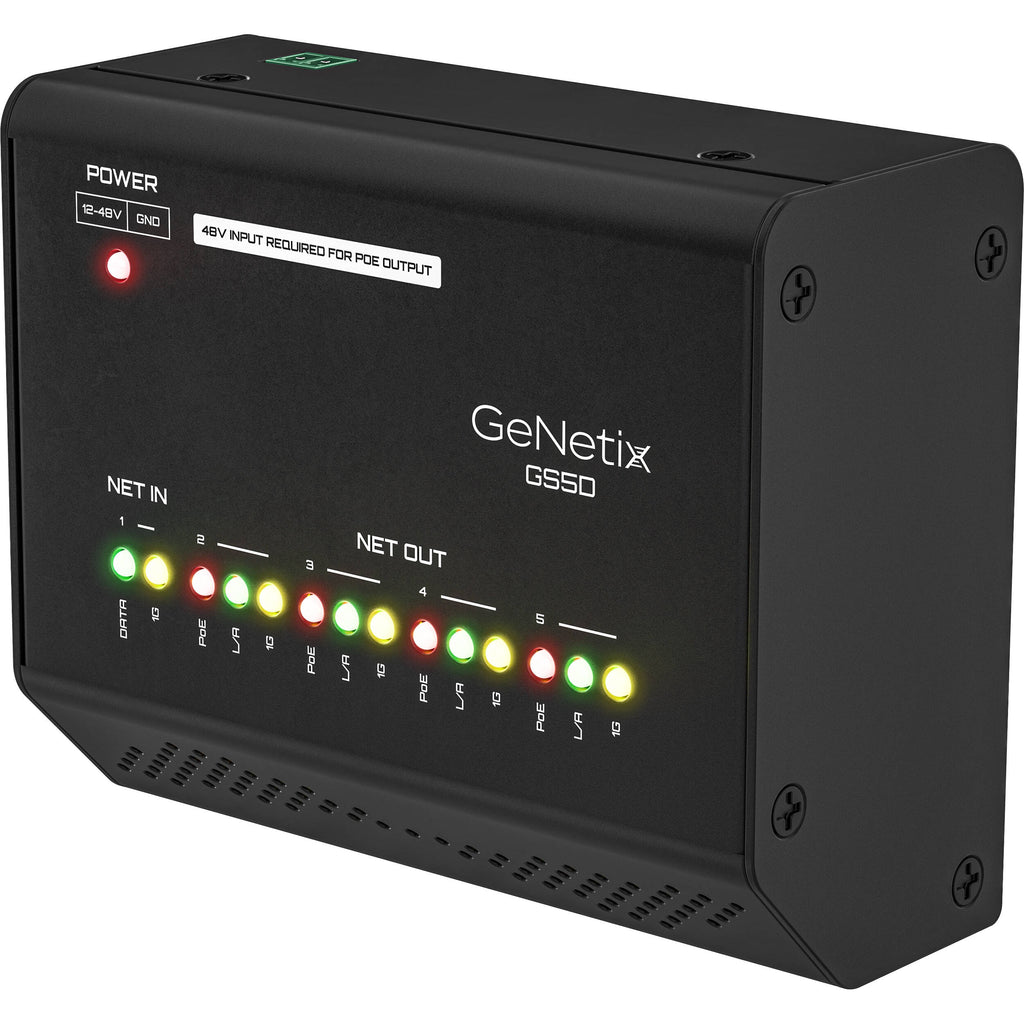

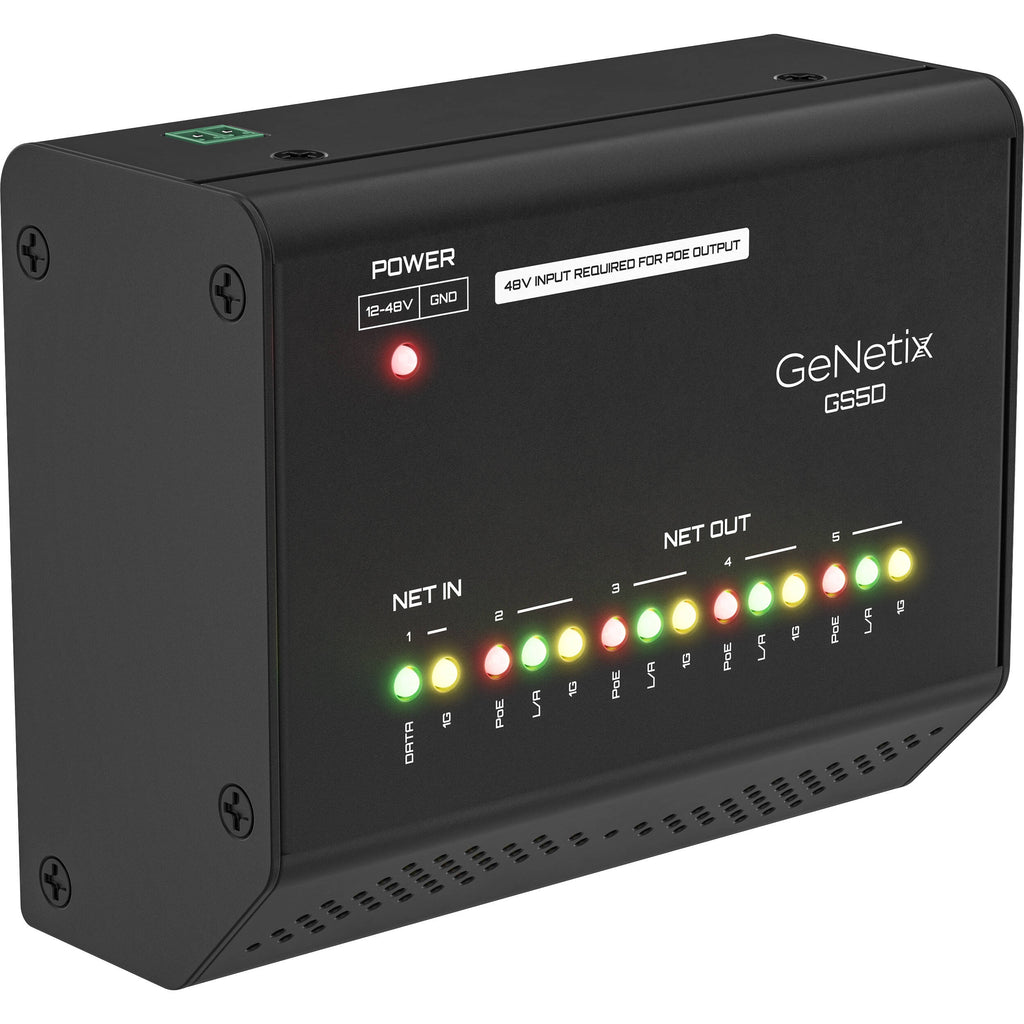

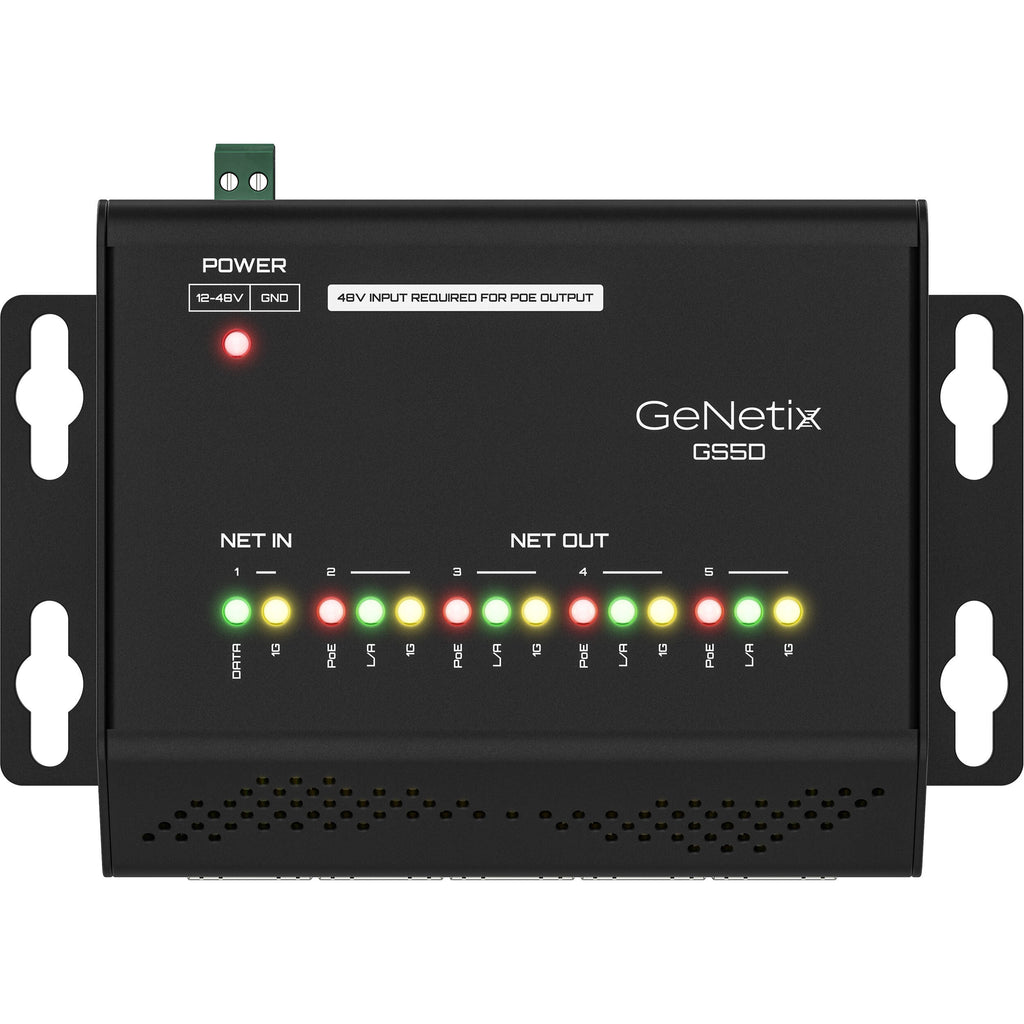

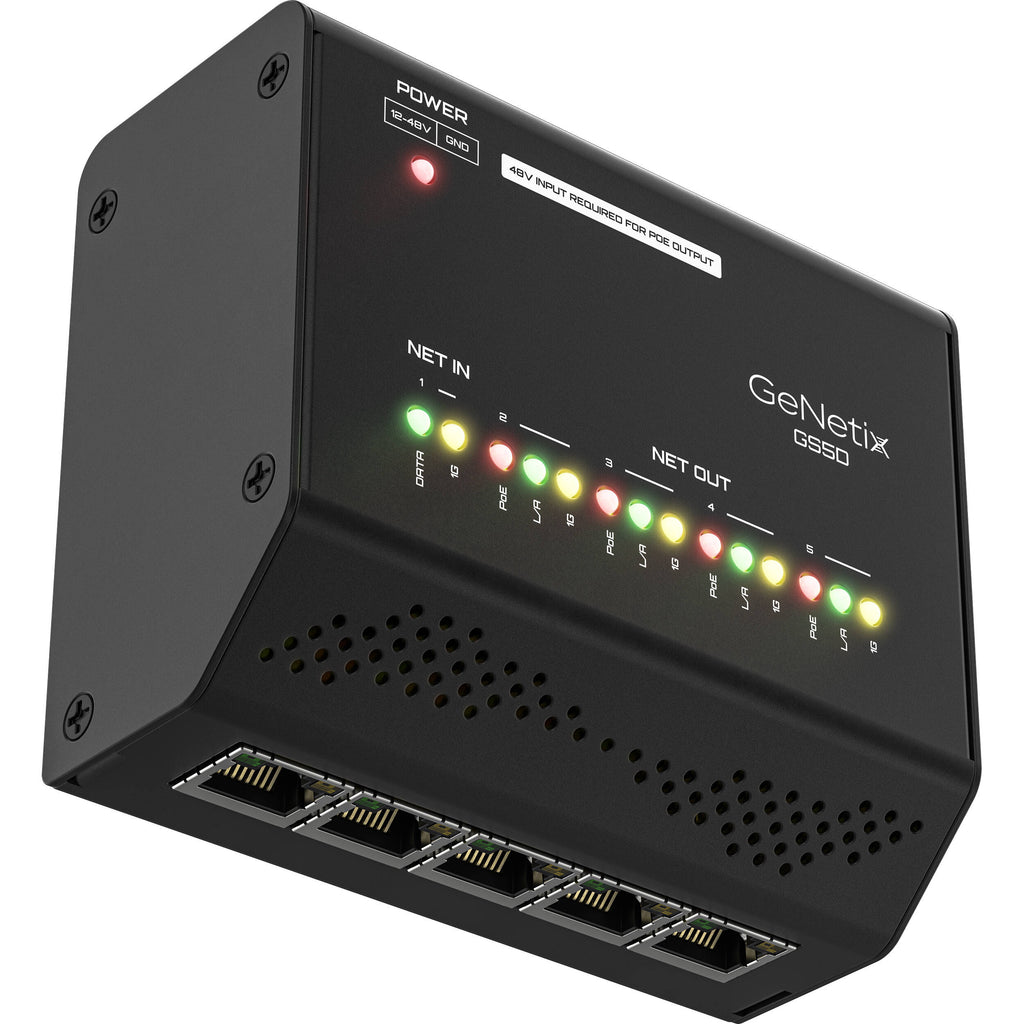

ChamSys 5 Port Network Switch Overview
Designed for permanent installations requiring PoE power for clean cabling, the ChamSys GeNetix GS5D Switch 5D is a five-port DIN rail mountable unmanaged Gigabit network switch that can be powered via PoE or an external 12-48V power supply (sold separately).

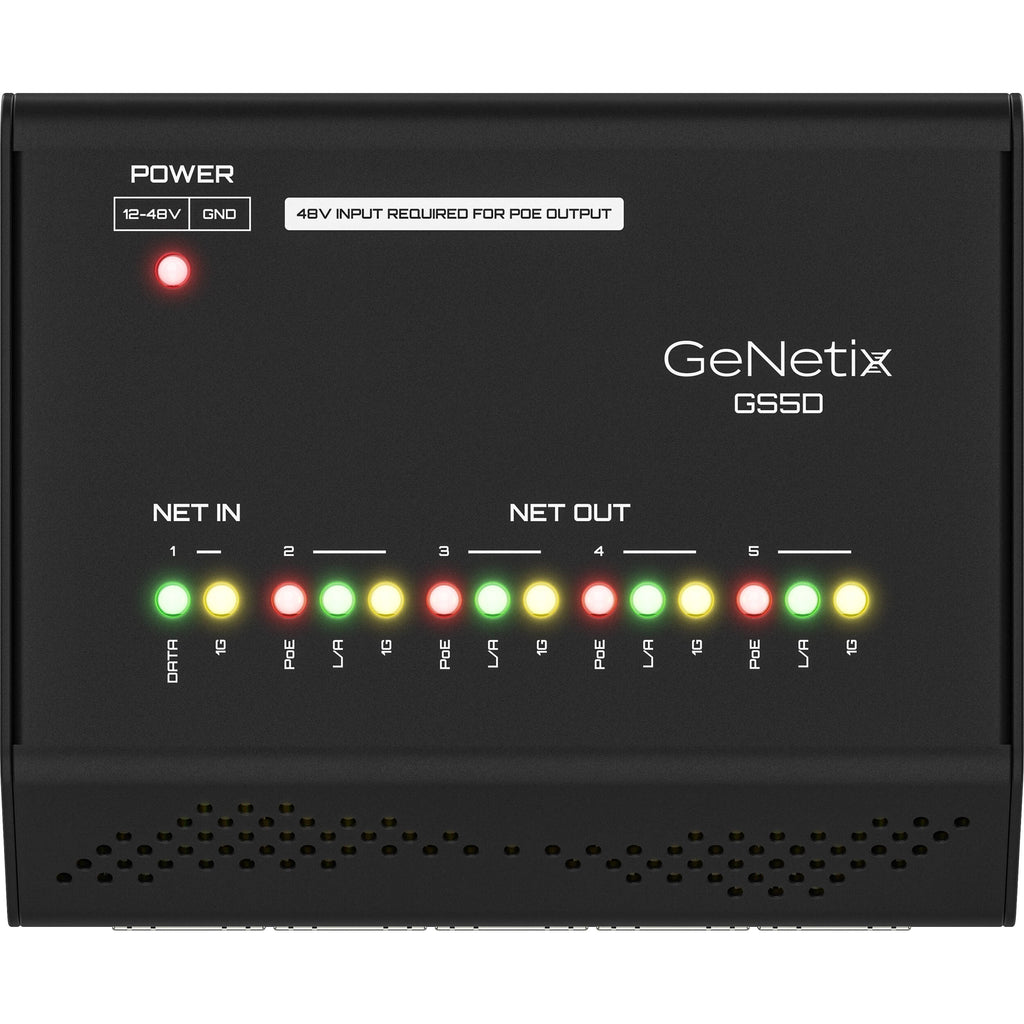

When powered by a 48V power supply, four of its ports support 30W of PoE output per port with a maximum of 60W combined output. Status LEDs provide visual indication to know if the GeNetix GS5D is connected to external power, if its network/PoE ports are connected/active, and if the network is running at Gigabit speed.
- 60W 5-port unmanaged Gigabit PoE+ network switch
- Supports PoE 802.3af, 802.3at in Modes A & B
- Ports 2-5 will support 30W per port, up to 60W total output when powered by a 48V external power supply
- PoE powered or powered by 12 to 48V external power supply (sold separately)
- DIN rail mountable
- ChamSys GeNetix GS5D 5-Port Gigabit Network Switch
- 2-Pin Phoenix Connector
- DIN Rail Mount Clip
- Limited 2-Year Manufacturer Warranty
No additional resources available
ChamSys 5 Port Network Switch Specs
| Inputs/Outputs |
4x RJ45 (Network) Female Output
1x RJ45 (Network) Female Input 1x Phoenix 2-Pin Power Female Input |
| Power Source |
AC Adapter, Power Over Ethernet (PoE)
|
| Inputs/Outputs |
4x RJ45 (Network) Female Output
1x RJ45 (Network) Female Input 1x Phoenix 2-Pin Power Female Input |
| Cooling System |
Passive
|
| Power Source |
AC Adapter, Power Over Ethernet (PoE)
|
| Input Power |
12 to 48 VDC
|
| PoE Port Power |
Yes
|
| Environmental Resistance |
No
|
| Rack Mount |
Yes
|
| Dimensions |
4.1 x 4.3 x 2.6" / 104.1 x 109.2 x 66.0 mm
|
| Weight |
0.88 lb / 0.4 kg
|
