Description
ChamSys 4 Port DMX Splitter Overview

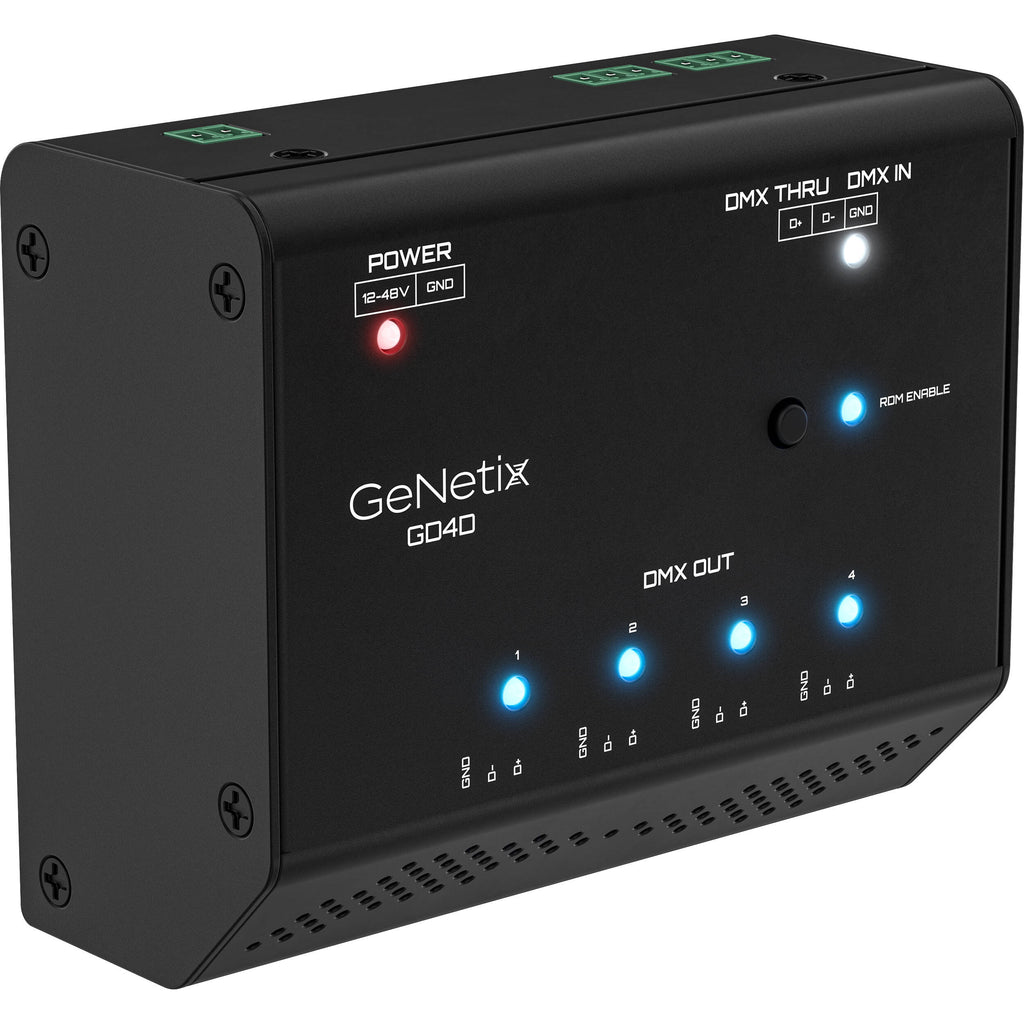

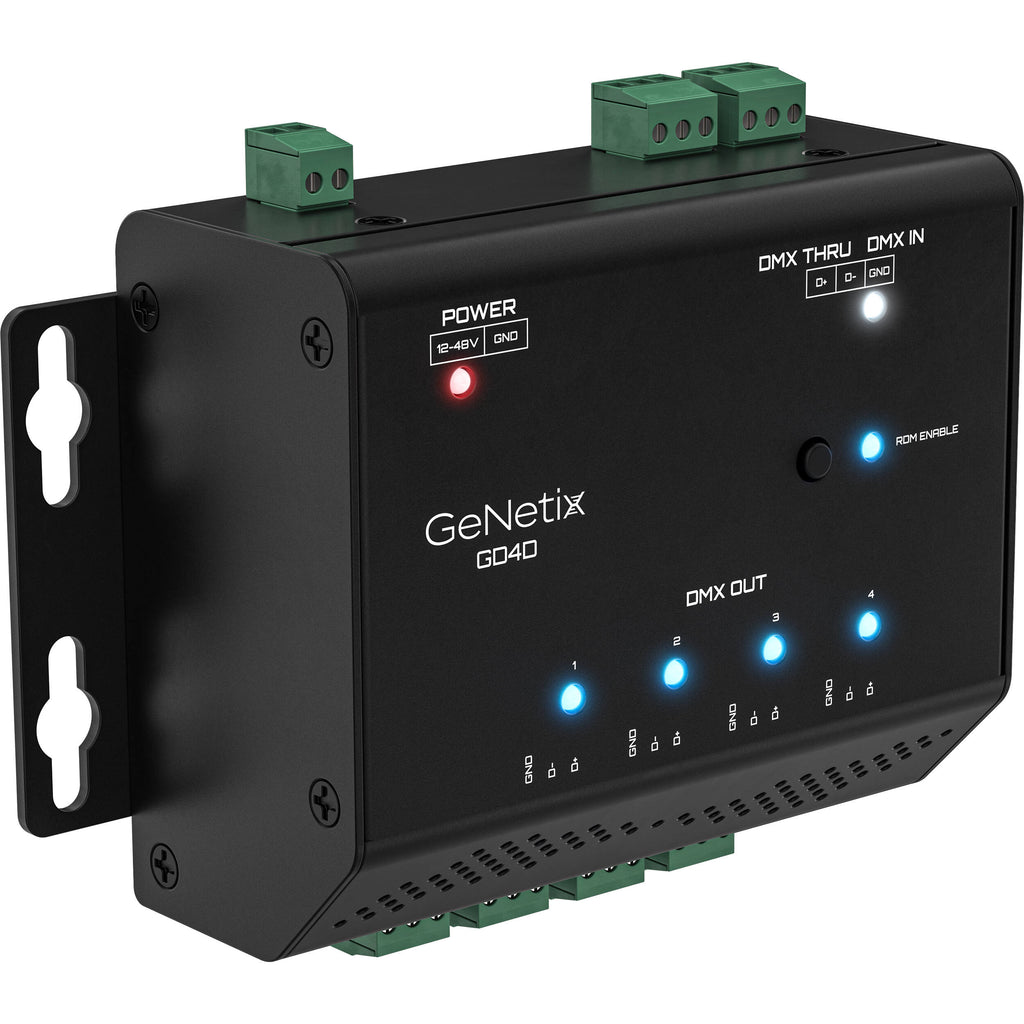

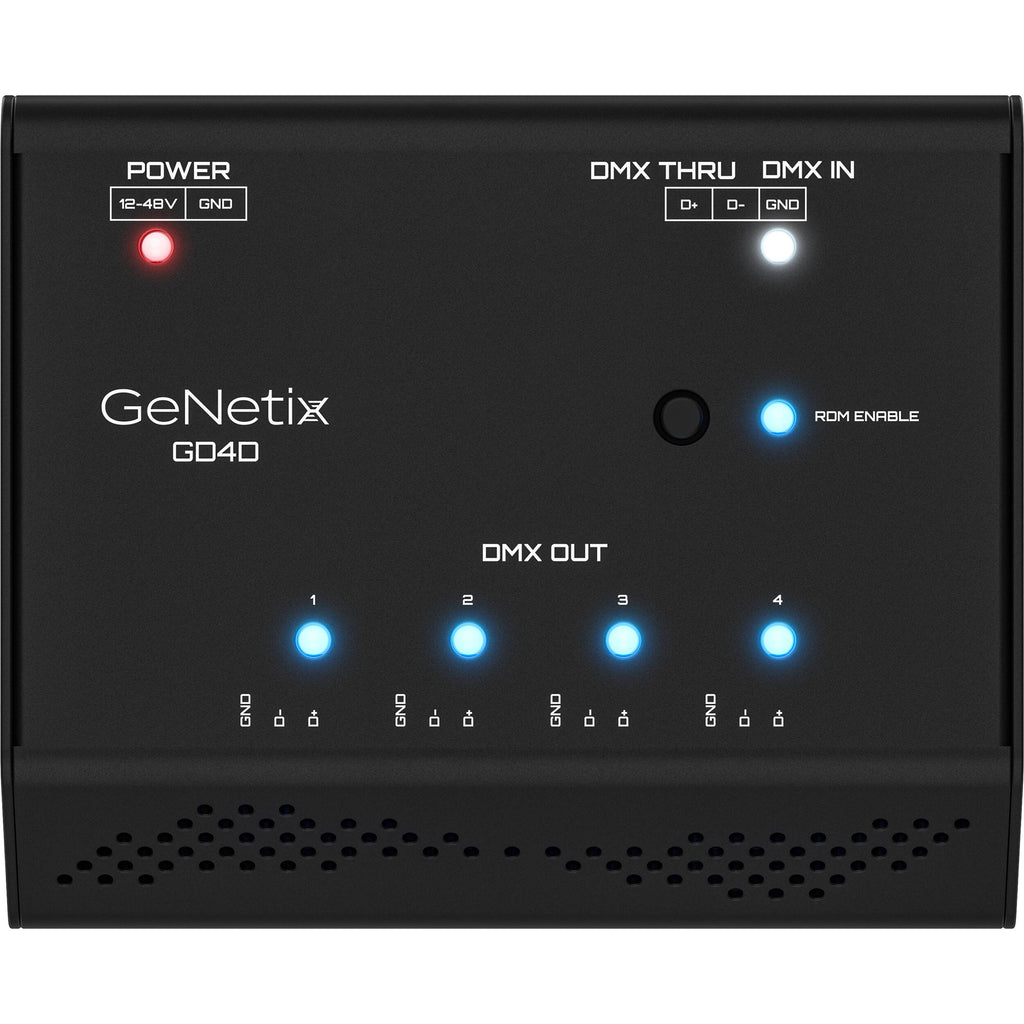

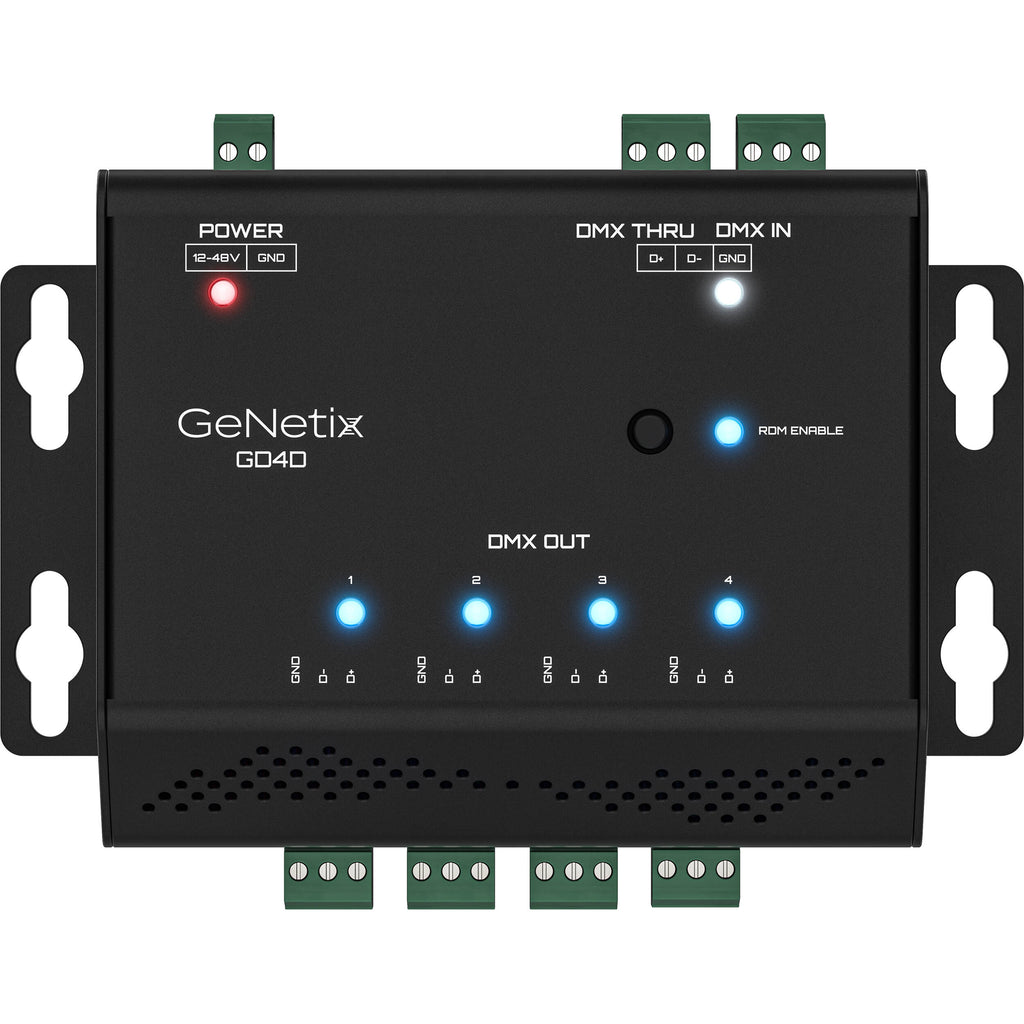

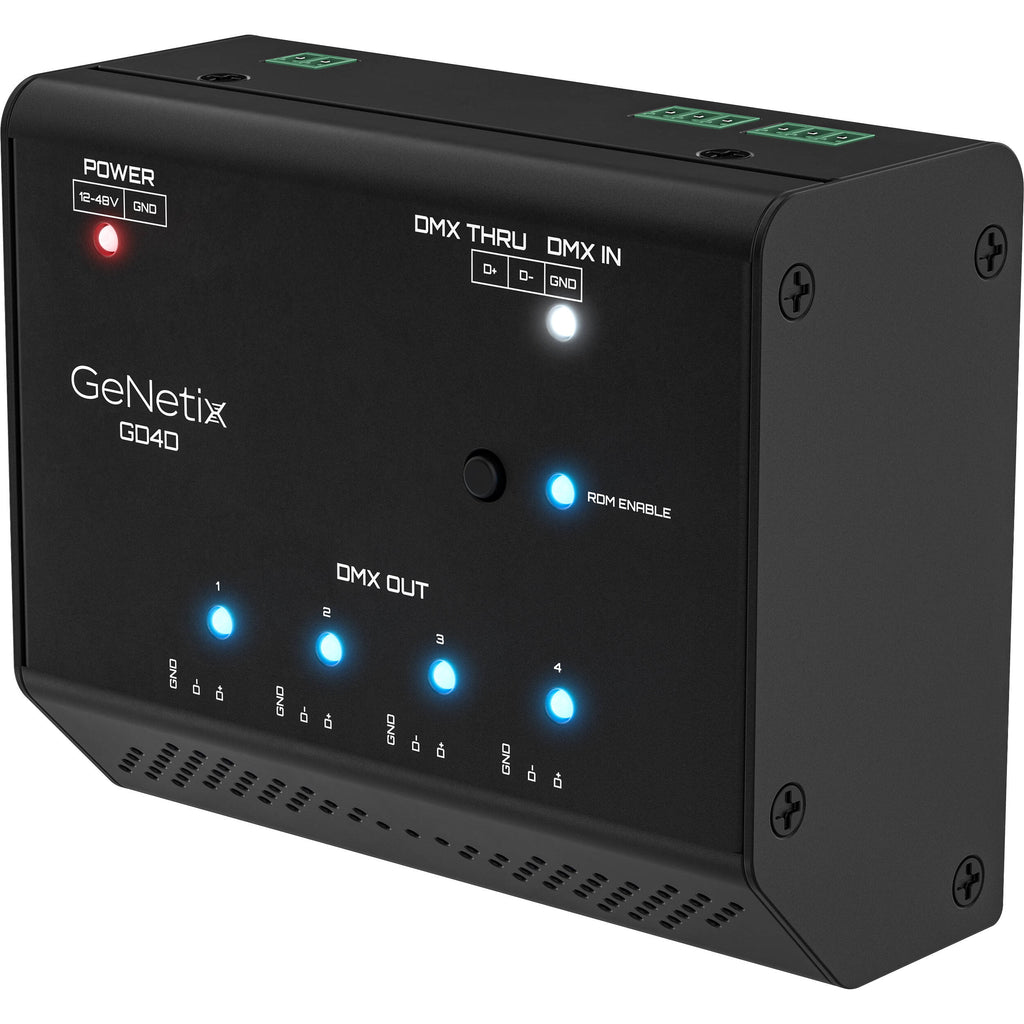

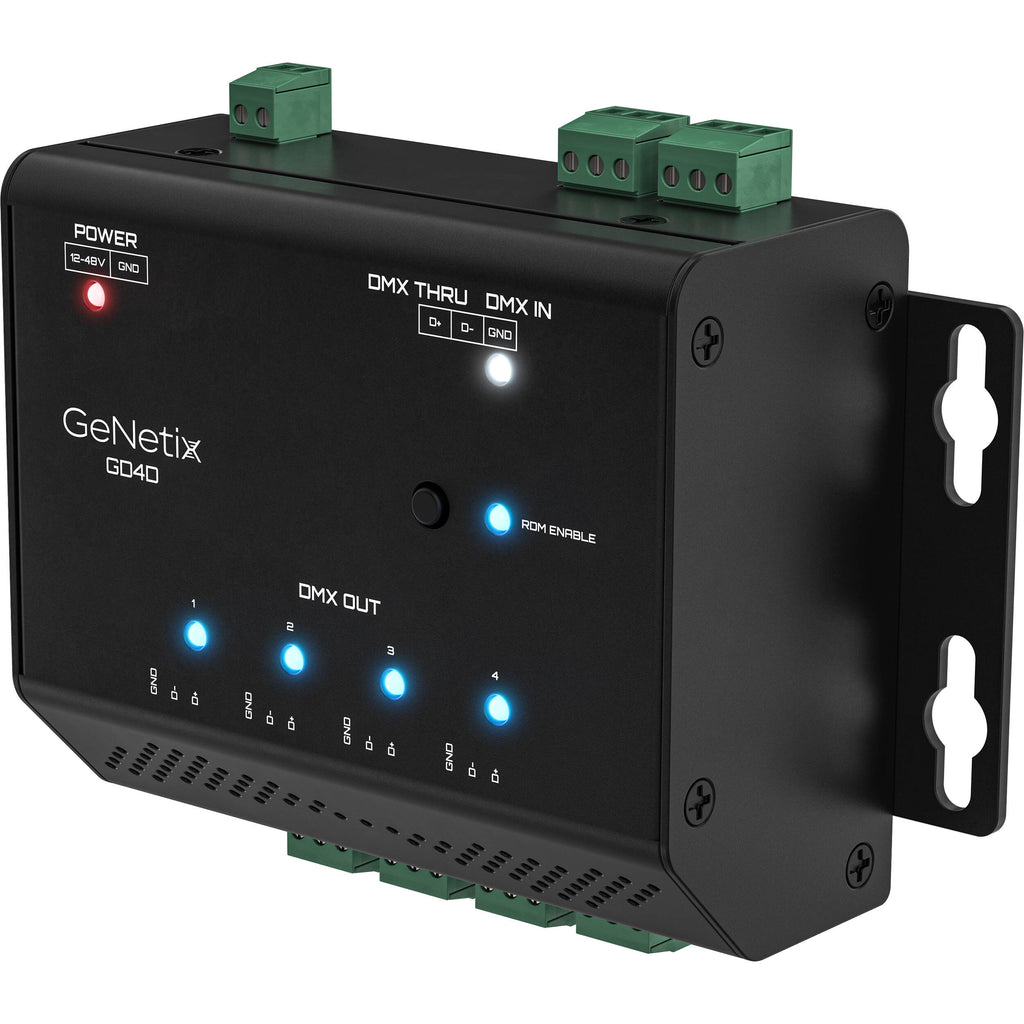

Ensure your lighting system runs cleanly, quietly, and consistently with the ChamSys GeNetix GD4D, a DIN rail-mountable RDM-capable four-port DMX splitter fitted with phoenix screw terminals for DMX In, Thru, and Out from terminal block connectors. The GD4D offers a design ideally suited to the needs of permanent installations, such as theatres, architectural, and entertainment venues.
The GD4D is powered via an external 12 to 48V power supply (sold separately) and features an RDM Disable option to strip out RDM data and re-time the DMX signal. Onboard LEDs provide visual indication to know if the GD4D is connected to external power, RDM on/off, and DMX input and output status.
- 4 port RDM E1.20 compliant DMX splitter
- Powered via external 12 to 48V power supply (sold separately
- RDM disable and DMX re-time option
- DIN rail mountable
- ChamSys GeNetix GD4D 4-Port DMX Splitter
- DIN Rail Mount
- 6 x 3-Pin Phoenix Connector
- 2-Pin Phoenix Connector
- Limited 2-Year Manufacturer Warranty
No additional resources available
ChamSys 4 Port DMX Splitter Specs
| Inputs/Outputs |
4x Phoenix 3-Pin (DMX) Female Output
1x Phoenix 3-Pin (DMX) Female Input 1x Phoenix 3-Pin (DMX) Female Throughput 1x Phoenix 2-Pin Power Female Input |
| Power Source |
AC Adapter
|
| Inputs/Outputs |
4x Phoenix 3-Pin (DMX) Female Output
1x Phoenix 3-Pin (DMX) Female Input 1x Phoenix 3-Pin (DMX) Female Throughput 1x Phoenix 2-Pin Power Female Input |
| Cooling System |
Passive
|
| Power Source |
AC Adapter
|
| Input Power |
12 to 48 VDC
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 3.4 x 2.6" / 104.1 x 86.4 x 66.0 mm
|
| Weight |
0.88 lb / 0.4 kg
|
