Description
ChamSys DMX to 0-10V Overview

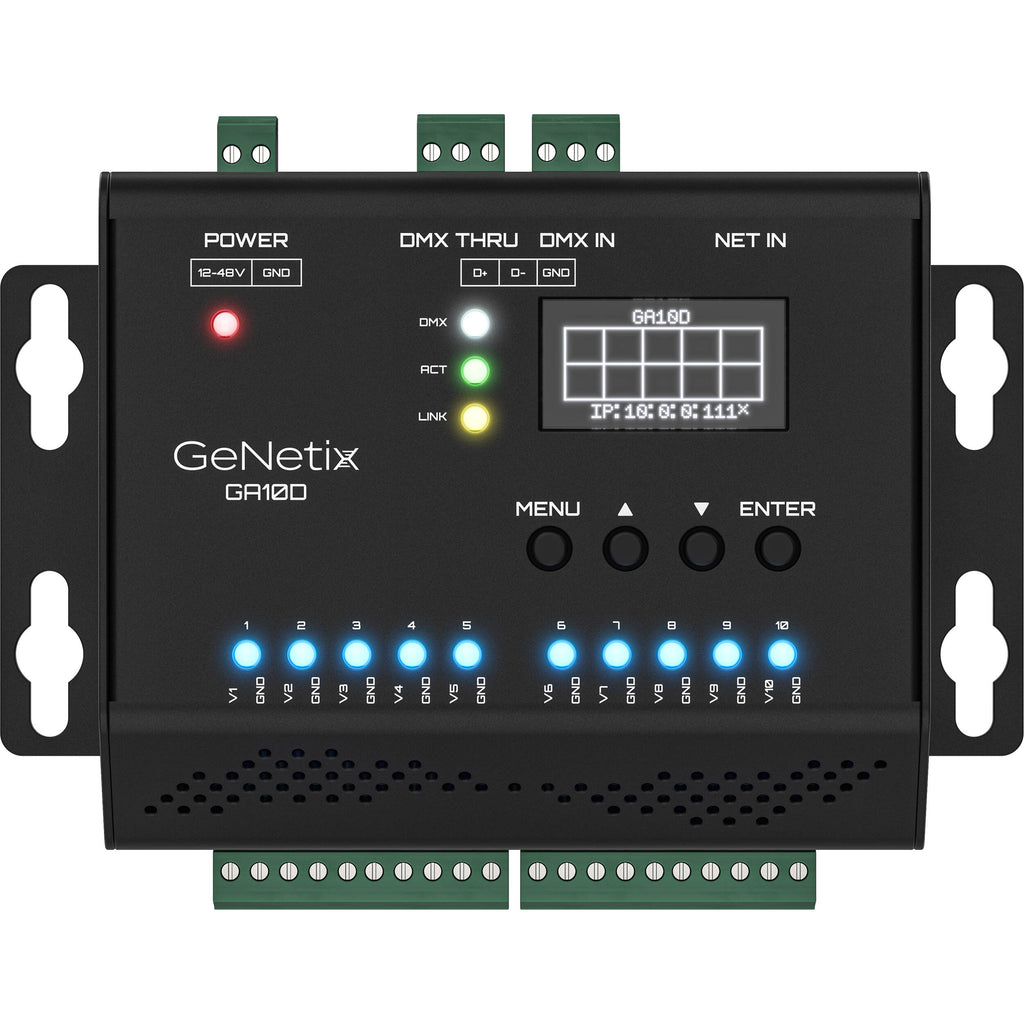

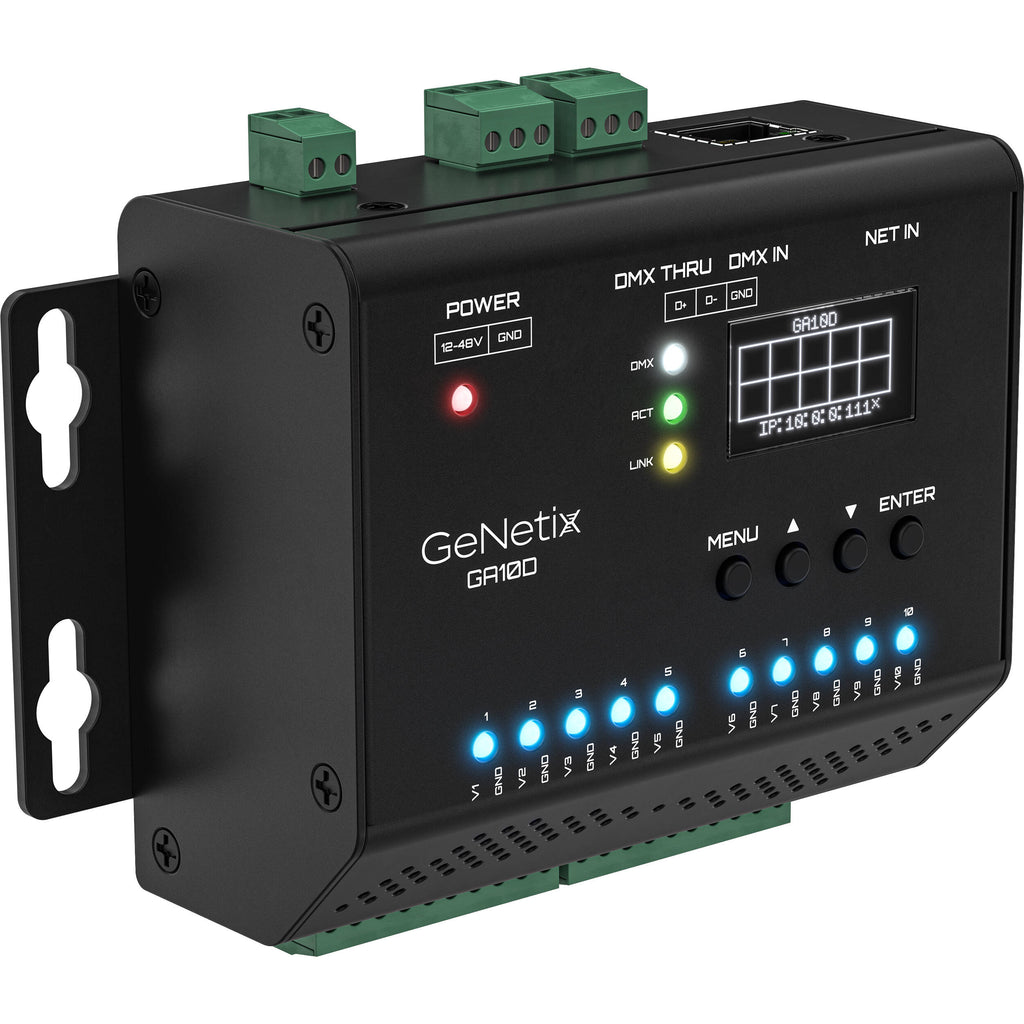

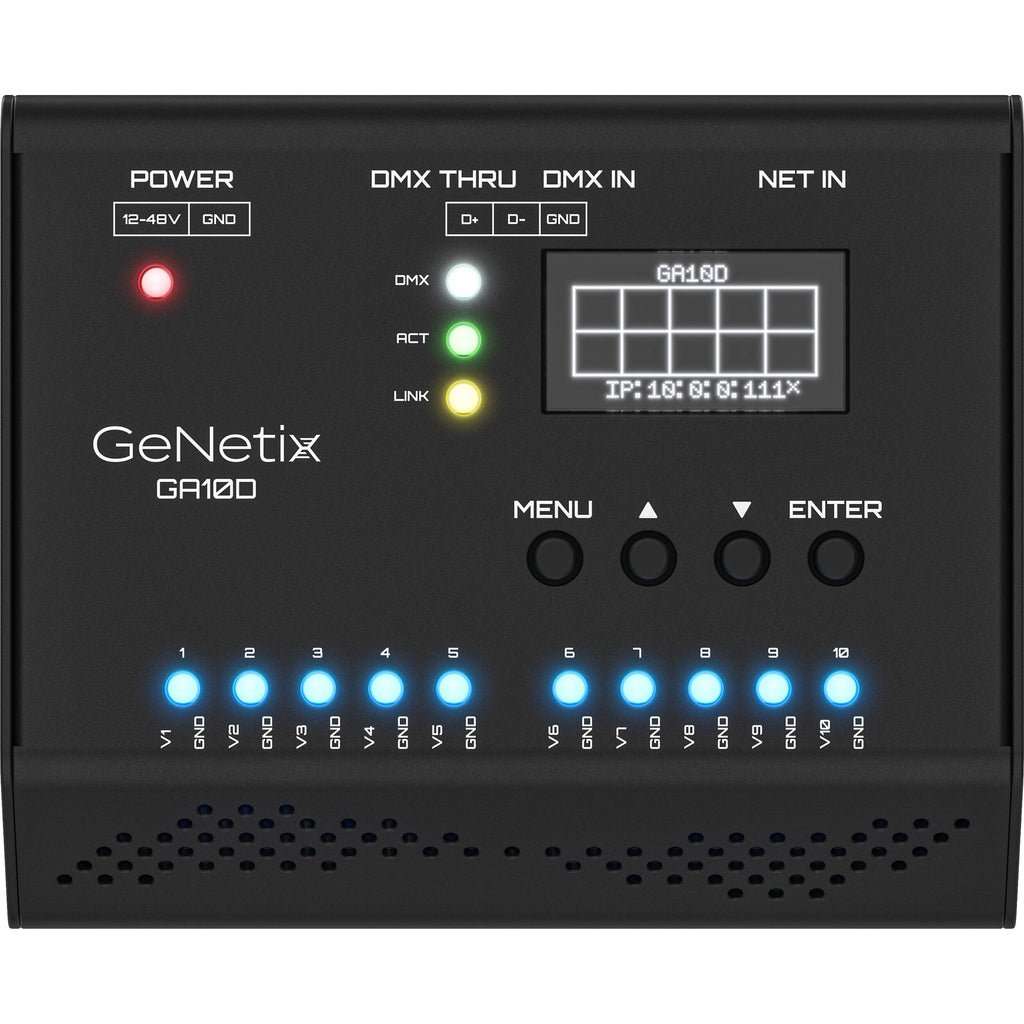

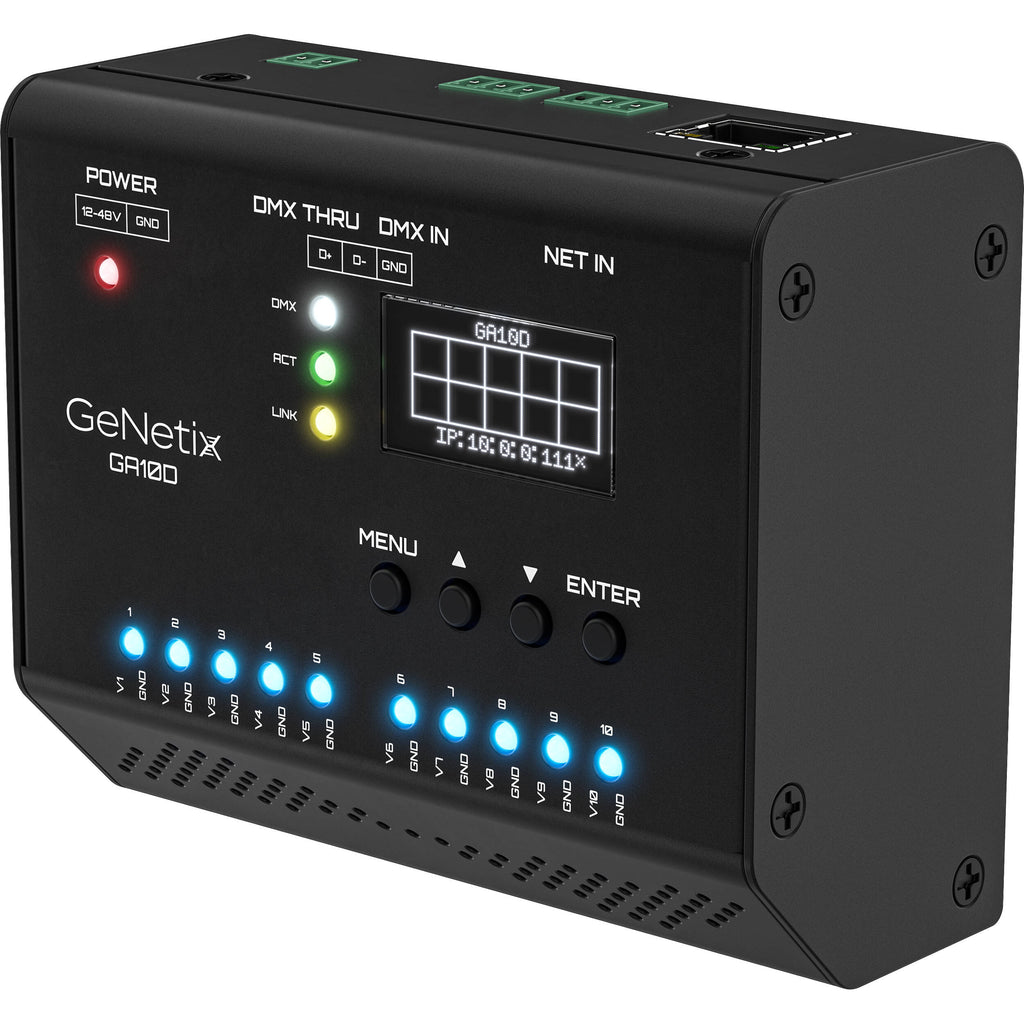

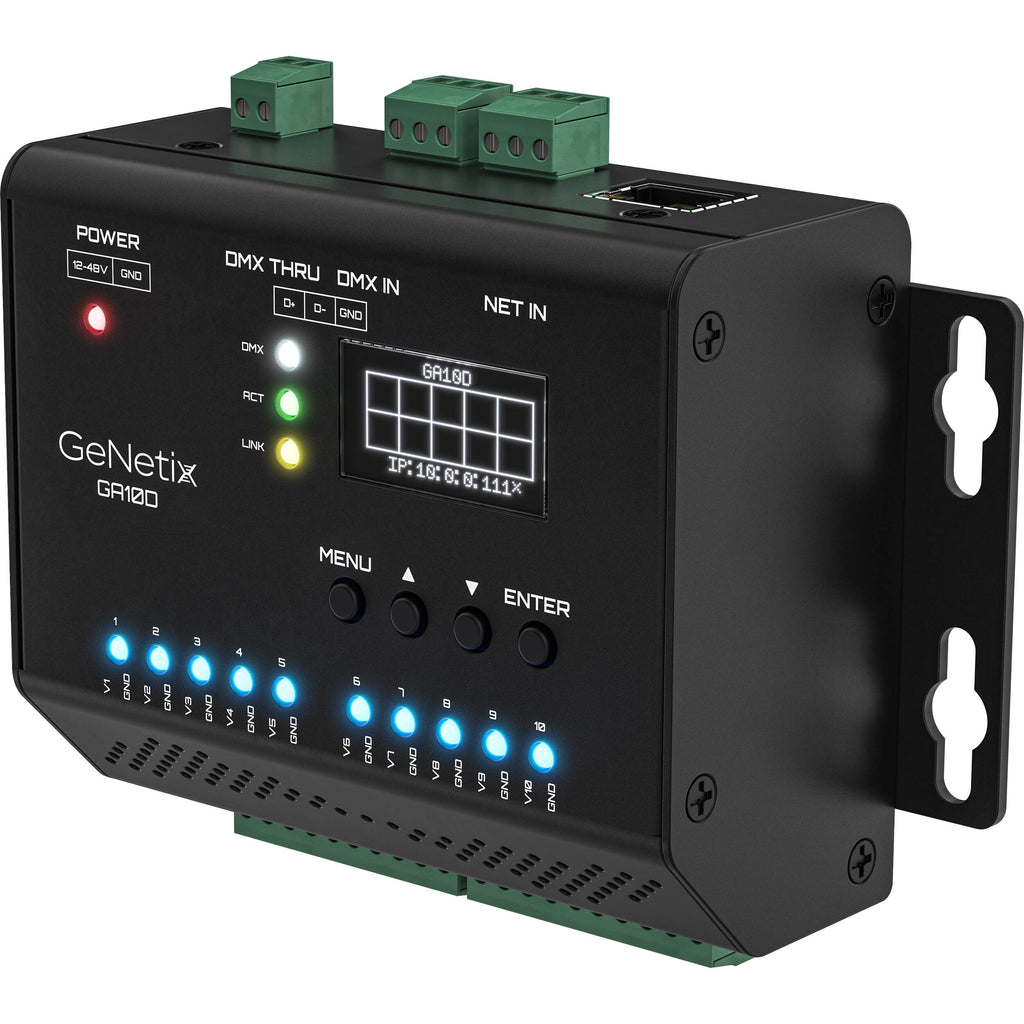

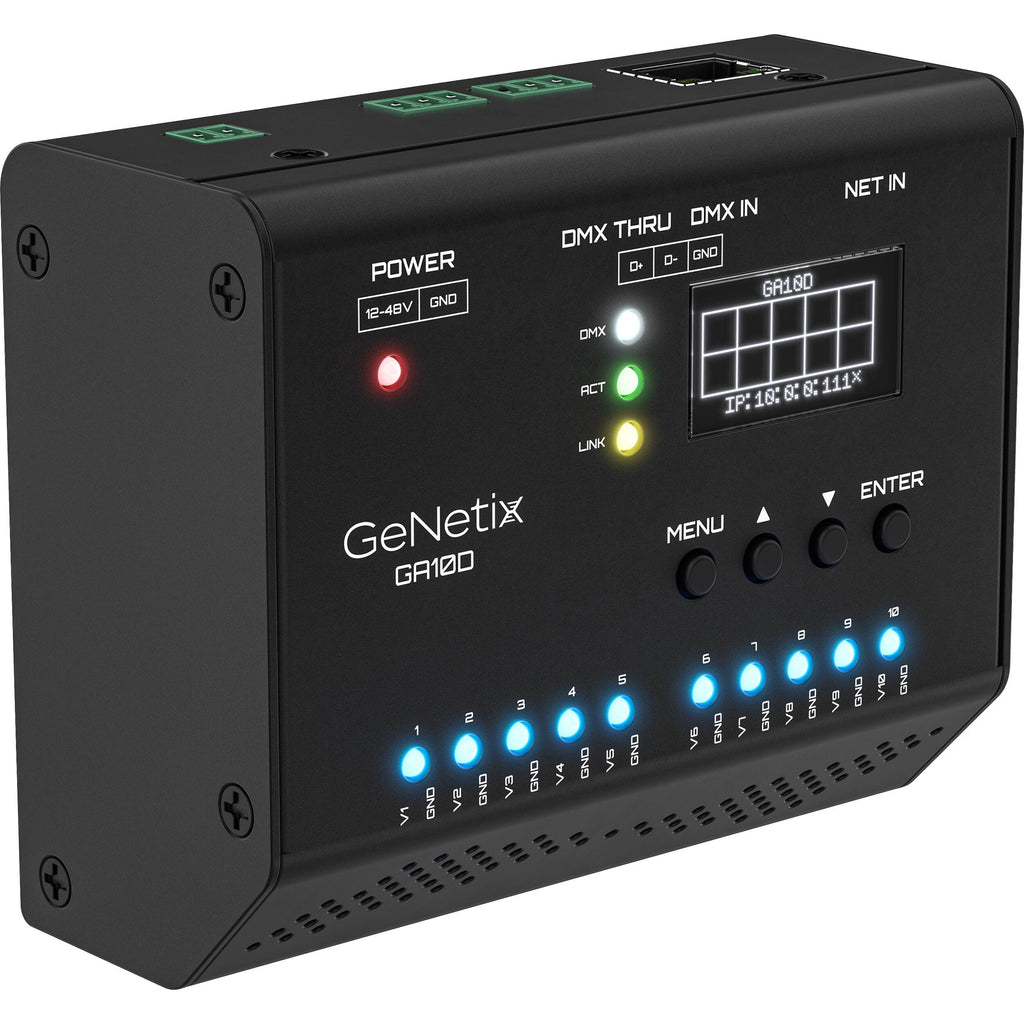

Add DMX control to your analog (0-10V) lighting fixtures with the ChamSys GeNetix GA10D, a DIN rail mountable 10-Port DMX/Art-Net/sACN to Analog 0-10V converter fitted with phoenix screw terminals for DMX in/through and 0-10V out from terminal block connectors. The GA10D offers a design ideally suited to the needs of permanent installations such as entertainment venues, event spaces, and architectural lighting designs.
The GA10D is powered via an external 12-48V power supply (sold separately) and features an onboard menu display with push-button navigation for unit configuration, along with LEDs that provide visual indication of output port status.
- Ten 0-10V analog Outputs
- Powered via external 12-48V power supply (sold separately)
- DMX, Art-Net and sACN input
- DIN rail mountable
- ChamSys GeNetix GA10D DIN DMX to Analog 0-10V
- DIN Rail Mount
- 2 x Wall Mount
- 2 x 5-Port 10Scene Connector
- 2 x 10-Port Trigger Connector
- Limited 2-Year Manufacturer Warranty
No additional resources available
ChamSys DMX to 0-10V Specs
| Inputs/Outputs |
2x Phoenix 10-Pin 10Scene Female Output
1x Phoenix 3-Pin (DMX) Female Input 1x Phoenix 3-Pin (DMX) Female Throughput 1x Phoenix 2-Pin Power Female Input |
| Channels |
10
|
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, DMX512, sACN
|
| Inputs/Outputs |
2x Phoenix 10-Pin 10Scene Female Output
1x Phoenix 3-Pin (DMX) Female Input 1x Phoenix 3-Pin (DMX) Female Throughput 1x Phoenix 2-Pin Power Female Input |
| Channels |
10
|
| Dimming |
Yes
1 to 100% (Continuous) |
| Power Source |
AC Adapter
|
| Input Power |
12 to 48 VDC
|
| Protocol |
ArtNet, DMX512, sACN
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 3.4 x 2.6" / 104.0 x 87.0 x 65.0 mm
|
| Weight |
0.88 lb / 0.4 kg
|
