Description
ChamSys GENETIX10SCONTACT Overview

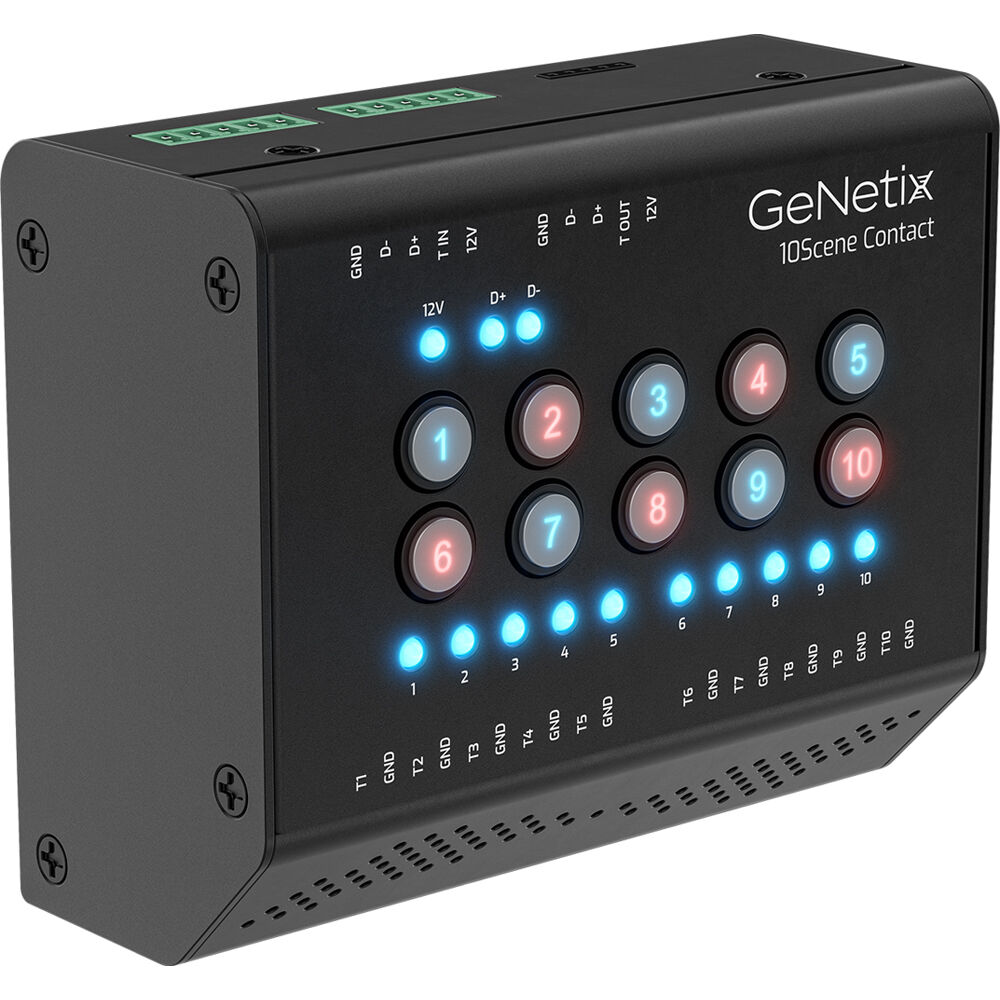

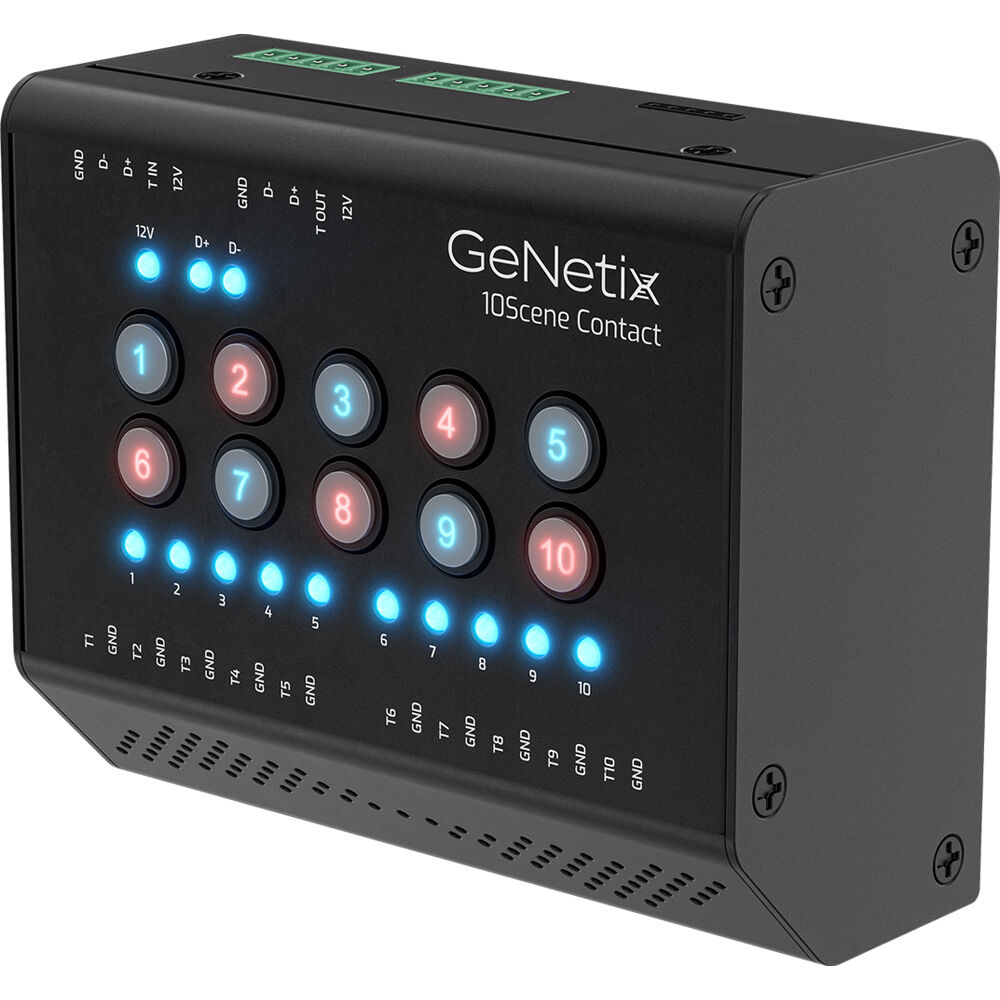

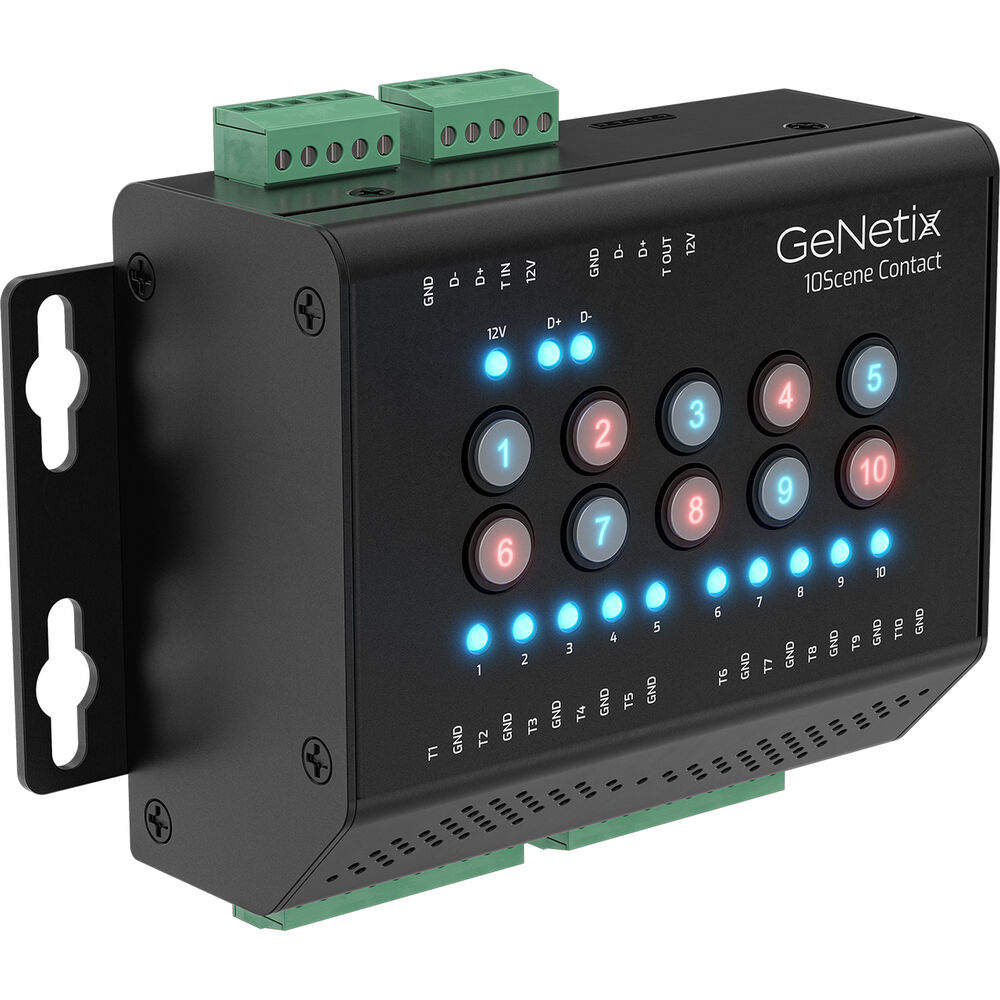

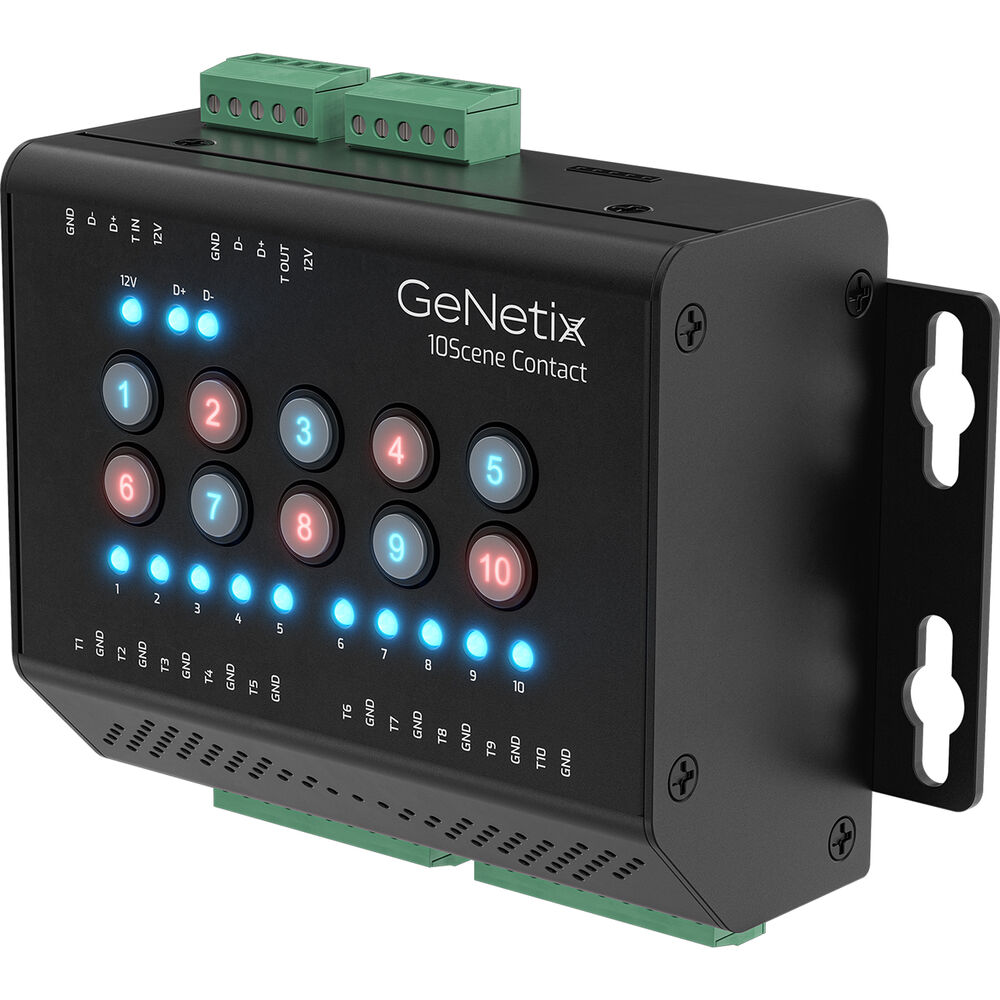

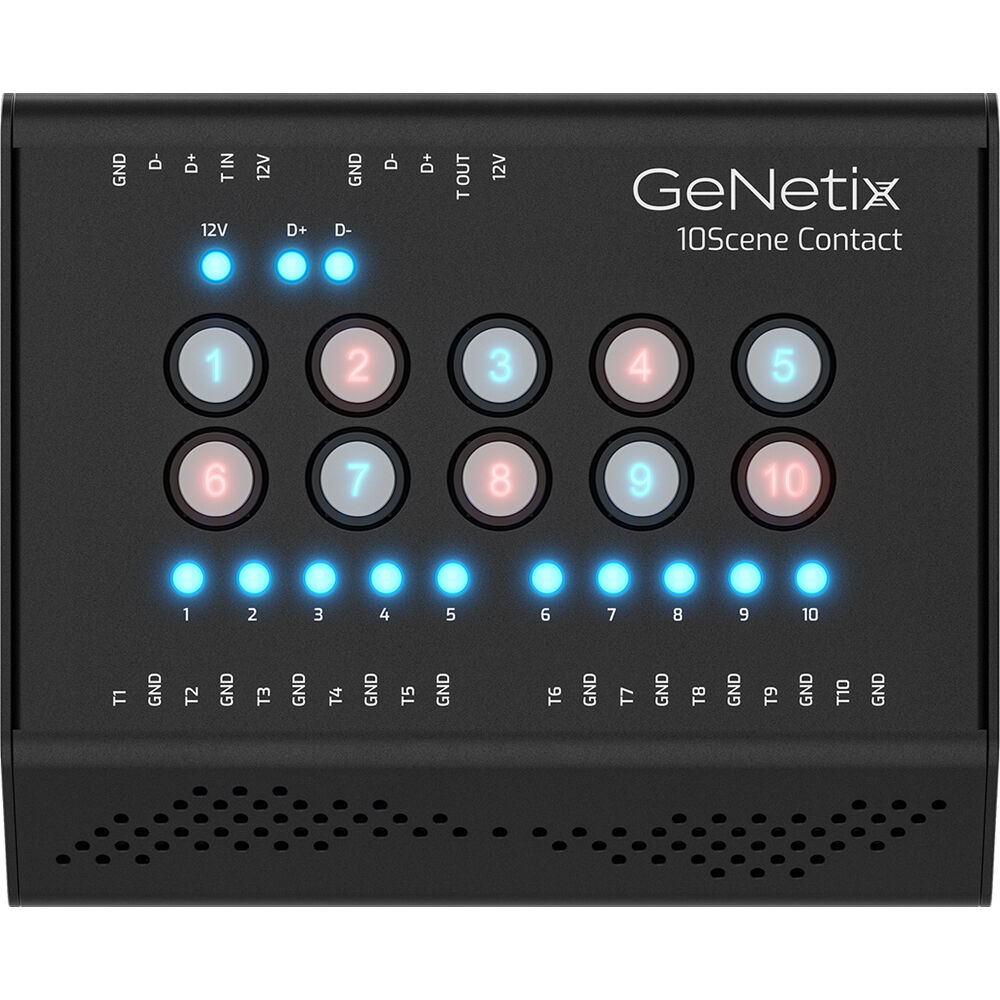

Designed for easy integration with ChamSys' control systems thanks to its 10-input dry contact trigger interface, the GeNetix 10Scene Contact is a compact and lightweight device compatible with MagicQ, QuickQ, and the GeNetix GN5/GN10 nodes. It enables MagicQ and QuickQ playbacks and executes to be triggered by open/close contacts, also triggering scenes on GeNetix GN5 and GN10 nodes. The GeNetix 10Scene Contact connects via 10Scene protocol with connection and power capacity. Its two 10Scene ports allow daisy-chaining with 10Scene wall plates and up to ten 10Scene contacts per chain. ChamSys supplies a din rail mount clip.
- ChamSys GeNetix 10Scene Contact

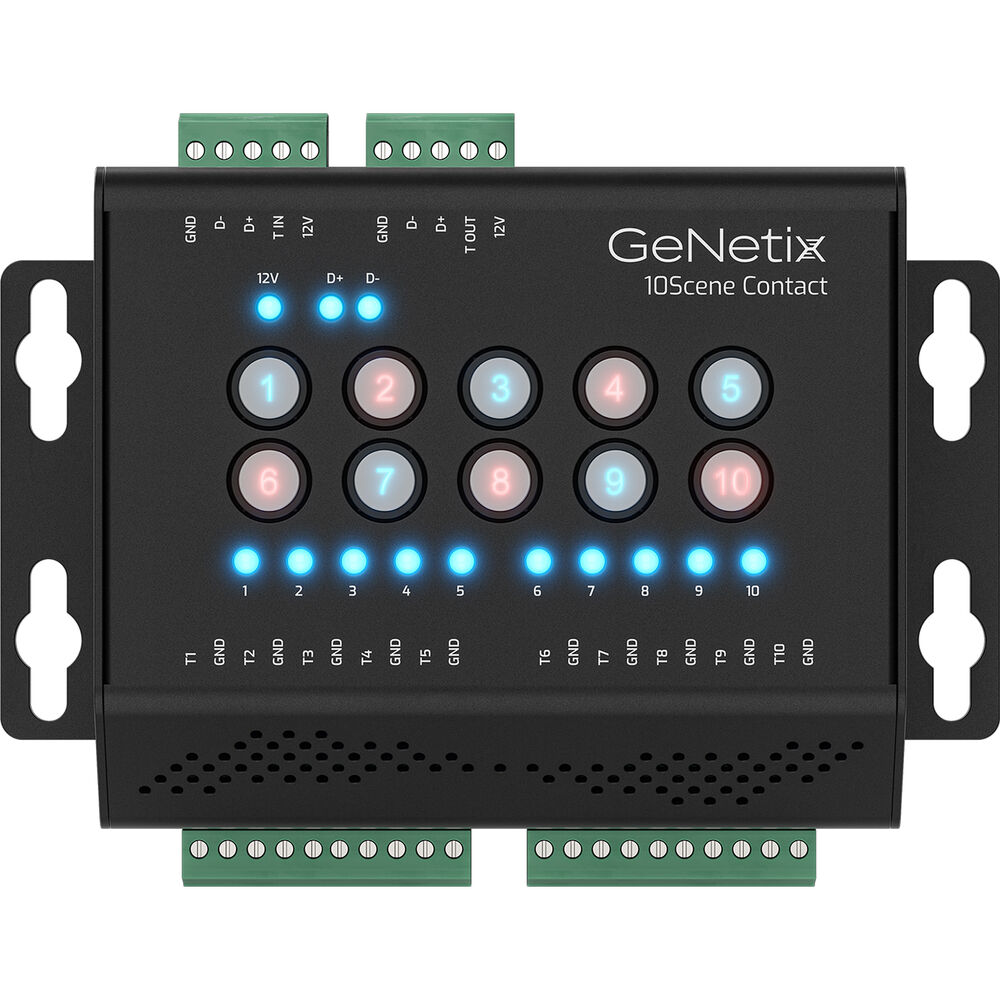

- Din Rail Mount Clip
- Limited 2-Year Manufacturer Warranty
No additional resources available
ChamSys GENETIX10SCONTACT Specs
| Inputs/Outputs |
1x Terminal 5-Pin (Power and Data) Input
1x Terminal 5-Pin (Power and Data) Output 2x Terminal 10-Pin (Remote) |
| Power Source |
AC Adapter
|
| Protocol |
10Scene
|
| Inputs/Outputs |
1x Terminal 5-Pin (Power and Data) Input
1x Terminal 5-Pin (Power and Data) Output 2x Terminal 10-Pin (Remote) |
| Dimming |
Optional
|
| Cooling System |
No
|
| Power Source |
AC Adapter
|
| Input Power |
12 VDC
|
| Protocol |
10Scene
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 3.4 x 2.6" / 104.0 x 87.0 x 65.0 mm
|
| Weight |
0.88 lb / 0.4 kg
|
