Description

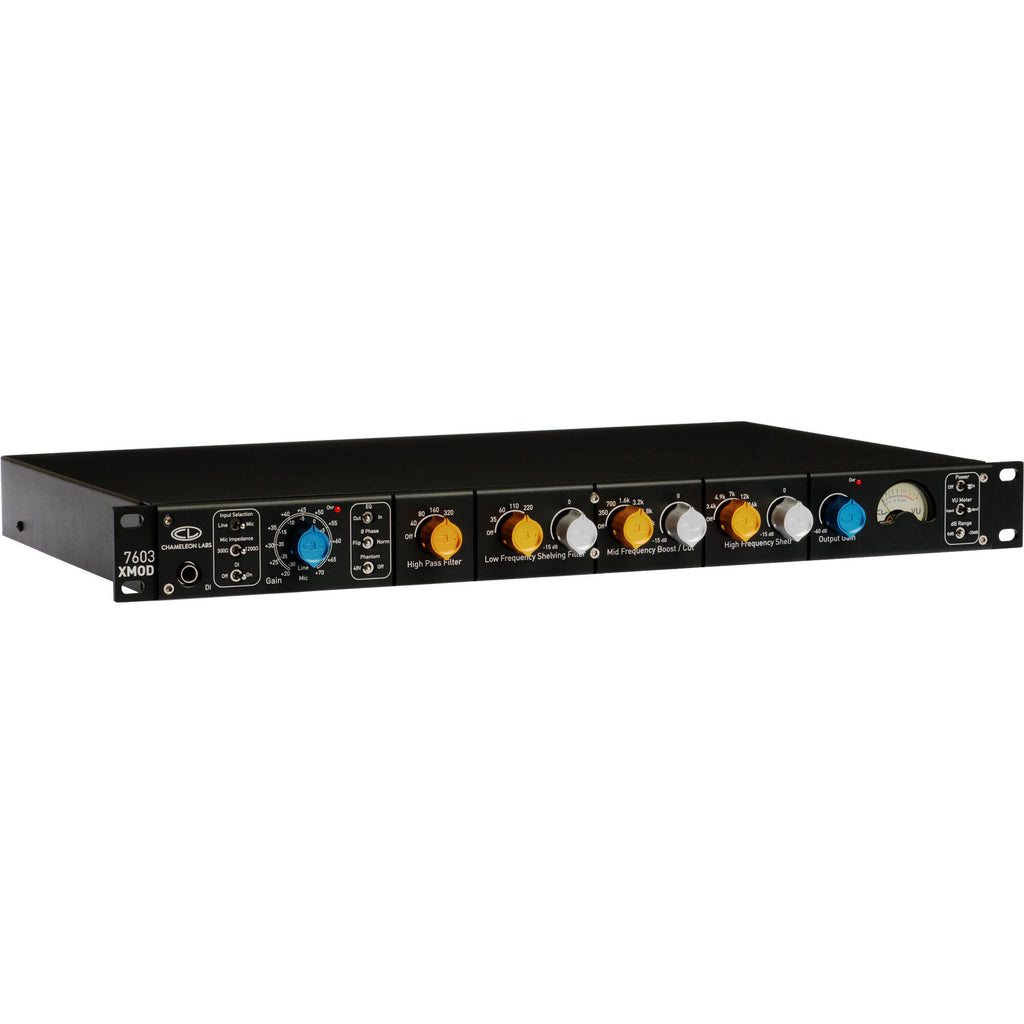

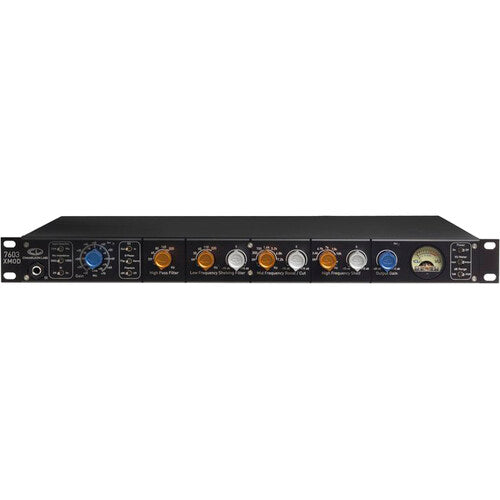

Chameleon Labs 7603 XMOD Overview
Featuring the same specs and features of the standard 7603 but with a British tinge thanks to Carnhill I/O transformers, the 7603 XMod from Chameleon Labs is a rackmounted mic / line / Hi-Z preamp, EQ, and DI box for studios. Sporting extremely low noise, excellent dynamics, and 100% discrete, Class-A circuitry with 3-band inductor-based EQ control, this unit is an ideal starting point for any input signal.
The 7603 XMod features fantastic audio specs thanks to new custom-wound input and output transformers with nickel laminations and bobbin assemblies. Combined with high-permeability Mu-Metal enclosures, this ensures your audio signals have absolutely minimal noise with maximum dynamics and bandwidth. Inputs include a front-panel Hi-Z input for passive or low-output instruments, an XLR mic input, and an XLR line input, with selectable 600 or 1200-ohm operation on the mic input. Controls include variable input gain, high- and low-frequency shelving EQ with mid-frequency boost/cut, output gain control, phase reversal, and selectable VU meter, just to name a few. A universal internal power supply ensures global power compatibility. And with a steel enclosure with aluminum front panel and milled aluminum knobs, the 7603 is built to last. The 7603 XMod is designed and built in North America.
The Model 7603 XMod is based on high audio performance design techniques. By employing classic circuit design, film capacitors, a mechanical gain selector, and custom-wound transformers, Chameleon Labs ensures that the Model 7603 will exhibit classic audio sound.
- Transformer-balanced input with a range between +20 and +70 dB of gain
- Separate line input is also transformer balanced and accepts input levels from -30 to +20 dB
- Equalizer section is a selectable 3-band inductor-based design with a flexible filter section
- Frequency and amplitude selectors on low, mid, and high EQ sections
- Selectable 40 to 320 Hz high-pass filter
- Mechanical relay-based selection of line/mic/DI inputs
- Selectable 48V phantom power for mic input
- 180? reverse phase switch
- Selectable 300- or 1200-ohm input impedance
- Variable gain control with silent output stage
Items Included
- Chameleon Labs 7603 XMod Microphone Preamp and EQ
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Chameleon Labs 7603 XMOD Specs
| Audio I/O |
1x XLR 3-Pin Mic Input
1x XLR 3-Pin Line Input 1x 1/4" TRS Hi-Z/Instrument Input 1x XLR 3-Pin Line Output |
| Power Source |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
0.5 W
|
| Operating Current |
3 mA (Maximum)
|
| Mounting |
Front: 4x Standard Rackmount Screw
|
| Color |
Black
|
| Material of Construction |
Steel, Aluminum
|
| Dimensions |
19 x 11.02 x 1.75" / 48.3 x 27.99 x 4.45 cm (1 RU)
|
| Weight |
10 lb / 4.5 kg
|
| Package Weight |
14.23 lb
|
| Box Dimensions (LxWxH) |
19.8 x 15.7 x 5.1"
|
