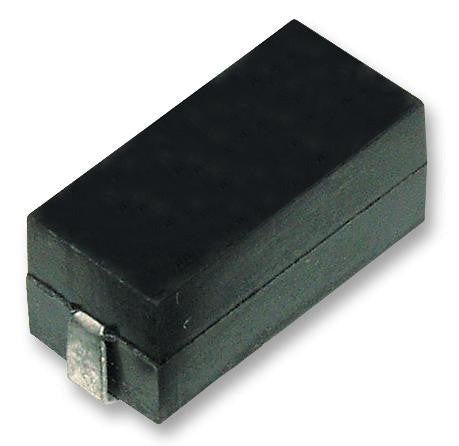

This is a SMD Chip Resistor, Wirewound, 150 ohm, 500 V, 5328 [13573 Metric], 5 W, ± 5%, SMW Series product from CGS - TE CONNECTIVITY with the model number SMW5150RJT
Product details
| Resistance |
150ohm |
| Resistor Case Style |
5328 [13573 Metric] |
| Resistor Element Type |
Wirewound |
| Voltage Rating |
500V |
| Resistance Tolerance |
± 5% |
| Product Range |
SMW Series |
| Automotive Qualification Standard |
- |
| Temperature Coefficient |
± 200ppm/°C |
| Power Rating |
5W |
| Packaging |
Cut Tape |
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
SMW5150RJT |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
