This is a SMD Chip Resistor, 5328 [13573 Metric], 300 ohm, SM Series, 500 V, Wirewound, 5 W product from CGS - TE CONNECTIVITY with the model number 8-1879233-4
Product details
| Resistor Case Style |
5328 [13573 Metric] |
| Resistance |
300ohm |
| Product Range |
SM Series |
| Voltage Rating |
500V |
| Resistor Element Type |
Wirewound |
| Power Rating |
5W |
| Resistance Tolerance |
± 5% |
| Temperature Coefficient |
± 200ppm/°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
8-1879233-4 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

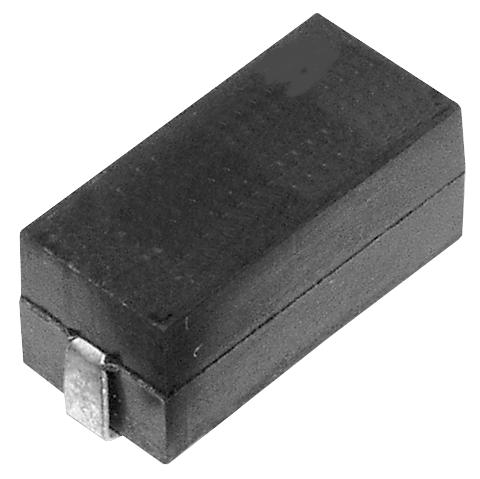

![CGS - TE Connectivity 8-1879233-4 SMD Chip Resistor 5328 [13573 Metric] 300 ohm SM Series 500 V Wirewound 5 W](http://www.tanotis.com/cdn/shop/products/85bcb79f008f7f953d65941acac8f99e_c06dd7e4-111a-4d6a-9039-48f4ea3dc017_{width}x.jpg?v=1576017948)
