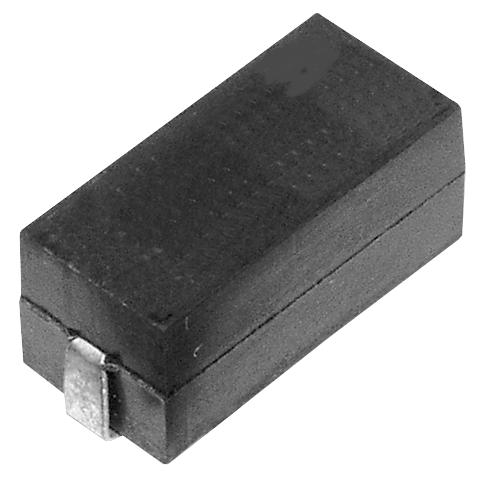

This is a SMD Chip Resistor, 4122 [10555 Metric], 3.9 kohm, SM Series, 500 V, Metal Film, 3 W product from CGS - TE CONNECTIVITY with the model number 2-1879022-7
Product details
| Resistor Case Style |
4122 [10555 Metric] |
| Resistance |
3.9kohm |
| Product Range |
SM Series |
| Voltage Rating |
500V |
| Resistor Element Type |
Metal Film |
| Power Rating |
3W |
| Resistance Tolerance |
± 5% |
| Temperature Coefficient |
± 100ppm/°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
2-1879022-7 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
