Description

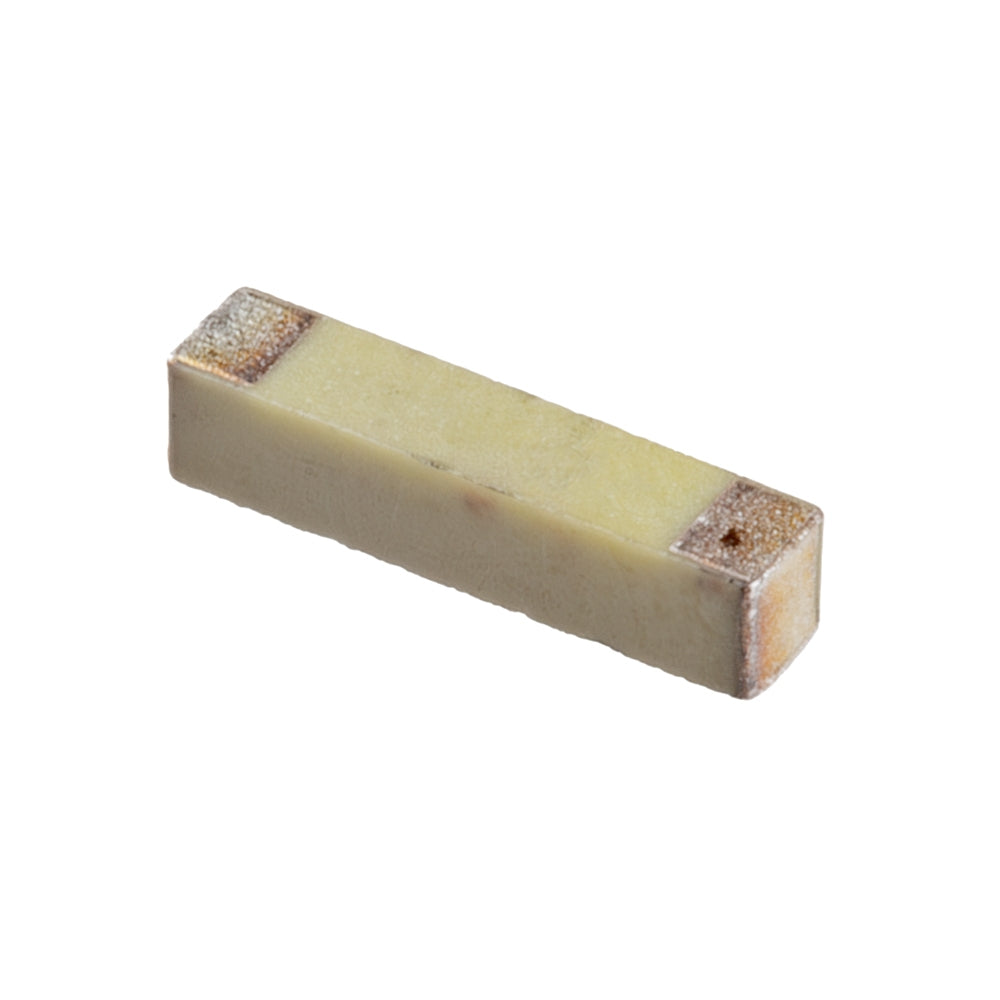

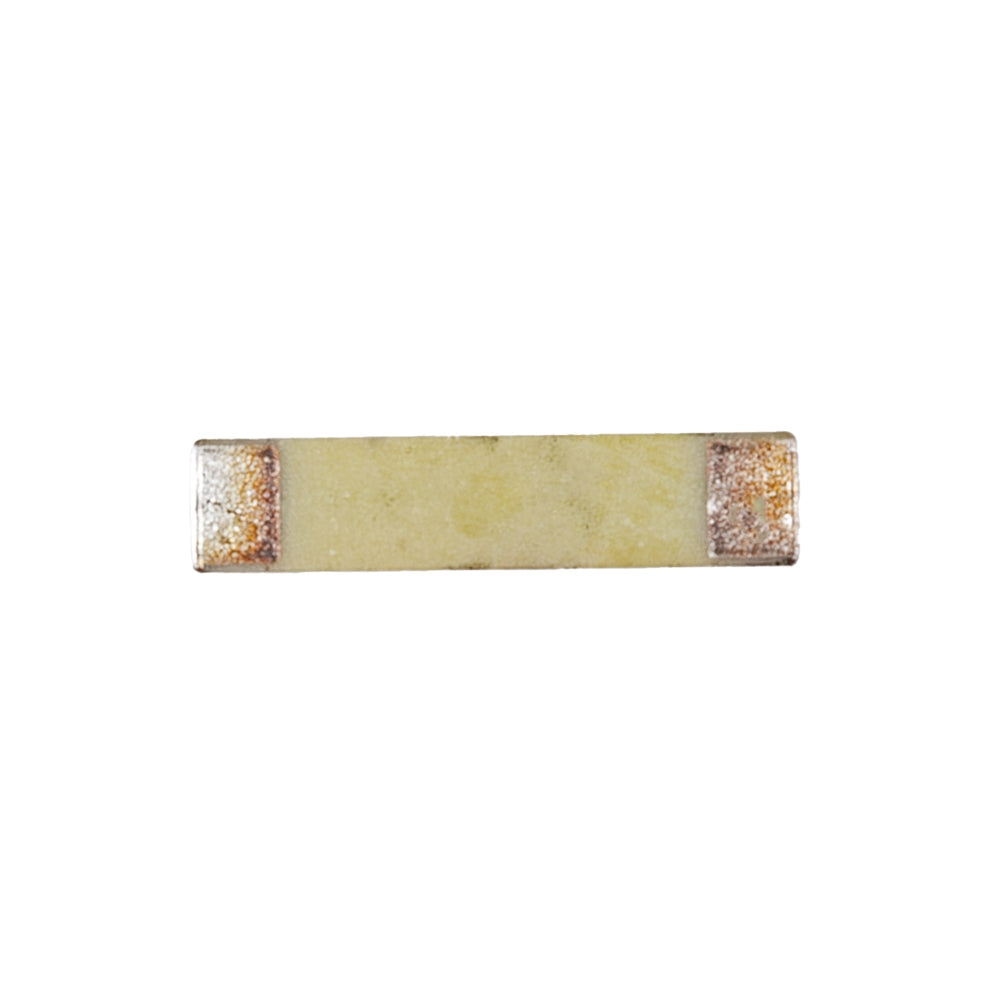

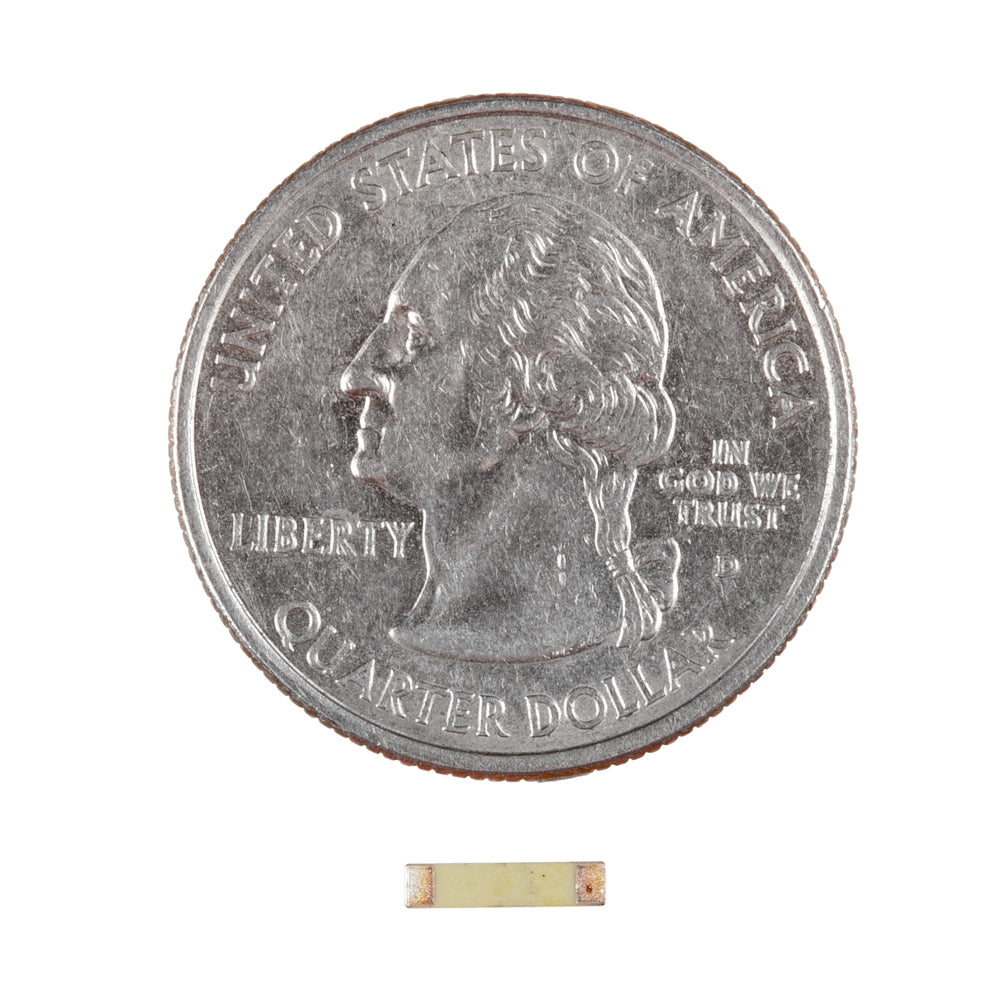

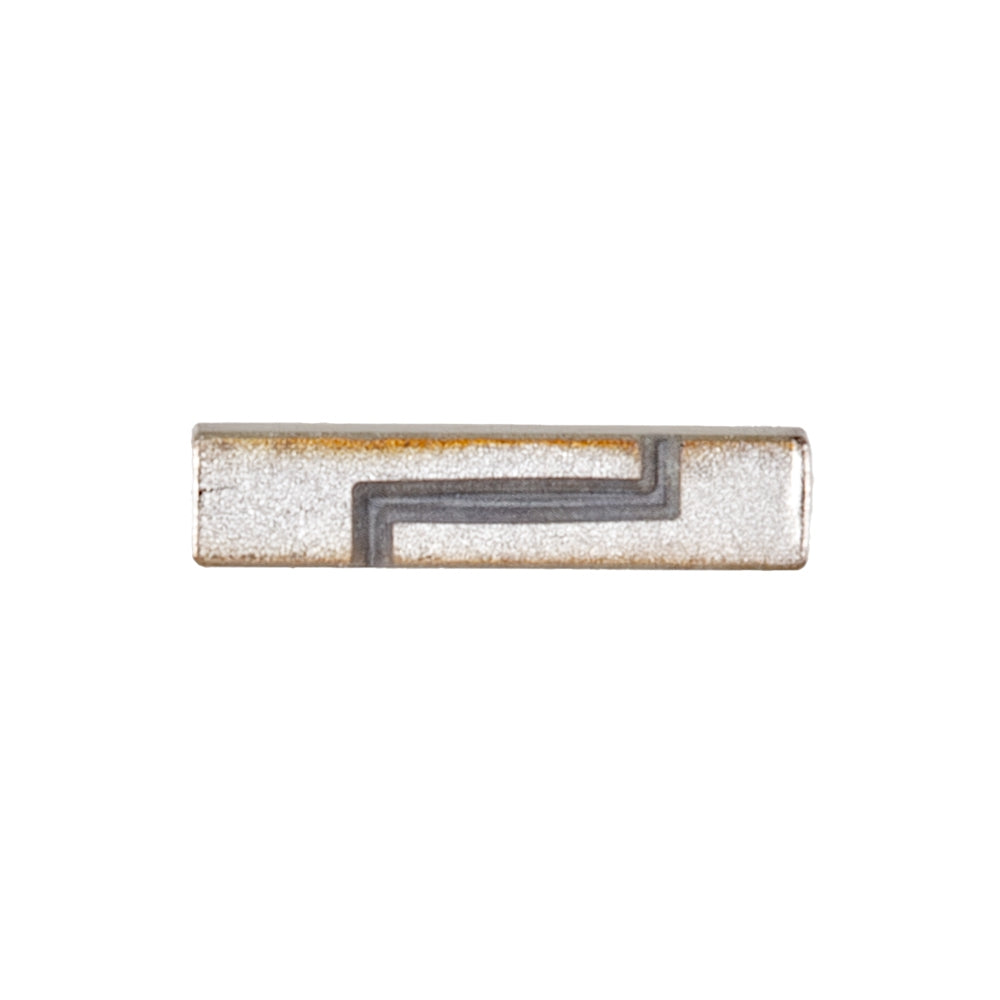

The W3062A is a low profile ceramic chip antenna from Pulse Electronics. It sports a frequency range of 1.565 ~ 1.585GHz.
Features & Specs
- Frequency Group: UHF (1HGz ~ 2GHz)
- Frequency (Center/Band): 1.575GHz
- Frequency Range: 1.565GHz ~ 1.585GHz
- Antenna Type: Chip
- Number of Bands: 1
- Return Loss: -10dB
- Gain: 2.5dBi
- Termination: Solder
- Mounting Type: Surface Mount
- Operating Temperature: -40°C - +85°C
- Impedance: 50Ω
- Dimensions: 7 x 1.6 x 1.6mm
Features & Specs
- Frequency Group: UHF (1HGz ~ 2GHz)
- Frequency (Center/Band): 1.575GHz
- Frequency Range: 1.565GHz ~ 1.585GHz
- Antenna Type: Chip
- Number of Bands: 1
- Return Loss: -10dB
- Gain: 2.5dBi
- Termination: Solder
- Mounting Type: Surface Mount
- Operating Temperature: -40°C - +85°C
- Impedance: 50Ω
- Dimensions: 7 x 1.6 x 1.6mm
