- 80mm Refractor
- 400mm Focal Length, f/5 Focal Ratio
- Anti-Reflection Fully Coated Optics
- 1.25" Rack-and-Pinion Focuser
- Manual Alt-Azimuth Mount with Handle
- 20x and 40x Eyepieces
- 45° Erect-Image Prism
- Universal Smartphone Digiscoping Adapter
- Aluminum Photo-Style Tripod
- Backpack Holds OTA, Tripod, Accessories

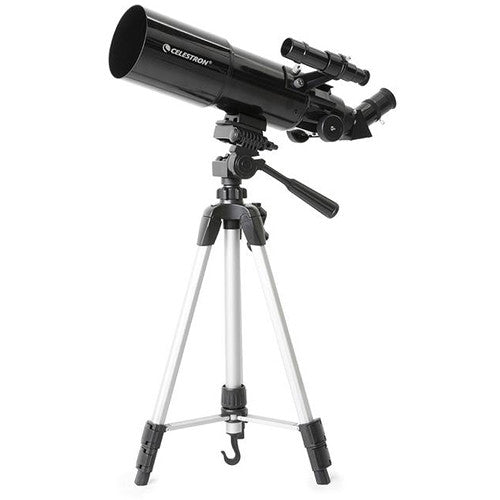

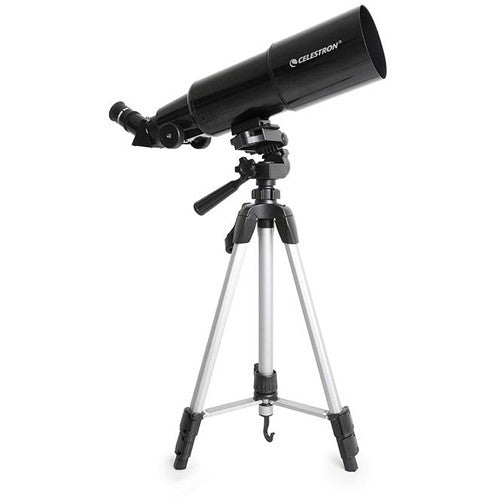

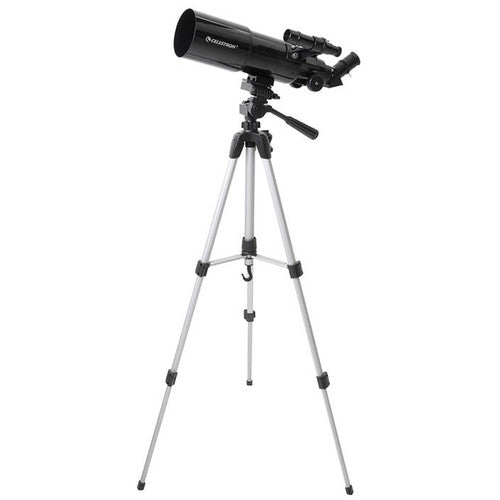

The Celestron Travel Scope 80mm f/5 AZ Refractor Telescope Kit is designed for portability and ease-of-use for both astronomical and terrestrial use. Its refractor-style optical tube has a respectable aperture that gathers the amount of light required to ensure views of the moon and planets remain bright and clear. Included with this model of the Travel Scope is a universal smartphone digiscoping adapter that lets you capture photos and videos through the eyepieces for easy editing, enjoyment, and sharing.
A photo-style alt-az pan/tilt head easily mounts the OTA with a simple screw and has a single control handle that allows for smooth movement and locks the altitude in place for hands-free use to minimize vibration. Supporting it all is a photo-style tripod that collapses low enough for tabletop use and extends to full-sized height. The included erecting prism corrects views horizontally and laterally so the Travel Scope can be used as a conventional spotting scope, and it comes with to eyepieces offering 20x and 40x magnifications, although any 1.25" astronomical eyepiece may be used. Everything in this kit � OTA, tripod, head, and accessories � fits inside the included backpack to make it as portable possible.
- Optical Tube
-
- 80mm aperture is ideal for lunar and planetary viewing as well as terrestrial use
- Fast f/5 focal ratio ensures views remain bright
- Short 400mm focal length produces lower magnifications for wider fields of view to complement the manual mount
- Refractor-style light path produces sharp and clear views with limited aberration
- Anti-reflection fully coated optics improves light transmission, color rendition, sharpness, and contrast
- 1.25" rack-and-pinion focuser
- Integrated dew shield prevents condensation at night, and minimizes glare during the day
- Mount and Tripod

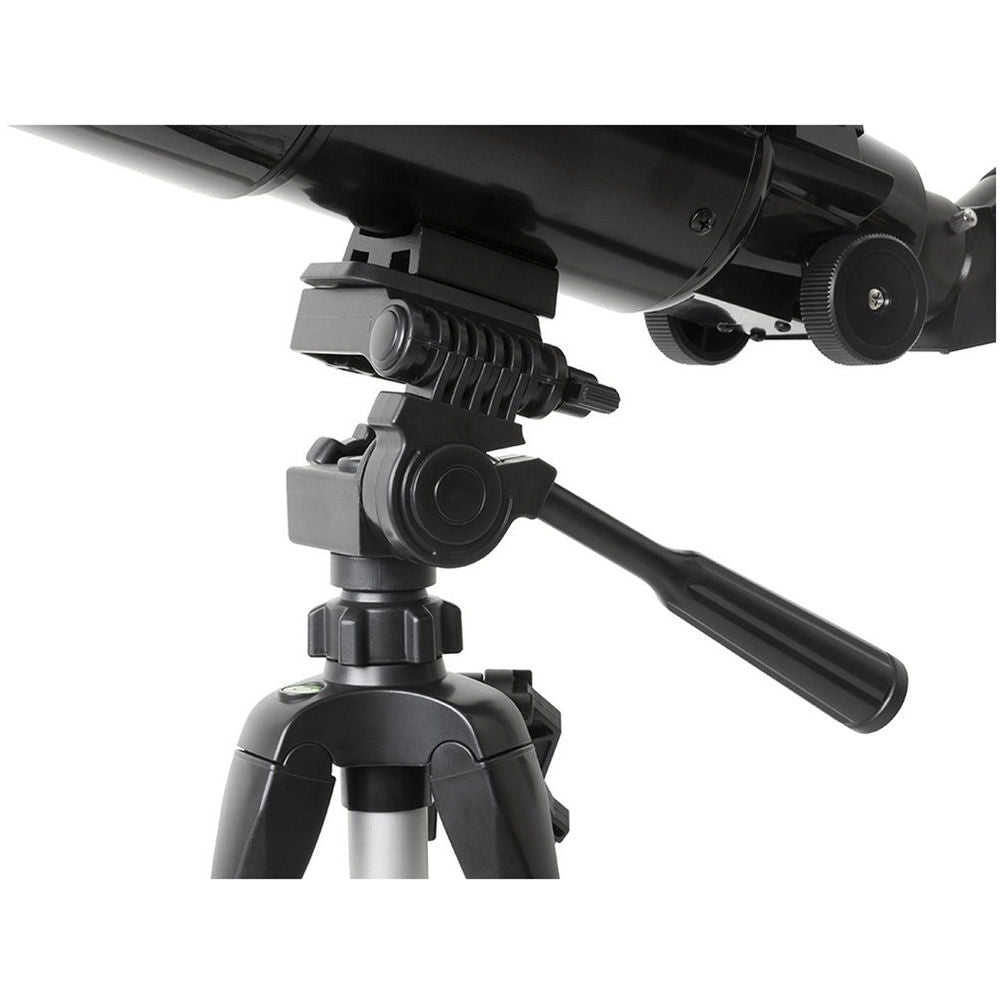

- Mount:
- Manual pan/tilt photo-style alt-azimuth
- Control handle for easier pan/tilt and subject tracking
- Locking handle sets altitude

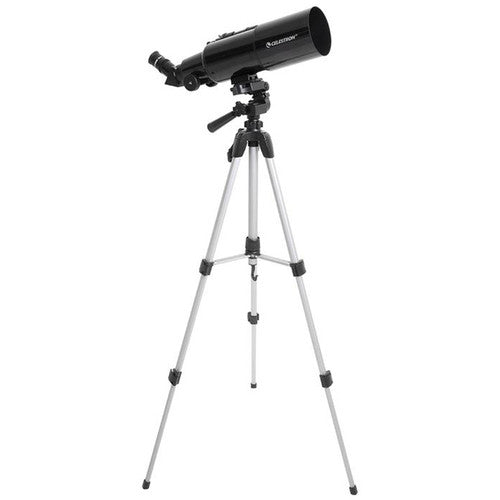

Tripod: - Photo-style tripod
- Lightweight and durable aluminum legs
- Three leg sections allow it to be set on a table or extended to full height
- Simple snap-locks allow for fast set up and break down
- Adjustable height from 22" to 52" to accommodate a wide variety of users and viewing positions
- Included Accessories
- Eyepieces:
- 1.25" diameter barrel accepts most astronomical filters
- 10mm produces high 40x power
- 20mm produces low 20x magnification

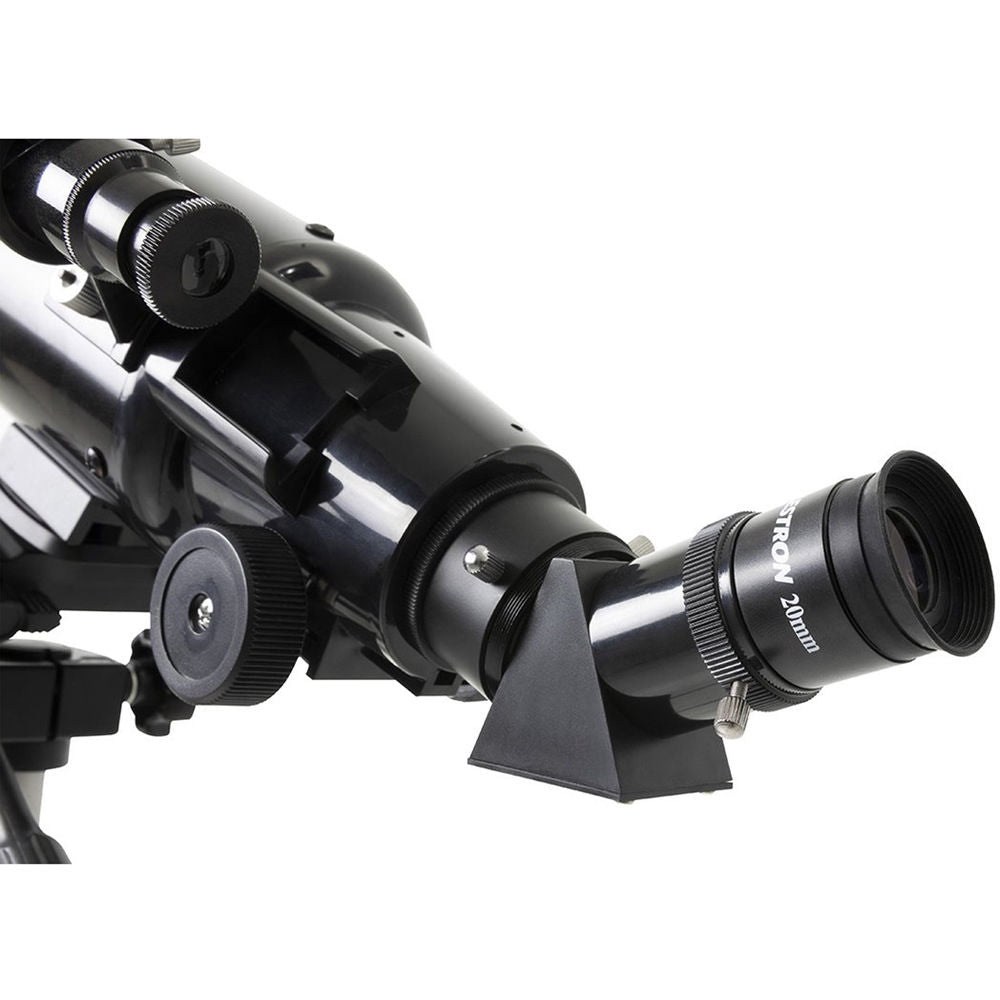

Diagonal: - 45° angle puts head in comfortable position for celestial and terrestrial viewing
- Integrated erecting prism corrects view horizontally and vertically for land use
- 1.25" diameter eyepiece holder accepts many eyepieces and accessories

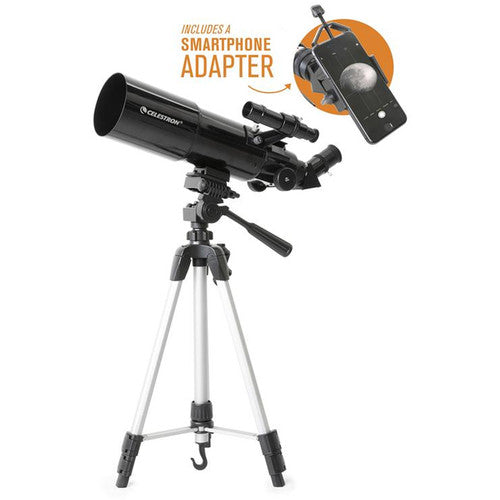

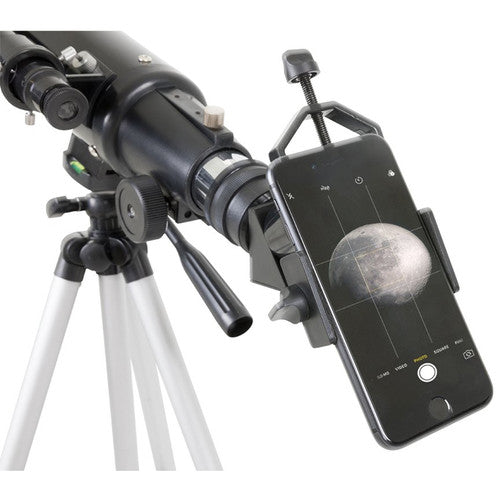

Smartphone adapter: - Capture photos and video through eyepieces for easy sharing
- Fast and easy installation, use, and removal for visual observations
- Fits most popular smartphones, often without having to remove protective cases
- Fully adjustable for any camera lens position
- Light 6-ounce weight
Finderscope: - 5x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- Straight-through viewing
- Includes mounting bracket

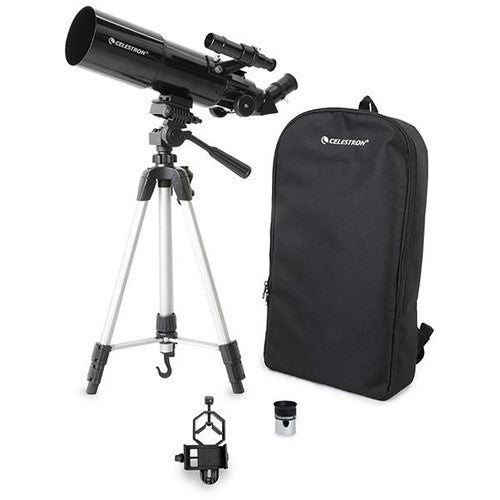

Backpack: - Water- and tear-resistant canvas
- Holds scope, tripod, mount, and accessories
- Padded interior protects gear
UPC: 050234220309
Celestron Travel Scope Specs
| Optical Tube Assembly |
| Optical Design | Refractor |
| Aperture | 80 mm / 3.1" |
| Focal Length | 400 mm |
| Focal Ratio | f/5 |
| Resolution | 1.74 Arcsec (Rayleigh)
1.45 Arcsec (Dawes) |
| Focuser | Single-Speed Rack-and-Pinion |
| Eyepiece Barrel Diameter | 1.25" |
| Diagonal | Yes, 45° Erecting |
| Finderscope | Yes |
| Mounting System | Vixen Style |
| Optical Tube Dimensions | Length: 18" / 457.2 mm |
| Mount |
| Type | Manual; Alt-Azimuth |
| GoTo Capability | No |
| Counterweight | None |
| Tripod |
| Type | Adjustable, 3 Sections |
| Tripod Height Adjustment Range | 22.0 to 52.0" / 55.9 to 132.1 cm |
| Material of Tripod | Aluminum |
| General |
| GPS | None |
| Weight | 4.5 lb / 2.0 kg |
| Packaging Info |
| Package Weight | 7.73 lb |
| Box Dimensions (LxWxH) | 22.6 x 12.3 x 8.1" |
