Cavision 3 x 3" Matte Box Kit with Donut, Flaps & Swing-Away 15mm LWS Rod System

3 x 3" Matte Box with 2 Metal Trays

Expandable Top & Side Flags

Donut for Lenses with 50 to 85mm OD

Swing-Away 15mm LWS Rod System

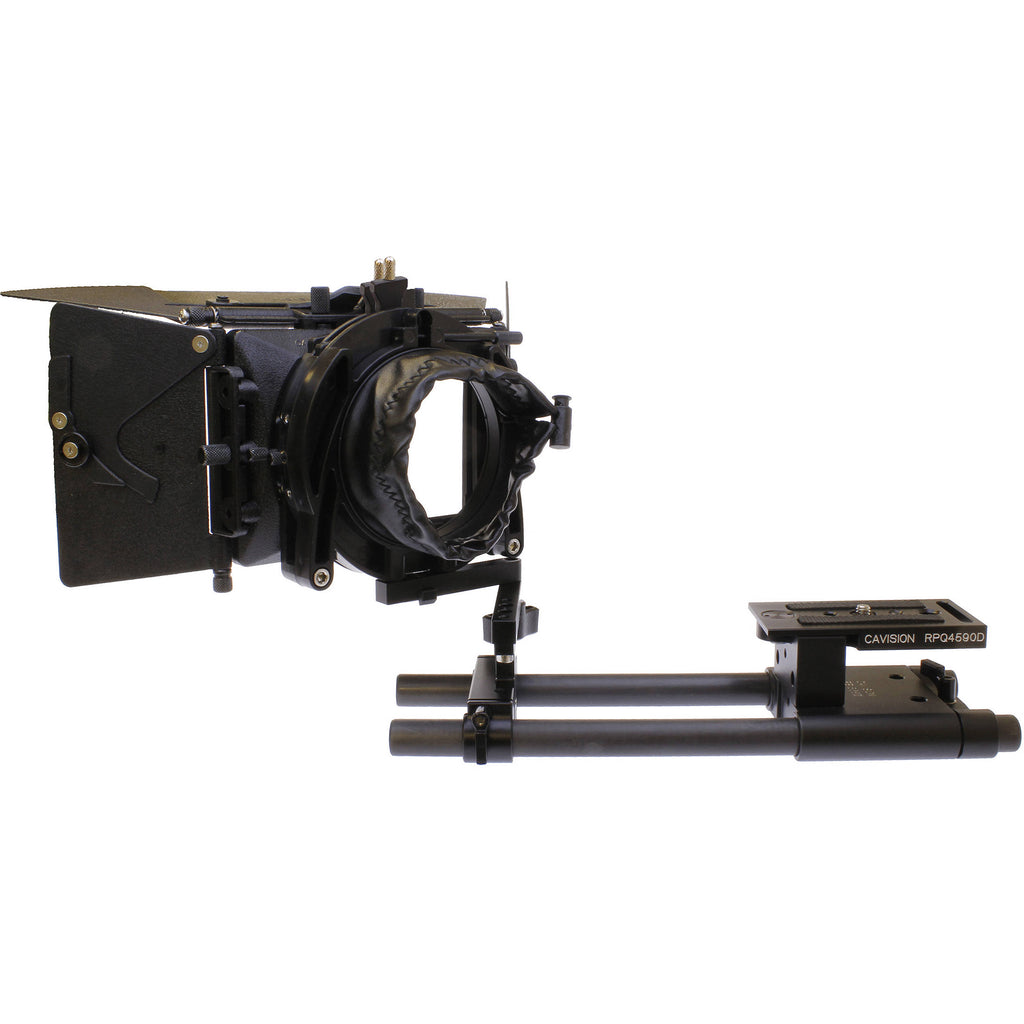

The 3 x 3" Matte Box Kit with Donut, Flaps & Swing-Away 15mm LWS Rod System from Cavision includes the 3 x 3" Extra-Wide Matte Box with metal filter trays, a swing-away bracket, a 15mm LWS rod system with quick release camera plate, expandable top and side flaps, and a donut for 50 to 85mm-diameter lenses. Use this kit to support and add filters and accessories to your DSLR or mirrorless camera.

Cavision Matte Box Donut Lens Adapter Ring (85mm)

The Cavision Matte Box Donut Adapter Ring has on outer diameter of 85 mm and is designed to work with select Cavision matte boxes. The donut adapter prevents light from leaking around the lens and reflecting off filters in the matte box. The cloth features an adjustable sizing cord that allows you to fit lenses with an outer diameter of approximately 50 to 85 mm without having to swap out donuts.

The aluminum ring of the donut adapter fits into the back of the matte box, and the cloth fits around the lens. The adjustable sizing cord allows you to snug the cloth around the lens. The cloth also extends up to 45 mm away from the matte box, which makes this donut usable with lenses that have a front that moves forward and back.

Cavision Rods Support for Mini-DV or DSLR Camera with Quick Release Button

The Cavision Rods Support is suitable for use with small cameras with short lenses such as mini-DV, 5DMII, or other DSLR cameras. It features a height adjustable front bracket for connecting a matte box.

2 carbon fiber rods Height adjustable front Bracket for connecting a matte box Balance bracket (with tripod connection thread at the bottom) and heavy duty riser Quick release plate with quick release button and a locating pin for enhanced stability Ideal ideal for small cameras with short lenses (such as mini-DV, 5DMII, or other DSLR cameras) Plate quick release function Cavision Swing-Away Component for MB3485B/MB3485B/MB4512H2-BFI Matte Boxes

The Swing-Away Component from Cavision enables you to connect your MB3485B, MB3485S, or MB4512H2-BFI matte box to a Cavision rod bracket T-part. This component helps to provide quick swing-away access to your lens while your matte box is mounted on 15mm LWS rods. Features include a swivel tightening knob, a snap-in lock, and left- and right-side compatibility.

Supported Lens Diameter	50 to 80 mm
Ring Material	Aluminum
Dimensions	ø: 3.3 x L: 1.8" / ø: 85.0 x L: 45 mm
Weight	0.8 oz / 24 g

Package Weight	0.055 lb
Box Dimensions (LxWxH)	3.5 x 3.5 x 0.75"

Rod Spacing	60 mm (r.c. to r.c.)
Rod Material	Carbon fiber
Height Adjustment	Front Bracket: 25 mm
Adjustable Length	Back and Forwards: 200 mm
Fits Devices	Most centered mini-DV / HDV / DSLR cameras
Mounting Hole	1/4" & 3/8" thread
Fits On	Consumer, Miller, Cartoni, Vinten, and Sachtler ENG tripod heads
Material	Aluminum
Rod Diameter	15 mm
Rod Length	Rail: 10" (250 mm)
Thickness	1.8 mm

Package Weight	1.28 lb
Box Dimensions (LxWxH)	10.2 x 3.75 x 3.45"

Dimensions	Not Specified by Manufacturer
Weight	Not Specified by Manufacturer
