Description
Cartoni P40 Overview
- 1Description
- 2Cartoni P40 Pedestal
- 3Cartoni Master 30 Flat Base Fluid Head
- 4Cartoni Tie Down Knob

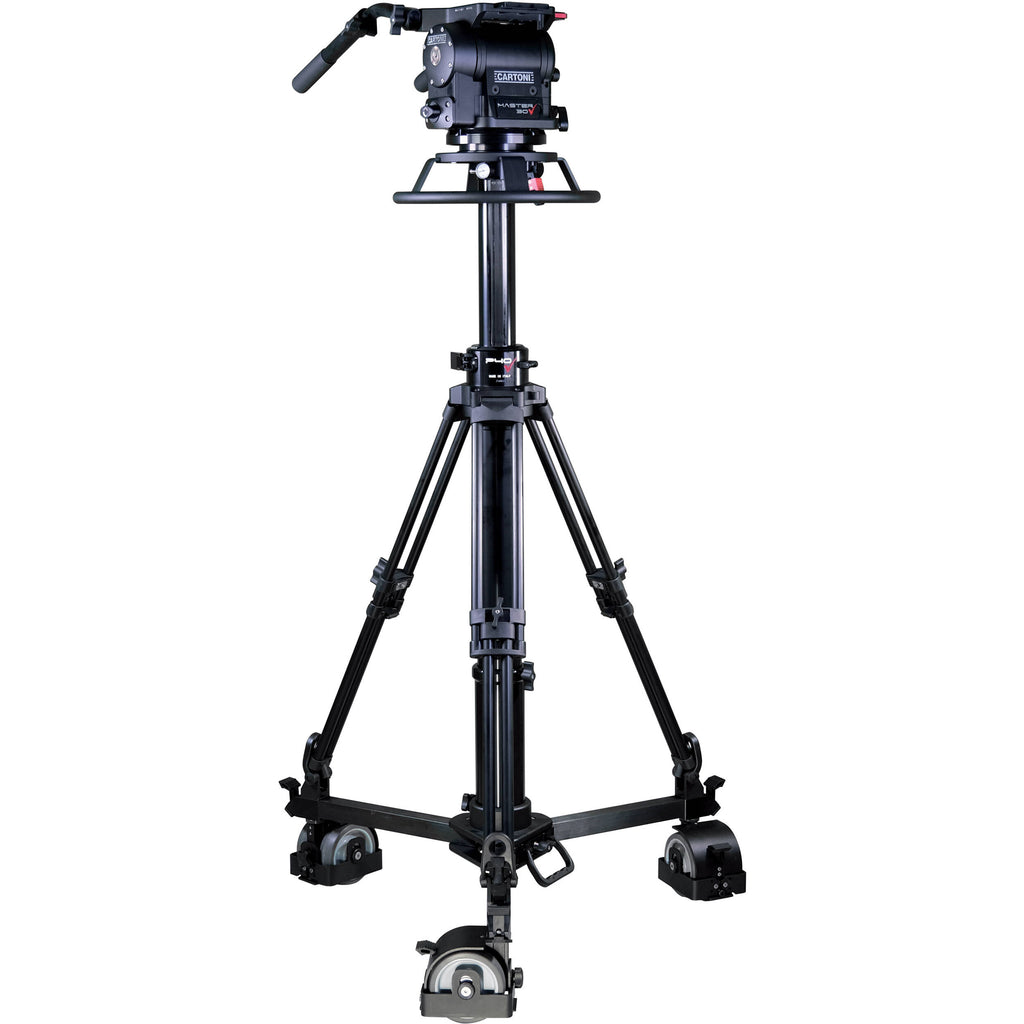

The P40 Pedestal and Master 30 Head System from Cartoni is a complete solution for achieving fluid mobility and reliable transport while shooting with heavy-duty broadcast or cinema cameras. The package includes the P40 pedestal and the Master 30 head system from Cartoni.
The P40 Pedestal from Cartoni is a rugged yet lightweight pedestal system with a sturdy and flexible dolly and a central pneumatic column. The dolly's three twin wheels lock in up to six tracking positions and a foot-operated brake on each wheel provides added reliability when operating in a static position. The hexagonal design of the central pneumatic column ensures smooth vertical mobility, and it features a safety air pressure valve, an air pressure gauge, and a locking brake.
The P40 assembles and disassembles easily and can handle payloads up to 100 lb. It also easily mounts on optional dolly tracks. Air pressure inside the column may be manually adjusted to suit the weight distribution and requirements of your specific application. A hand pump is included in this package.
In broadcast and studio configurations, the Master 30 Flat Base Fluid Head from Cartoni covers the needs of video shooters using cameras weighing from 7 to 66 lb. With a low center of gravity configuration such as with teleprompter, the Master 30 can hold cameras as heavy as 88 lb. The fluid module, in both pan and tilt modes, ensures smooth movements. With accurate starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for long focal shoots.
The Cartoni Tie Down Knob is a spare for Cartoni Master, Maxima, Sigma, and Omega series heads.
In the Box
- Cartoni P40 Pedestal
- Hand Pump
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year - Cartoni Master 30 Flat Base Fluid Head
- Limited 3-Year Warranty
- Limited 5-Year Warranty on Registration with Cartoni within 30-Day of Purchase
- Cartoni Tie Down Knob
- Limited 1-Year Manufacturer Warranty
- Quick Release Plate
- 2 x Telescopic Pan Bar
- Flat Base Adapter
- Description
- Cartoni P40 Pedestal
- Cartoni Master 30 Flat Base Fluid Head
- Cartoni Tie Down Knob
Cartoni P40 Pedestal Specs
| Maximum Pressure |
10 atm / 147 psi
|
| On-Shot Stroke |
18.5" / 47 cm
|
| Wheel Diameter |
5" / 12.5 cm
|
| Steering Ring Diameter |
14.2" / 36 cm
|
| Minimum Height |
28" / 71 cm
|
| Maximum Height |
62" / 157 cm
|
| Doorway Tracking Width |
30" / 75 cm
|
| Mounting |
1 x Flat Base
|
| Load Capacity |
100 lb / 45.4 kg
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
51.1 lb / 23.2 kg
|
Cartoni Master 30 Flat Base Fluid Head Specs
| Camera Plate Features |
Sliding Balance Plate
|
| Base Mount |
4-Bolt Flat Base
|
| Counter Balance |
Continuous
|
| Drag Type |
Fluid
|
| Load Capacity |
66 lb / 30 kg
|
| Camera Plate Features |
Sliding Balance Plate
|
| Base Mount |
4-Bolt Flat Base
|
| Counter Balance |
Continuous
|
| Drag Control |
Continuous
|
| Drag Type |
Fluid
|
| Vertical Tilt |
+90° to -90°
|
| Panning Range |
360°
|
| Load Capacity |
66 lb / 30 kg
|
| Operating Temperature |
-40 to 140°F / -40 to 60°C
|
| Weight |
23.1 lb / 10.5 kg
|
Cartoni Tie Down Knob Specs
| Package Weight |
0.55 lb
|
| Box Dimensions (LxWxH) |
3.2 x 3.2 x 1.7"
|
