- BAK4 Roof Prisms
- Anti-Reflection Multi-Coated Optics
- Nitrogen-Filled, Water and Fogproof
- Open-Bridge/Dual-Hinge Configuration
- Aluminum Alloy Chassis
- Large Center Focusing Wheel
- Tripod Mountable with Optional Adapter
- Twist-Up Rubber Eyecups
- Lightweight: 10 Ounces

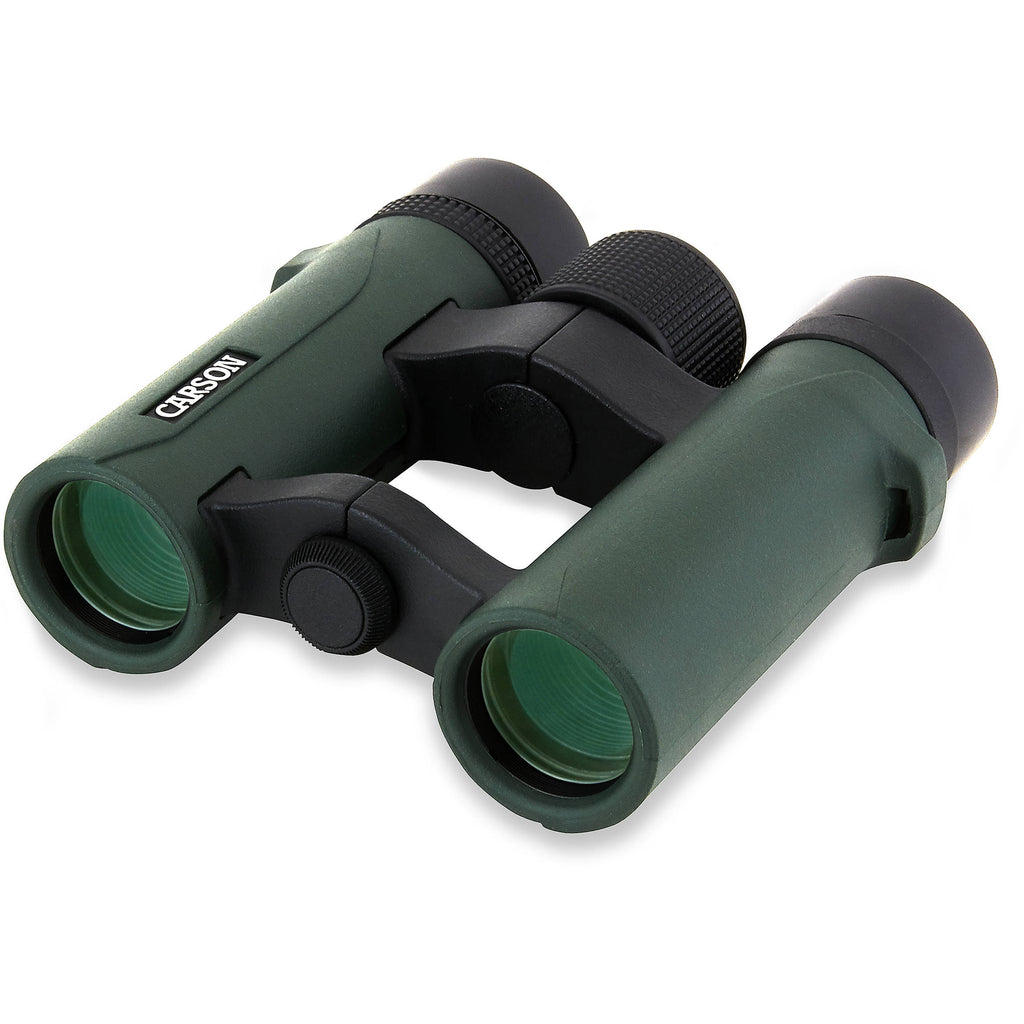

Designed for fast glassing on the go, the Carson 8x26 RD Binocular walks a delicate line between compact and full-sized to deliver performance while being lightweight. Its 8x magnification enables detailed observations of distant subjects and offers a generous field of view. BAK4 glass roof prisms and multi-coated optics improve light transmission, color rendition, clarity, and contrast to help offset the smaller objectives to boost performance as light fades.
The RD is engineered with an open-bridge and dual-hinge, which reduce weight and provide more gripping surface area, without sacrificing strength or stability. To withstand the rigors of the outdoors, the optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes. Its lightweight aluminum alloy chassis is wrapped in a green rubber armor that not only protects it from impacts, but provides a slip-resistant grip. The combination of smaller objectives and bridge design results in a slim form-factor that weighs just 10-ounces, so it can comfortably fit in most packs or pockets.
- Optical Performance
-
- 8x magnification
- 26mm objective lenses
- Compact roof prism
- High-density BAK4 glass reduces internal light diffraction for improved clarity and contrast
- Anti-reflection multi-coated optics improve light transmission, color, contrast, and brightness
- 356' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration
- Large textured center focus wheel is easy to manipulate � even while wearing gloves
- Right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Comfortable 16mm eye relief
- 3.25mm exit pupil
- Construction Details
-
- Bridge design reduces weight without sacrificing strength, while providing more surface area to improve grip strength
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Green rubber armor protects from impacts and provides a slip-resistant grip
- Lightweight: 10 ounces
UPC: 750668012340
In the Box
- Neck Strap
- Hard Carrying Case
- One-Piece Ocular Rainguard
- 2 x Objective Lens Caps
- Limited Lifetime Warranty
| Prism Type | Roof |
| Magnification | 8x |
| Objective Lens Diameter | 26mm |
| Angle of View | 6.8° (actual) |
| Field of View | 356.0'; @ 1000 yd / -1.0 m @ 1000 m |
| Minimum Focus Distance | 13.1'; / 4 m |
| Exit Pupil Diameter | 3.25 mm |
| Eye Relief | 16.0 mm |
| Interpupillary Adjustment | Not specified by manufacturer |
| Dioptric Correction | Not specified by manufacturer |
| Focus Type | Center |
| Tripod Mount | Yes (Adapter Optional) |
| Dimensions | 4.7 x 4.5" / 11.8 x 11.5 cm |
| Weight | 10.0 oz / 284 g |
| Packaging Info |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 7.8 x 6.7 x 3.0" |
