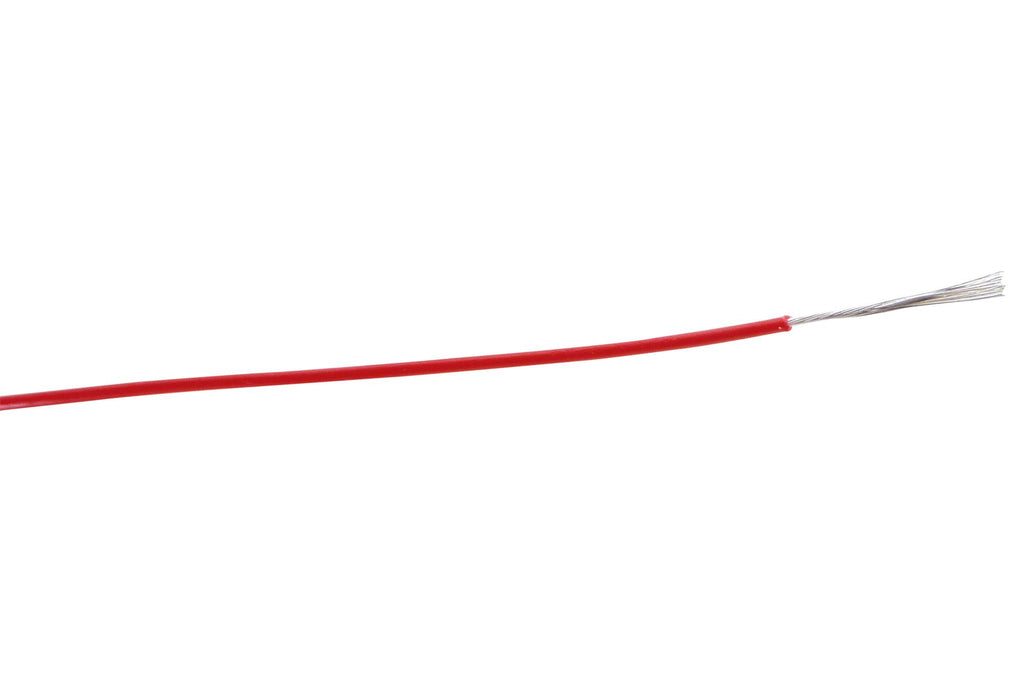

The M16878/4-BCE-2 from CarlisleIT is a MIL-W-16878 (Type E) hook-up wire. MIL-W-16878 (Type E) hook-up wire has extruded PTFE insulation (medium wall thickness) for high temperature applications. PTFE insulation offers high reliability with excellent thermal stability and chemical resistance.
- Voltage rating is 600V
- Extruded PTFE with 0.010"(0.25mm) wall thickness
- Silver plated coated copper conductor
- 28AWG (19 x 40) stranded copper wire conductor
- Temperature range from -55°C to 200°C
- Red colour insulation
Applications
Industrial
Product details
| Jacket Material |
PTFE |
| Jacket Colour |
Red |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
- |
| Reel Length (Imperial) |
328ft |
| Reel Length (Metric) |
100m |
| No. of Max Strands x Strand Size |
19 x 40AWG |
| Voltage Rating |
600V |
| Conductor Material |
Silver Plated Copper |
| External Diameter |
0.99mm |
| Approval Specification |
MIL-W-16878/4 (Type E) |
| Product Range |
- |
Other details
| Brand |
CARLISLEIT |
| Part Number |
M16878/4-BCE-2 |
| Quantity |
Reel of 1 |
| Technical Data Sheet EN |
 |
