Description

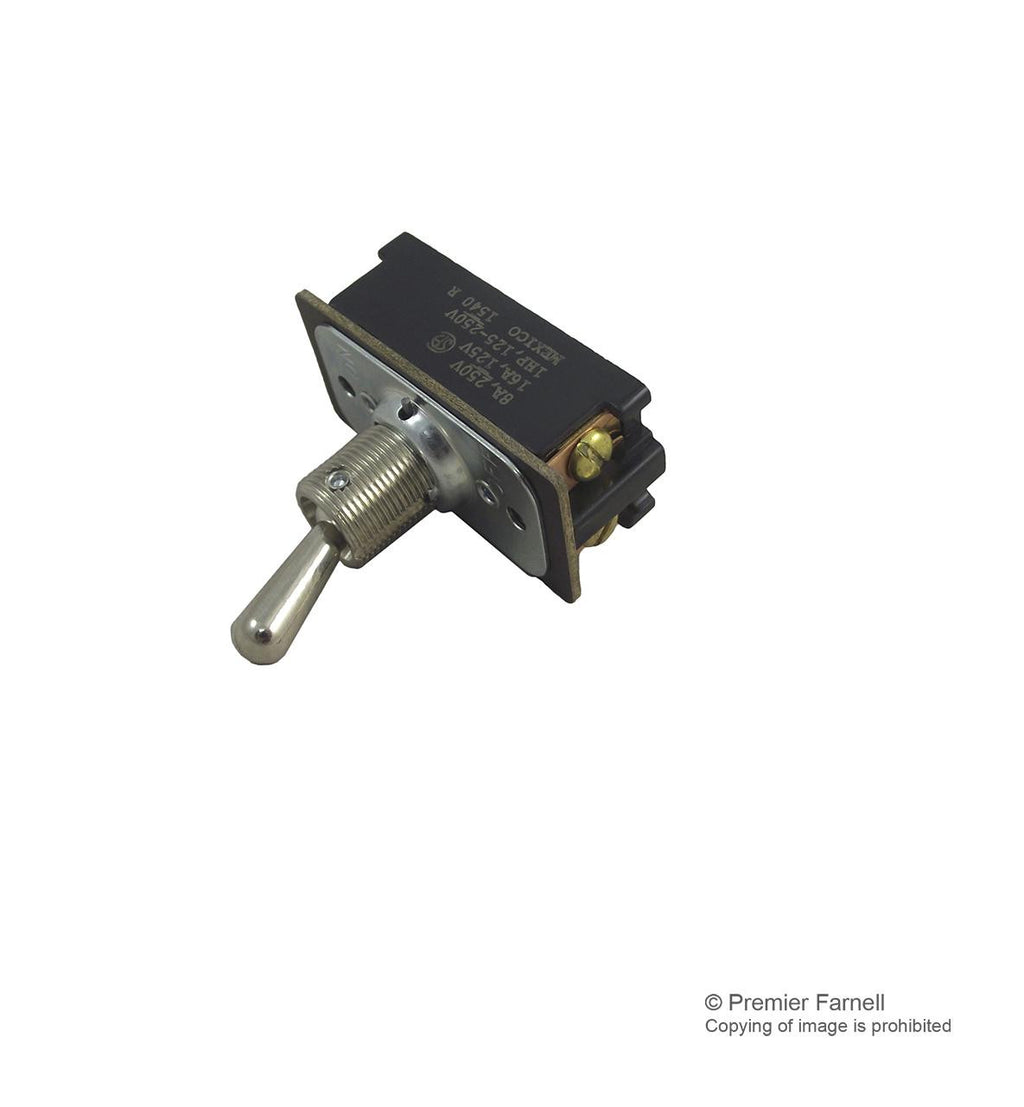

The DK284-73 is a double-pole single-throw heavy-duty Toggle Switch with screw terminals and unsealed bat actuator style. The DK-series toggle switch features a quick-make and quick-break contact mechanism. This switch offers maintained single throw circuits and fit the industry standard 0.5-inch diameter mounting hole. Its sturdy metal construction and stiff actuation force will withstand the abuses of virtually any stringent application. Suitable for AC/DC applications, including high amperage AC/DC motor control.
- Phenolic base
- Nickel-plated brass actuator and bushing
- Bushing mount
- Eco-friendly
- 1000VRMS (minimum) Dielectric strength
- 100MR Minimum insulation resistance
Applications
Industrial, Motor Drive & Control
Product details
| Contact Voltage DC Nom | 125V |
| Illumination | Non Illuminated |
| Switch Operation | On-None-Off |
| Contact Voltage AC Nom | 125V |
| Switch Mounting | Panel |
| Switch Terminals | Screw |
| Contact Configuration | DPST |
| Product Range | DK Series |
| Contact Current Max | 16A |
Other details
| Brand | CARLING |
| Part Number | DK284-73 |
| Quantity | Each |
| Technical Data Sheet EN |  |
