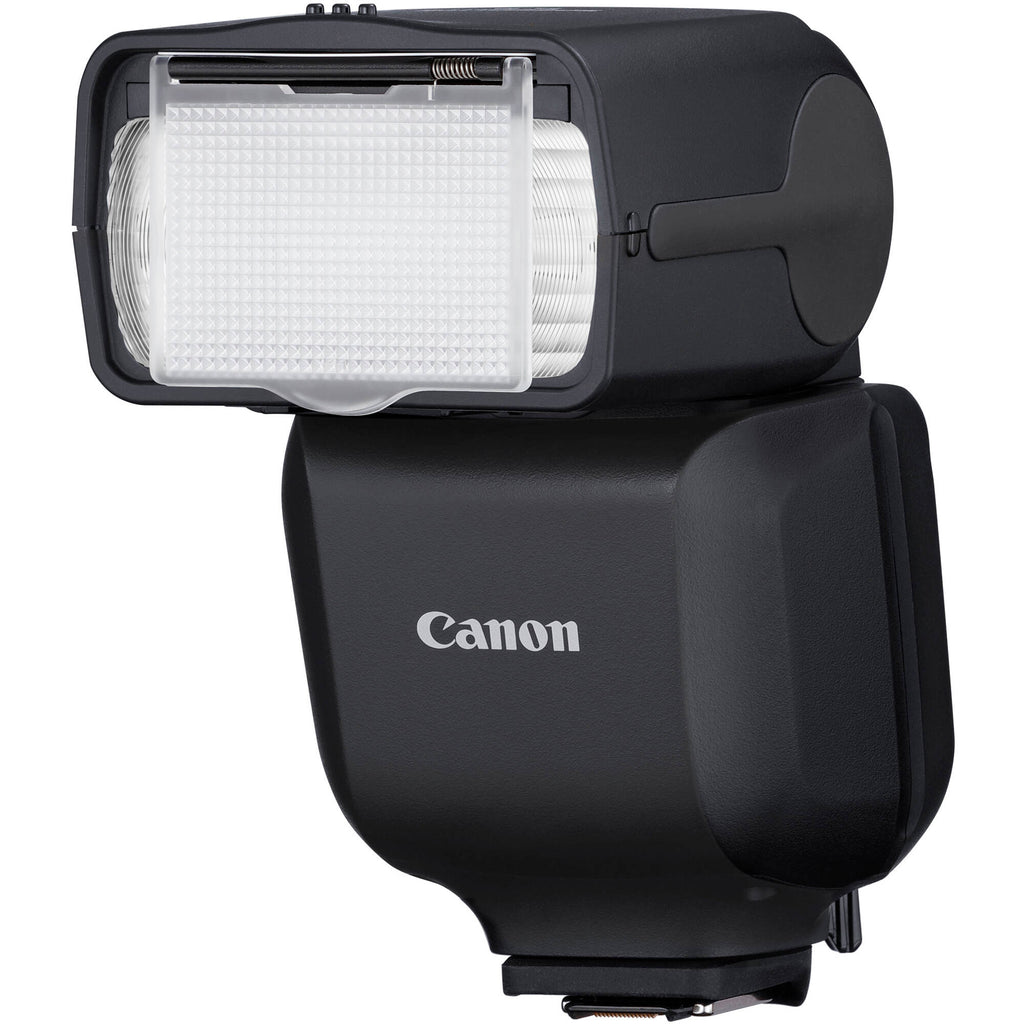

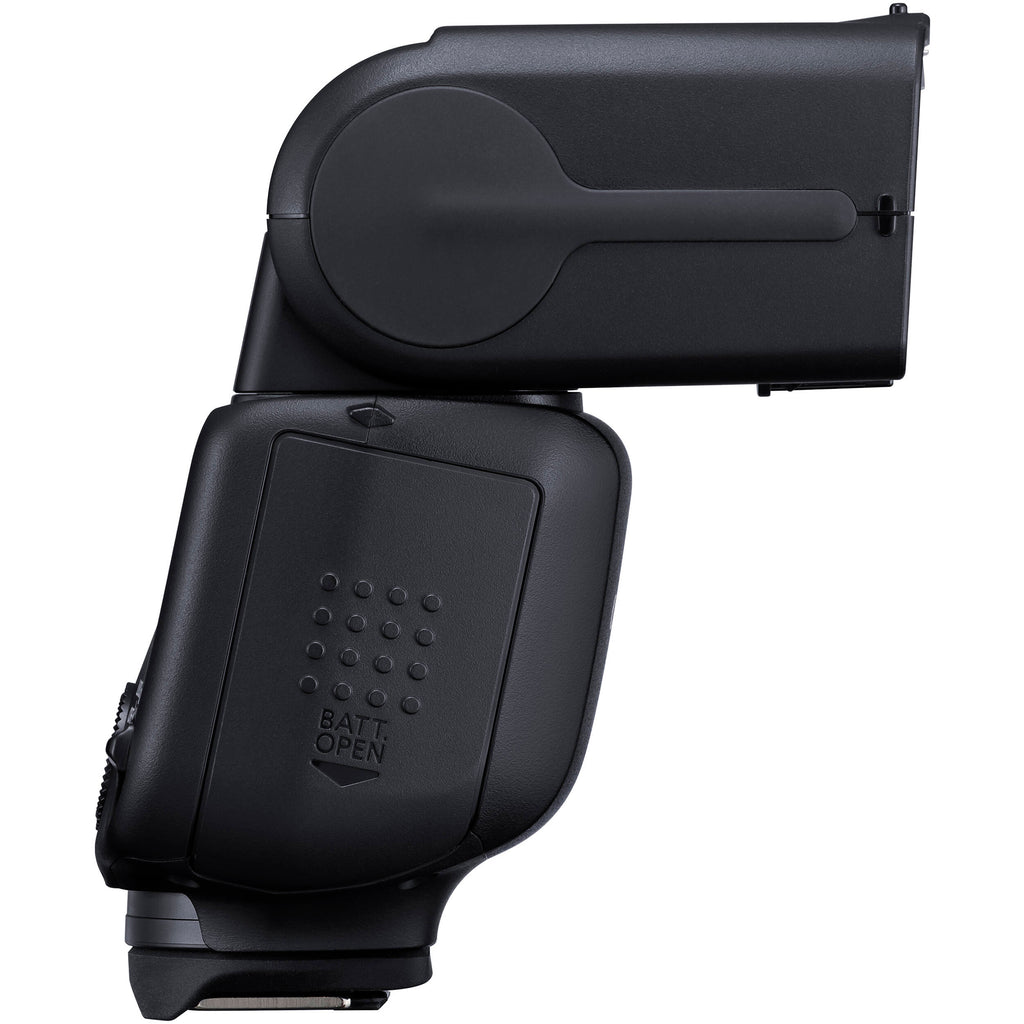

Canon Speedlite EL-10

With its strong output and extended connectivity options, the Canon Speedlite EL-10 is suitable for mirrorless photographers eager to enter the broader world of flash photography. When mounted on compatible EOS R series camera bodies, the light can control up to 15 additional Speedlite units, opening the door to a brighter spectrum of creative possibility.

The Speedlite EL-10 uses the newer multi-function shoe. This is only compatible with select Canon EOS R-series camera bodies and will not work with older cameras that use a different hot shoe design.

Output

Realize the creative potential of flash photography with a combination of features in the EL-10.

• Maximum guide number of 131' at ISO 100 and 200mm
• Runs on AA batteries, available separately
• Up to 210 full-power flashes on a single charge
• Able to continuously trigger up to 55 flashes in a row
• Manual power from 1/1 to 1/1024

Expanded Control

The EL-10 is ideal for users who want to move beyond the basic flash unit and exert more control over variables like output, direction, and quality.

• 2.4 GHZ wireless radio transmission as sender or receiver for wireless triggering and control of up to 15 flash units from up to 98' away
• Stand the flash head straight up at 90º, swivel it to the left 150º and 180º to the right, or deploy the retractable diffuser to soften the light output
• Multi-function shoe enables direct control of settings from compatible cameras
• Create up to three user-set custom profiles for quick switching in environments with varied ambient light
• Control settings with your smartphone using the Canon Camera Connect app

Compatibility

The Speedlite EL-10 features the Multi-Function Shoe and requires a compatible camera. This includes:

• EOS R3
• EOS R6 Mark II
• EOS R7
• EOS R8
• EOS R10
• EOS R50

Canon EL-10 Specs

Guide Number	131.2' / 40 m at ISO 100 (200 mm Position)
Auto Zoom Head	Yes
Bounce Head	0 to +90°
Swivel Head	330°
Exposure Control	Canon E-TTL / E-TTL II, Manual
Wireless Operation	Radio (TTL/Manual) Up to 98.4' / 30 m (Master, Slave)
Internal Power	4x AA
Off-Camera Terminal	No

Guide Number	131.2' / 40 m at ISO 100 (200 mm Position)
Coverage	Full-Frame 24 to 200 mm 14 mm (with Wide-Angle Adapter)
Auto Zoom Head	Yes
Bounce Head	0 to +90°
Swivel Head	330°
Recycle Time	Approx. 0.1 to 2.5 Seconds
Secondary Illumination	No

Exposure Control	Canon E-TTL / E-TTL II, Manual
Flash Modes	Hi-Speed Sync, Second-Curtain Sync
Power Range	1/1 to 1/1024
Flash Compensation	-3 to +3 EV (1/3 EV Steps)

Wireless Operation	Radio (TTL/Manual) Up to 98.4' / 30 m (Master, Slave)
Wireless Channels	15
Wireless Groups	5

Internal Power	4x AA
External Power Pack Compatible	No

Mount	Canon Multi-Function Shoe
Off-Camera Terminal	No
Mobile App Compatible	Yes: Android & iOS App Name: Canon Connect
Dimensions (W x H x D)	2.8 x 4.6 x 3.9" / 70.6 x 116.3 x 98.3 mm
Weight	10.1 oz / 287 g

Package Weight	0.99 lb
Box Dimensions (LxWxH)	7.4 x 4.3 x 3.1"
