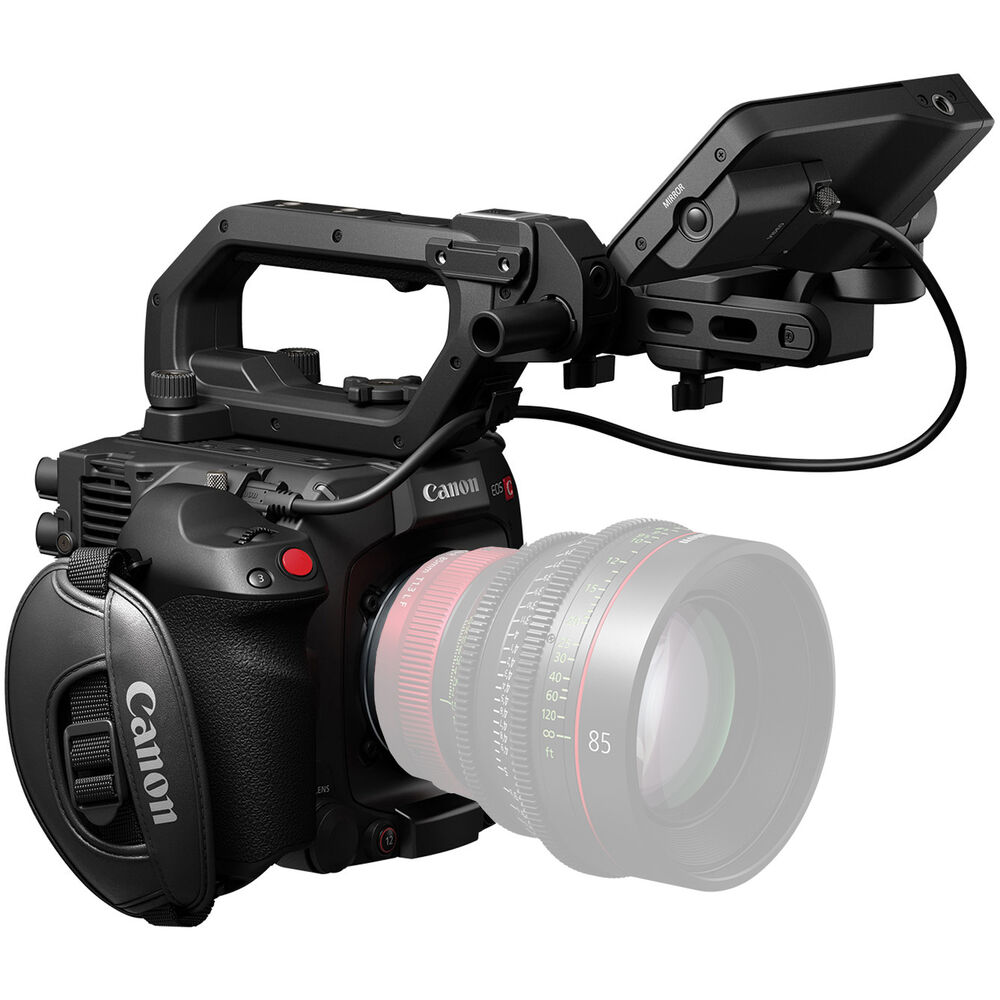

Canon EOS C400 6K Full-Frame Digital Cinema Camera (Canon RF)

Creators looking to capture a rich cine look while accessing versatile imaging tools can now turn to Canon's RF-mount EOS C400 6K Full-Frame Digital Cinema Camera. Based around a new 6K full-frame, back-illuminated CMOS sensor, the C400 features three ISO bases of 800, 3200, and 12,800, covering a truly wide range of light levels. This digital cinema camera blends high-resolution imagery with both cine-style and broadcast features like an optional Cooke/i PL mount, return video, and both Super35 and Super16 modes with solo shooter-friendly functions such as Dual-Pixel CMOS AF II, internal ND filters, and a compact, lightweight form.

Canon has placed its new 6K CMOS sensor at the heart of the C400 camera, enabling it to offer exceptionally low noise, increased sensitivity efficiency, and better 4K imagery via 6K oversampling. This is all made possible thanks to the improved light capture technology of the back-illuminated, stacked CMOS sensor.

The same 6K CMOS sensor also provides the choice of a trio of ISO speeds: 800, 3200, and 12,800, so you can capture both the brilliance of settings like Times Square or a full-sun landscape and the nuances of available light scenes like an interior location or a nighttime city skyline.

• Different projects demand specific recording formats, and the C400 has you covered with up to 6K60 Cinema RAW and HQ, ST, and LT Cinema RAW Light 12-bit modes. Oversampled 4K with amazing detail is available in 10-bit 4:2:2 with frame rates up to 120p, all without cropping the image on the sensor. Slow- and fast-motion can be captured at rates up to UHD 4K120 and 2K180.
• Canon has made your editing process easier with two new codecs: XF-AVC S and XF-HEVC S, both featuring an easier naming system and folder structure and metadata preservation, all within the established MP4 format.

Widen your lens choices to include a range of beautiful pro cinema "glass" using the separately available PL-RF adapter for the C400. This adapter includes side lock plates for a secure fit and transfers Cooke/i metadata for VF/X and other post-production uses.

Fans of proxy recordings will appreciate the CFexpress Type-B and SD card slots on the C400, which enable sub-recording and proxy capture using the SD card slot while simultaneously recording up to raw using a CFexpress card.

Whether you're shooting a cine-style feature or grabbing run-and-gun footage for a documentary or event coverage, you'll appreciate the ability to quickly dial in up to 10 stops of ND filtration with the C400. This near-instant exposure adjustment enables you to maintain your chosen depth of field since it negates the need to stop down on your lens.

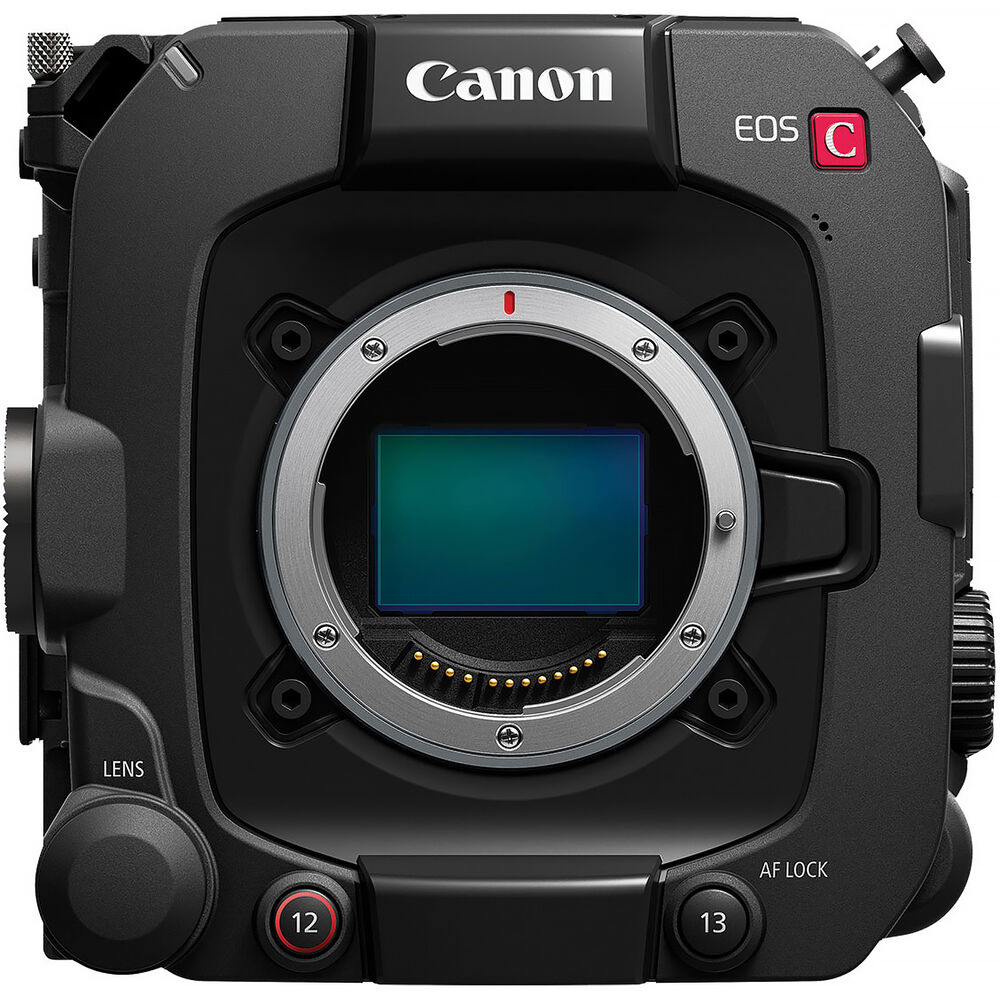

Canon's RF lens mount features a short flange back, reducing its lens mount area and overall size, which makes it the ideal camera for gimbal, handheld, or drone capture.

For those moments or whole shoots where you're not assisted by a focus puller, the C400 offers Canon's dual-pixel autofocus function, which has been improved by the wider area of the back-illuminated CMOS sensor, which is available for autofocus. Intelligent tracking lets you follow the eyes, face, head, and body areas of a subject with increased accuracy. For nature documentary shooters, the C400 provides the ability to detect the eyes, face, or body of select animals without being affected by their size or facial orientation.

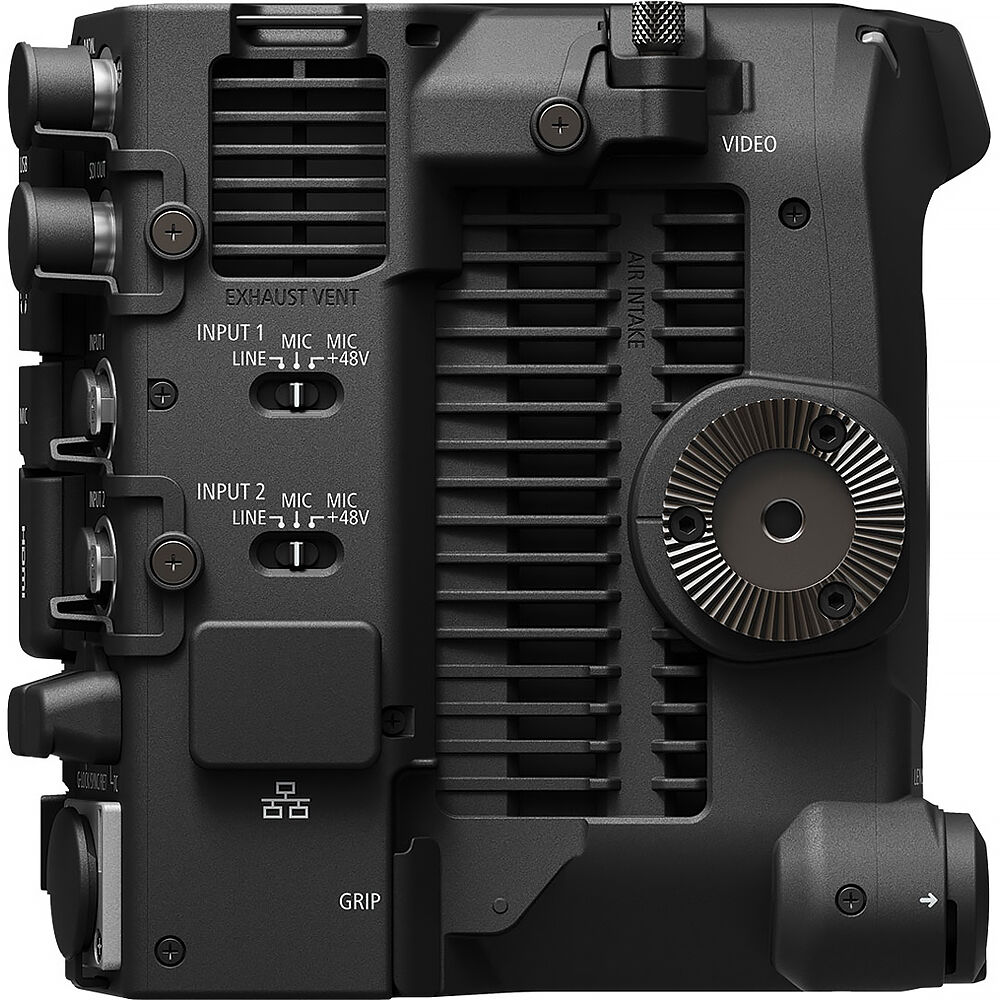

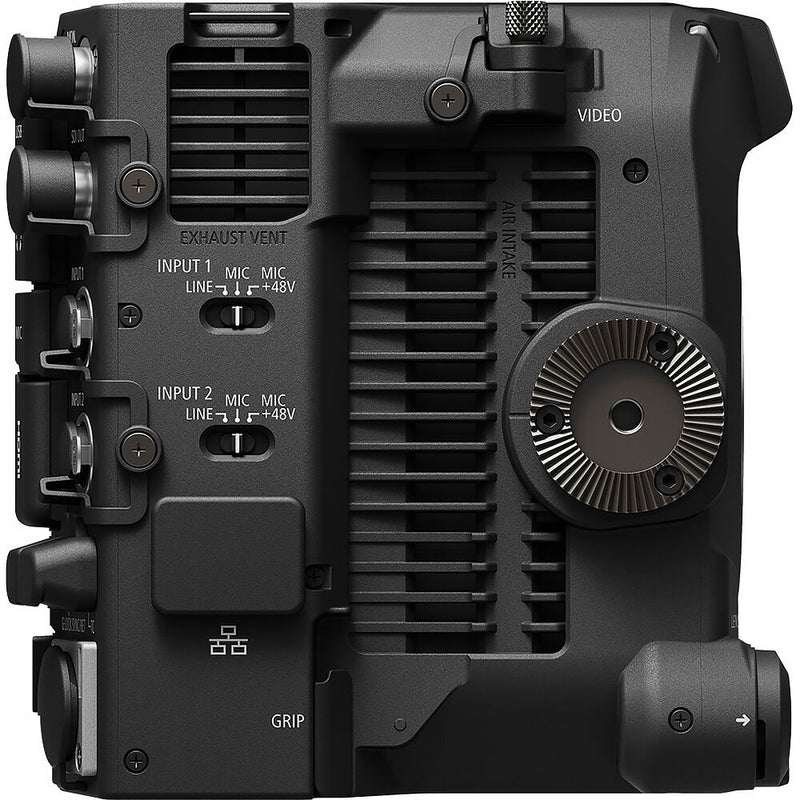

• The versatile C400 incorporates a variety of interfaces that make it suitable for both film- and broadcast-style productions. These ports include 12G-SDI, 3G-SDI, and HDMI video outputs, dual mini-XLR audio inputs, timecode, genlock, and return video DIN connectors, and a 12-pin lens port.
• An automatic clear-scan mode for the shutter detects your light source's frequency, helping to reduce or eliminate the flickering sometimes found in LED walls.

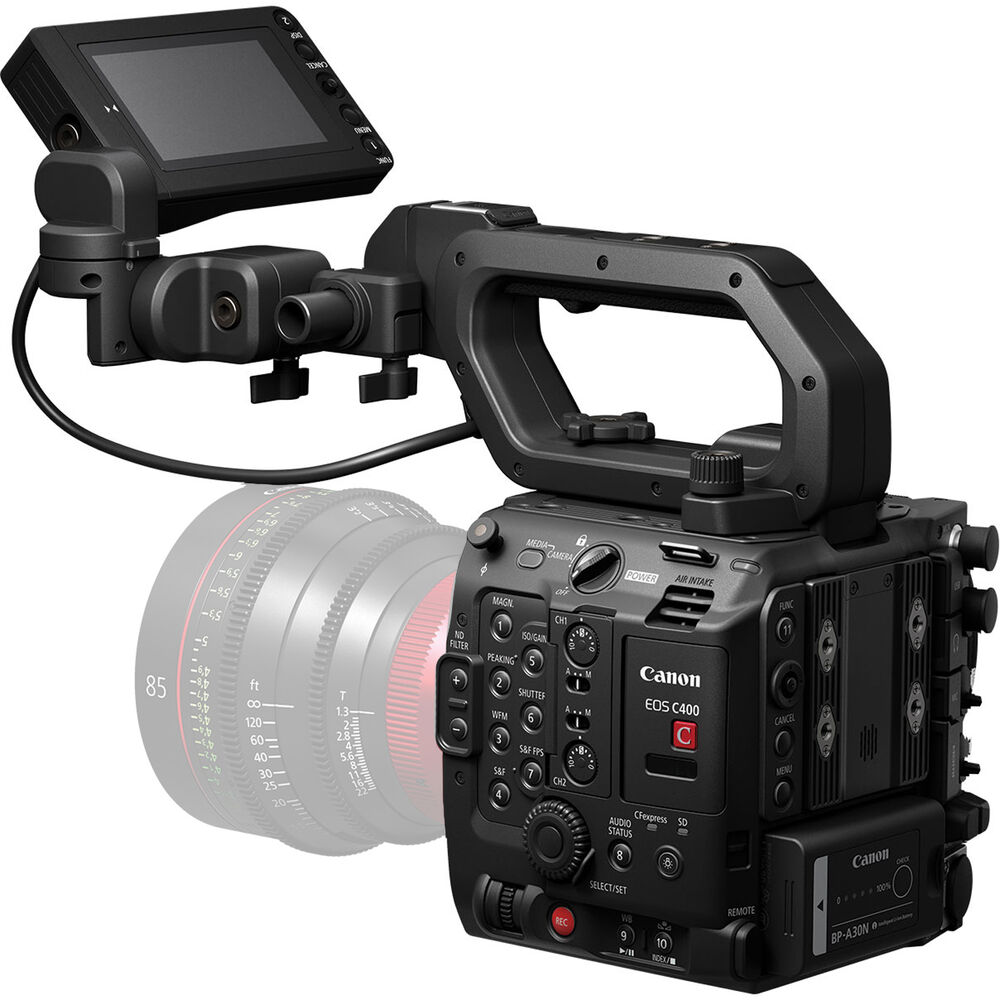

Ergonomic improvements featured by the C400 include a new touchscreen LCD, grip, and battery. The LCD mount has both angle and length adjustments for optimal positioning of the LCD whether you're shooting handheld, shoulder-mounted, or on a tripod. The ergonomic, articulated handgrip features a multifunction shoe, three assignable buttons, and captive screws that won't get lost when you're mounting or detaching the grip.

Use the C400's Ethernet port and Canon's IP-based XC protocol to add RC-IP1000, RC-IP100, or third-party remote-control shading to your broadcast-style shoot. The Canon RCCA (Remote Control Camera Application) is compatible with the C400, enabling control of camera settings and multicamera control. The C400 also offers IP streaming using the SRT protocol.

Canon C400 Specs

Lens Mount	Canon RF
Sensor Resolution	Actual: 26.67 Megapixel (6202 x 4300) Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor	Full-Frame BSI Stacked CMOS
Image Stabilization	Digital, 5-Axis
Internal Recording Modes	Cinema RAW Light 12-Bit UHD 6K (6000 x 3164) up to 60.00 fps [552 to 2130 Mb/s] 4368 x 2304 up to 100 fps [293 to 916 Mb/s] 4096 x 2160 up to 120 fps [258 to 993 Mb/s] 2184 x 1152 up to 180 fps [74 to 574 Mb/s] XF-AVC Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 2160 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [150 to 250 Mb/s] 3840 x 2160 up to 120 fps [150 to 250 Mb/s] 2048 x 1080 up to 180 fps [25 to 50 Mb/s] 1920 x 1080 up to 180 fps [25 to 50 Mb/s] XF-AVC S Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 1080 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC S Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [130 to 250 Mb/s] 3840 x 2160 up to 120 fps [130 to 250 Mb/s] 2048 x 1080 up to 180 fps [50 Mb/s] 1920 x 1080 up to 180 fps [50 Mb/s] XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 up to 180 fps [100 to 150 Mb/s] 3840 x 2160 up to 180 fps [100 to 150 Mb/s] 2048 x 1080 up to 180 fps [35 Mb/s] 1920 x 1080 up to 180 fps [35 Mb/s] XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit 4096 x 2160 up to 120 fps [100 to 225 Mb/s] 3840 x 2160 up to 120 fps [100 to 225 Mb/s] 2048 x 1080 up to 180 fps [35 to 50 Mb/s] 1920 x 1080 up to 180 fps [35 to 50 Mb/s]
External Recording Modes	SDI/BNC DCI 4K (4096 x 2160)
Media/Memory Card Slot	Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC
Video I/O	1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Monitor Output 1x HDMI (Unspecified Signal) Output
Mobile App Compatible	Yes: iOS Only App Name: Canon Multi-Camera Control App Functionality: Adjust Settings, Remote Control, View Live Feed
Battery Type	Canon BP-AN Series

Lens Mount	Canon RF
Lens Communication	Yes, Cooke /i
Sensor Resolution	Actual: 26.67 Megapixel (6202 x 4300) Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor	Full-Frame BSI Stacked CMOS
Image Stabilization	Digital, 5-Axis
Built-In ND Filter	Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
Capture Type	Stills & Video

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/2000 to 1 Second
Shutter Angle	11.25 to 360°
Advertised Dynamic Range	16 Stops
White Balance	Range: 2000 to 15,000K Presets: Set B, Tungsten, Set A, Daylight, AWB

Internal Recording Modes	Cinema RAW Light 12-Bit UHD 6K (6000 x 3164) up to 60.00 fps [552 to 2130 Mb/s] 4368 x 2304 up to 100 fps [293 to 916 Mb/s] 4096 x 2160 up to 120 fps [258 to 993 Mb/s] 2184 x 1152 up to 180 fps [74 to 574 Mb/s] XF-AVC Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 2160 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [150 to 250 Mb/s] 3840 x 2160 up to 120 fps [150 to 250 Mb/s] 2048 x 1080 up to 180 fps [25 to 50 Mb/s] 1920 x 1080 up to 180 fps [25 to 50 Mb/s] XF-AVC S Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 1080 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC S Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [130 to 250 Mb/s] 3840 x 2160 up to 120 fps [130 to 250 Mb/s] 2048 x 1080 up to 180 fps [50 Mb/s] 1920 x 1080 up to 180 fps [50 Mb/s] XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 up to 180 fps [100 to 150 Mb/s] 3840 x 2160 up to 180 fps [100 to 150 Mb/s] 2048 x 1080 up to 180 fps [35 Mb/s] 1920 x 1080 up to 180 fps [35 Mb/s] XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit 4096 x 2160 up to 120 fps [100 to 225 Mb/s] 3840 x 2160 up to 120 fps [100 to 225 Mb/s] 2048 x 1080 up to 180 fps [35 to 50 Mb/s] 1920 x 1080 up to 180 fps [35 to 50 Mb/s]
External Recording Modes	SDI/BNC DCI 4K (4096 x 2160)
Recording Sensor Crop	Crops an Unspecified Amount When Using Super35 Mode Crops an Unspecified Amount When Using Super16 Mode
Fast-/Slow-Motion Support	Yes
Gamma Curve	Canon Log 2, Canon Log 3
Built-In Microphone	No
Audio Recording	Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio
IP Streaming	RTP, RTSP, SRT, UDP 1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)

Media/Memory Card Slot	Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC
Video I/O	1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Monitor Output 1x HDMI (Unspecified Signal) Output
Audio I/O	2x Mini XLR Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x XLR 4-Pin (12VDC) Input
Other I/O	1x USB-C Monitor 1x DIN 1.0/2.3 (Genlock, Return, Sync) 1x DIN 1.0/2.3 (Timecode) 1x RJ45 (XC) Control 1x Hirose 12-Pin (Lens Control)
Wireless
