- EF Mount L-Series Lens/Full-Frame Format
- Constant f/4 Maximum Aperture
- Super UD, UD, and 4 Aspherical Elements
- SWC, Air Sphere, and Fluorine Coatings
- Ring-Type USM Autofocus Motor
- Internal Focus; Full-Time Manual Focus
- Weather-Resistant Design
- Rounded 9-Blade Diaphragm

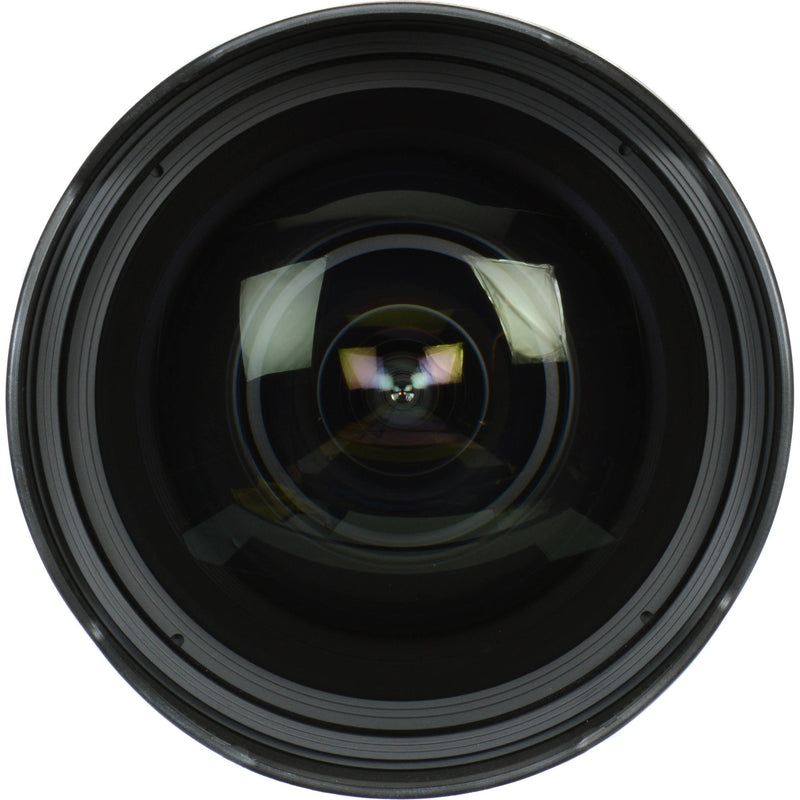

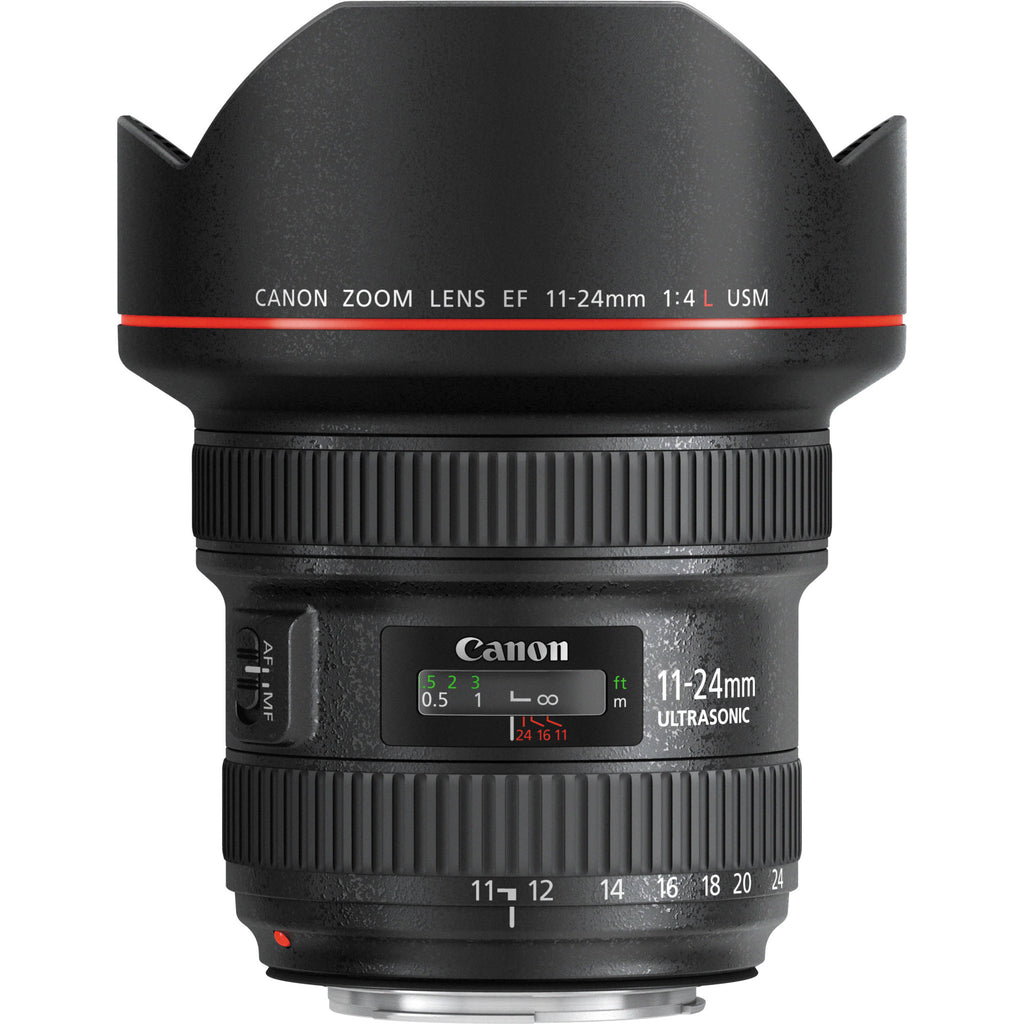

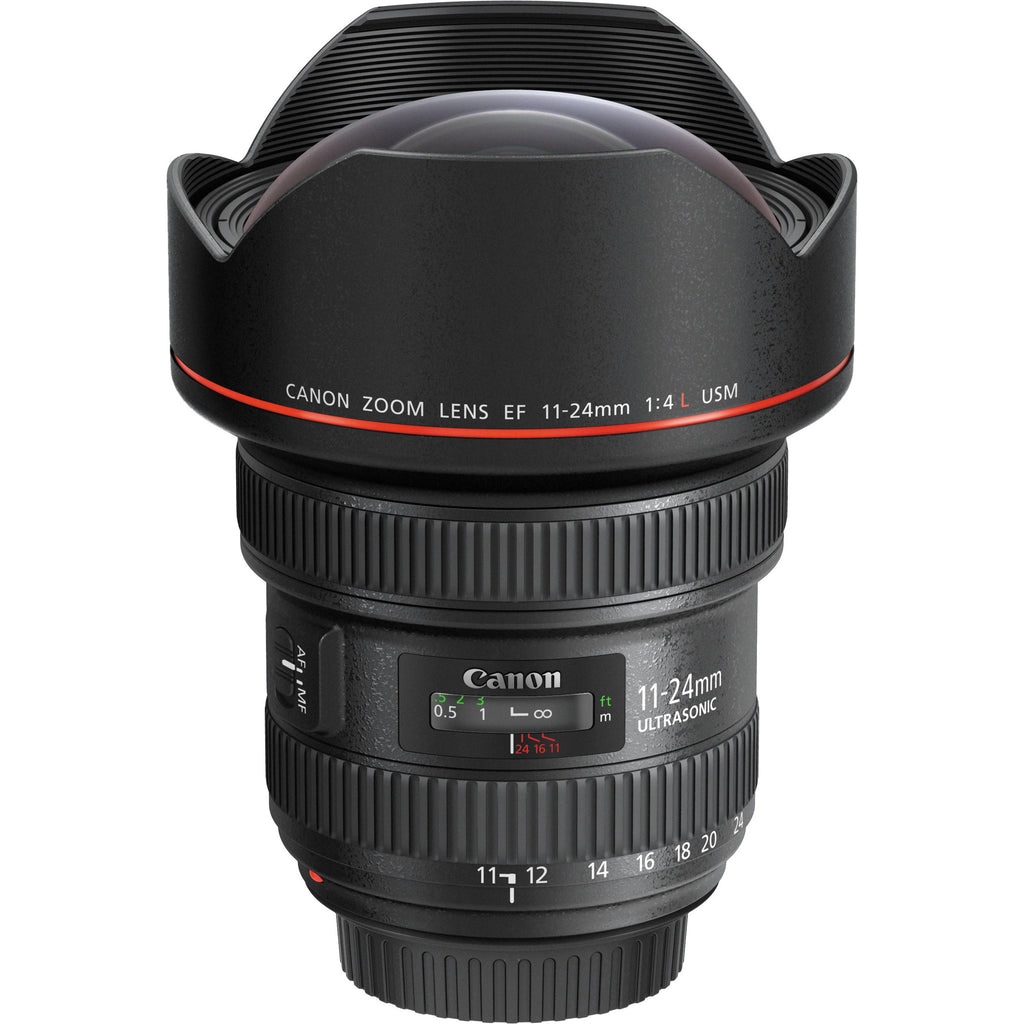

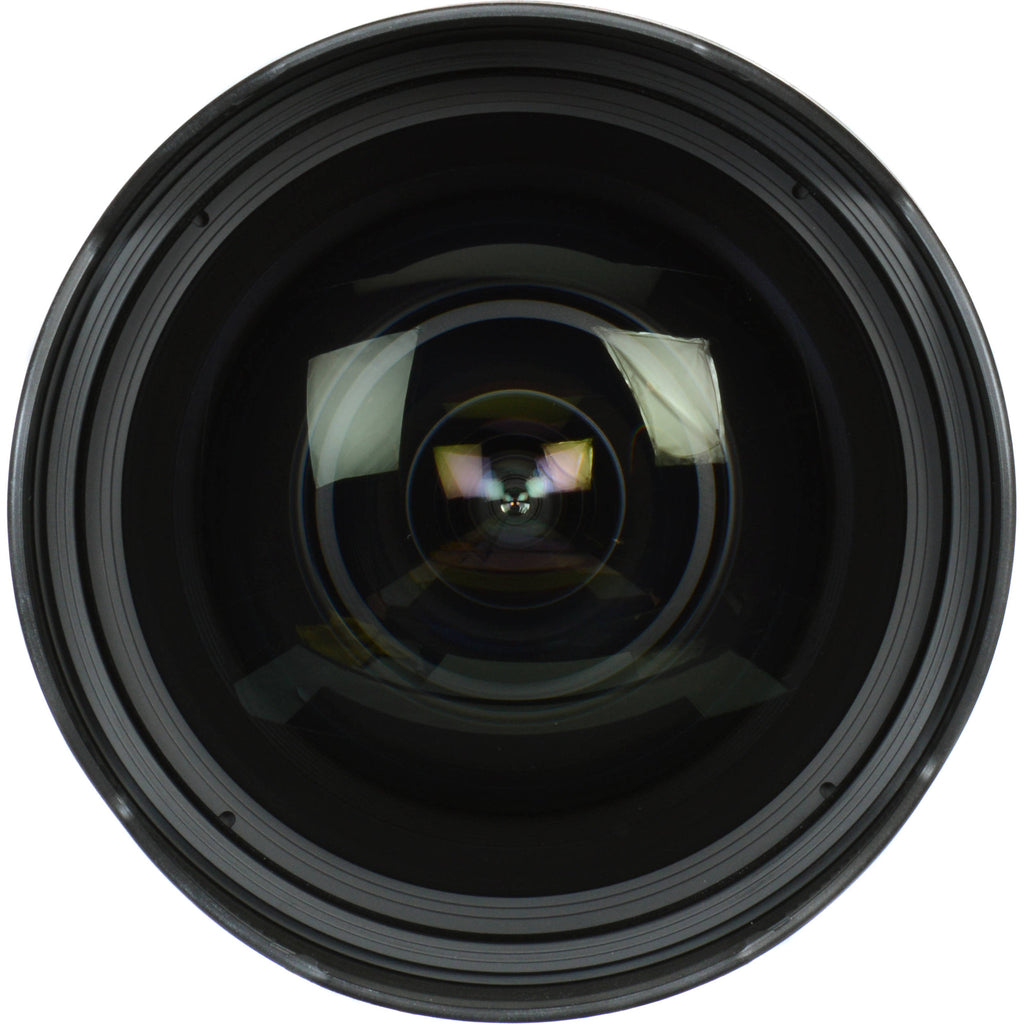

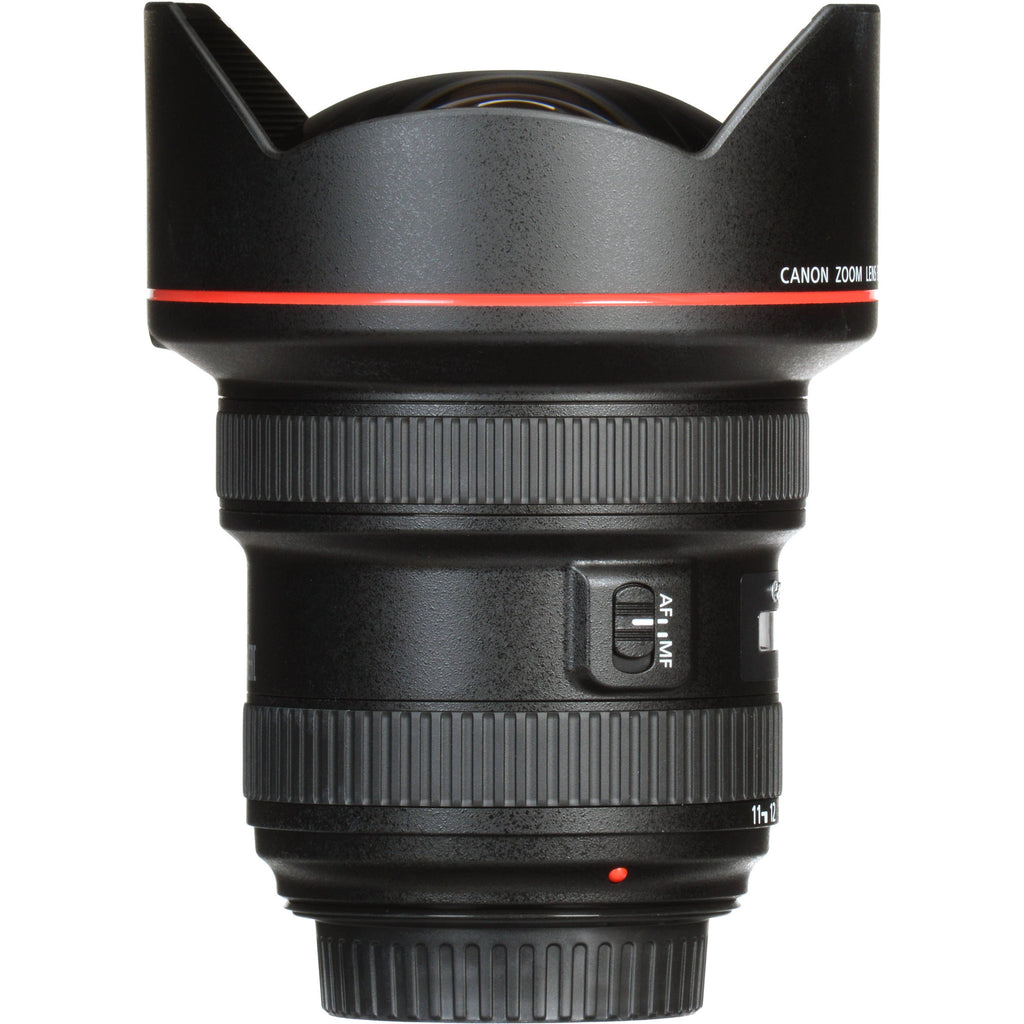

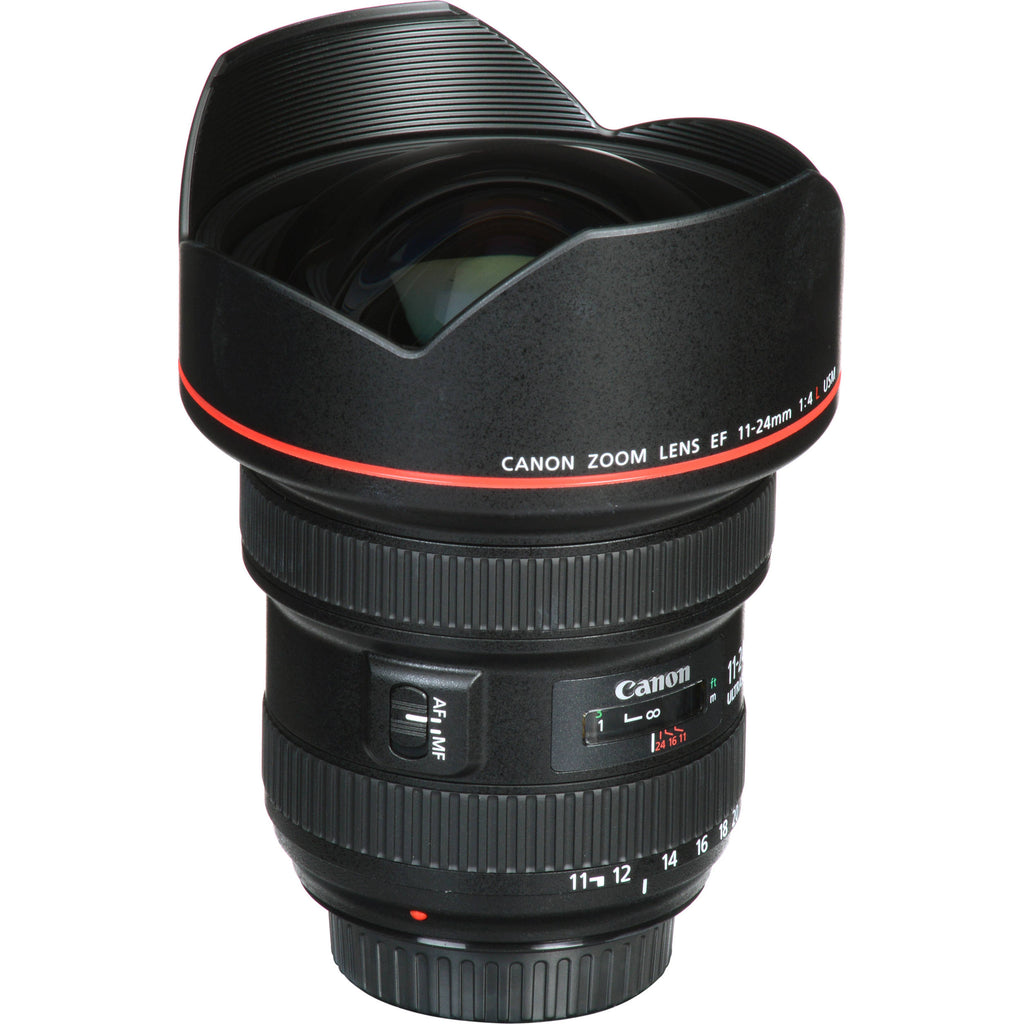

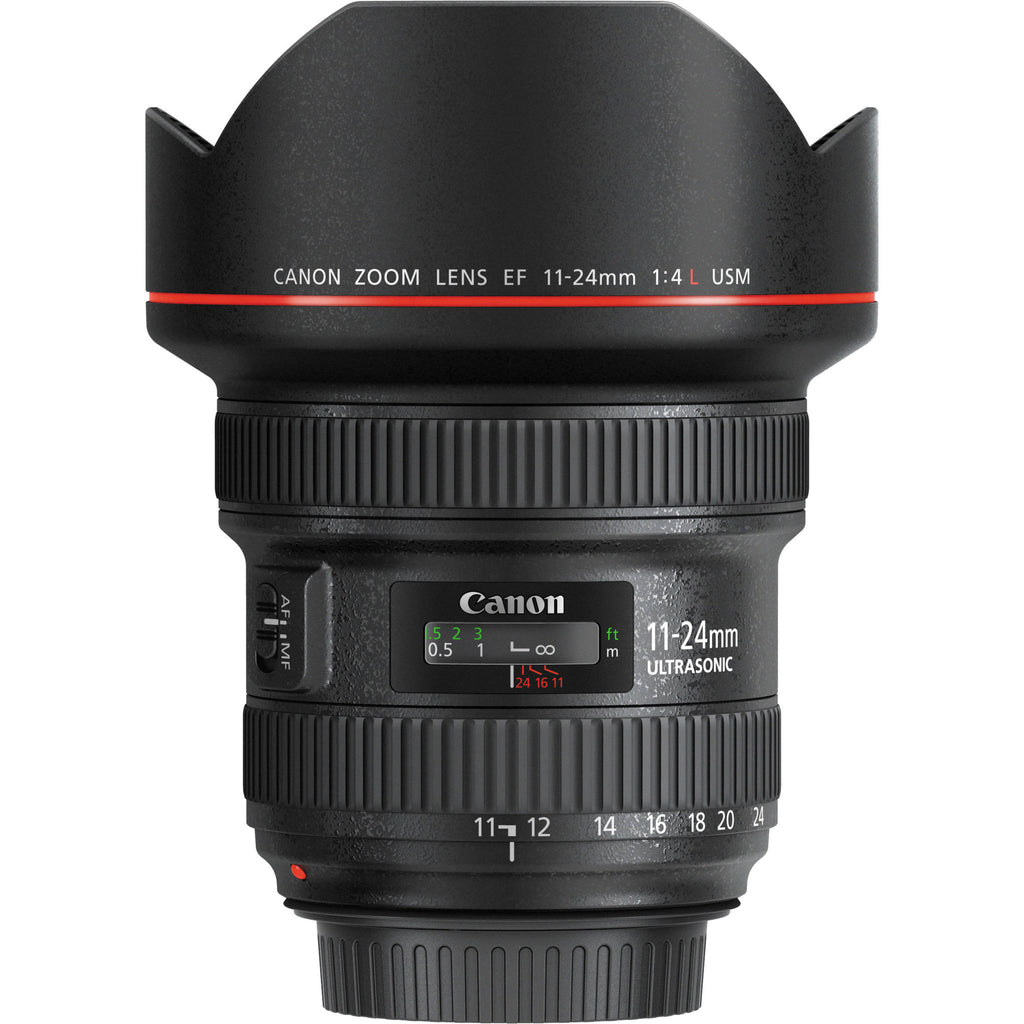

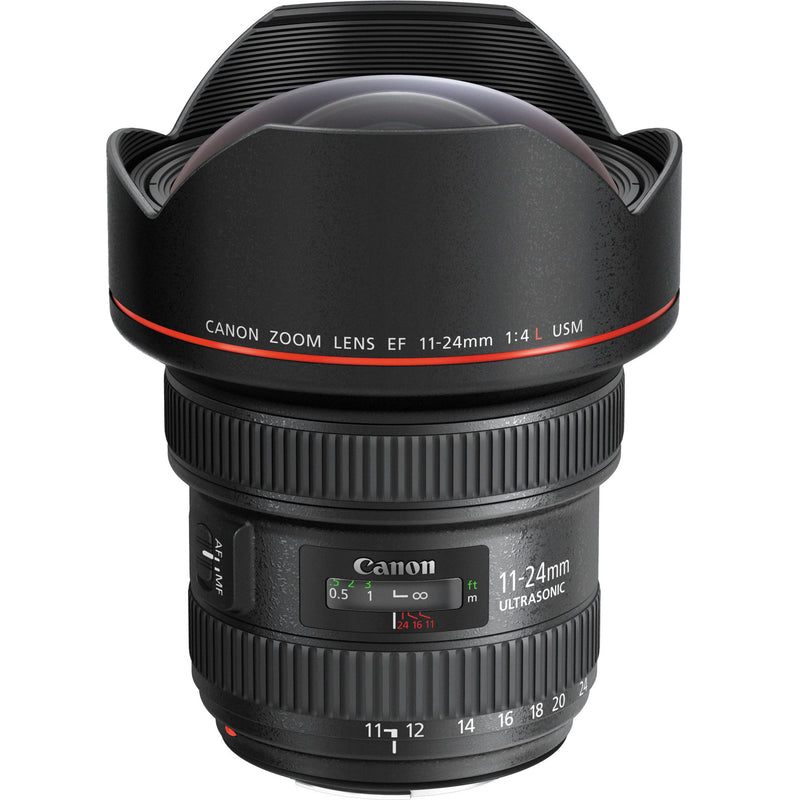

A truly versatile wide-angle zoom featuring an advanced optical design and constant f/4 maximum aperture, the Canon EF 11-24mm f/4L USM Lens is a member of the esteemed L-series of lenses designed for full-frame EOS DSLRs. One Super UD element and one UD element offer a significant reduction in chromatic aberrations while four aspherical elements help to minimize distortions throughout the zoom range and provide consistent edge-to-edge sharpness and illumination. Both SWC and ASC coatings have been applied to the elements in order to reduce lens flare and ghosting for increased contrast and color accuracy. Ideally suited for landscape and architectural photography, this lens covers ultra-wide to wide-angle perspectives and backs up its versatile zoom range with sophisticated optical components and intuitive handling.
In regard to focusing performance, a ring-type Ultrasonic Motor offers fast, smooth, and near-silent autofocus, which is further benefitted by full-time manual focus operation and an internal focusing design. The lens is both water and dust-resistant, and fluorine coatings have also been applied to the front and rear elements to protect against fingerprints and smudges from affecting image quality.
- Wide-angle zoom 11-24mm f/4 lens is compatible with full-frame EOS DSLRs, as well as APS-C-sized sensors where it will provide a 17.6-38.4mm equivalent focal length range.
- Constant f/4 maximum aperture offers consistent performance and light transmission throughout the zoom range.
- One Super UD (Ultra Low Dispersion) and one UD element help to significantly reduce chromatic aberrations for improved clarity and color accuracy.
- Four aspherical elements help to minimize distortions throughout the zoom range in order to maintain edge-to-edge sharpness and illumination.
- Both a Subwavelength Coating (SWC) and an Air Sphere Coating (ASC) have been applied to lens elements to reduce backlit flaring and ghosting for maintained light transmission and high contrast in strong lighting conditions.
- A ring-type Ultrasonic Motor (USM), along with an internal focusing system, high-speed CPU, and optimized AF algorithms, are employed to deliver fast, precise, and near-silent autofocus performance.
- Full-time manual focus operation is available for fine-tuning of your focus position when working in the AF mode.
- A weather-resistant design protects the lens from dust and moisture to enable its use in inclement conditions. Additionally, fluorine coatings have also been applied to the front and rear lens elements for further protection against fingerprints and smudging.
- Nine rounded diaphragm blades contribute to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
- Lens' design accepts rear insert-type gelatin filters, which are cut-to-size and inserted behind the rear lens element.
UPC: 013803240771
| Performance |
| Focal Length | 11 - 24mm |
| Aperture | Maximum: f/4 |
| Camera Mount Type | Canon EF |
| Format Compatibility | 35mm Film / Full-Frame Digital Sensor
Canon (APS-C) |
| Angle of View | 126° 5' - 84° |
| Minimum Focus Distance | 11.02" (28 cm) |
| Elements/Groups | 16/11 |
| Diaphragm Blades | 9, Rounded |
| Physical |
| Filter Thread | Rear: |
| Dimensions (DxL) | Approx. 4.3 x 5.2" (109.22 x 132.08 mm) |
| Weight | 2.6 lb (1.18 kg) |
| Packaging Info |
| Package Weight | 3.7 lb |
| Box Dimensions (LxWxH) | 11.3 x 6.7 x 6.7" |
In the Box
Canon EF 11-24mm f/4L USM Lens
