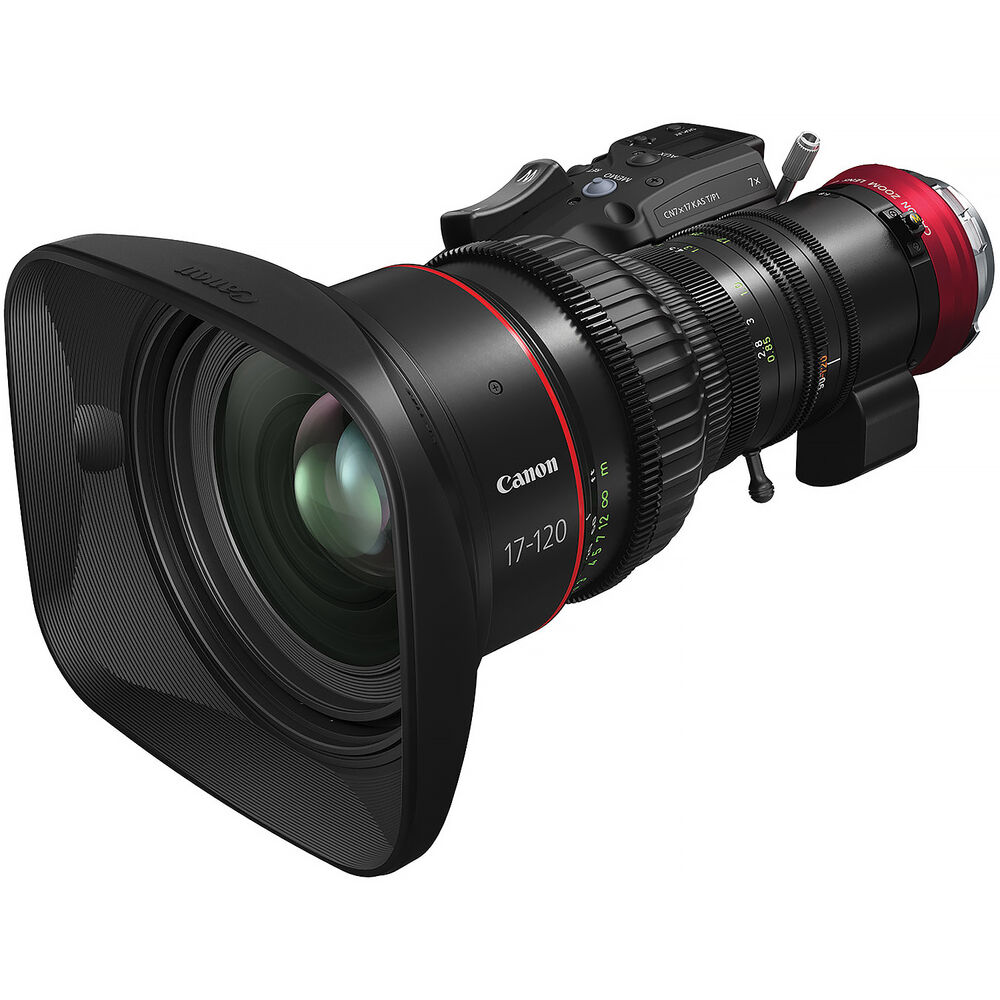

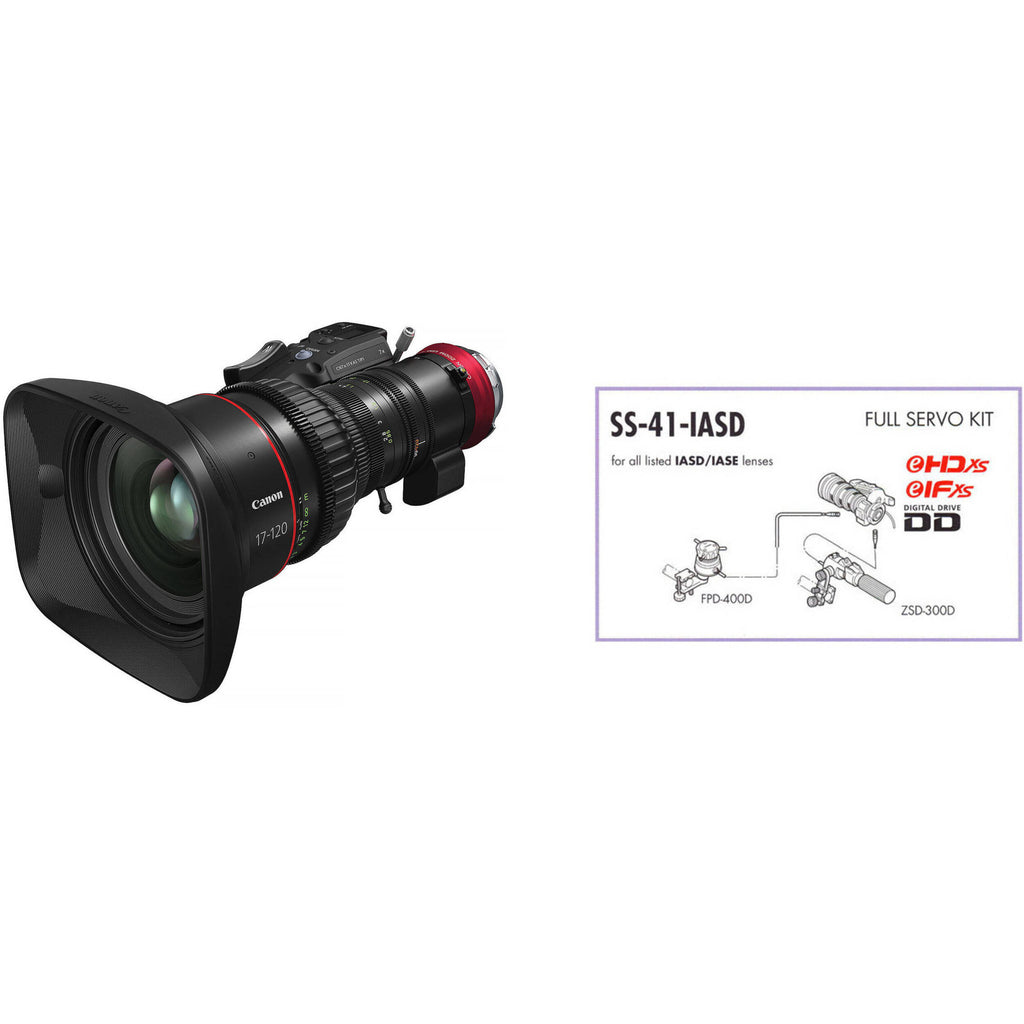

Canon Cine-Servo 17-120mm T2.95-3.9 Zoom Lens with SS-41-IASD Full-Servo Kit (ARRI PL)

The PL-mount Cine-Servo 17-120mm T2.95-3.9 Lens from Canon is designed to combine the functionality and form factor of a broadcast, ENG-style motorized zoom lens with the optical precision of a cinema zoom. The lens is designed with an ARRI PL mount for use on a variety of cinema cameras and covers sensors up to Super35, and it is suitable for 8K/4K acquisition. This PL-mount model also supports Cooke /i technology and passes ZEISS eXtended metadata to the camera.

• Versatile 17-120mm focal length with 7x zoom ratio
• Supports 8K/4K cameras such as EOS C400
• Detachable next-generation eX-s V servo drive unit
• Supports virtual production with ZEISS eXtended data and Cooke /i technology
• 11-blade iris for soft bokeh
• 127mm filter diameter on hood; 112mm diameter on lens
• 114mm front diameter
• Supports ARIA (Automatic Restoration of Illumination Attenuation) with compatible cameras

This servo zoom lens is designed with a consistently warm color balance that reproduces skin tones and works with HDR video. The 11-blade iris offers a natural, circular bokeh from fully open to minimum aperture. The odd number of iris blades produces a soft and diffused light beam when shooting bright subjects.

Canon's optical technology uses large-diameter aspherical lenses and anomalous dispersion glass to deliver optical performance that supports 4K and 8K cameras throughout the zoom range. Aberrations are controlled from edge to edge for clean image performance.

The next-generation servo e-Xs V drive unit on this lens has the same operability and usability as ENG lenses, adding faster focus and iris speed, Focus Breathing Compensation, and a USB-C connector. The USB-C port allows drive unit settings to be saved and loaded into other lenses. Also, users can record and save maintenance history. Three 20-pin connectors below the servo housing allow many Canon and third-party zoom, focus, and iris controllers to be connected. The drive unit can also be detached to be used in manual-style cinema configurations.

The high-resolution, 16-bit absolute-value encoder enables high-precision location detection, making calibration easier when creating virtual content. The 20-pin connector can be switched to a virtual terminal to output zoom, focus, and iris position information.

This PL-mount lens supports ZEISS eXtended Data, which provides distortion and shading data for virtual production with compatible cameras. In addition to RF mount communication, 12-pin serial communication for standard broadcast camera systems is available.

ARIA (Automatic Restoration of Illumination Attenuation) adjusts illumination so that light is more evenly distributed between the wide and the telephoto ends of the lens. The camera-to-lens communication at initialization identifies the lens attached. When zooming, the camera's gain is increased starting at the ramping point. Simultaneously, Peripheral Illumination Correction corrects light fall-off from the center of the frame to the periphery. This correction more evenly distributes light throughout the entire image.

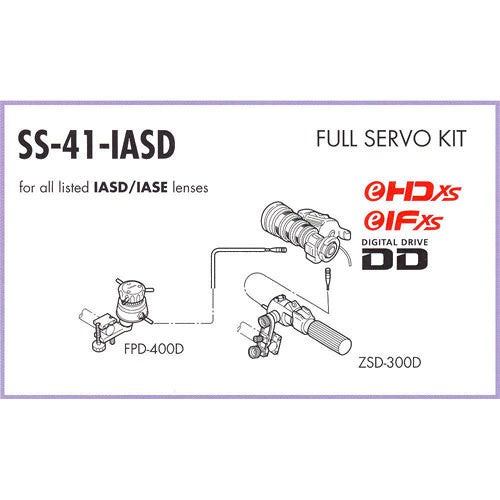

• Lens controller kits.
• A-type broadcast lenses.
• R-type broadcast lenses.

• Direction switch that can be used with both A- and R-type lenses.
• Line/curve selector for both A- and R-type lenses.
• Standard/far focus switch that is compatible only with R-type lenses.

Kit Contains:

Canon Cine-Servo 17-120mm T2.95-3.9 Lens (ARRI PL)

Focal Length	17 to 120mm
Maximum Aperture	T2.95
Lens Mount	ARRI PL
Lens Format Coverage	Super35/APS-C
Filter Thread	112 mm
Image Stabilization	No
Electronic Communication	Yes

Maximum Aperture	T2.95
Minimum Aperture	T3.9
Lens Mount	ARRI PL
Interchangeable Mount	No
Lens Format Coverage	Super35/APS-C
Image Circle	31.4 mm
Angle of View	Super 35 Horizontal: 71.8 to 44.2°
Focus Scales	Metric, Imperial
Filter Thread	112 mm
Zoom Ratio	7x (Servo)
Minimum Focus Distance	From Unspecified Point in Lens: 2.8' / 0.85 m
Maximum Magnification Ratio	Not Specified by Manufacturer
Diaphragm Blades	11
Image Stabilization	No
Gear Standard	Not Specified by Manufacturer
Gear Rotation	Not Specified by Manufacturer
Electronic Communication	Yes
Camera Connection	3 x Hirose 20-Pin (Canon Lens) Control 1 x USB-C Data
Coating	No
Environmental Resistance	No
Dimensions (W x H)	6.9 x 4.9" / 174.1 x 125 mm
Length	10" / 254.9 mm
Weight	6.7 lb / 3.04 kg

Package Weight	13.26 lb
Box Dimensions (LxWxH)	21.1 x 13.5 x 13.2"
